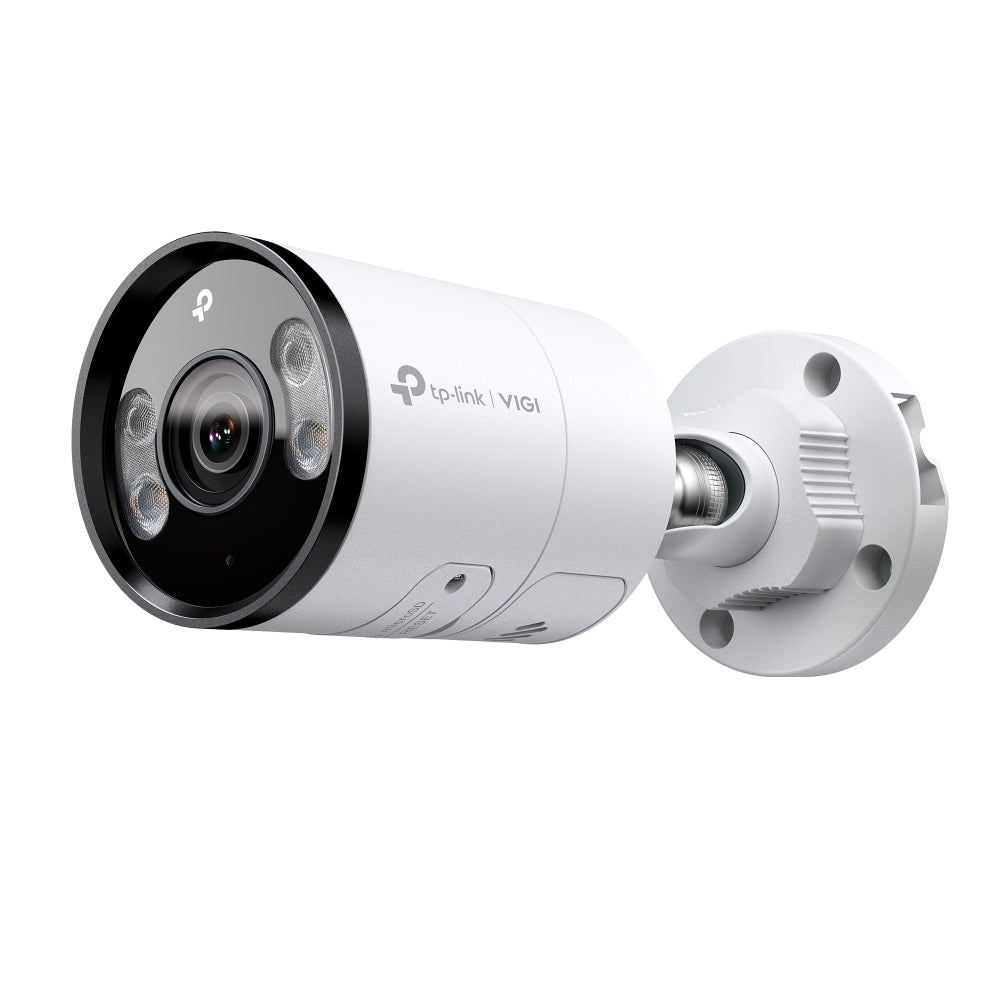

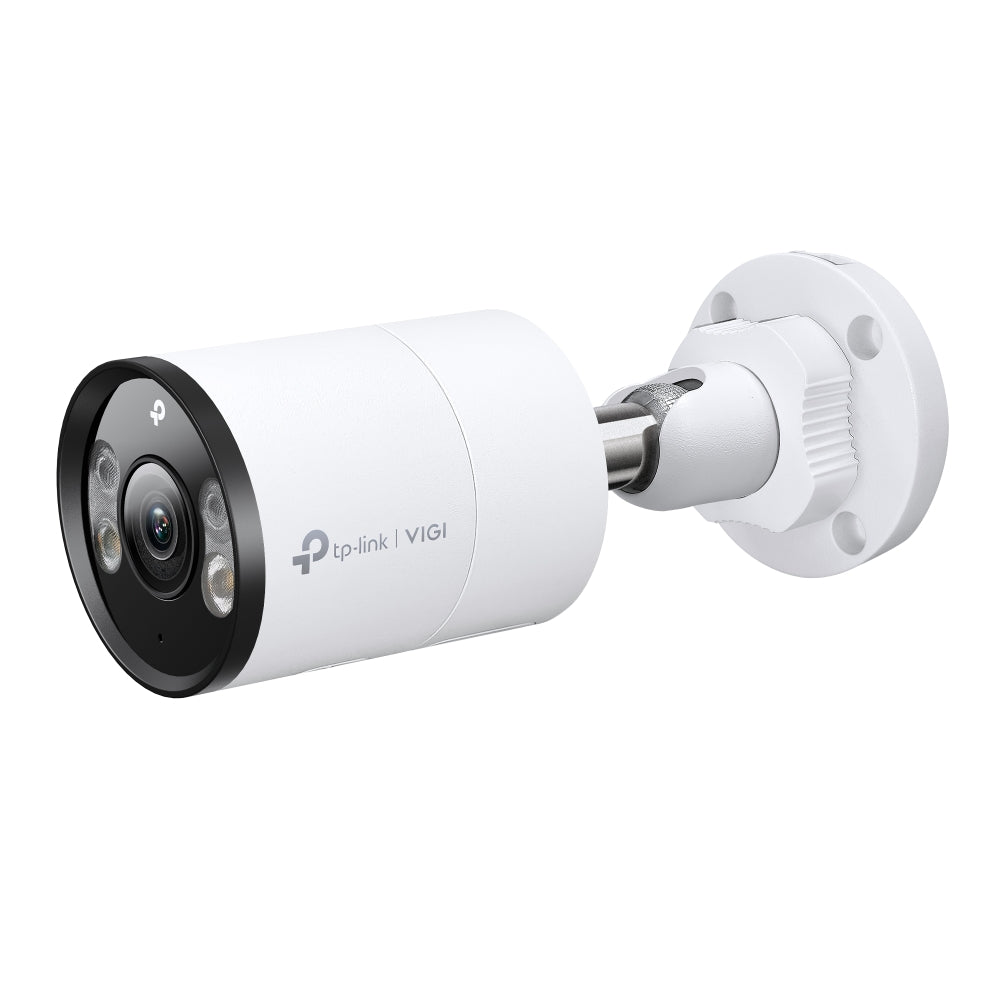

TP-Link VIGI C385 8MP 4K Ultra HD Outdoor Full-Color Bullet Network Wired CCTV Camera | 2-Way Audio | Smart IR | Waterproof IP67 | Smart Detection

Description

• 4K (8MP) Ultra HD and 24h Full-Color
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology
• 12V DC/PoE

Specifications

CAMERA

• Image Sensor : 1/2.7” Progressive Scan CMOS
• Shutter Speed : 1/3 to 1/10000 s
• Slow Shutter : Yes
• Minimum Illumination : 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism : IR Cut Filter
• Day/Night Switch : Unified/ Scheduled/ Auto

LENS

• Type : Fixed Focal Lens
• Focal Length : 2.8 mm/4 mm
• Aperture : 2.8 mm: F1.6 | 4 mm: F1.6
• FOV : 2.8mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° | 4mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°
• Lens Mount : M12*P 0.5

DORI Distance

2.8 mm

• Detect: 85 m (278 ft)
• Observe: 35 m (116 ft)
• Recognize: 17 m (56 ft)
• Identify: 8 m (28 ft)

4 mm

• Detect: 107 m (350 ft)
• Observe: 44 m (146 ft)
• Recognize: 21 m (70 ft)
• Identify: 11 m (35 ft)

ANGLE ADJUSTMENT (MANUAL)

• Range - Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

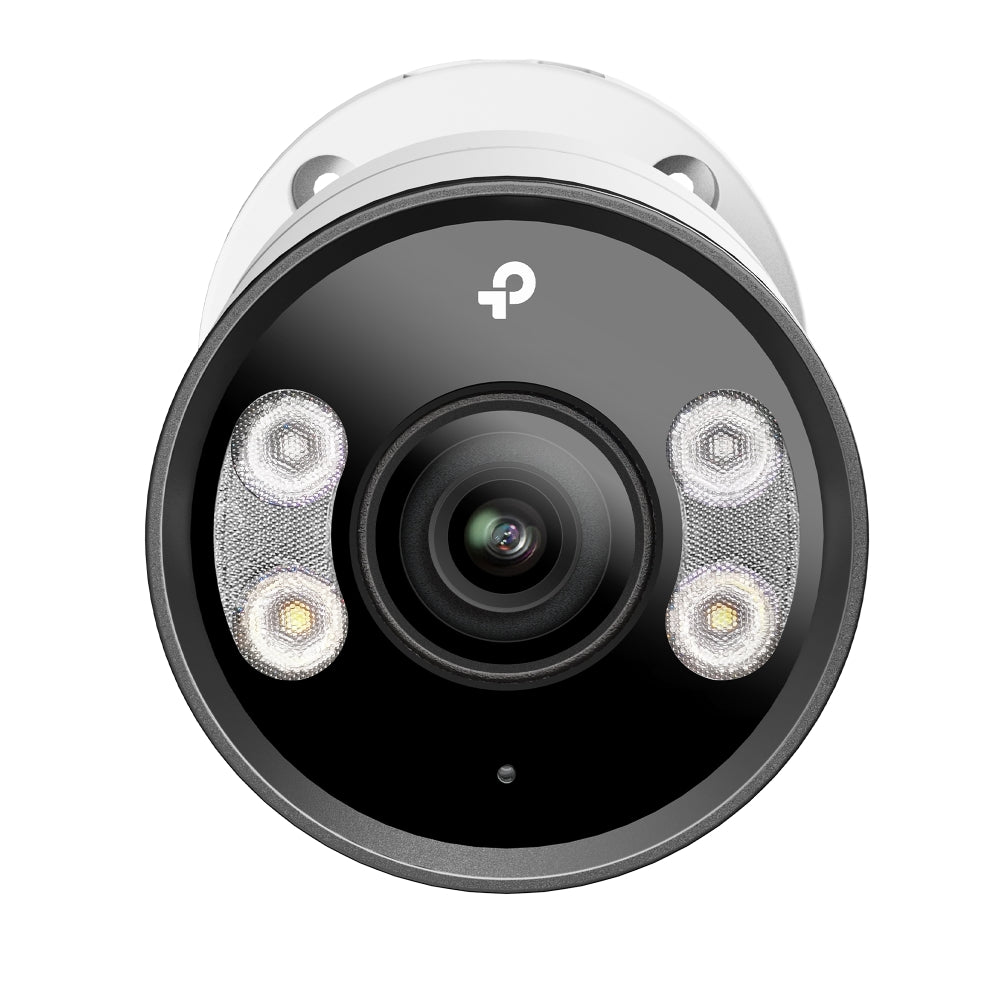

ILLUMINATOR

• IR LED - Quantity: 2, Range: 30m, Wavelength: 850nm
• White LED - Quantity: 2, Range: 30m
• Illuminator On/Off Control : Auto/Scheduled/Always on/Always off


VIDEO

• Max. Resolution : 3840 X 2160
• Main Stream - Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps.

• Sub-Stream - Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 704x576,640x480, 352x288, 320x240

  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps.

• Bit Rate Control : CBR, VBR
• Video Compression - Main Stream: H.265+/H.265/H.264+/H.264
  Sb-Stream: H.265/H.264

AUDIO

• Audio Communication : Two-Way Audio
• Audio Input : Yes
• Audio Output : Yes
• Audio Compression : Yes
• Audio Sampling Rate : 8KHz
• Environment Noise Filtering : Yes
• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK

• Protocol : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF : Yes
• API : Open Network Video Interface (Profile S)
• Simultaneous Live View : 3 Main Streams & 3 Sub-Streams
• Client : VIGI App, VIGI Security Manager, Web UI
• Web Browser : Google Chrome® 57 and above
  Firefox® 52 and above, Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud : Yes
• Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

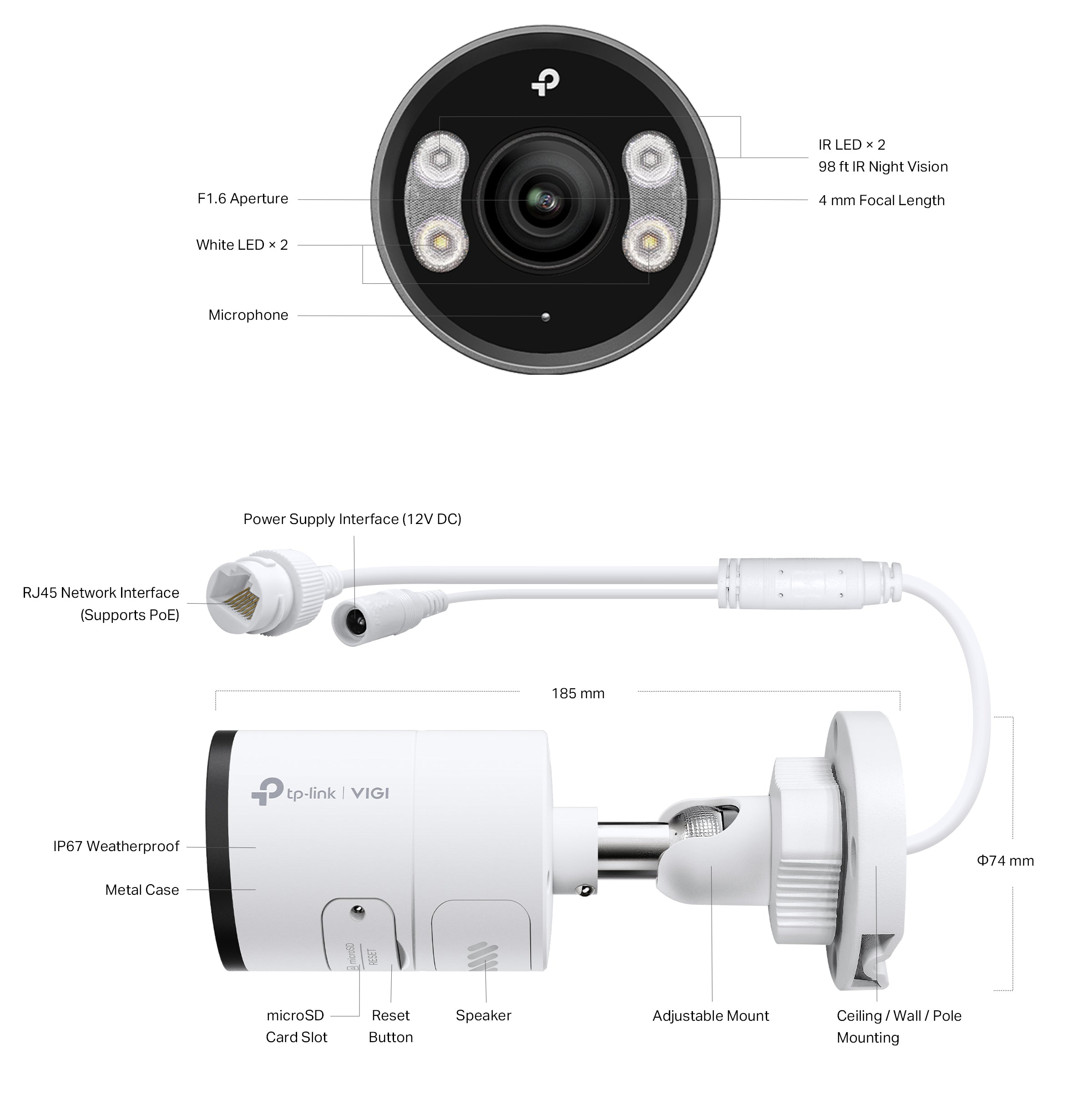

INTERFACES

• Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm : N/A
• Reset Button : Yes
• Power : DC Power Port
• On-board Storage : Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
• Built-in Microphone : Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker : Yes
• Audio : N/A

GENERAL

• Operating Temperature : -30–60 °C
• Storage Temperature : -40–60 °C
• Operating Humidity : 95% or Less (Non-Condensing)
• Storage Humidity : 95% or Less (Non-Condensing)
• Material : Metal
• Net Weight : 0.525 Kg | Gross Weight : 0.7 Kg
• Power Supply : 12V DC ± 5%, Max. 10.5 W, 5.5mm Coaxial Power Plug | PoE: 802.3af/at, class 0, Max. 11.5 W
• Protection : IP67
• Product Dimensions (L x W x H) : 74 × 184 × 74 mm
• Certifications : CE, NTRA, VCCI, KC, BSMI, FCC, IC

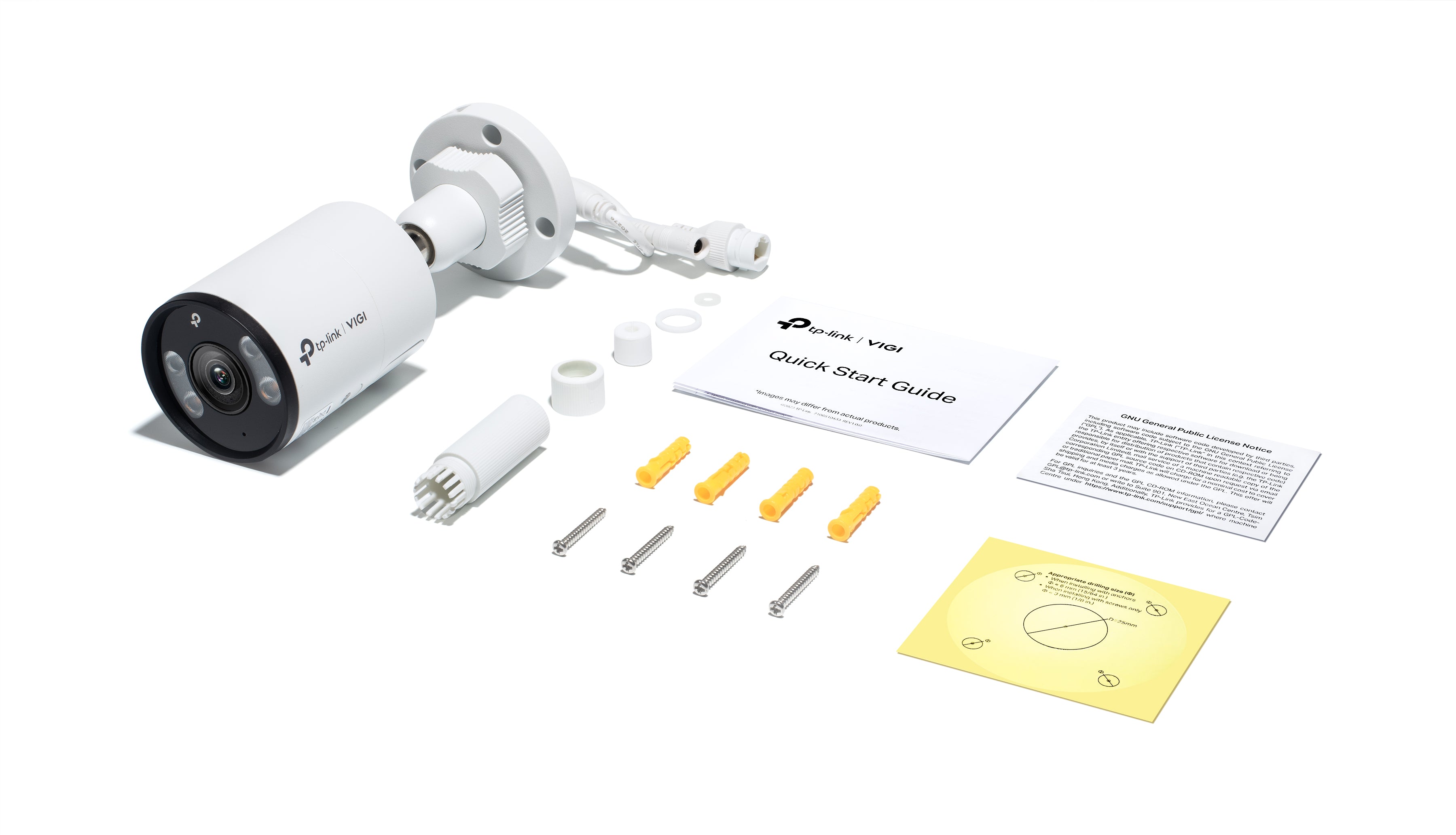

Package Contents

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured by :TP-Link Corporation Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By :TP-Link India Pvt Ltd, Palghar, Maharashtra
• Country Of Origin :China
