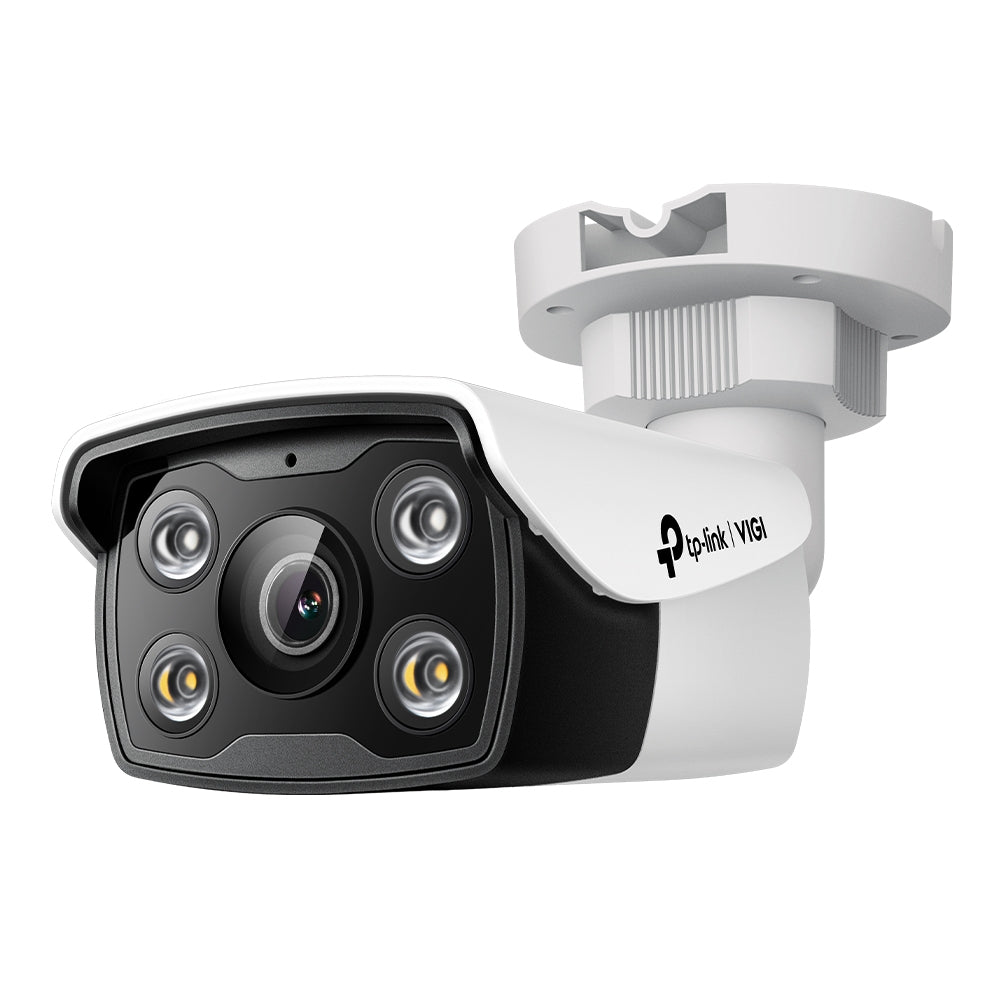

TP-Link VIGI C350 5MP HD Outdoor Full-Color Bullet Network Wired CCTV Camera | 2-Way Audio | Smart IR | Waterproof IP66 | H.265+ | Smart Detection

Description

• 5MP Super-High Definition: The camera comes with 5MP–more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• IP67 Waterproof: Reliable IP67 for stable outdoor performance.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• Flexible Management and Storage: Four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local onboard storage with SD card slot (up to 256 GB).

Specifications

CAMERA

• Image Sensor : 1/2.7” Progressive Scan CMOS
• Shutter Speed : 1/3 to 1/10000 s
• Slow Shutter : Yes
• Minimum Illumination : 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism : IR Cut Filter
• Day/Night Switch : Unified/ Scheduled/ Auto

LENS

• Type : Fixed Focal Lens
• Focal Length : 2.8 mm/4 mm/6 mm
• Aperture : 2.8 mm: F1.6 | 4 mm: F1.6 | 6 mm: F1.6
• FOV : 2.8mm: Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128° | 4mm: Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107° | 6mm: Horizontal FOV: 56°, Vertical FOV: 30.5°, Diagonal FOV: 66°
• Lens Mount : M12*P 0.5

DORI Distance

2.8 mm

• Detect: 63 m (206 ft)
• Observe: 26 m (85 ft)
• Recognize: 12 m (39 ft)
• Identify: 6 m (19 ft)

4 mm

• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)

6 mm

• Detect: 120 m (393 ft)
• Observe: 50 m (164 ft)
• Recognize: 24 m (78 ft)
• Identify: 12 m (39 ft)

ANGLE ADJUSTMENT (MANUAL)

• Range - Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR

• IR LED - Quantity: 2, Range: 30m, Wavelength: 850nm
• White LED - Quantity: 2, Range: 30m
• Illuminator On/Off Control : Auto/Scheduled/Always on/Always off


VIDEO

• Max. Resolution : 2880 X 1620
• Main Stream - Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720

• Sub-Stream - Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 704x576,640x480, 352x288, 320x240
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Bit Rate Control : CBR, VBR
• Video Compression - Main Stream: H.265+/H.265/H.264+/H.264
  Sb-Stream: H.265/H.264

AUDIO

• Audio Communication : Two-Way Audio
• Audio Input : Yes
• Audio Output : Yes
• Audio Compression : Yes
• Audio Sampling Rate : 8KHz
• Environment Noise Filtering : Yes
• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK

• Protocol : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF : Yes
• API : Open Network Video Interface (Profile S)
• Simultaneous Live View : 3 Main Streams & 3 Sub-Streams
• Client : VIGI App, VIGI Security Manager, Web UI
• Web Browser : Google Chrome® 57 and above
  Firefox® 52 and above, Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud : Yes
• Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

INTERFACES

• Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm : N/A
• Reset Button : Yes
• Power : DC Power Port
• On-board Storage : Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
• Built-in Microphone : Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker : Yes
• Audio : N/A

GENERAL

• Operating Temperature : -30–60 °C

• Operating Humidity : 95% or Less (Non-Condensing)

• Material : Plastic
• Net Weight : 0.32 Kg | Gross Weight 0.49 Kg
• Power Supply : 12V DC ± 5%, Max. 9 W, 5.5mm Coaxial Power Plug | PoE: 802.3af/at, class 0, Max. 10.5 W
• Protection : IP67
• Product Dimensions (L x W x H) : 78.42× 186.88× 71.55 mm
• Certifications : CE, NTRA, VCCI, KC, BSMI, FCC, IC

Package Contents

• VIGI Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured by :TP-Link Corporation Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By :TP-Link India Pvt Ltd, Palghar, MH
• Country Of Origin :China
