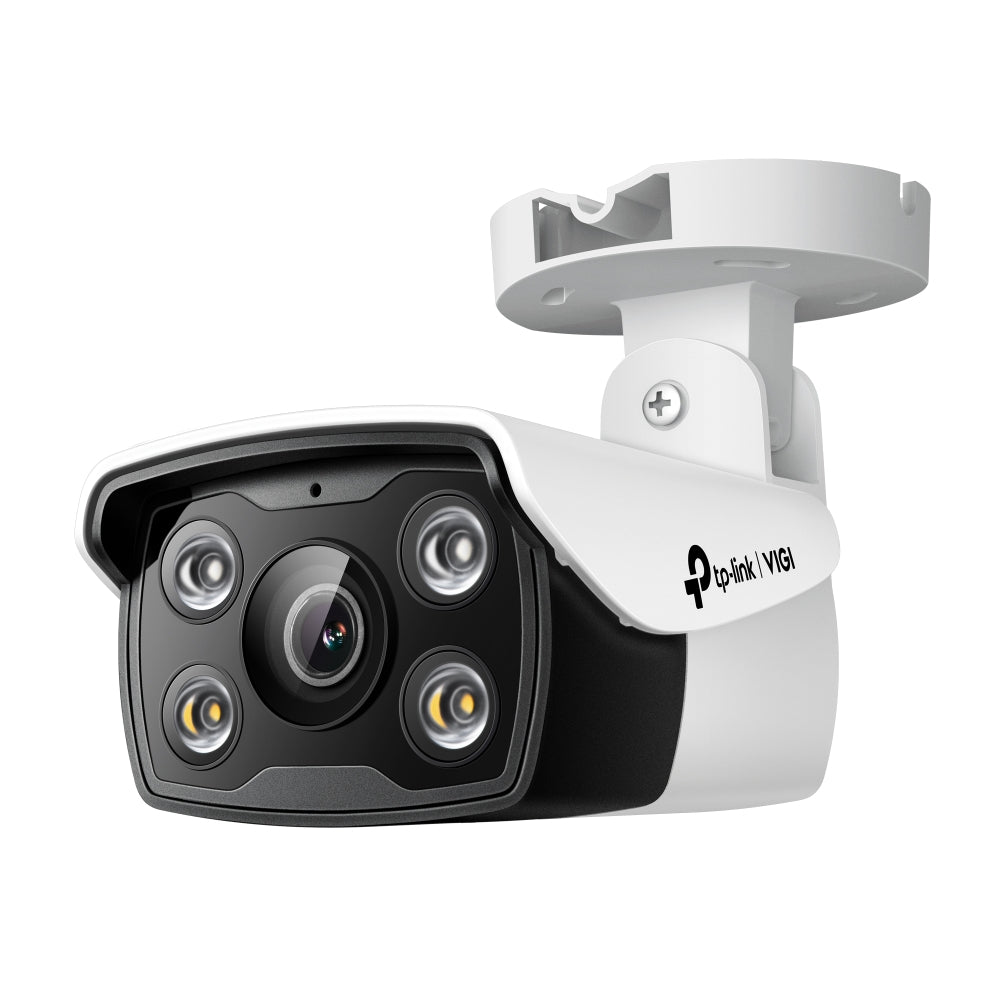

TP-Link VIGI C340 4MP Super High Definition Outdoor Full-Color Bullet Network Wired CCTV Camera | 2-Way Audio | Smart IR | Waterproof, Smart Detection

Description

• 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.

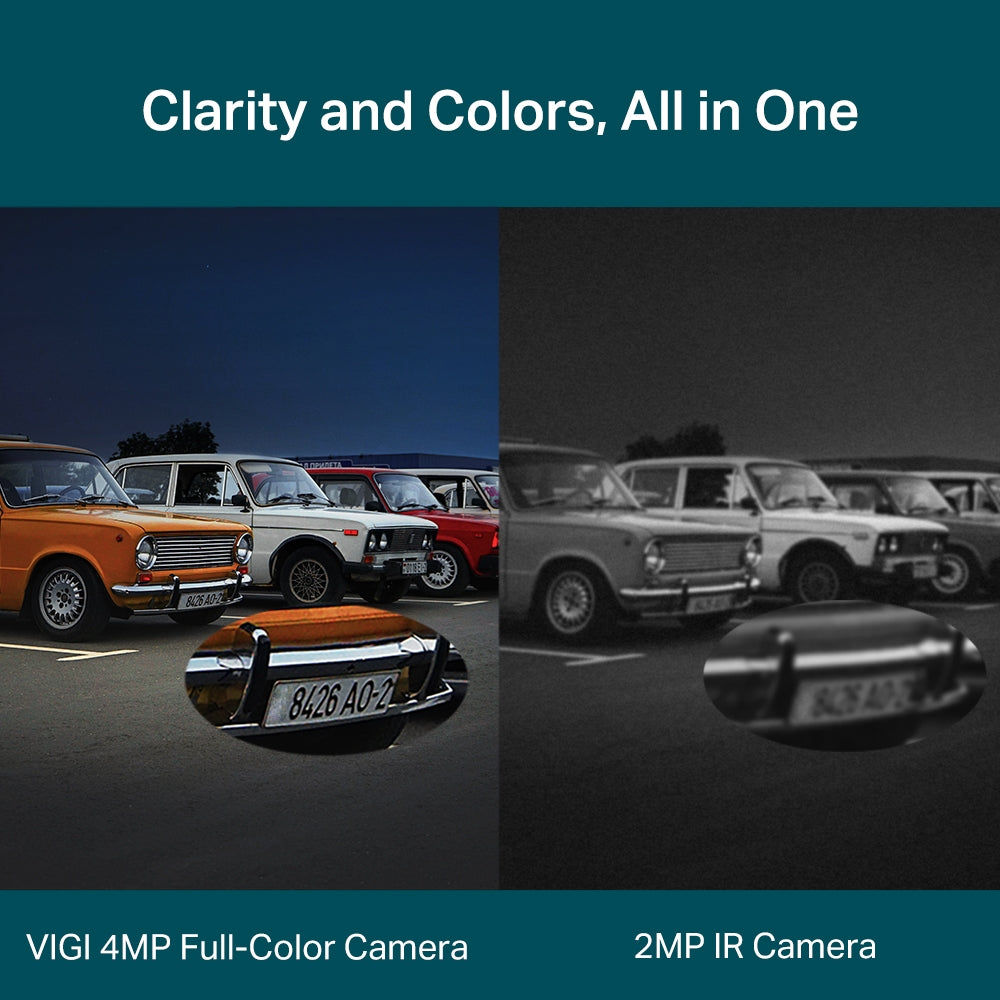

• 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

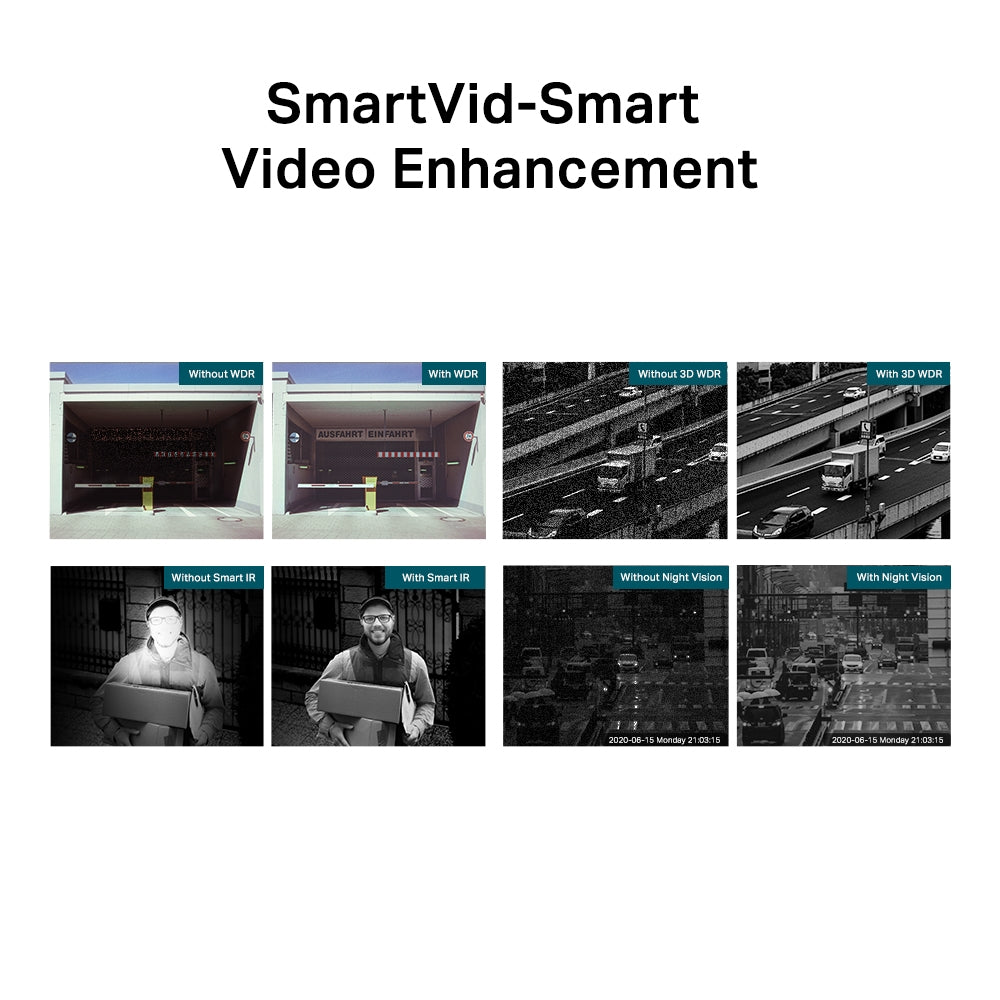

• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• IP67 Waterproof: Reliable IP67 for stable outdoor performance.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 512 GB).

Specifications

CAMERA

• Image Sensor : 1/3” Progressive Scan CMOS
• Shutter Speed : 1/3 to 1/10000 s
• Slow Shutter : Yes
• Minimum Illumination : 0 lux with IR/white Light
• Day/Night Mechanism : IR Cut Filter
• Day/Night Switch : Unified/ Scheduled/ Auto

LENS

• Type : Fixed Focal Lens
• Focal Length : 2.8 mm/4 mm/6 mm
• Aperture : 2.8 mm: F1.6 | 4 mm: F1.6 | 6 mm: F1.6
• FOV : 2.8mm: Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6° | 4mm: Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2° | 6mm: Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°
• Lens Mount : M12

DORI Distance

2.8 mm

• Detect: 64 m (209 ft)
• Observe: 27 m (87 ft)
• Recognize: 13 m (42 ft)
• Identify: 6 m (21 ft)

4 mm

• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)

6 mm

• Detect: 128 m (420 ft)
• Observe: 53 m (175 ft)
• Recognize: 26 m (84 ft)
• Identify: 13 m (42 ft)

ANGLE ADJUSTMENT (MANUAL)

• Range - Pan: -90° to 90°, Tilt: -90° to 90°

ILLUMINATOR

• IR LED - Quantity: 2, Range: 30m, Wavelength: 850nm
• White LED - Quantity: 2, Range: 30m
• Illuminator On/Off Control : Auto/Scheduled/Always on/Always off


VIDEO

• Max. Resolution : 2560 X 1440
• Main Stream - Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

• Sub-Stream - Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 640x480, 352x288, 320x240
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Bit Rate Control : CBR, VBR
• Video Compression - Main Stream: .265+/H.265/H.264+/H.264
  Sb-Stream: H.265/H.264

AUDIO

• Audio Communication : Two-Way Audio
• Audio Input : Yes
• Audio Output : Yes
• Audio Compression : Yes
• Audio Sampling Rate : 8KHz
• Environment Noise Filtering : Yes
• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK

• Protocol : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF : Yes
• API : Open Network Video Interface (Profile S)
• Simultaneous Live View : 3 Main Streams & 3 Sub-Streams
• Client : VIGI App, VIGI Security Manager, Web UI
• Web Browser : Google Chrome® 57 and above
  Firefox® 52 and above, Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud : Yes
• Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

INTERFACES

• Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm : N/A
• Reset Button : Yes
• Power : DC Power Port
• On-board Storage : Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
• Built-in Microphone : Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker : Yes
• Audio : N/A

GENERAL

• Operating Temperature : -30–60 °C

• Operating Humidity : 95% or Less (Non-Condensing)

• Material : Plastic
• Net Weight : 0.28 Kg | Gross Weight 0.42 Kg
• Power Supply : 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug | PoE: 802.3af/at, class 0, Max. 8 W
• Protection : IP67
• Product Dimensions (L x W x H) : 78× 174 × 70 mm
• Certifications : CE, NTRA, VCCI, KC, BSMI, FCC, IC

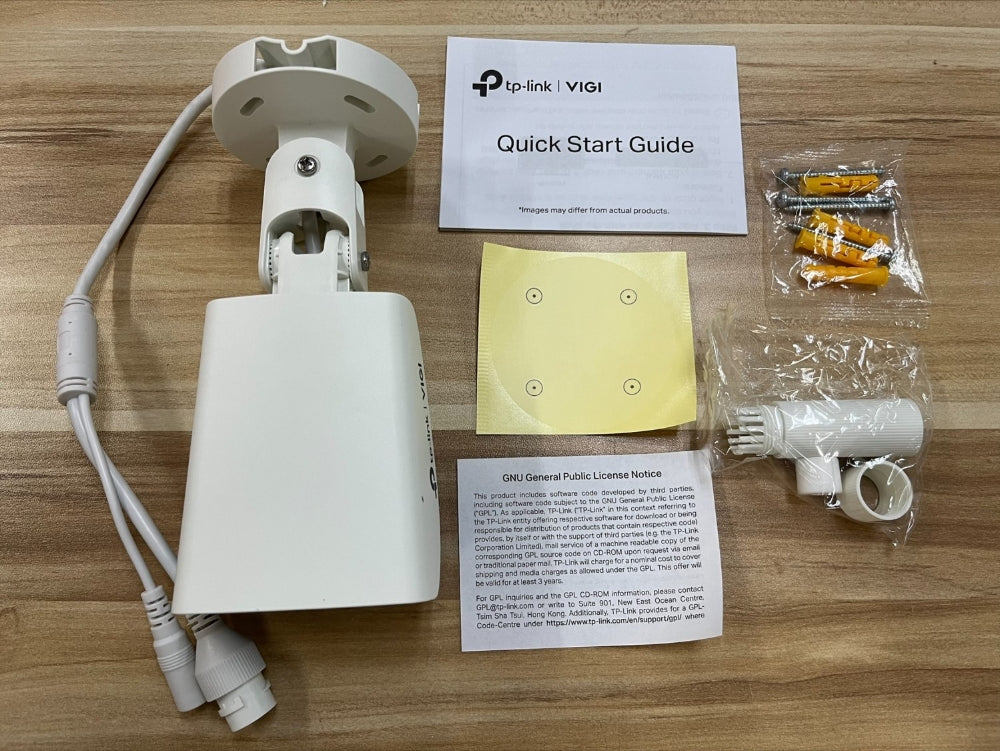

Package Contents

• VIGI Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured by :TP-Link Corporation Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By :TP-Link India Pvt Ltd, Palghar, MH
• Country Of Origin :China
