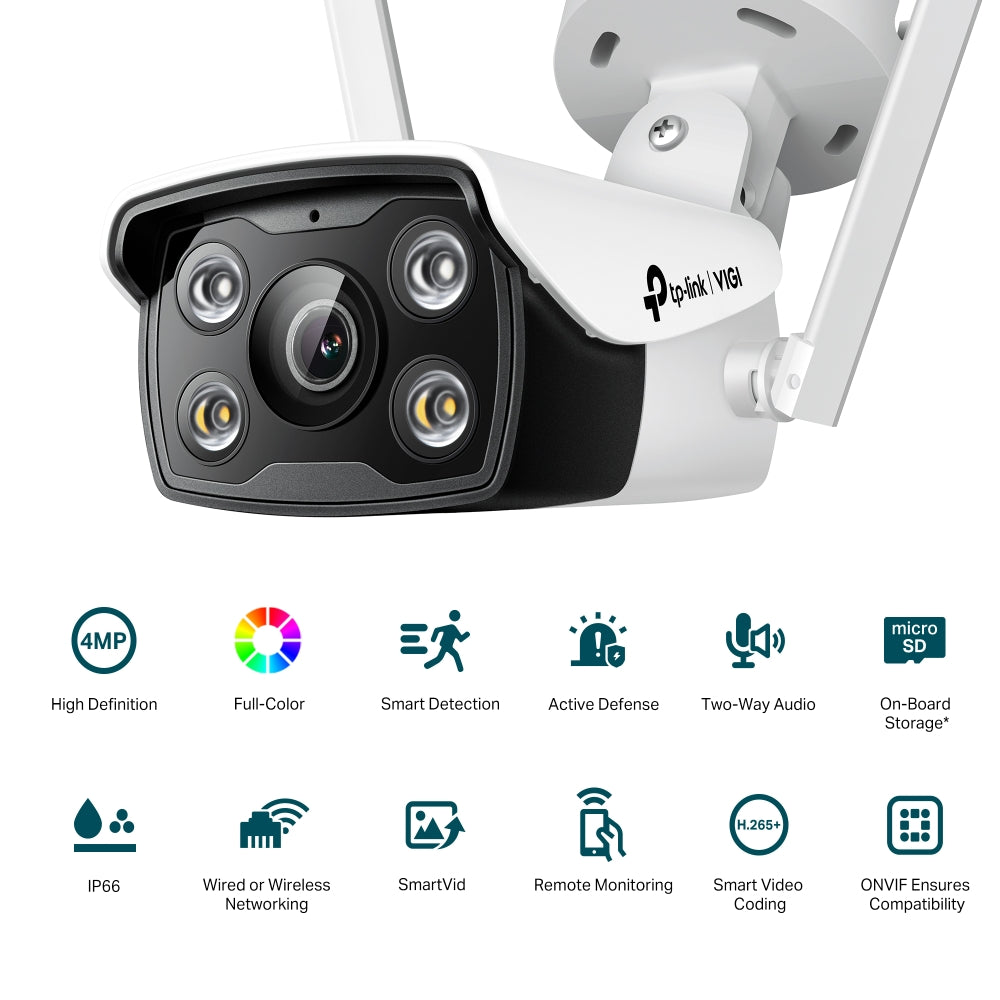

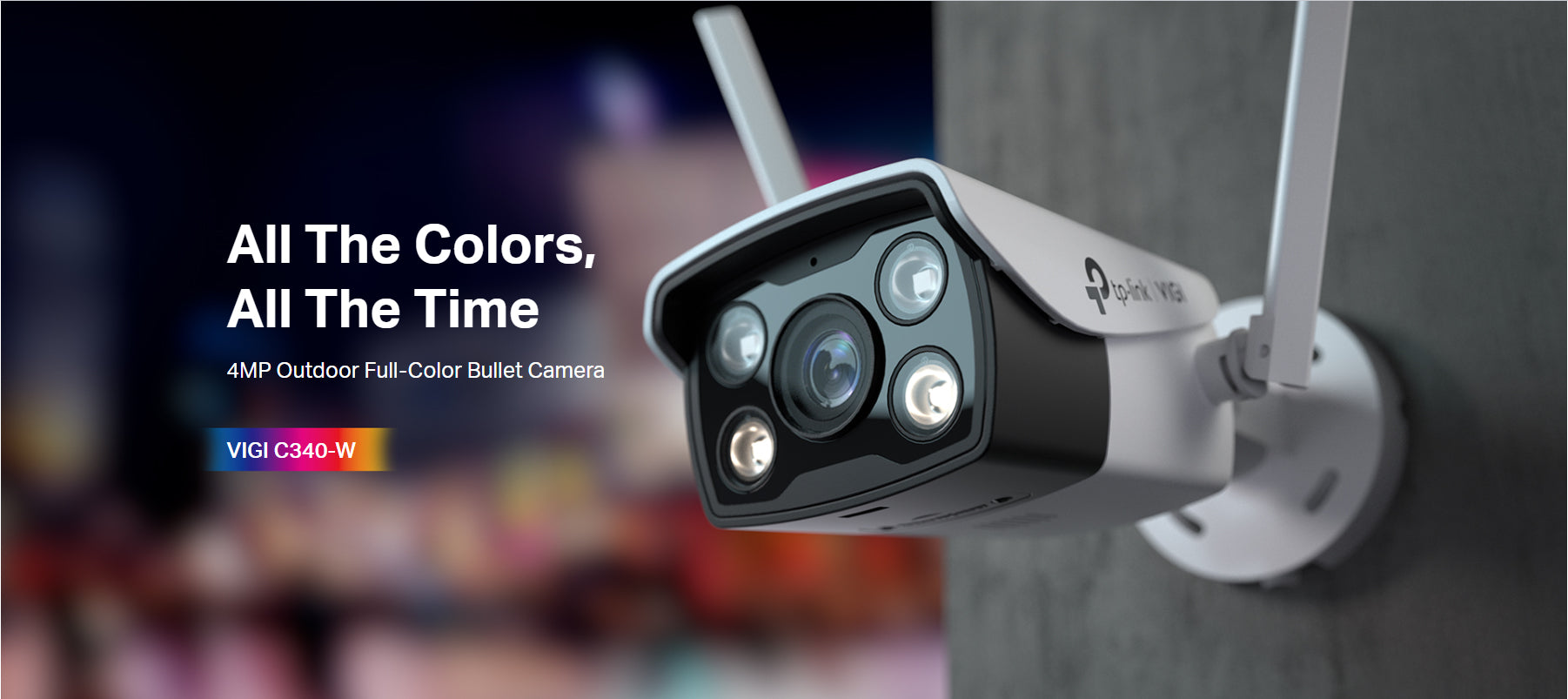

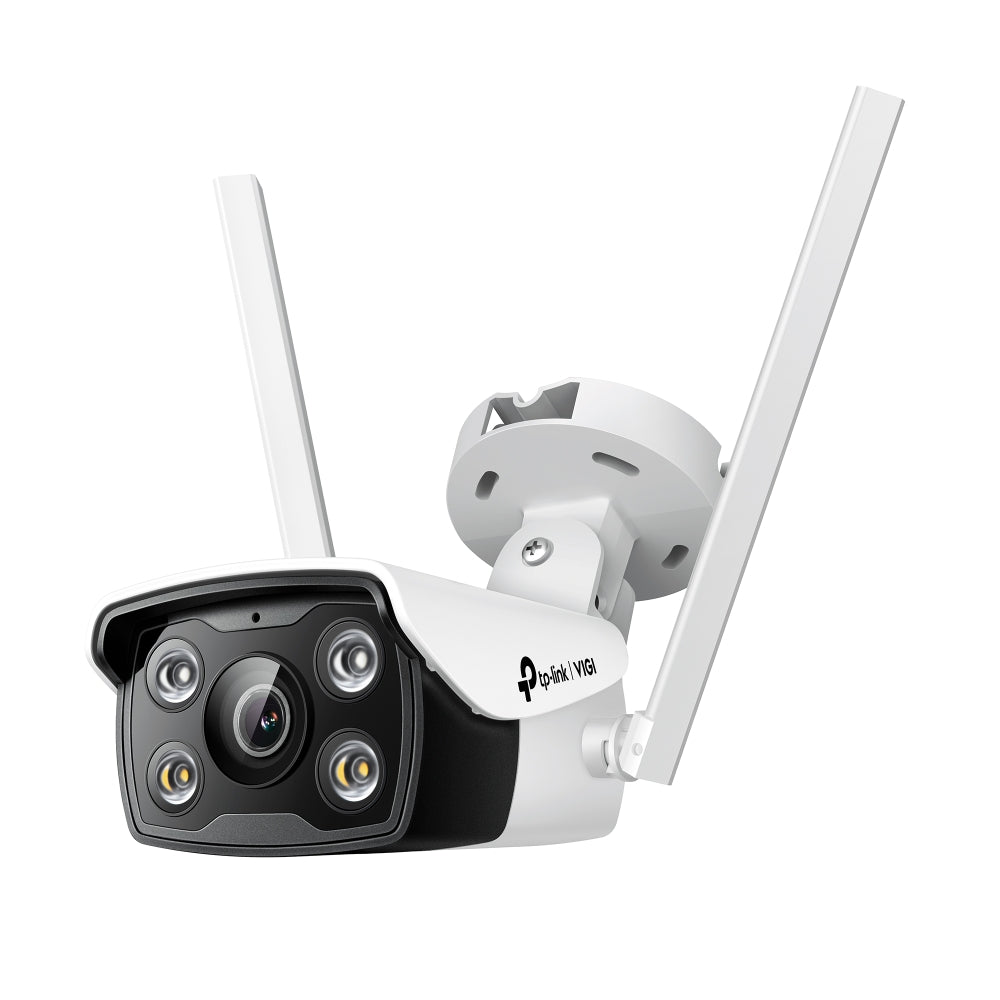

TP-Link VIGI C340-W 4MP HD Outdoor Full-Color Bullet Network WiFi CCTV Camera | 2-Way Audio | Smart IR | Waterproof IP66 | H.265+ | Smart Detection

CAMERA

• Image Sensor : 1/3” Progressive Scan CMOS
• Shutter Speed : 1/3 to 1/10000 s
• Slow Shutter : Yes
• Minimum Illumination : 0 lux with IR/white Light
• Day/Night Mechanism : IR Cut Filter
• Day/Night Switch : Unified/ Scheduled/ Auto

LENS

• Type : Fixed Focal Lens
• Focal Length : 4 mm
• Aperture : 4 mm: F1.6
• FOV : 4mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
• Lens Mount : M12

DORI Distance

4 mm

• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)

ANGLE ADJUSTMENT (MANUAL)

• Range - Pan: -90° to 90°, Tilt: -90° to 90°

ILLUMINATOR

• IR LED - Quantity: 2, Range: 30m, Wavelength: 850nm
• White LED - Quantity: 2, Range: 30m
• Illuminator On/Off Control : Auto/Scheduled/Always on/Always off


VIDEO

• Max. Resolution : 2560 X 1440
• Main Stream - Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Sub-Stream - Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 640x480, 352x288, 320x240

  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Bit Rate Control : CBR, VBR
• Video Compression - Main Stream: .265+/H.265/H.264+/H.264
  Sb-Stream: H.265/H.264

AUDIO

• Audio Communication : Two-Way Audio
• Audio Input : Yes
• Audio Output : Yes
• Audio Compression : Yes
• Audio Sampling Rate : 8KHz
• Environment Noise Filtering : Yes
• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK

• Protocol : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• Wireless Rate : 11 Mbps (802.11b) | 54 Mbps (802.11g) | 150 Mbps (802.11n)
• Wireless Frequency : 2.4GHz
• Wireless Security : WPA/WPA2-PSK
• ONVIF : Yes
• API : Open Network Video Interface (Profile S)
• Simultaneous Live View : 3 Main Streams & 3 Sub-Streams

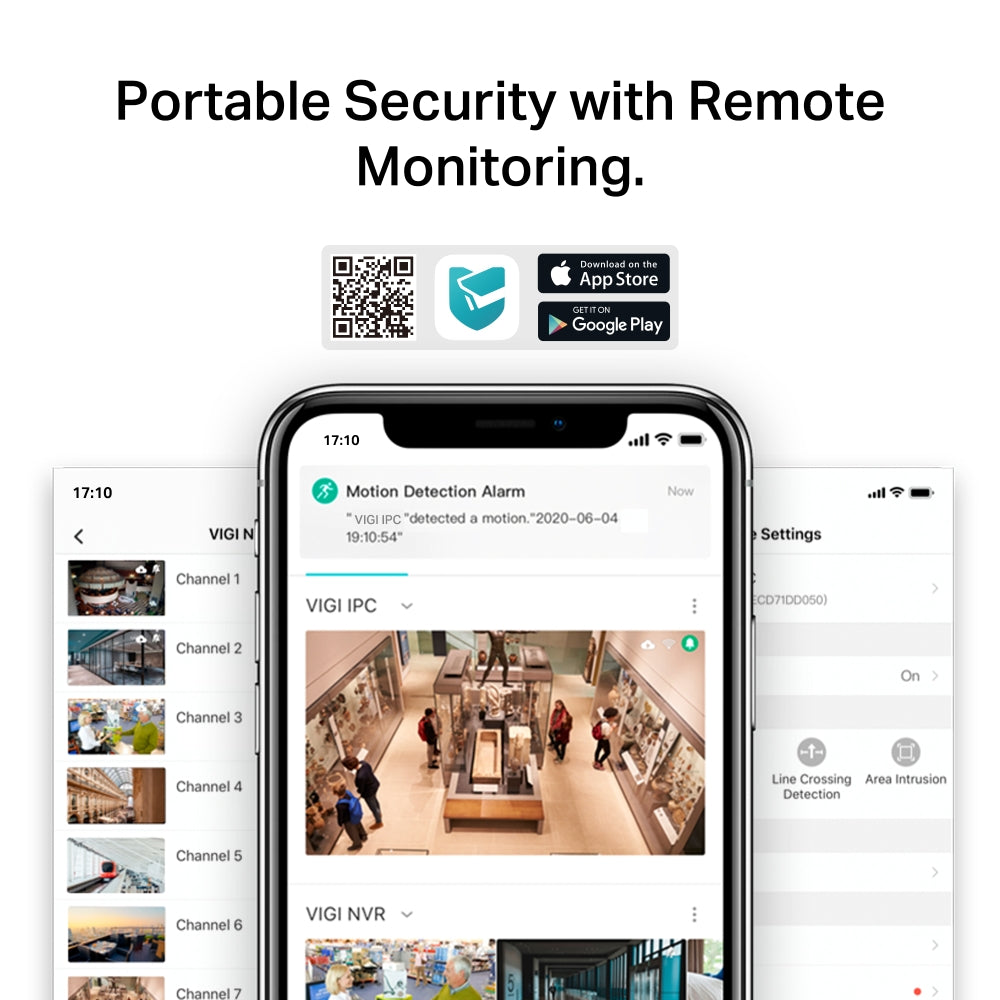

• Client : VIGI App, VIGI Security Manager, Web UI
• Web Browser : Google Chrome® 57 and above
  Firefox® 52 and above, Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud : Yes
• Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

INTERFACES

• Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Alarm : N/A
• Reset Button : Yes
• Power : DC Power Port
• On-board Storage : Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
• Built-in Microphone : Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker : Yes
• Audio : N/A

GENERAL

• Operating Temperature : -30–60 °C
• Storage Temperature : -40–60 °C
• Operating Humidity : 95% or Less (Non-Condensing)
• Storage Humidity : 95% or Less (Non-Condensing)
• Material : Plastic
• Net Weight : 0.31 Kg | Gross Weight 0.60 Kg
• Power Supply : 12V DC ± 5%, 5.5mm Coaxial Power Plug, Max 7W
• Protection : IP66
• Product Dimensions (H X W X D) : 80 × 70.6 × 173.4 mm
• Antenna : 2 x 2.4GHz Welded Dipole Omni-Directional Antenna, Gain: 2.0dBi
• Certifications : CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter

•  2 Years Manufacturer Warranty

• Manufactured by :TP-Link Corporation Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By :TP-Link India Pvt Ltd, Palghar, Maharashtra
• Country Of Origin :China
