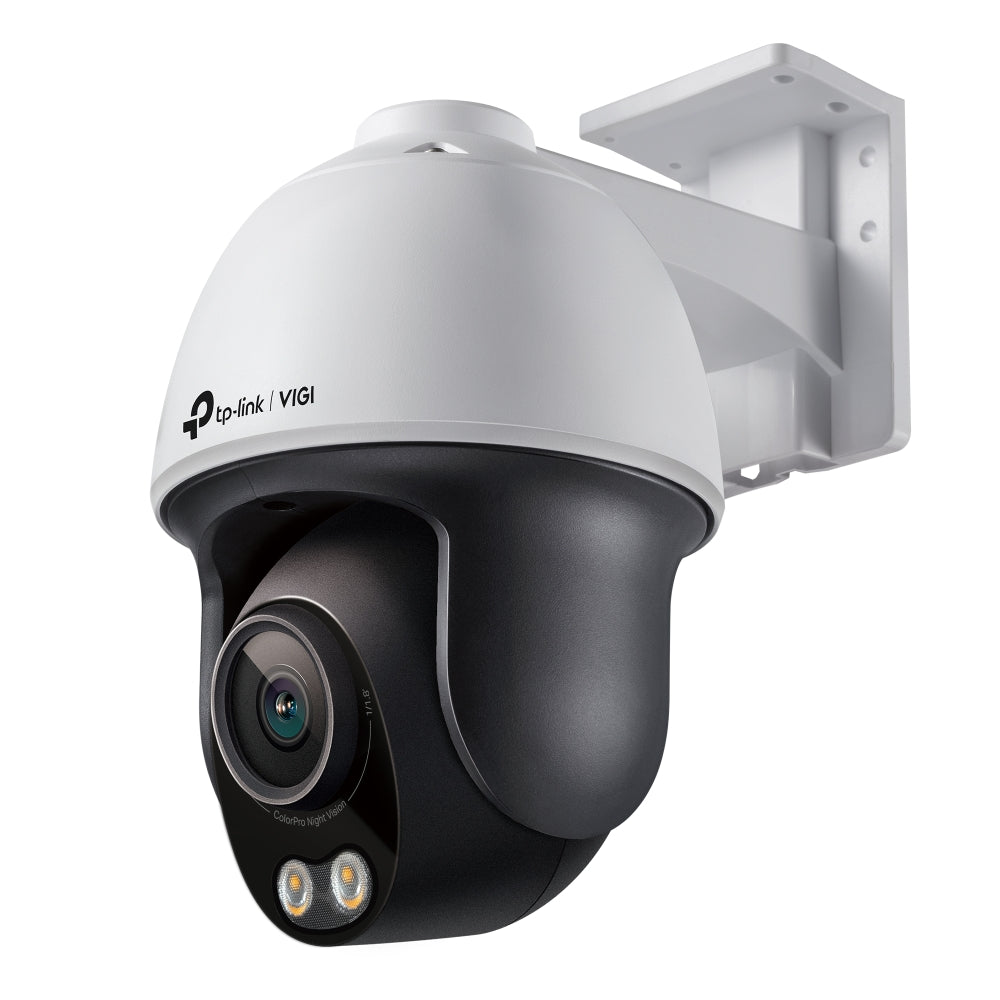

TP-Link VIGI C540S 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera | 360 degrees, 2-Way Audio, Waterproof

Description

• Ultra-Low Light Color Night Vision: Capture 24-hour 4MP high-quality and colorful video even in ultra low-light conditions without any supplemental lights.
• 360° Monitoring: Cover every corner and eliminate blind spots.
• Face Recognition*: Efficiently enhances access management and attendance control while better protecting privacy.*
• People & Vehicle Analytics*: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.*
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
• True WDR Technology§: Enable crystal-clear images in high contrast scenes.
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• IP66 Waterproof: Reliable IP66 for stable outdoor performance.

Specifications

• Image Sensor - 1/1.79” Progressive Scan CMOS
• Shutter Speed - 1/3 to 1/10000 s
• Slow Shutter - Yes
• Minimum Illumination - 0.0005 Lux; 0 Lux with White Light
• Day/Night Mechanism - N/A
• Day/Night Switch - Unified/Scheduled/Auto

LENS

• Type - Fixed Focal Lens
• Focal Length - 4 mm
• Aperture - F1.0±5%
• FOV - 4mm: Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127°
• Lens Mount - M16*P 0.5

• Pan/tilt Range - Pan: 0° to 348°, Tilt: 0° to 105°
• Pan/tilt Speed - Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/ Tilt Speed: Configurable from 8° to 44°/s, Preset Speed: 44°/s
• Manual Control Speed - Configurable from 8° to 35°/s
• Presets - 300
• Patrol Scan - 8 patrols, up to 8 presets for each patrol
• Power-off Memory - Yes; Auto restore to previous PTZ and lens status after power failure
• Park Action - Yes; Preset; Patrol Scan
• 3D Positioning - Yes

• White LED - Quantity: 2/Range: 30m
• Illuminator On/Off Control - Auto/Scheduled/Always on/Always off

• Bit Rate Control - CBR, VBR
• Video Compression - Main Stream: H.265+/H.265/H.264+/H.264
•                   - Sub-Stream: H.265/H.264
• H.264 Type - Main Profile/High Profile
• H.264+ - Main Stream Supported
• H.265 Type - Main Profile
• H.265+ - Main Stream Supported

• Network Interface - 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm - N/A
• Reset Button - Yes
• Power - DC Power Port
• On-board Storage - Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
• Built-in Microphone - Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker - Yes

Package Contents

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Warranty

Manufacturer Info

• Manufactured By : Big Field Global Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By : TP-Link India Pvt Ltd, Andheri, Mumbai
• Country Of Origin : China
