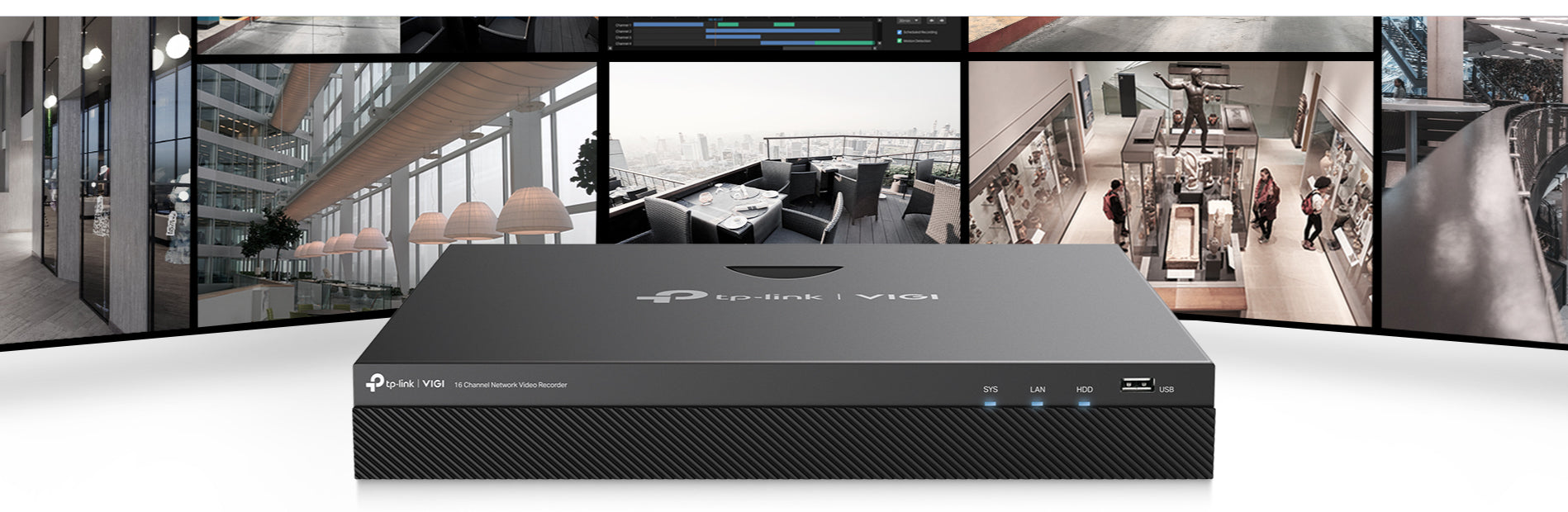

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder | 2 SATA | 4K Output | 8MP Supported | H.265+ Compression | Synchronous Playback

VIDEO AND AUDIO

• IP Video Input : 16-Channel
• Incoming Bandwidth : 80 Mbps
• Outgoing Bandwidth : 60 Mbps
• HDMI Output Resolution : 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output Resolution : 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA Simultaneous Output
• Multi-View Display : 1/4/6/8/16


Decoding

• Audio Compression : G.711A/G.711U/G.726
• Video Compression : .265+/H.265/ H.264+/H.264
• Record Resolution : 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF /2CIF / CIF / QCIF

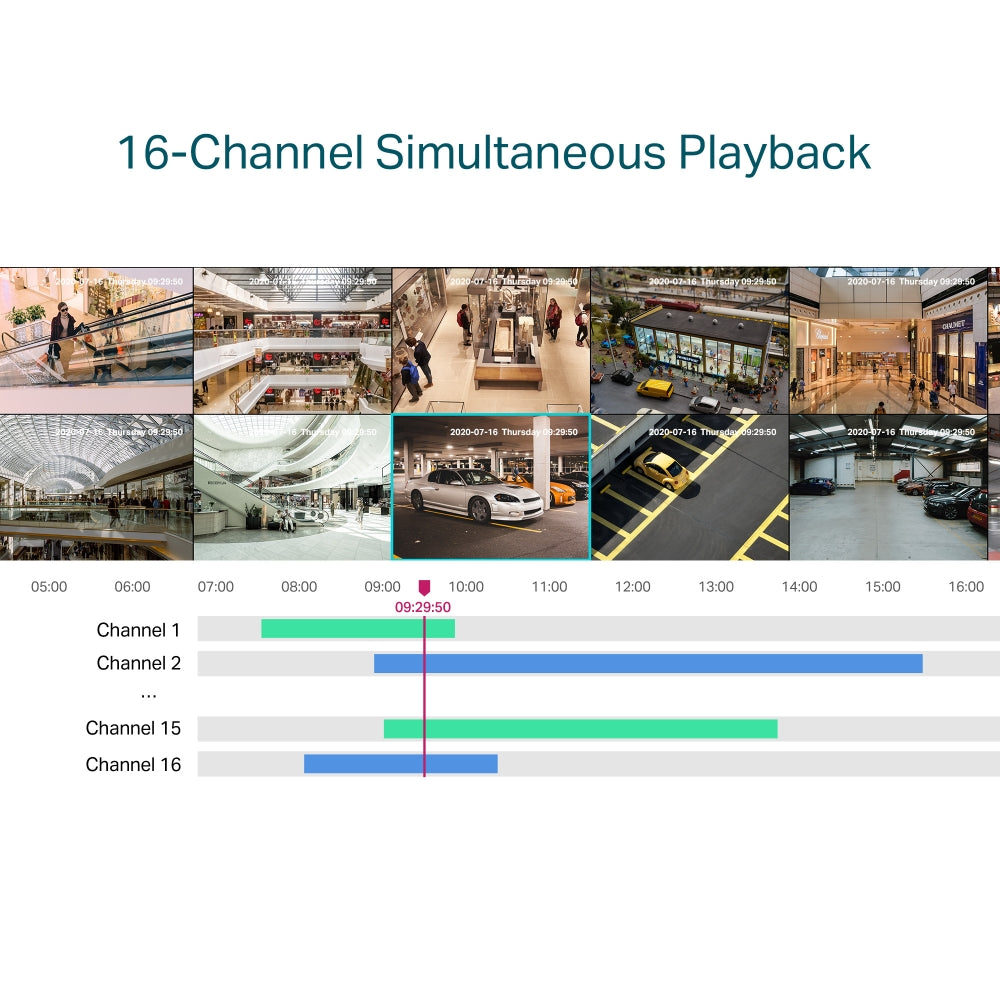

• Synchronous Playback : 16-Channel
• Capability : 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP


Record Management

Record Mode

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback


Backup Mode

• Regular Backup
• Video Clip Backup

Playback Function

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off


Network

• Network Protocols : UPnP (Plug and Play), NTP (Network Timing)
• Interoperability : ONVIF, CGI
• Mobile Phone Access : Android, iOS
• Browser : Chrome (57+), Firefox (52+), Edge (91+)


External Interface

• Network Interface : 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface : 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
• Audio Interface : 1, Audio In; 1, Audio Out
• Alarm In/Out : N/A
• Serial Interface : N/A
• Power : 1× DC Jack
• Reset Button : 1
• Speaker : N/A
• eSATA : 1
• HDMI : 1 | VGA :1


Hard Disk

• SATA : 2 SATA Interfaces
• Capacity : Up to 10 TB Capacity for Each HDD


Alarm

General Alarm

• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame

Anomaly Alarm

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception

Alarm Linkage

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm


General

• Power Supply : 12V DC/3.3A
• Max Power Consumption : 4.78 W (Without Disk)
  24.16 W (With Disk)
• Working Temperature : NVR: -10–55 °C | Power Adapter: 0–40 °C

• Working Humidity : 10%~90% RH Non-Condensing

• Product Dimensions (W × D × H) : 330 × 285 × 45 mm
• Net Weight : 1.9 kg | Gross Weight 3.2 kg
• Certification : CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

• VIGI NVR
• Power Adapter
• HDD Screws
• Mouse
• Guide

•  2 Years Manufacturer Warranty

• Manufactured by :Pacific Cyber Technology Pvt. Ltd. 51-57, Sliver Industrial Estate, Bhimpore, Nani Daman - 396210
• Country Of Origin :India
