TP-Link VIGI C540 4MP High Definition Outdoor Full-Color Pan Tilt Network CCTV Camera | Waterproof | Smart Detection

Description

• 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
• Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
• Waterproof: Reliable IP66 for stable outdoor performance.
• Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

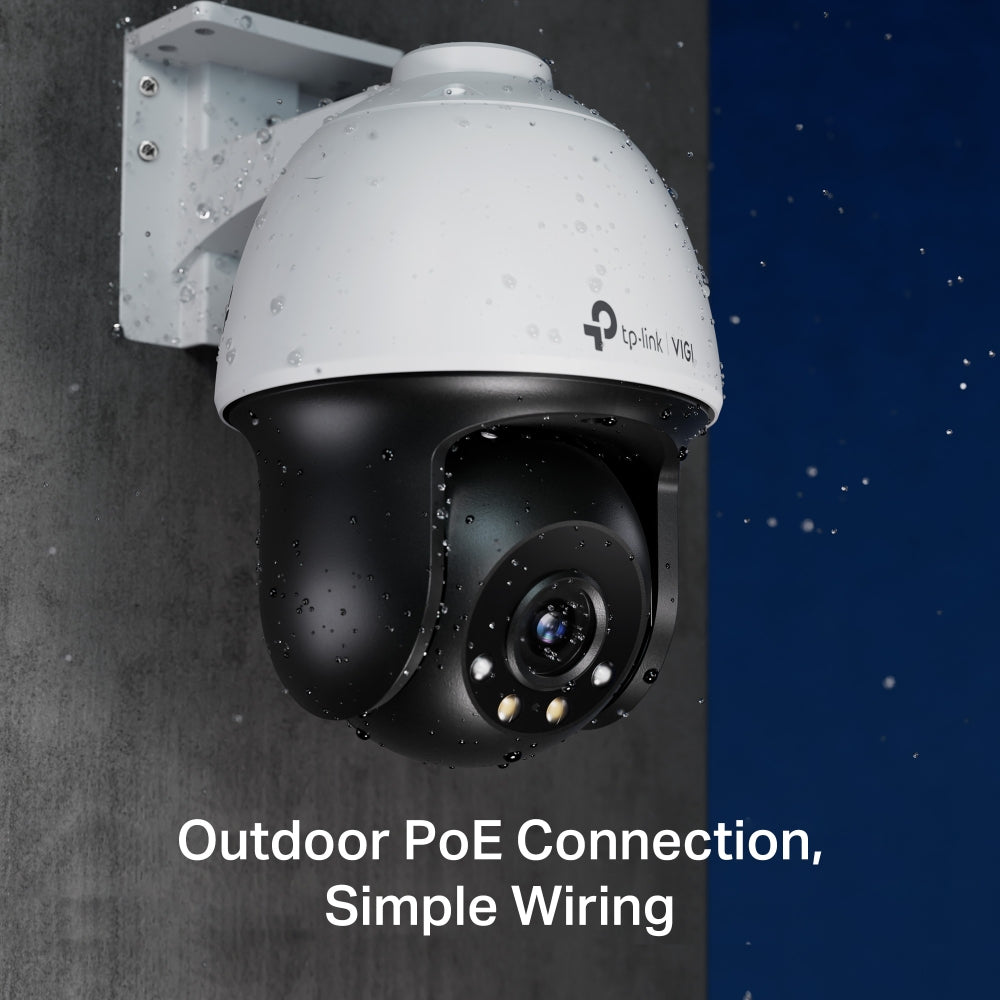

• PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
• VIGI App: Manage your security from the palm of your hand with the VIGI app.

Specifications

CAMERA

• Image Sensor : 1/3” Progressive Scan CMOS
• Shutter Speed : 1/3 to 1/10000 s
• Slow Shutter : Yes
• Aperture : 4 mm: F1.6
• Lens : Fixed focal lens 4 mm
• Lens Mount : M12
• Minimum Illumination : 0 lux with IR/white Light
• Day/Night Mechanism : IR Cut Filter
• Day/Night Switch : Unified/ Scheduled/ Auto
• Digital Noise Reduction : 3D DNR
• WDR : DWDR
• Weatherproof Rating : IP66
• IR Working Distance : 30m
• Pan/Tilt Range : Pan: 0° to 350°, Tilt: 0° to 120°
• Illumination Distance : 30 m
• Viewing Angle : (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
• Digital Zoom : Yes

GENERAL

• Operating Temperature : -30–60 °C
• Storage Temperature : -40–60 °C
• Operating Humidity : 95% or Less (Non-Condensing)
• Storage Humidity : 95% or Less (Non-Condensing)
• Dimensions( H X W X D ) : 120 × 172 × 198 mm
• Material : Plastic
• General Features : Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
• Net Weight : 0.62 Kg | Gross Weight 0.98 Kg
• Power Consumption : 12V DC: Max 14W, PoE: Class 4
• Power Supply : 12V DC ± 5%, 5.5mm Coaxial Power Plug | PoE (802.3af/at, class 4)
• Product Dimensions (L x W x H) : 120 × 172 × 198 mm
• Certifications : CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

Package Contents

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories (Screws, Drywall Anchors, Hex Key)

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured By : Pacific Cyber Technology Pvt. Ltd. 51-57, Sliver Industrial Estate, Bhimpore, Nani Daman - 396210
• Country Of Origin : India
