Mikrotik LHG 5 Dual chain 24.5dBi 5GHz CPE/Point-to-Point Integrated Antenna RBLHG-5nD

Description

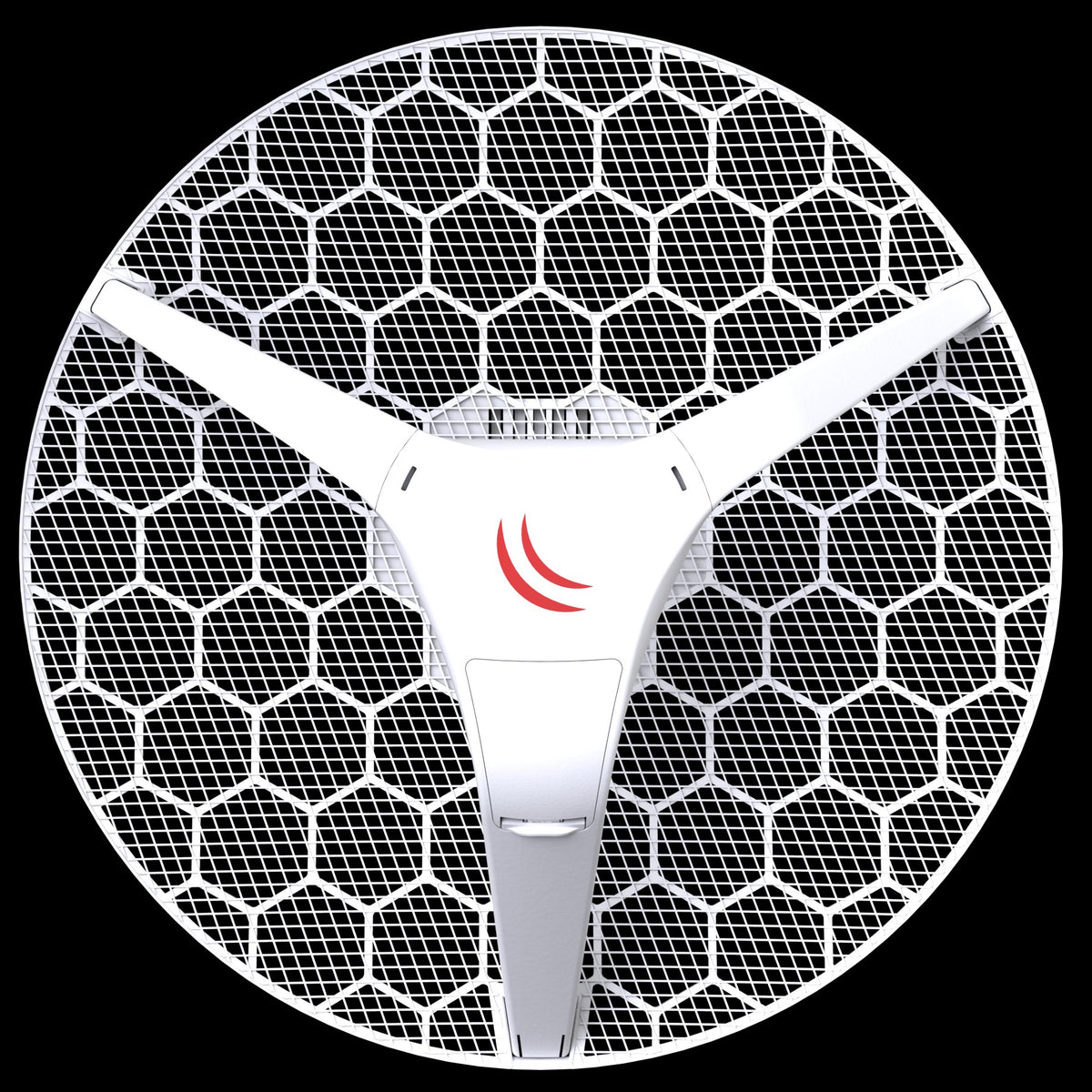

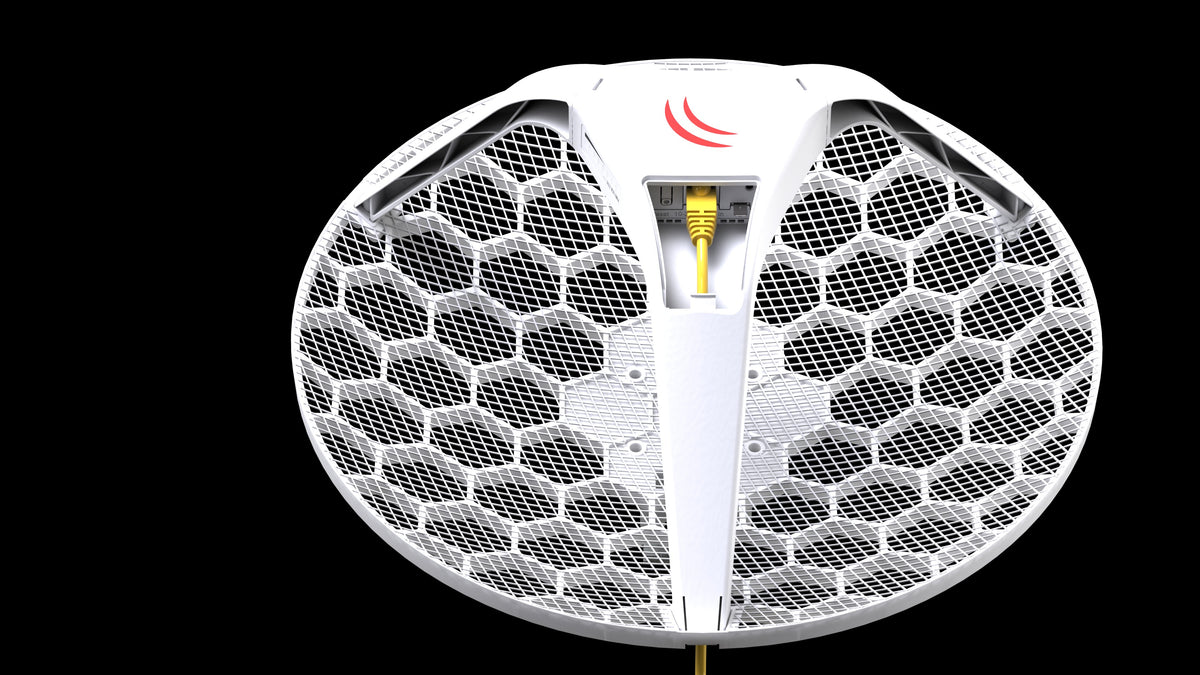

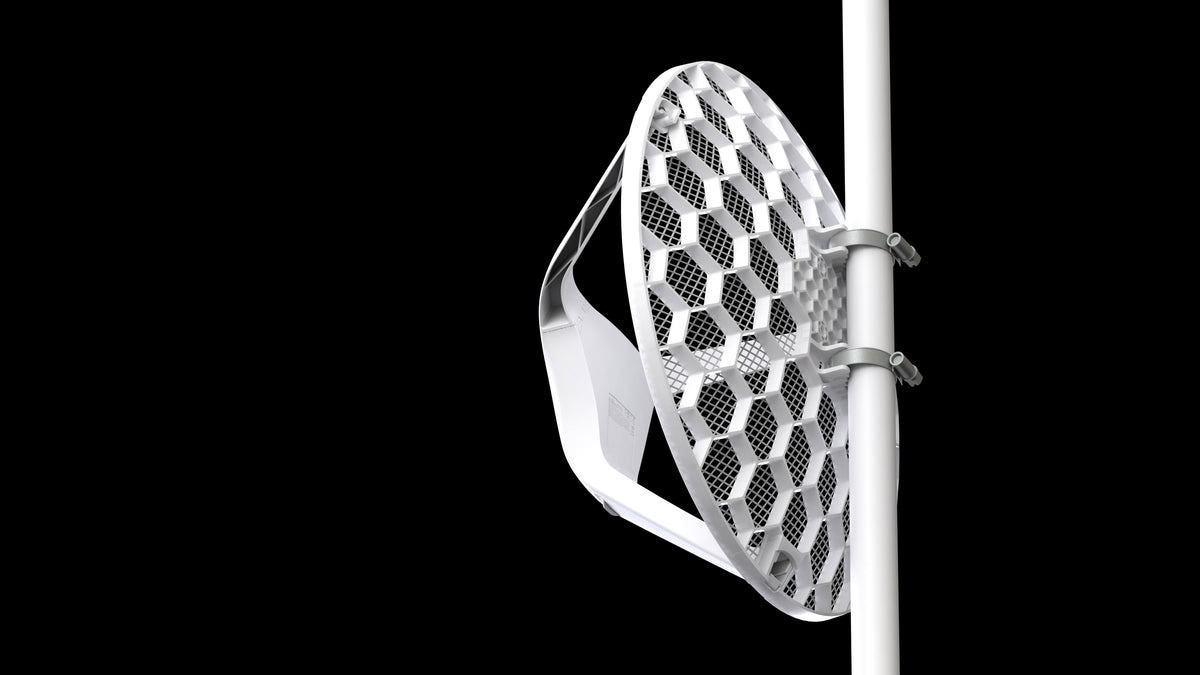

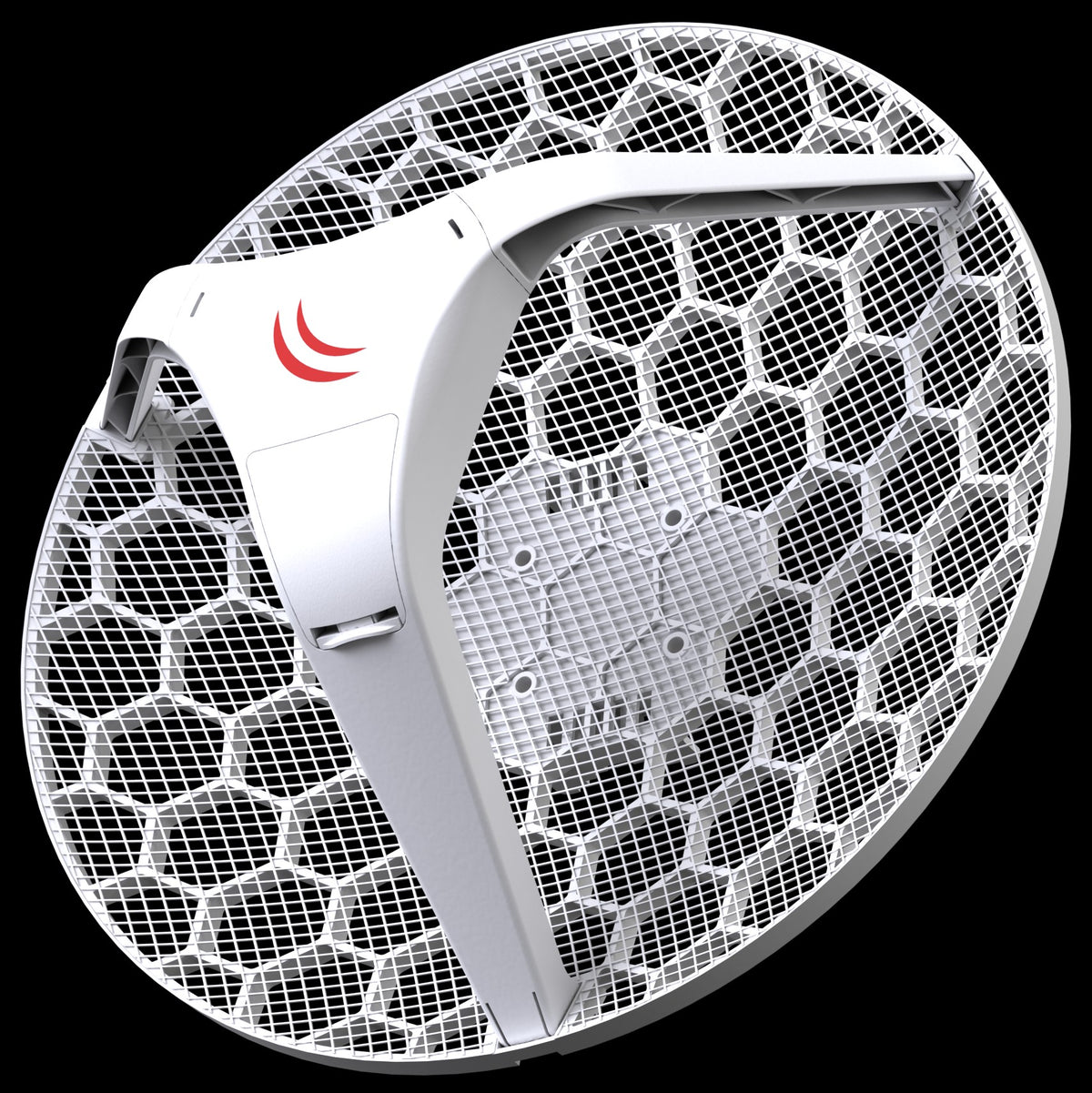

• The Light Head Grid (LHG) is a compact and light 5 GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
• The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
• The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.

Specifications

• Product code - RBLHG-5nD

• CPU nominal frequency - 600 MHz

• Size of RAM - 64 MB

• Storage - 16 MB Flash

• 10/100 Ethernet ports - 1

• Wireless - Built-in 5 GHz 802.11a/n, dual-chain

• Wireless regulations - Specific frequency range can be limited by country regulations

• Wireless chip model - AR9344

• Operating frequency - 5150 - 5875 MHz

• Antenna gain - 24.5 +/- 0.5 dBi

• Antenna beam width - 7°

• Cross polar - 15 dBi

• Port to port isolation - 20 dB

• Front to back ratio - 25 dB

• Return loss - 10 dB

• VSWR - 1.925:1

• PoE in - Yes

• Supported input voltage - 11 V - 30 V (passive PoE)

• Wind loading - 186N @ 205 km/h

• Operating temperature -  -40 to 70° C

• Operating humidity - 5 to 95% noncondensing

• Shock and vibration - ETSI300-019-1.4

• Dimensions - Ø 391 x 222 mm; package 450 x 450 x 145 mm

• Weight - Unit: 560 g; package: 1.98 kg

• Max Power consumption - 6 W

Package Contents

• 1 x Antenna RBLHG-5nD

• 1 x Power Adapter

• 1 x PoE injector

Warranty

• 1 Year Brand Warranty

Manufacturer Info

• Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.

• Imported By: VT, New Delhi, INDIA.

• Country Of Origin: Vietnam
