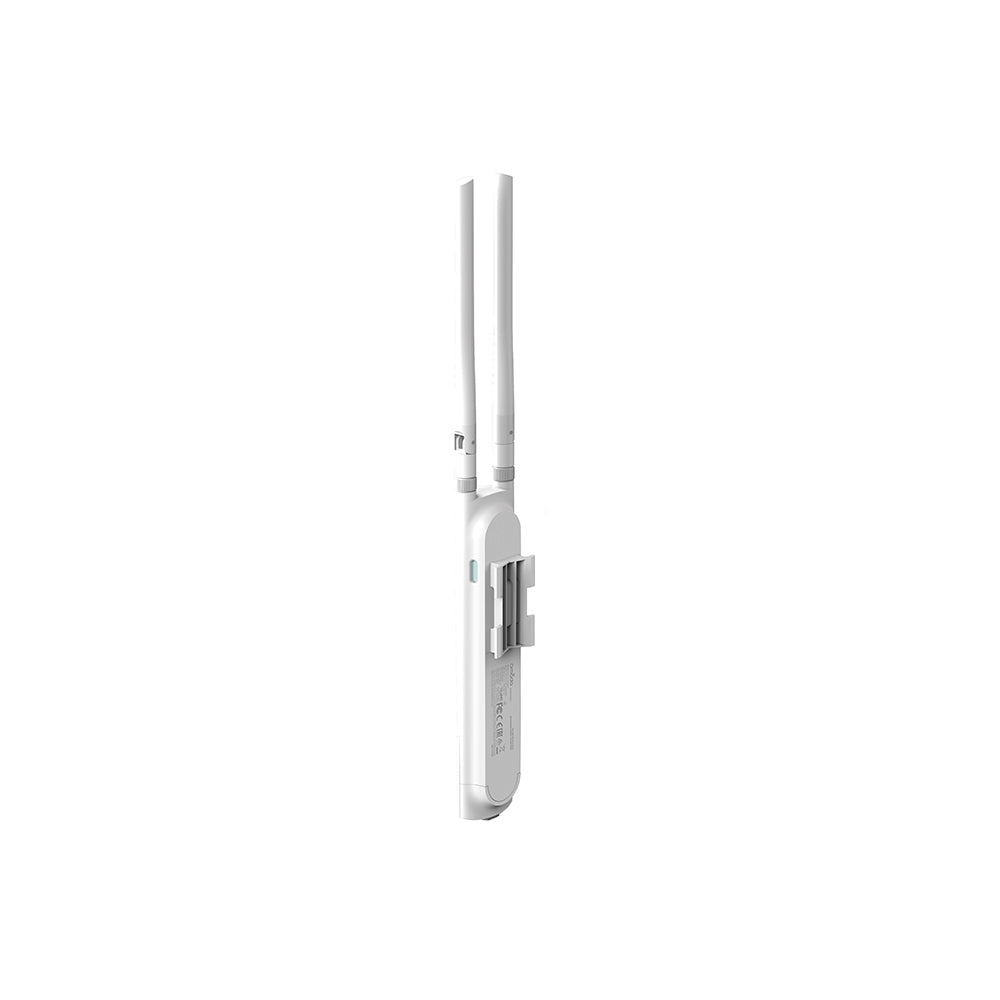

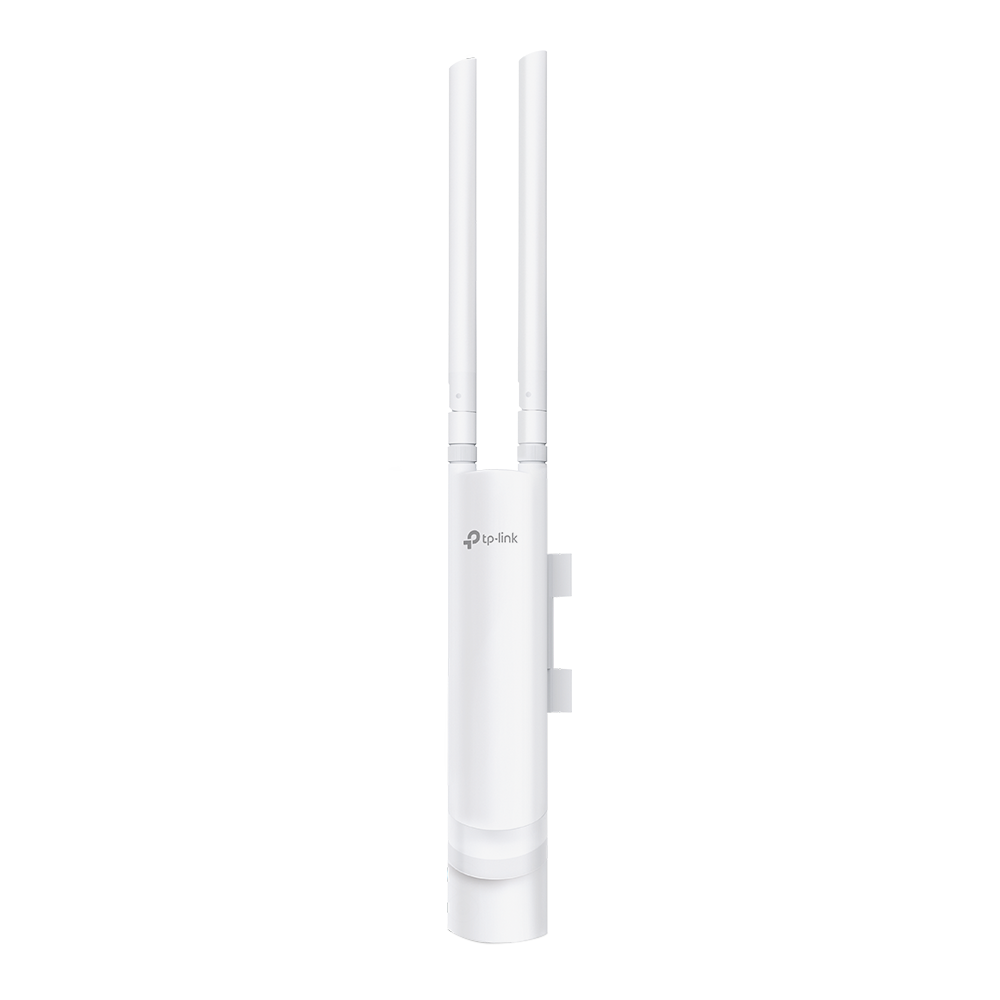

TP-LINK EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Description

• Ideal for Outdoor Environment: IP65 weatherproof enclosure for outdoor Wi-Fi applications.
• Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1167 Mbps Wi-Fi speeds.†
• Long-Range Coverage: Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Omada Mesh Technology: Enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.*
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
• PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.

Specifications

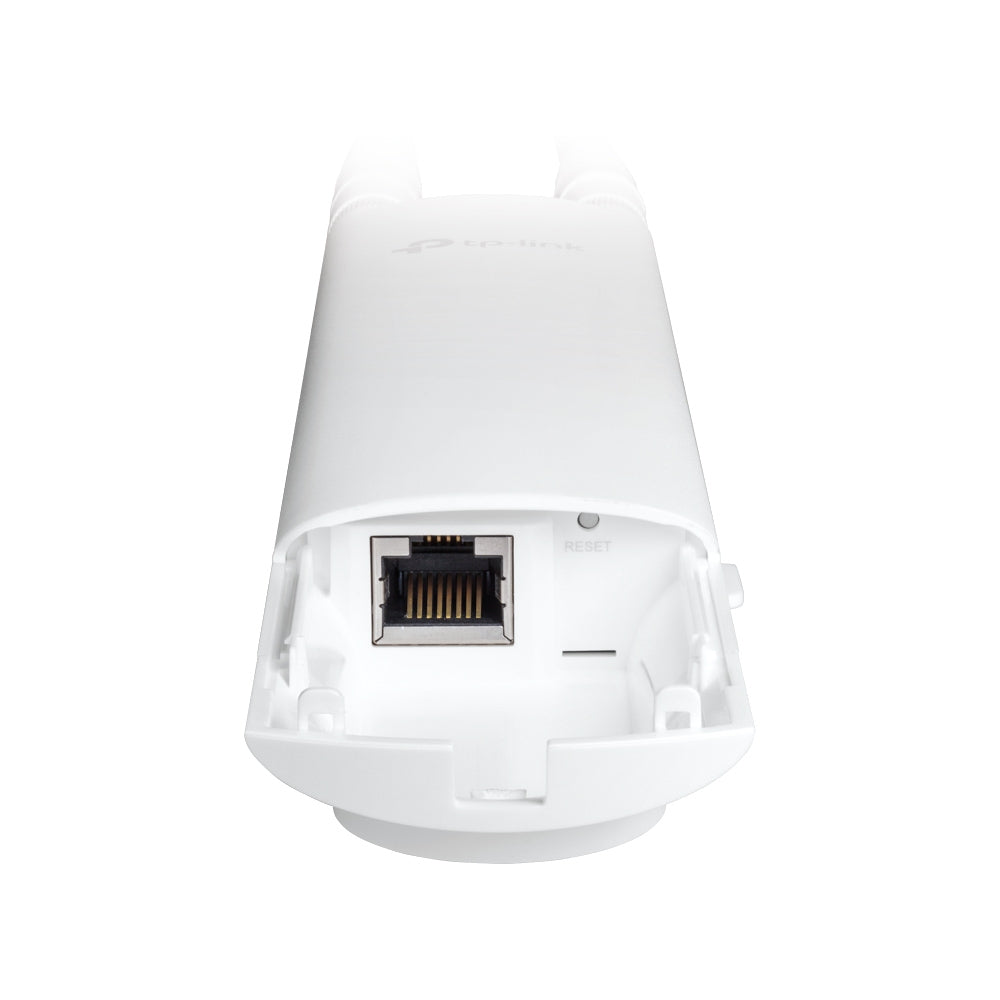

• Interface - 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
• Button - Reset
• Weatherproof Enclosure - IP65

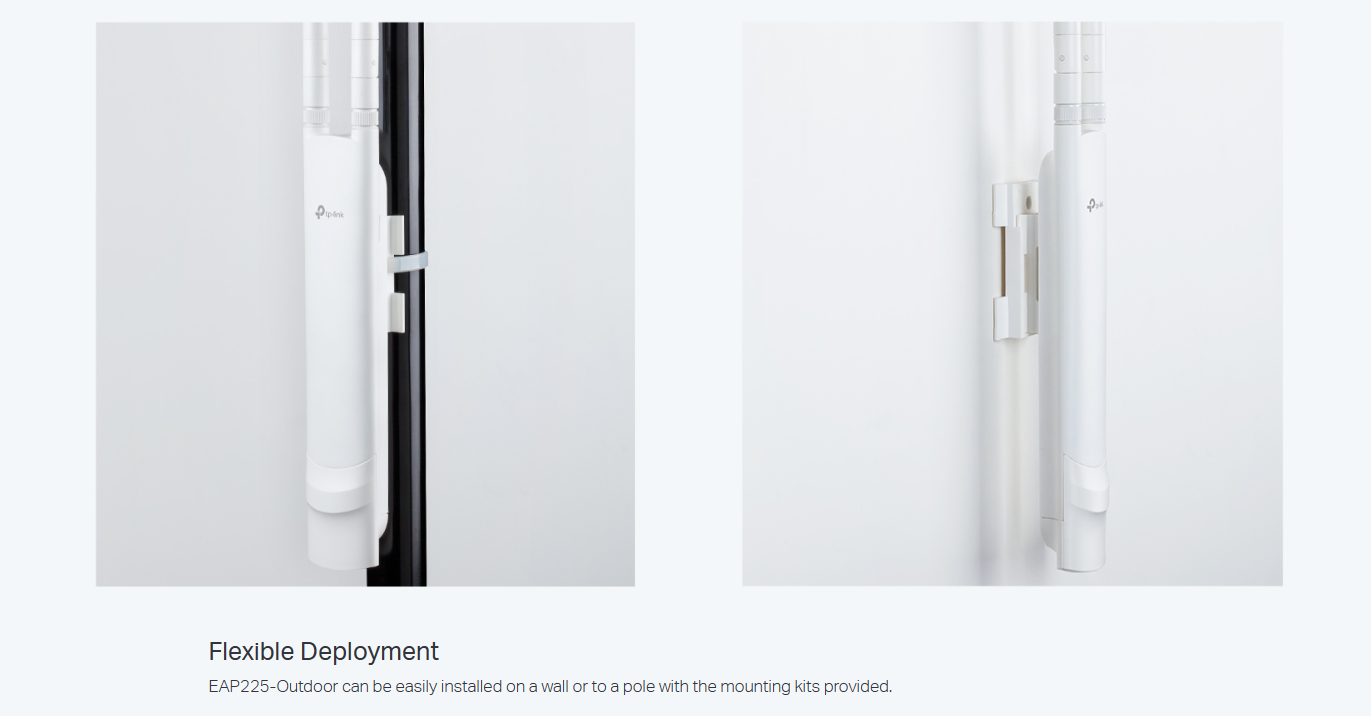

• Mounting - Pole/Wall Mounting (Kits included)
• Antenna - • 2.4 GHz: 2× 3 dBi
  - • 5 GHz: 2× 5 dBi
• Dimensions ( W x D x H ) - • 215.7×45×37.7 mm (without antenna & mounting kit)
  - • 403.8×90.7×55.2 mm (with antenna & mounting kit)
• Power Supply - • 802.3af/at PoE (Alternative A)
  - • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)


Package Contents

• Access Point EAP225-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Ruber Insert
• Waterproof Antenna

Warranty

•  3 Year Manufacturer Warranty

Manufacturer Info

• Manufactured by : TP-Link Corporation Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By : TP-Link India Pvt Ltd, Palghar, Maharashtra
• Country Of Origin : China
