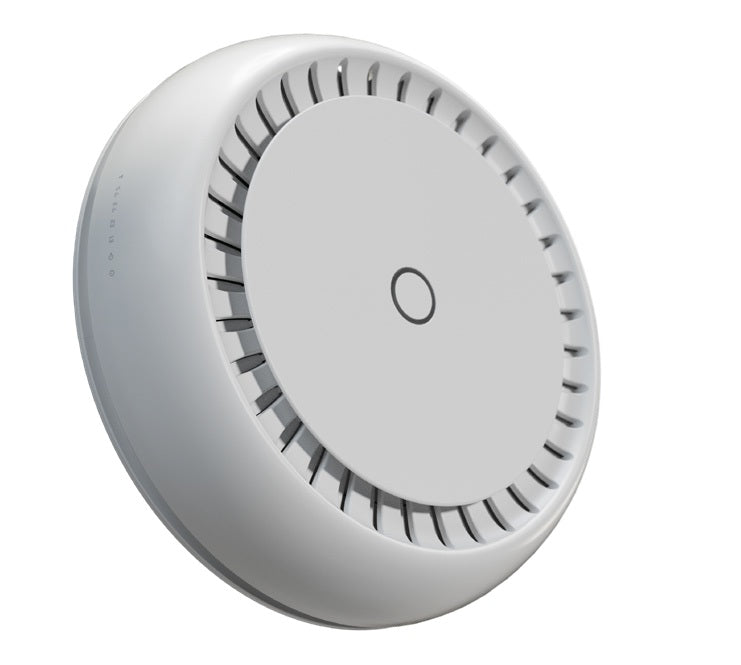

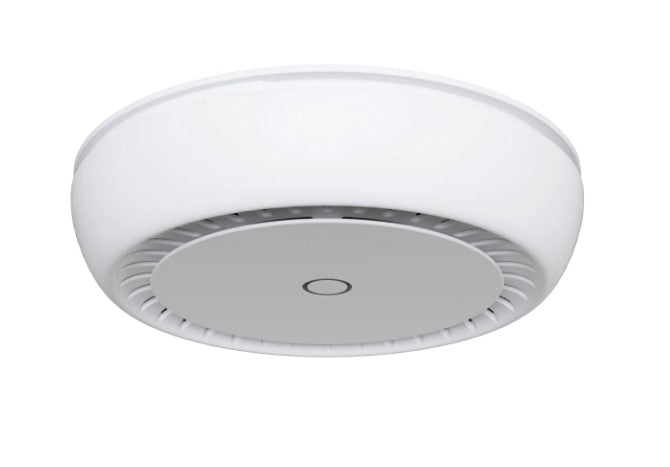

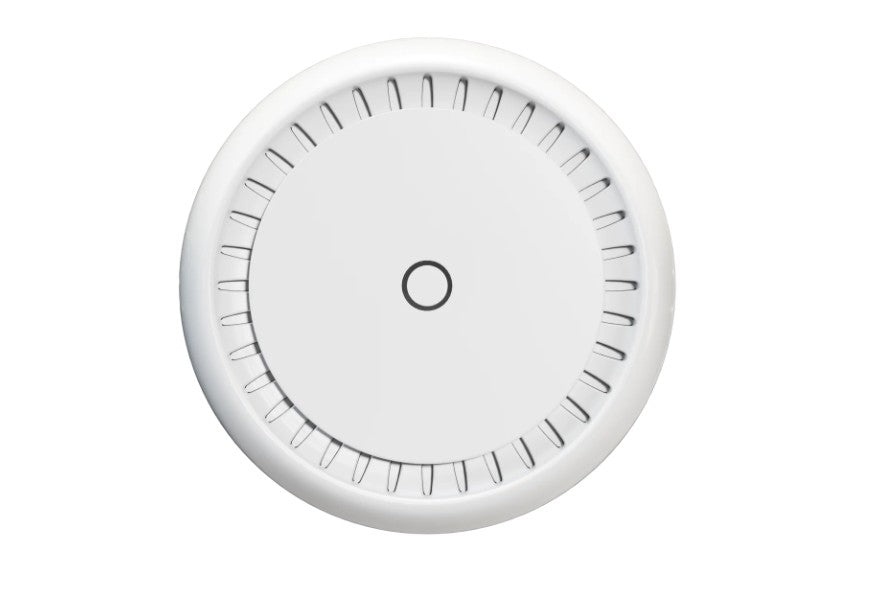

MikroTik cAP XL ac Dual Band Wireless Ceiling Access Point RBcAPGi-5acD2nD-XL

Description

The ceiling AP on steroids! Our bestseller cAP is back – juiced up and stronger than ever. Compared to the previous cAP models, the improved high-gain antenna increases the covered area by up to 100%.

Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.

The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!

The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

Specifications

• Product code - RBcAPGi-5acD2nD-XL

• CPU - Quad core IPQ-4018 710 MHz

• Size of RAM - 128 MB

• RAM type - DDR3L

• Storage - 16 MB, Flash

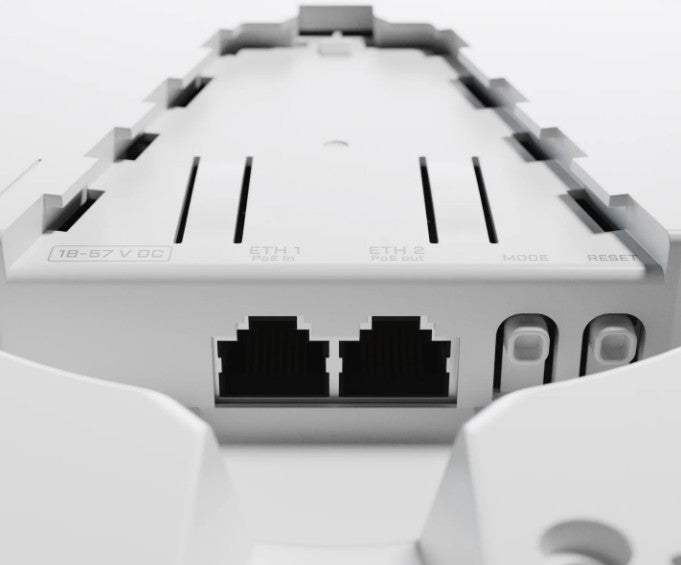

• Number of 1G Ethernet ports - 2

• Wireless  - 2.4 GHz       5 GHz

• Supported protocol  - 802.11b/g/n       802.11a/n/ac

• Antenna gain  - 6 dBi      5,5 dBi

• Number of chains - 2

• Operating system - RouterOS (License level 4)

• Switch chip model - IPQ-4018

• Dimensions - 191 x 42 mm

• Operating temperature -  -40°C to +70°C tested

Package Contents

• 1 x Access Point RBcAPGi-5acD2nD-XL

• 1 X Gigabit PoE injector

• 1 X Power Adapter

Warranty

• 1 Year Brand Warranty

Manufacturer Info

• Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.

• Imported By: VT, New Delhi, INDIA.

• Country Of Origin: Vietnam
