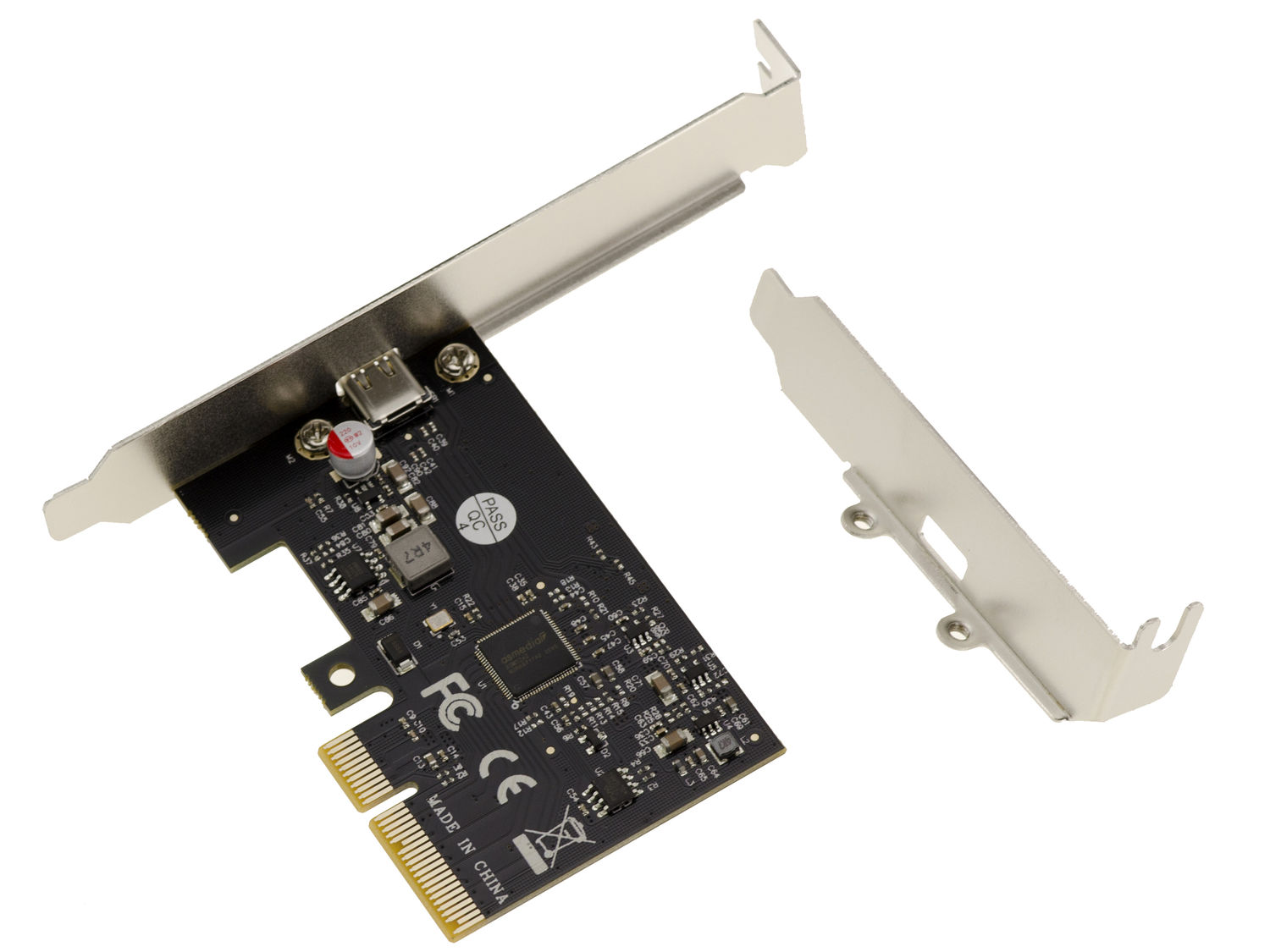

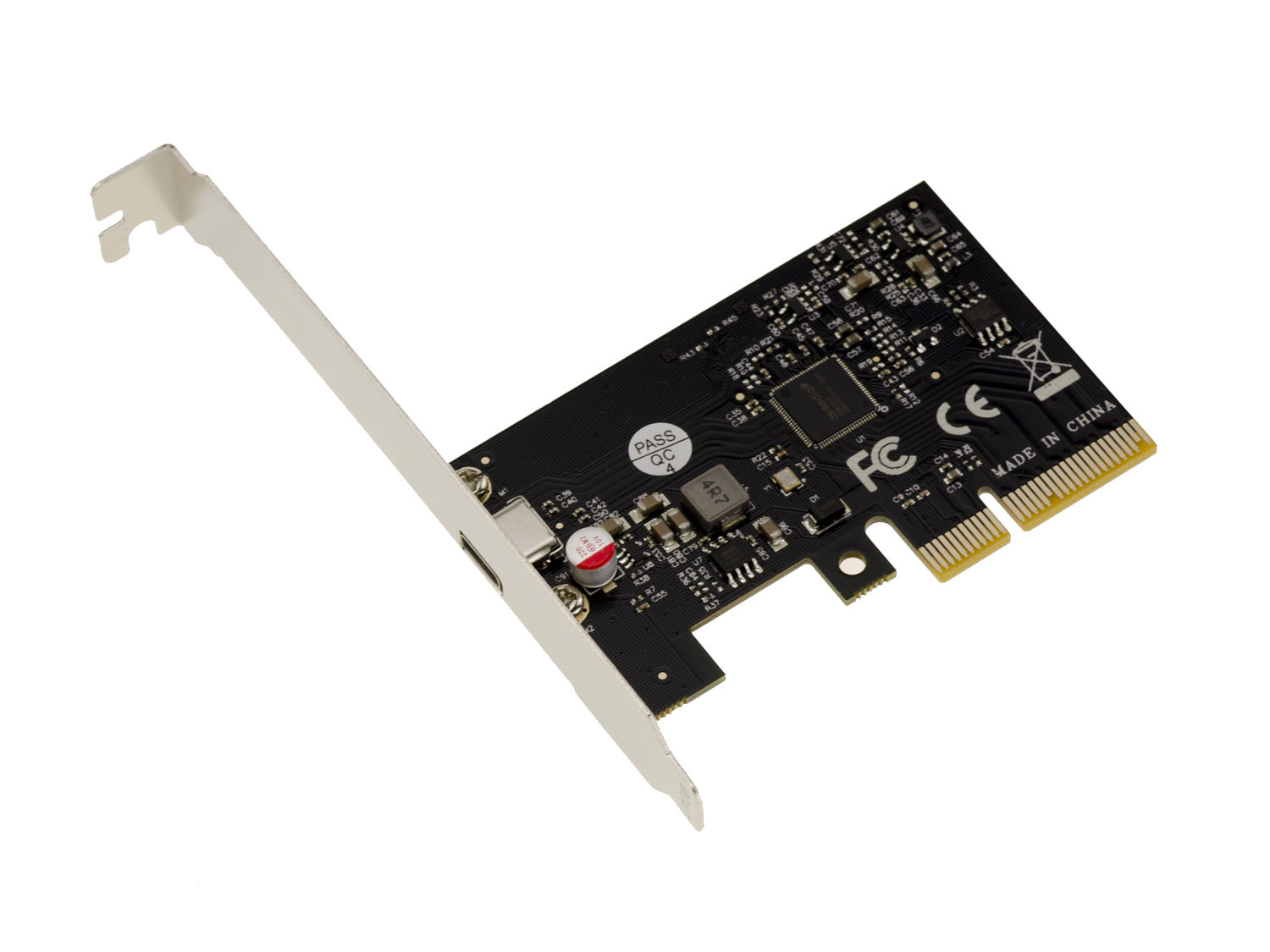

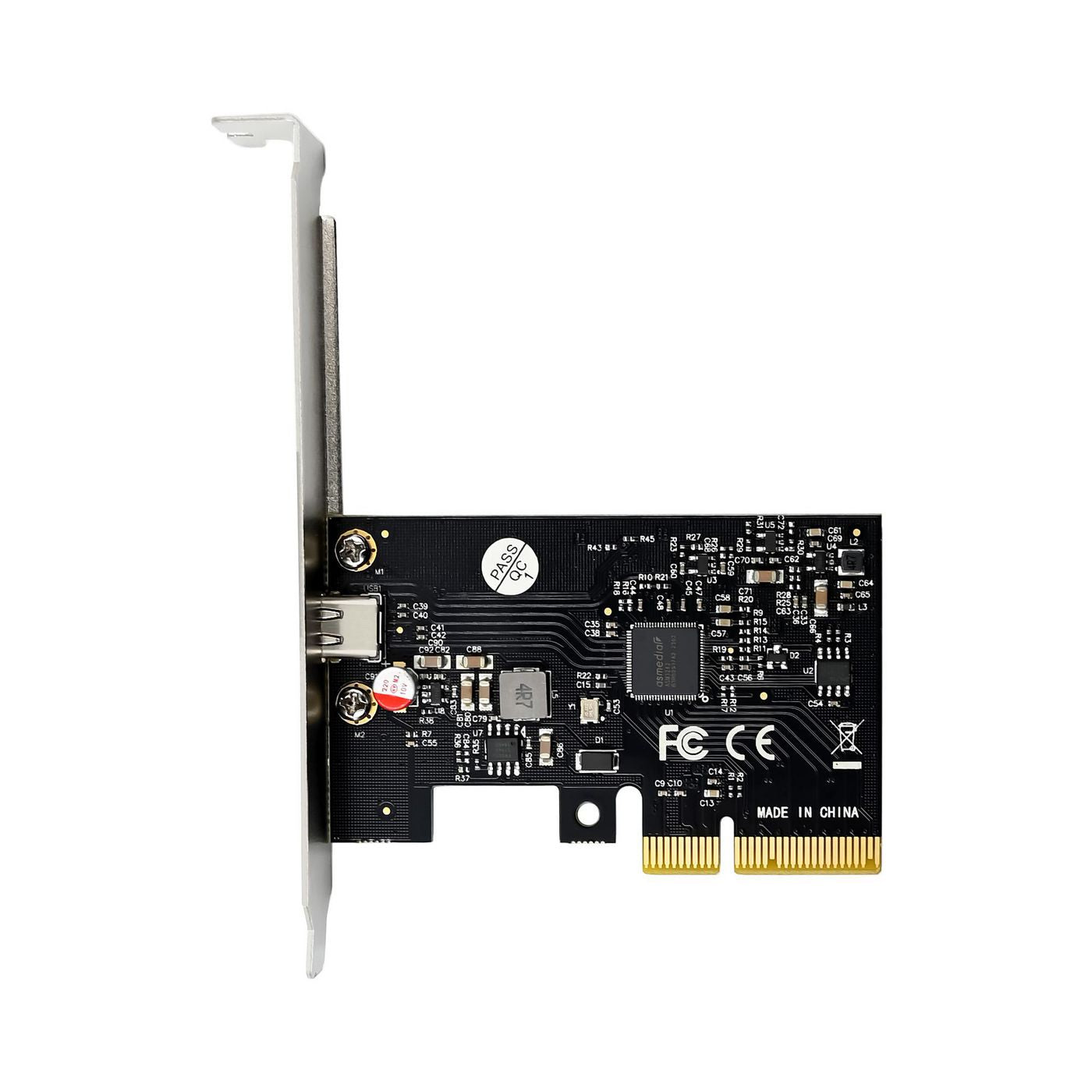

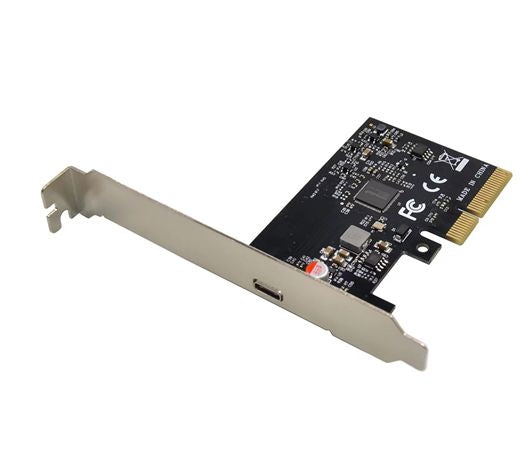

BOXNUBE PCI-E 1 Port USB-C USB 3.2 Gen 2x2 20Gbps Internal Expansion PCI Express Card PCIe x4, ASM3242 Chipset

Description

• This USB 3.2 Card is a high-performance interface card designed to bring cutting-edge USB-C 20Gbps connectivity to your desktop. Leveraging the PCI-E X4 interface, this card provides a dedicated bandwidth channel, ensuring blazing-fast data transfer speeds for your USB-C devices. Ideal for transferring large files, connecting high-resolution displays, or utilizing external storage solutions, the ASM3242 chipset delivers exceptional performance and reliability.
• This USB3.2-C 20Gbps Expansion card features an ASMedia ASM3242 host controller that utilizes X4 lanes of the PCIe3.0 bus, making the card capable of speeds up to 20Gbps and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller card supports Multiple Ins to reduce bandwidth loss when multiple devices are connected through a USB Hub. The card also supports UASP for improved performance with storage devices.
• The USB 3.1 card is compatible with a broad range of Windows and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.

Specifications

• Chipset: Asmedia ASM3242 （PCI Express USB3.2 Host controller）

• USB3.2 Gen 2x2 PCIe 3.0 x4 Lane Host adapter

• One USB3.2 20Gbps Type C port

• Compliant with Universal Serial Bus 3.2 Specification Revision1.0

• Compliant with Intel eXtensible Host controller Interface(xHCI) Specification1.1

• Compliant with USB Attached SCSI Protocol specification 1.0

• Compliant with PCI Express specification3.0

• Speed support: SuperSpeed USB 20Gbps/10Gbps/5Gbps, HiSpeed USB 480Mbps

• Overcurrent protection

• Provides Type-C port bus power up to 5V/3A

• Regular size PCIe bracket on board and low profile PCIe bracket included

• Require an empty PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.2 Gen2x2 full performance

• Supports operation systems: Windows10, WIN8/8.1, Server2012.Mac10.8 to 10.10, MAC 10.12, Linux kernel 2.6.31 and later OS in-box USB driver natively support UASP, no additional driver required (win7 is not supported)

• Operating Temperature: 0~85oC (32F to 185F)

• Storage Temperature: -25~85o C (-13F to 185F)

• Humidity:15% ~ 90%RH

Hardware Installation

1. Turn Off the power to your computer.
2. Unplug the power cord and remove your computer’s cover.
3. Remove the slot bracket from an available PCIe X4 slot.
4. To install the card, carefully align the card’s bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.
5. Replace the slot bracket’s holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord

Package Contents

• 1 x USB 3.2 Type-C 1-Port PCIe Host Adapter

• 1 x Low Profile Bracket

Warranty

• 1 Year Brand Warranty

Manufacturer Info

• Imported/ Marketed by: Global Sourcing, Gurgaon, Haryana - 122003, India

• Country Of Origin: China
