TP-Link Archer AX72 Pro AX5400 Dual-Band Gigabit Wi-Fi 6 Router

Description

• Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.†

• Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.

• Connect 100+ Devices§ – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.‡**

• Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.

• Home Shield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.*

• More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.

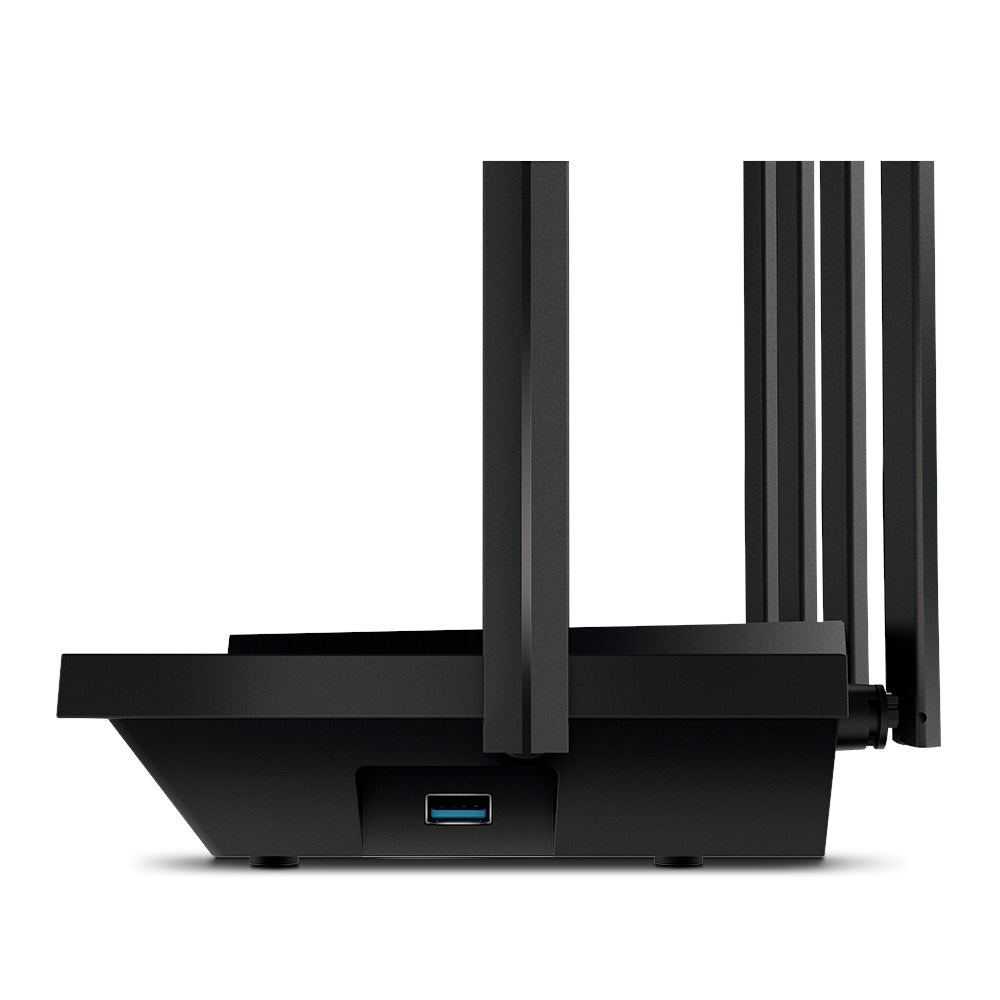

• USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.

• Easy Setup – Set up the router in minutes with the Tether app.

• Easy Mesh-Compatible - Flexibly creates a Mesh network by connecting to an Easy Mesh-compatible router for seamless whole-home coverage

Specifications

WIRELESS

Standards

Wi-Fi 6

• IEEE 802.11ax/ac/n/a 5 GHz

• IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX5400

• 5 GHz: 4804 Mbps (802.11ax, HE160)

• 2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

3 Bedroom Houses

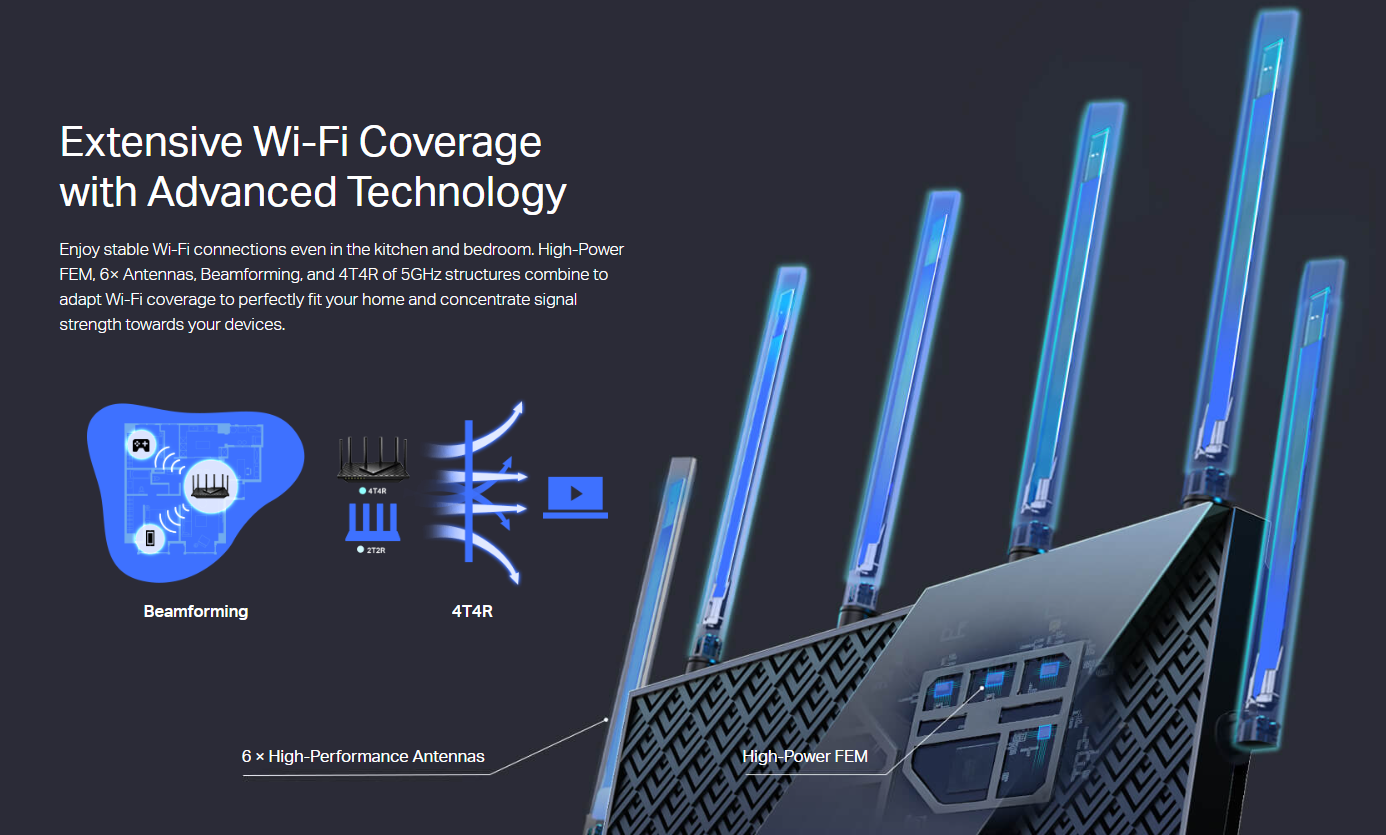

• 6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM Improves transmission power to strengthen signal coverage

• 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity

High

• Dual-Band Allocate devices to different bands for optimal performance

• 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients

• OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness Improves network efficiency by limiting excessive occupation

• DFS Access an extra band to reduce congestion

• 6 Streams Connect your devices to more bandwidth

Working Modes

• Router Mode

• Access Point Mode

SECURITY

Network Security

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• Home Shield Security
  Real-Time IoT Protection
  Malicious Site Blocker
  Intrusion Prevention System
  DDoS Attack Prevention
  Home Network Scanner

Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN

• PPTP

• L2TP

VPN Client

• OpenVPN

• PPTP

• L2TP

HARDWARE

Processor - 1 GHz Dual-Core CPU

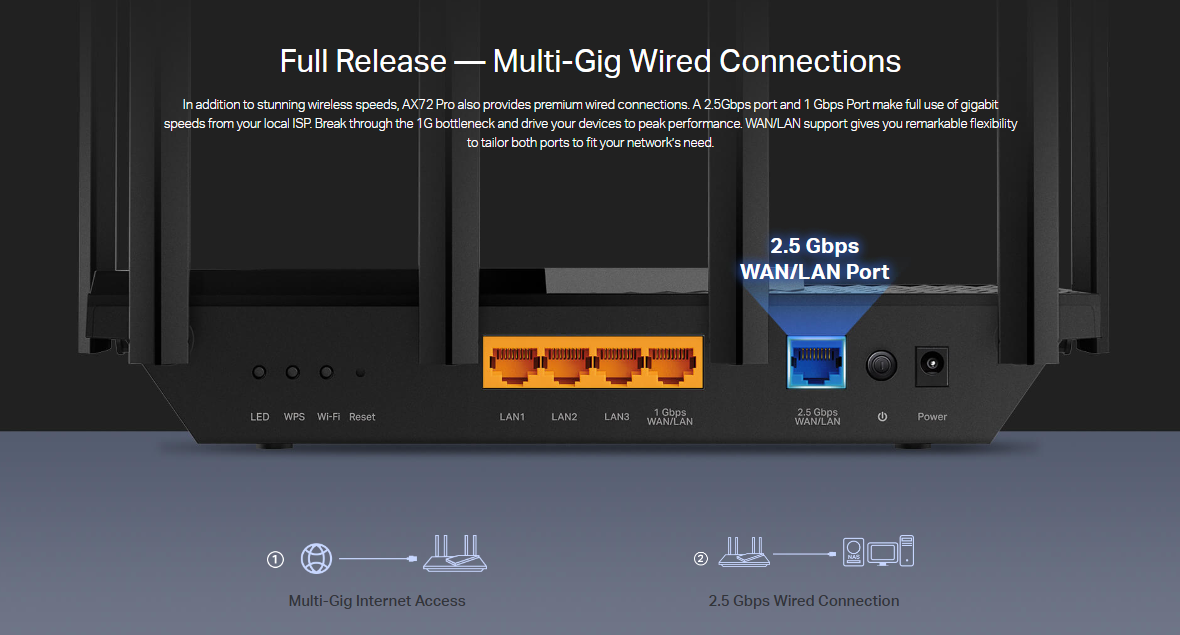

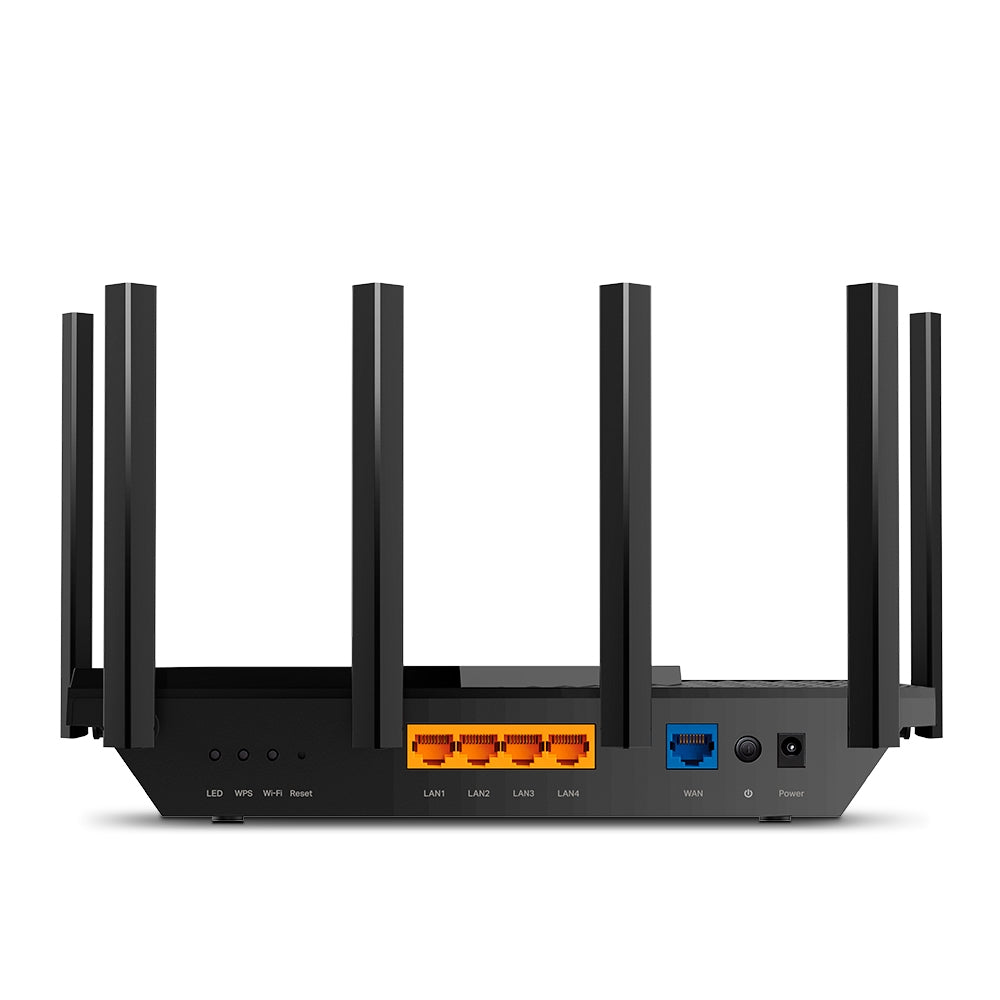

Ethernet Ports

• 1× 2.5 Gigabit WAN/LAN Port

• 1× Gigabit WAN/LAN Port

• 3× Gigabit LAN Ports

USB Support - 1× USB 3.0 Port

Supported Partition Formats: NTFS, exFAT, HFS+, FAT32

Supported Functions:

• Apple Time Machine

• FTP Server

• Media Server

• Samba Server

Buttons

• Wi-Fi On/Off Button

• Power On/Off Button

• LED On/Off Button

• WPS Button

• Reset Button

Power - 12 V ⎓ 2.5 A
Dimensions (W×D×H)  -  10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)

Package Contents

• Wi-Fi Router Archer AX72 Pro

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide

Warranty

• 3 Year Brand Warranty

Manufacturer Info

• Manufactured By : Big Field Global Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987

• Imported By : TP-Link India Pvt Ltd, Andheri, Mumbai

• Country Of Origin : China
