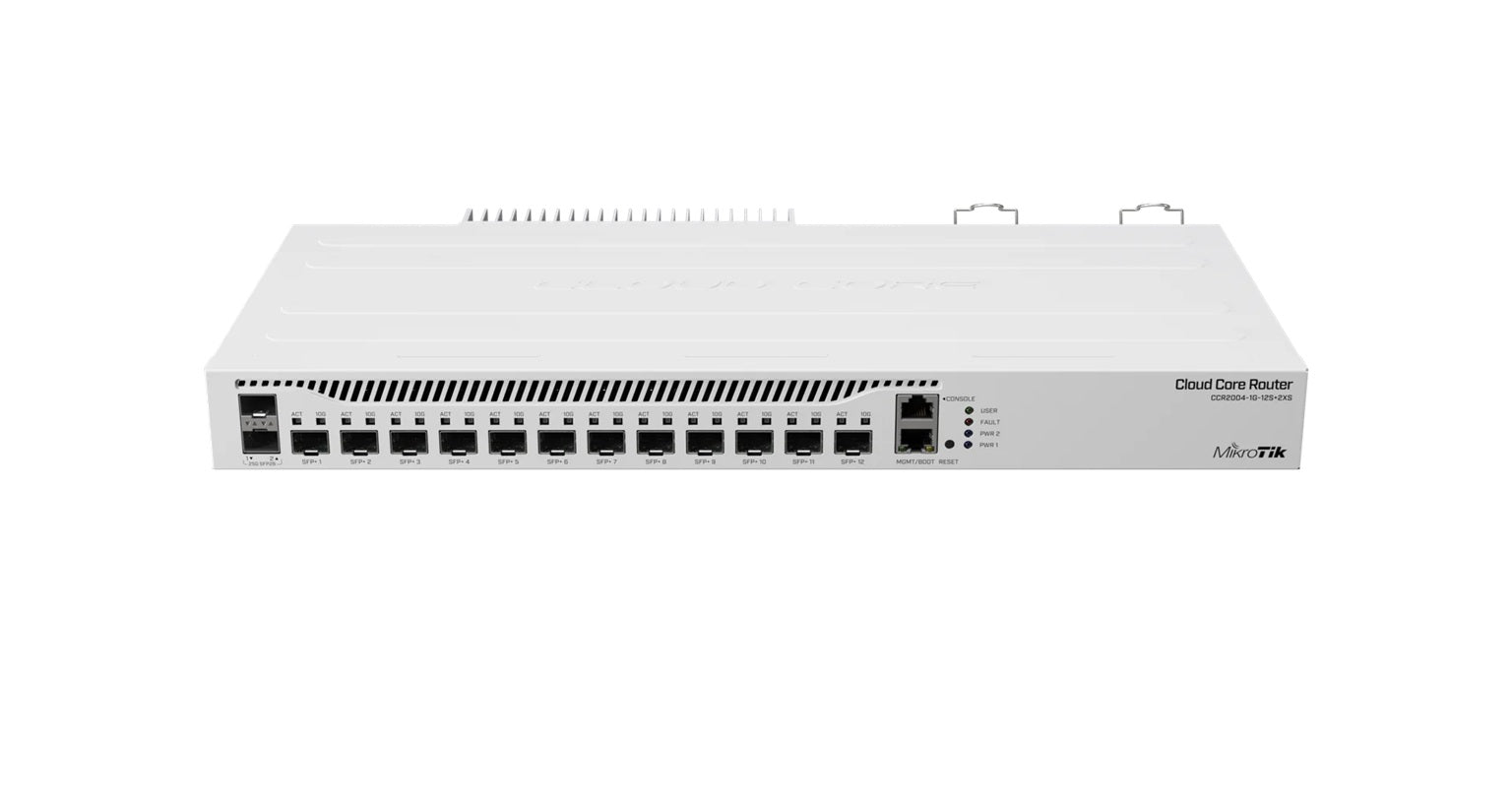

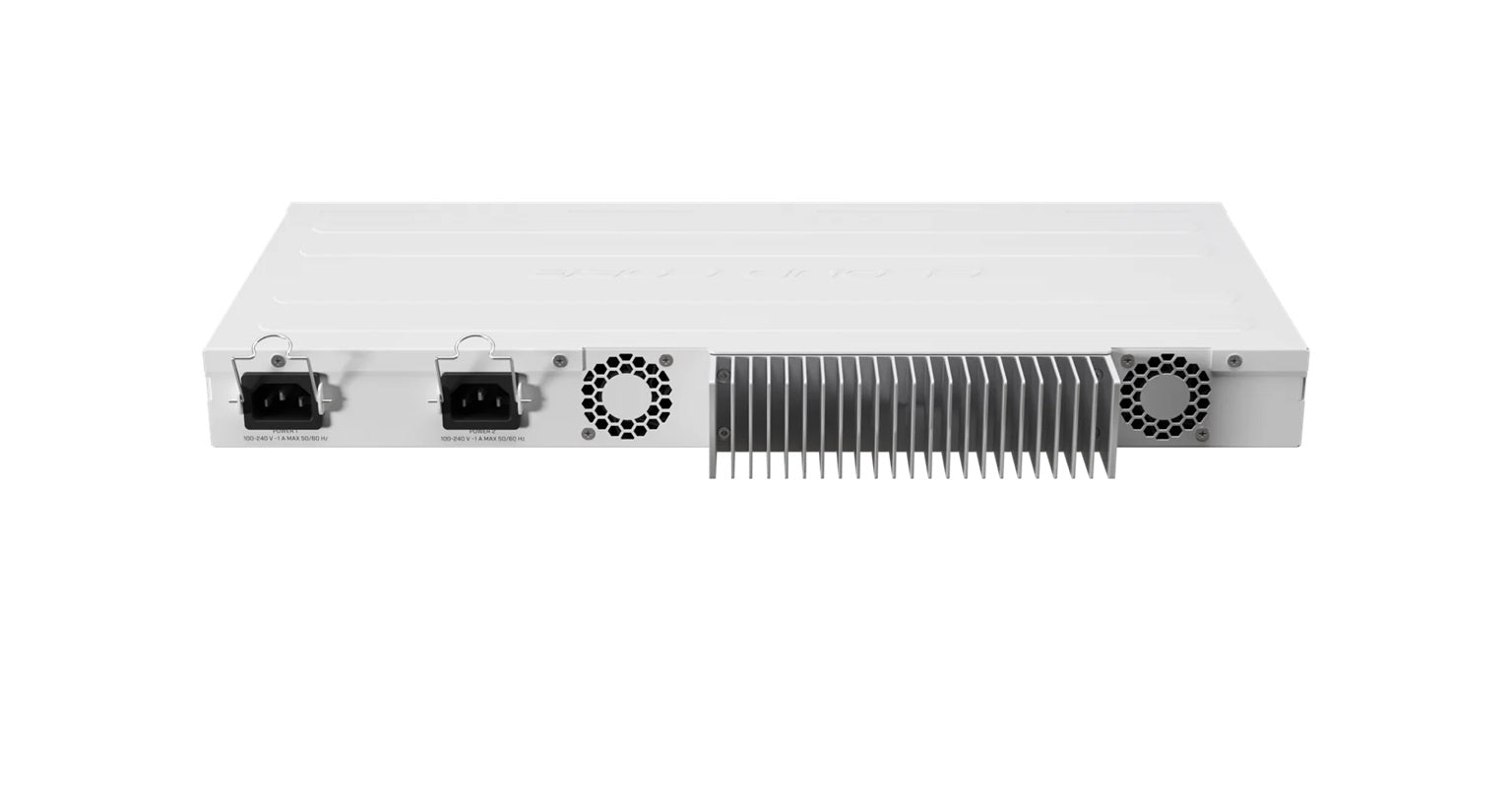

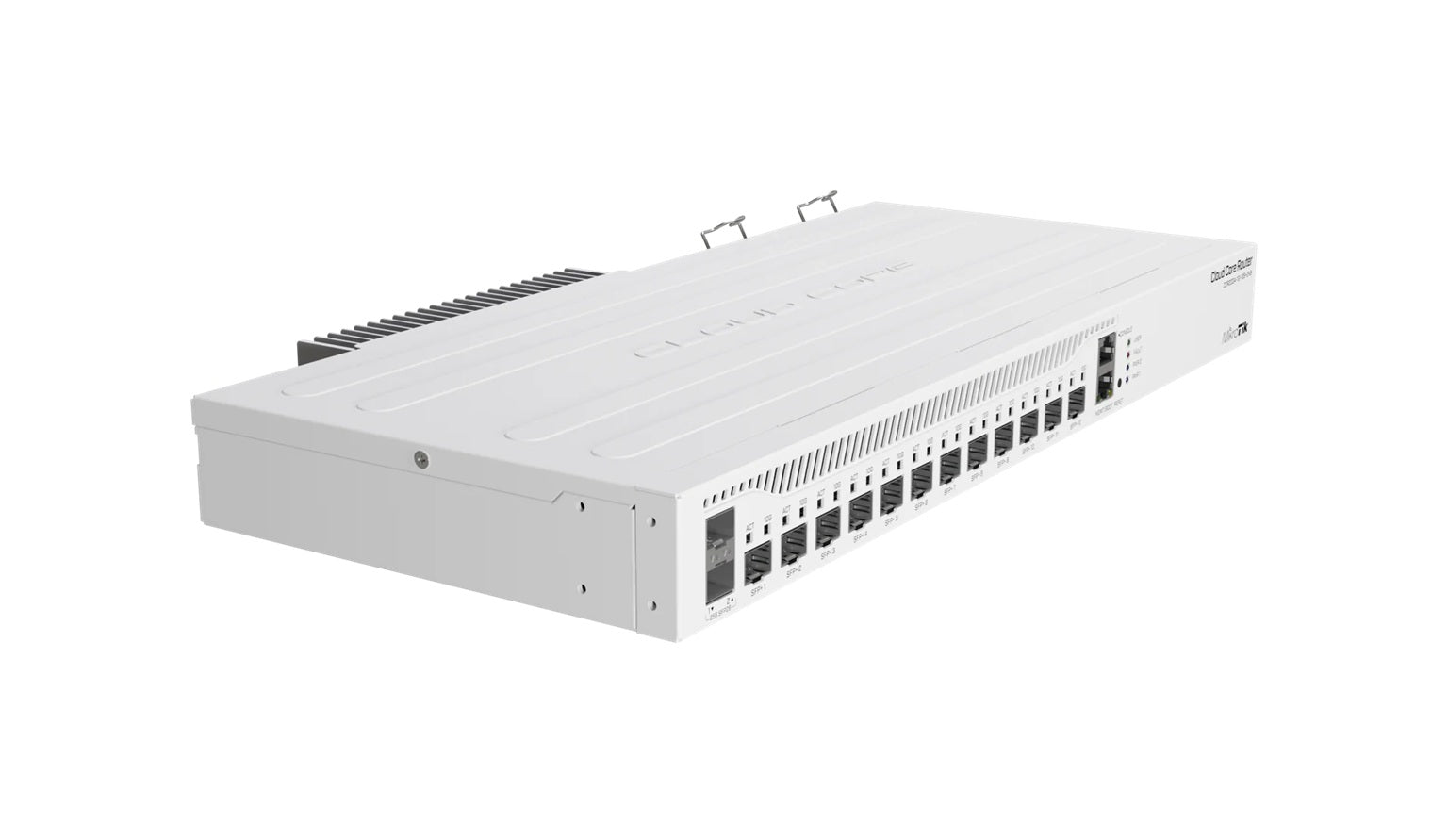

Mikrotik CCR2004-1G-12S+2XS Core Connectivity Router with 1, 10 and 25 Gbps ports | Quad-core CPU, ARM64, SFP, SFP+ and SFP28 management

Description

The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.

CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v7 4GB ECC

Specifications

• Product code - CCR2004-1G-12S+2XS

• Architecture - ARM 64bit

• CPU - AL32400

• CPU core count - 4

• CPU nominal frequency - 1700 MHz

• CPU Threads count - 4

• Dimensions - 443 x 224 x 44 mm

• RouterOS license - 6

• Operating System - RouterOS v7

• Size of RAM - 4 GB

• Storage size - 128 MB

• Storage type - NAND

• MTBF - Approximately 200'000 hours at 25C

• Tested ambient temperature -  -20°C to 60°C

Powering

• Number of AC inputs - 2

• AC input range - 100-240

• Max power consumption - 60 W

• Max power consumption without attachments - 31 W

• Cooling type - 2 fans

Ethernet

• 10/100/1000 Ethernet ports - 1

Fiber

• SFP+ ports - 12

• Number of 25G SFP28 ports - 2

Peripherals

• Serial console port - RJ45

Certification & Approvals

• Certification - CE, EAC, ROHS

• IP - 20

Package Contents

• 1 x MikroTik Router (CCR2004-1G-12S+2XS)

• 2 x Power cords

• Rackmount bracket

Warranty

• 1 Year Brand Warranty

Manufacturer Info

• Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.

• Imported By: VT, New Delhi, INDIA.

• Country Of Origin: Vietnam
