BOXNUBE 4 Port PCI-E RS232 Serial Card, 4 x Serial DB9 Port PCI Express Expansion Card for PC

Description

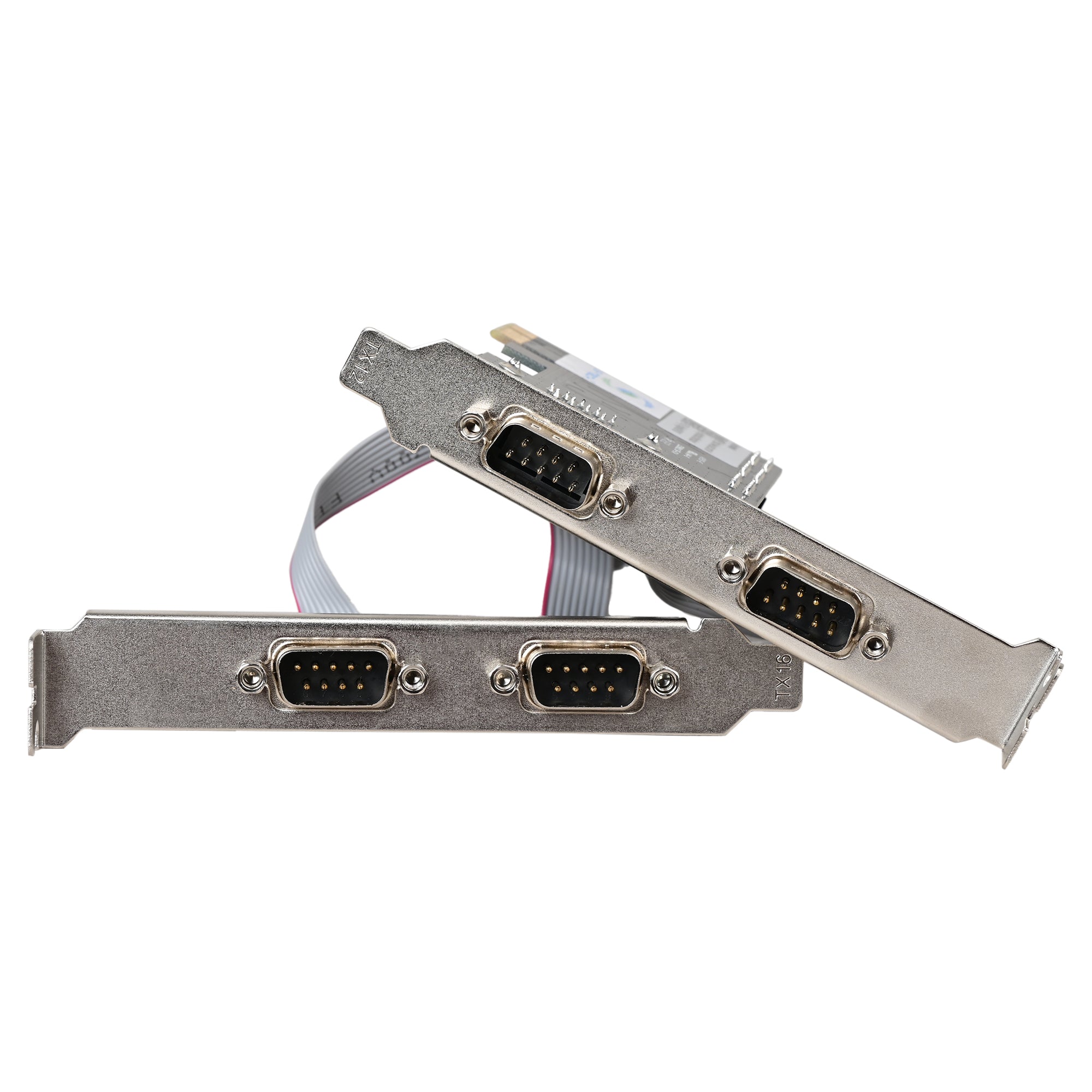

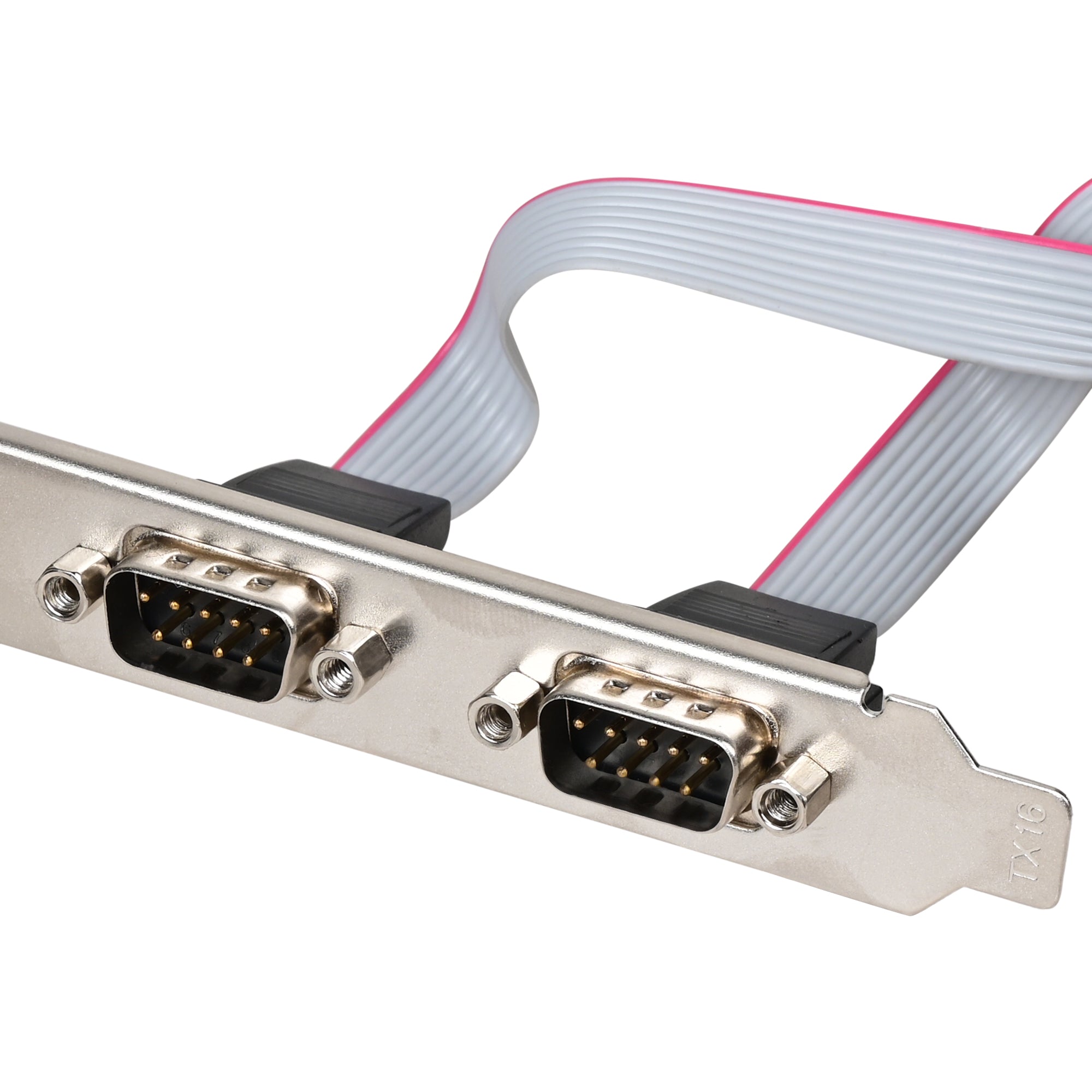

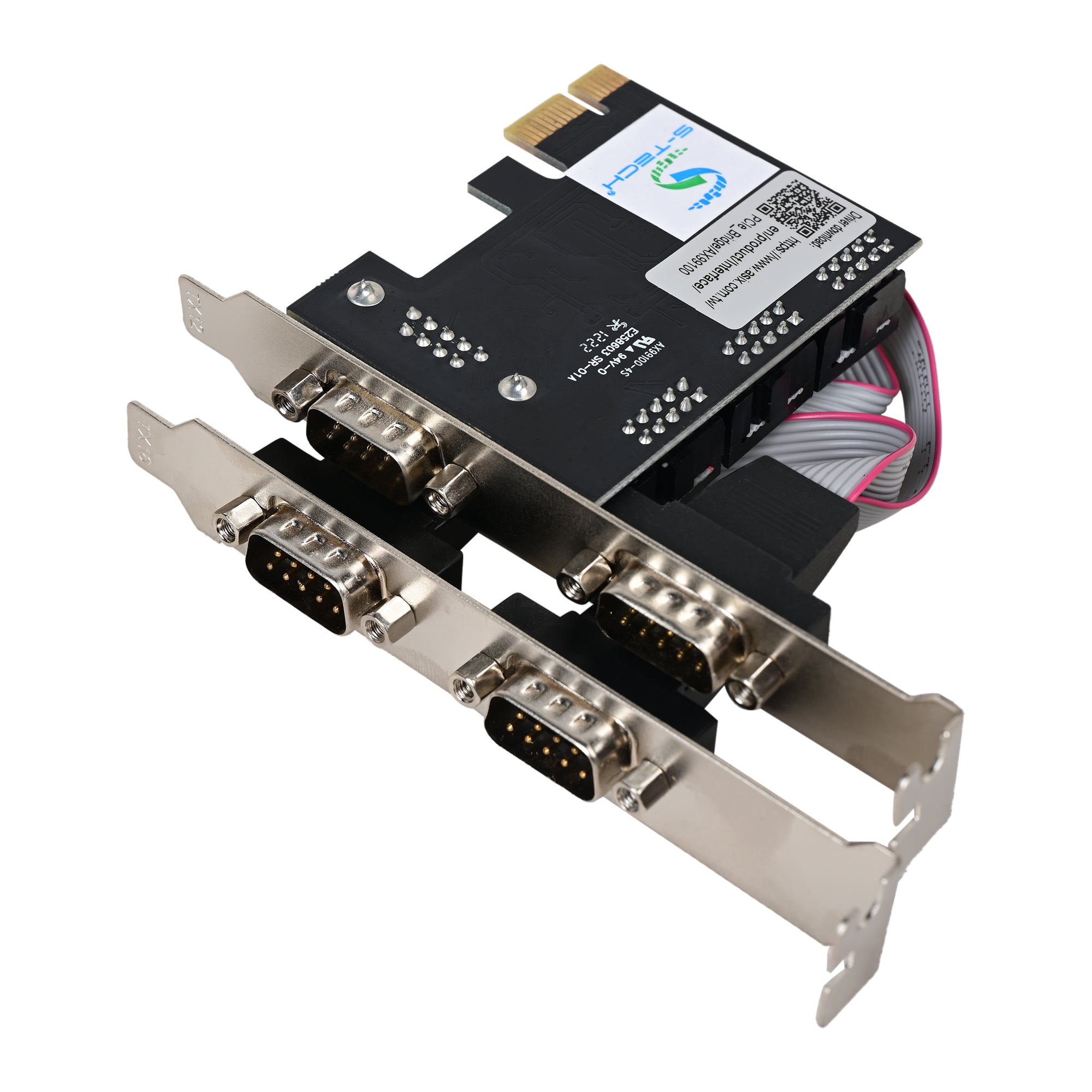

BOXNUBE 4-Port PCI Express Serial Port Expansion Card

Specifications

• This High-Performance card adds four RS232 Serial Ports to your PC intended to be used with serial networking/monitoring equipment, data acquisition system, POS industrial terminal PC, add on I/O cards-serial/USB, and embedded systems for I/O expansions.

• Single-lane(x1) PCI-Express with a transfer rate of 2.5 Gbps, Full-Duplex Channel ensures maximum performance and reliability.

• Quickly adds four RS-232 serial ports through an available PCI Express slot
  Supports serial port data transfer rates up to 115.2 Kbps, compatible with 16C550 UART

• 256-byte depth FIFO buffer supports fast data transfer especially in a multitasking environment

• Perfect solution to connect with a POS system, industrial testing and control device, security system, logistic management equipment, etc.

• Chipset: ASIX 99100

• Bi-directional Speeds from 50 bps to 16 Mbps/ port.

• Supports Hot-swapping and Plug and Play Connection of Peripheral Devices.

Package Contents

• 1 x 4-Port PCI Express Serial Port Expansion Card

• 1 x Driver CD

Warranty

• 1 Year Brand Warranty

Manufacturer Info

• Imported/ Marketed by / Manufactured for : Global Sourcing, Gurgaon, Haryana - 122003, India

• Country Of Origin : China
