TP-Link TD-W9970 300Mbps Wireless N USB VDSL/ADSL Modem Router

Description

• Versatile Connectivity –With DSL and LAN/WAN ports, TD-W9970 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.

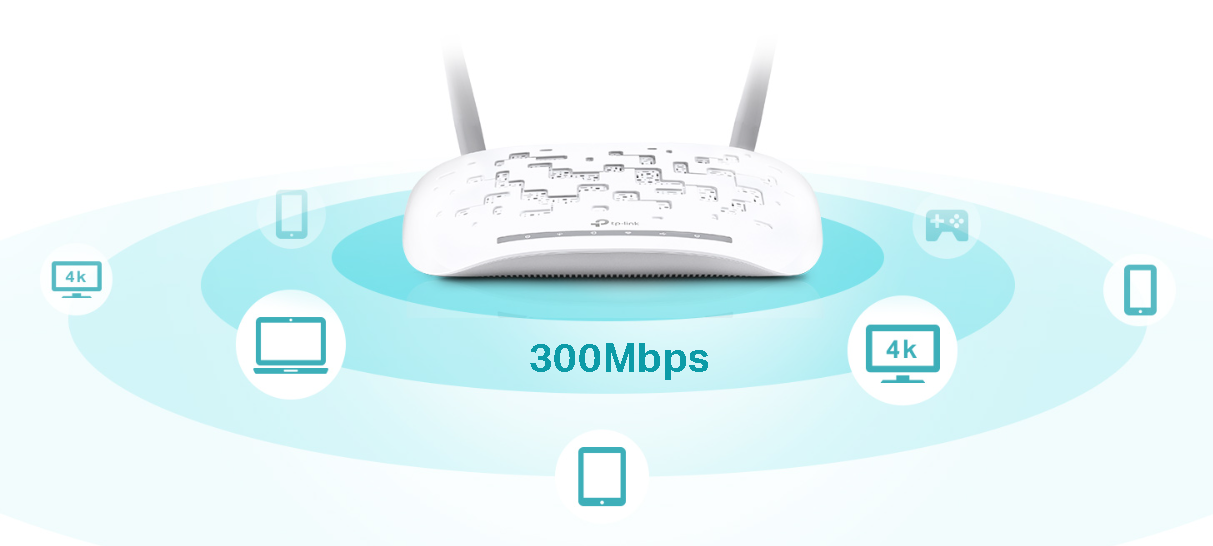

• Boosted Speeds –Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.

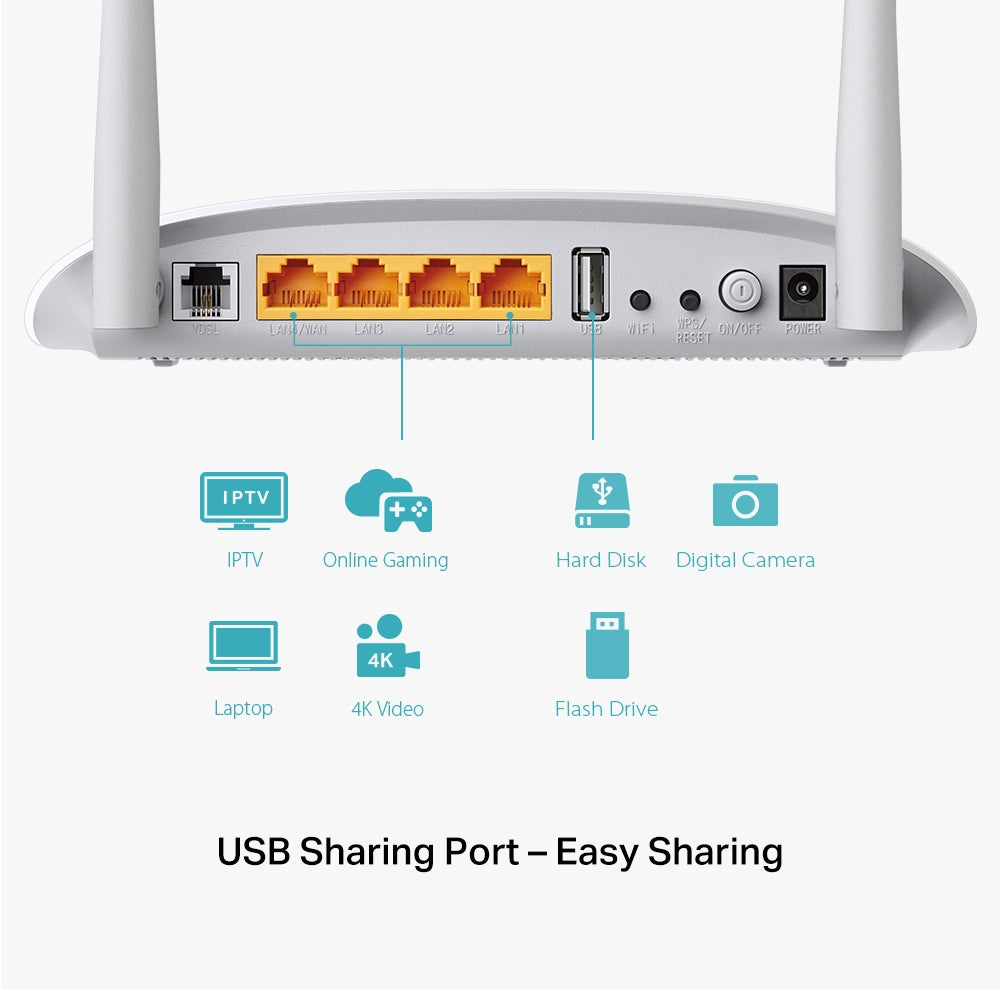

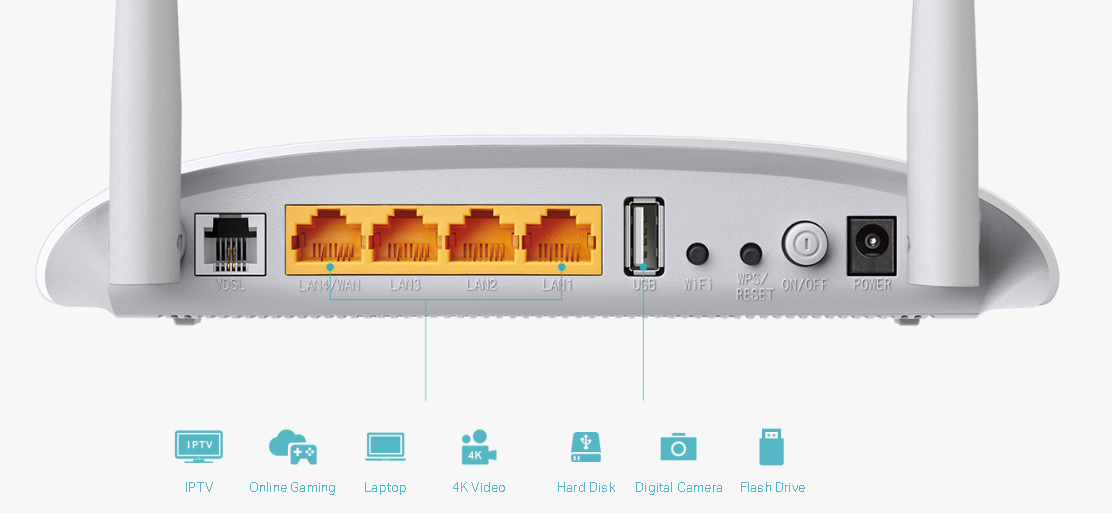

• Easy Sharing –Share files, media with your friends or family using the multi-functional USB port

• Maximized Range –Powerful external antennas provide far-reaching wireless coverage in every direction.

• Effortless Management –Set up in minutes and manage the network with the powerful intuitive web interface.

Specifications

Interface

• 4 10/100Mbps RJ45 Ports

• 1 RJ11 Port

• 1 USB 2.0 Port

Button

• 1 Power On/Off Button

• 1 WPS/RESET Button

• 1 Wi-Fi On/Off Switch

External Power Supply - 12VDC/1A

IEEE Standards    - IEEE 802.3, 802.3u

VDSL2 Standards

• ITU-T G.993.2

• ITU-T G.993.5 (G.vector)

• ITU-T G.998.4 (G.INP）

ADSL Standards

• Full-rate ANSI T1.413 Issue 2

• ITU-T G.992.1(G.DMT)

• ITU-T G.994.1 (G.hs)

• ITU-T G.995.1

ADSL2 Standards    - ITU-T G.992.3 (G.dmt.bis)

ADSL2+ Standards - ITU-T G.992.5

Dimensions ( W x D x H ) - 7.7*5.1*1.4 in. (195×130×36mm)

Antenna Type - Omni directional, Fixed

Antenna Gain - 2 x 5dBi

USB Sharing

• Storage Sharing

• FTP Server

• Media Server

Package Contents

• TD-W9970

• External Splitter

• RJ-11 Telephone Line

• RJ-45 Ethernet Cable

• Quick Installation Guide

• Power Adapter

Warranty

• 3 Year Manufacturer Warranty

Manufacturer Info

• Manufactured By : TP-LINK CORPORATION LIMITED, Hong Kong

• Imported By :TP-LINK India Private Limited. Palghar, Maharashtra, India

• Country Of Origin : China
