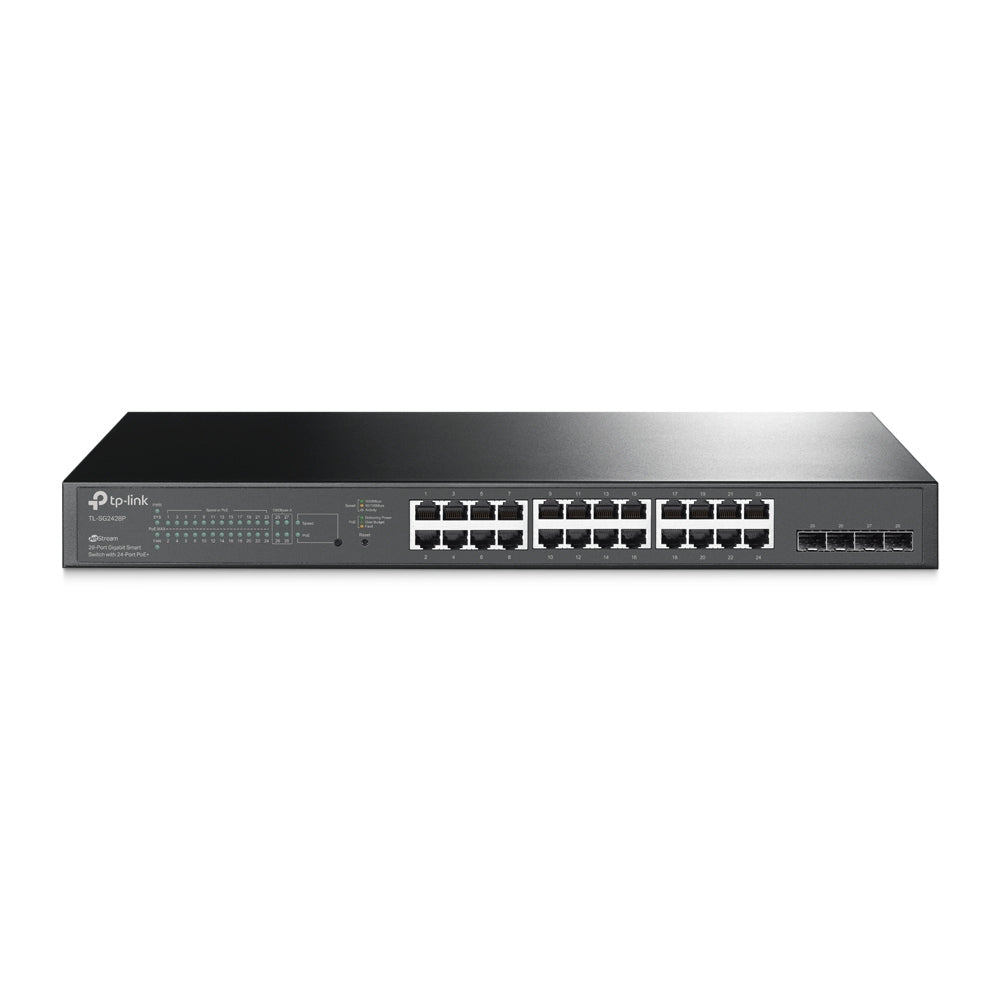

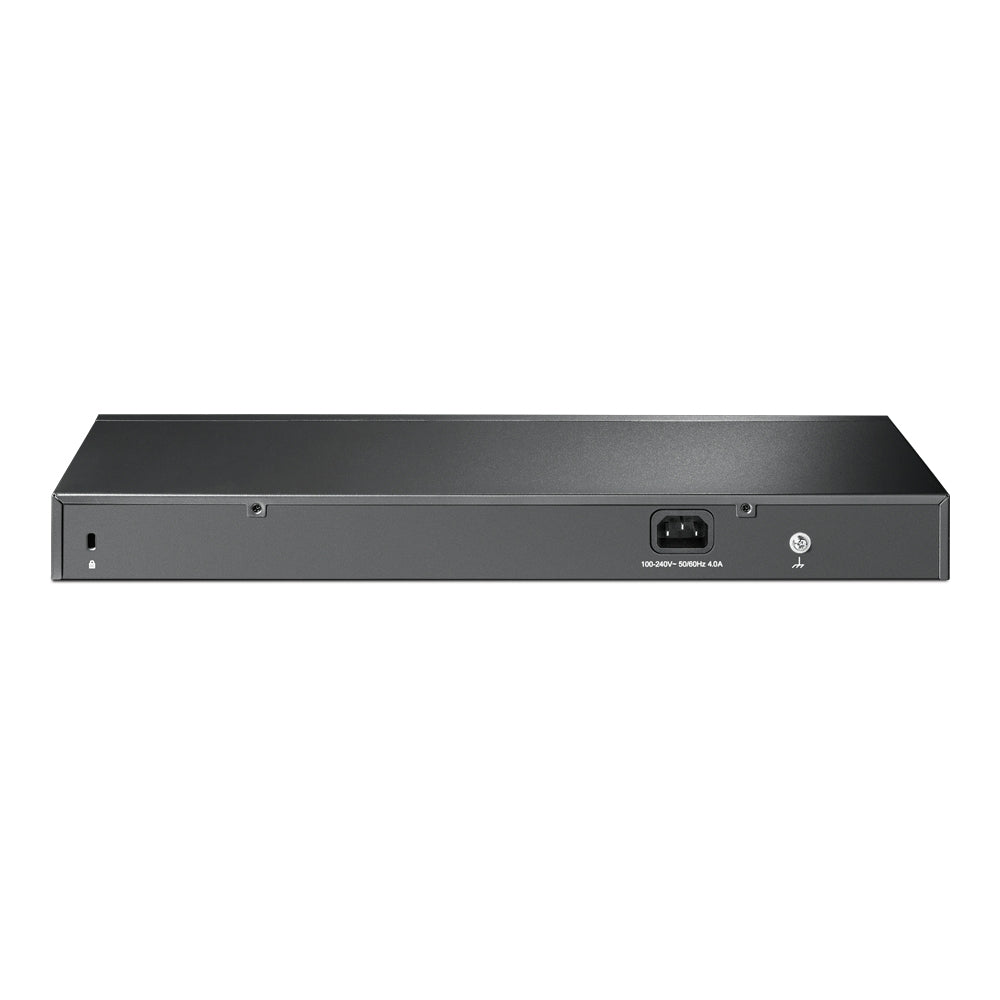

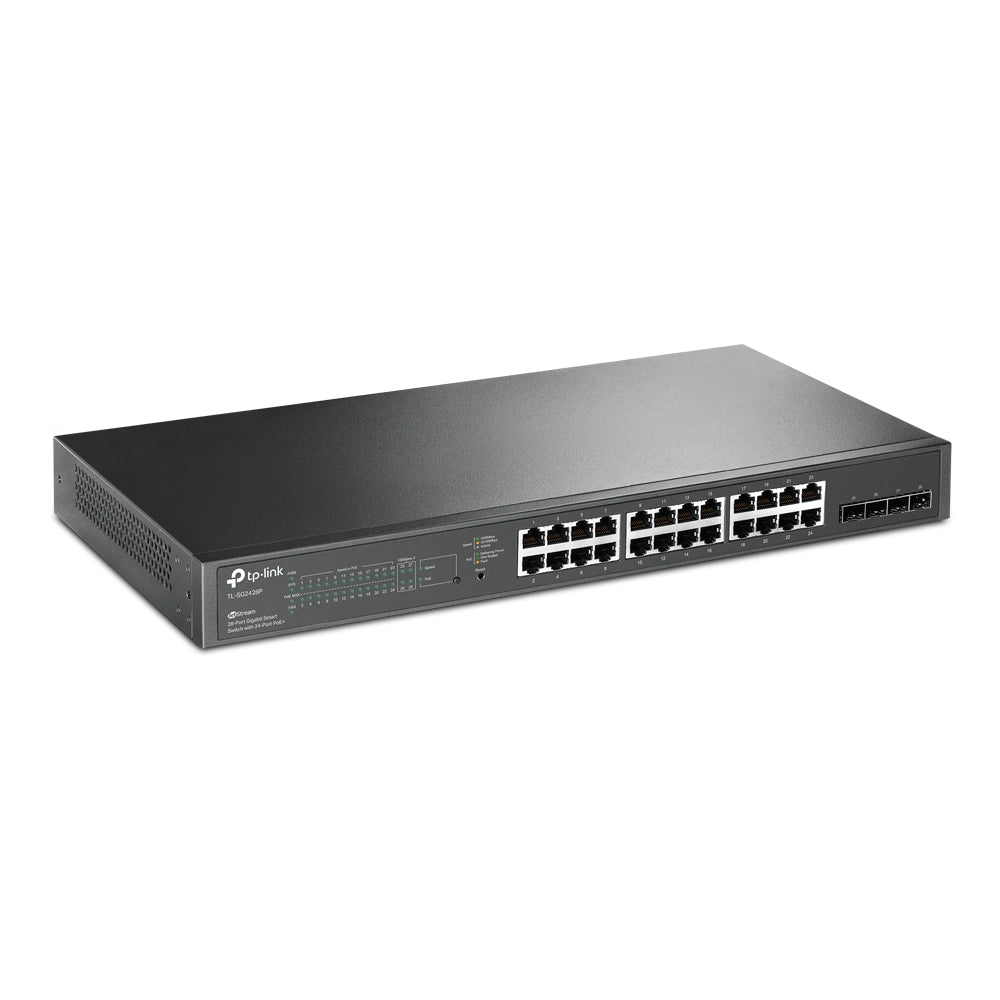

TP-Link Omada SG2428P 28-Port Gigabit Switch with 24-Port PoE+

TP-Link

TP-Link Omada SG2428P 28-Port Gigabit Switch with 24-Port PoE+

Name: TP-Link Omada SG2428P 28-Port Gigabit Switch with 24-Port PoE+
Brand: TP-Link
SKU: 140997
Price: 21999.0 INR
Availability: InStock
Rating: 5.0 (10 reviews)

250 W PoE Budget
Full Gigabit Ports
Centralized Management

Rs. 21,999.00

~~Rs. 25,999.00~~

Want it delivered by

Description
Reviews

Description

250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Specifications

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface	• 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF
Fan Quantity	2
Power Supply	100-240V AC, 50/60Hz
PoE Ports (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • PoE Power Budget: 250 W*
Dimensions ( W x D x H )	17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting	Rack Mountable
Max. Power Consumption	• V1: 308.6 W (110V/60Hz with 250 W PD connected); 32.1 W (110 V/ 60 Hz with no PD connected) • V2: 294.7 W (220 V/50 Hz) (with 250 W PD connected) • V3: 291.9 W (110V/60Hz) (with 250 W PD connected) • V4: 306.9 W (110V/60Hz) (with 250 W PD connected)
Max. Heat Dissipation	• V1: 1052.94 BTU/h (with 250 W PD connected); 109.53 BTU/h (with no PD connected) • V2: 1005.66 BTU/hr (220V/50 Hz) (with 250 W PD connected) • V3: 996.01 BTU/hr (110V/60Hz) (with 250 W PD connected) • V4: 1047.30 BTU/hr (110V/60 Hz) (with 250 W PD connected)

PERFORMANCE
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9KB
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.7 Mpps
MAC Address Table	• V1, V2, V4 and above: 8K • V3: 16K

Package Contents

TL-SG2428P
Power Cord
Installation Guide
Rackmount Kit

Warranty

3 Year Brand Warranty

Manufacturer Info

Manufactured by: Pacific Cyber Technology Pvt. Ltd. 51-57, Sliver Industrial Estate, Bhimpore, Nani Daman - 396210
Country Of Origin: India
