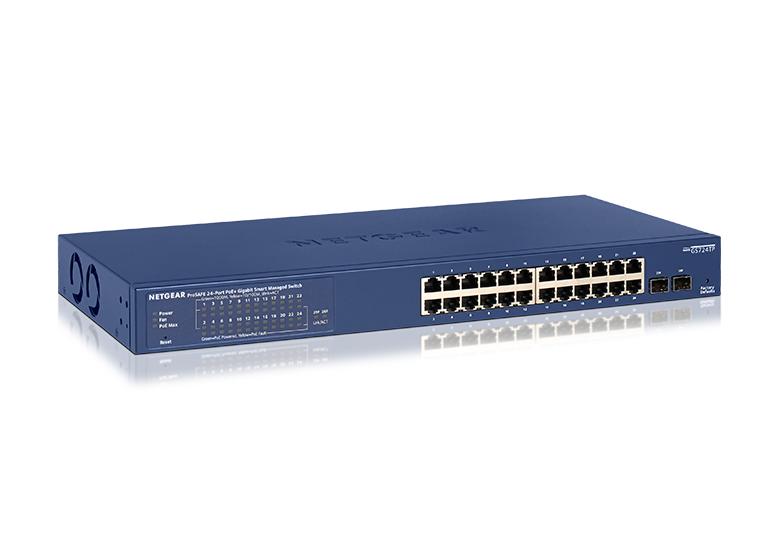

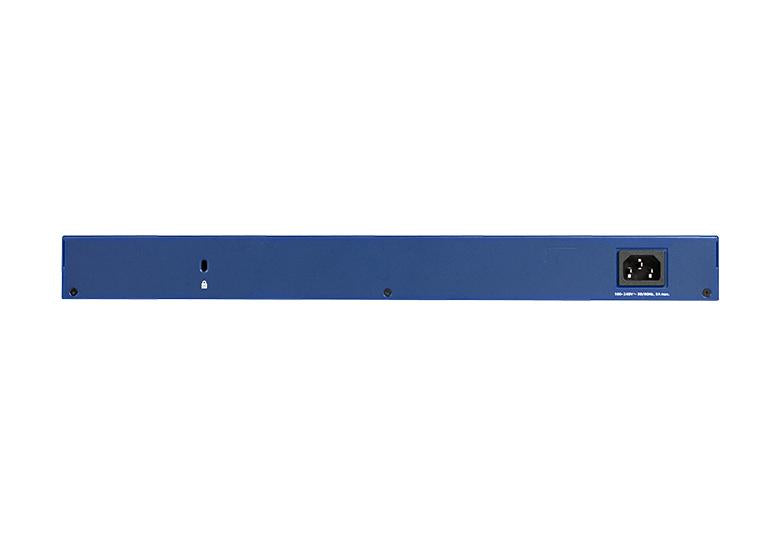

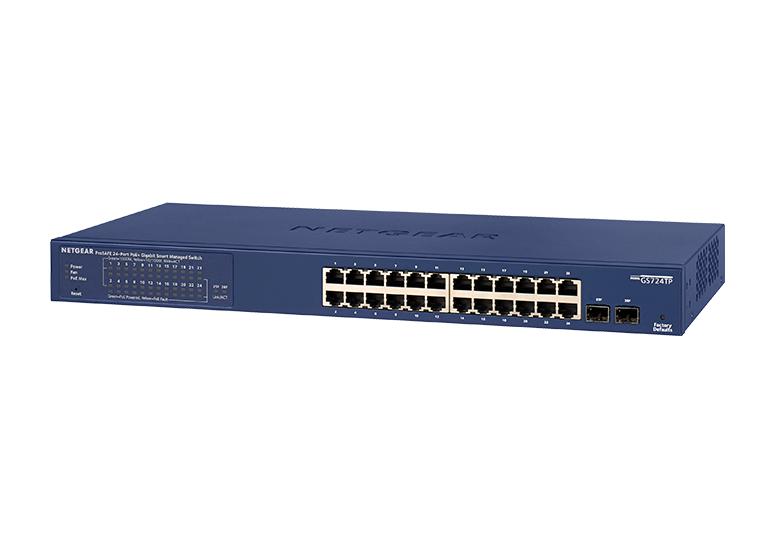

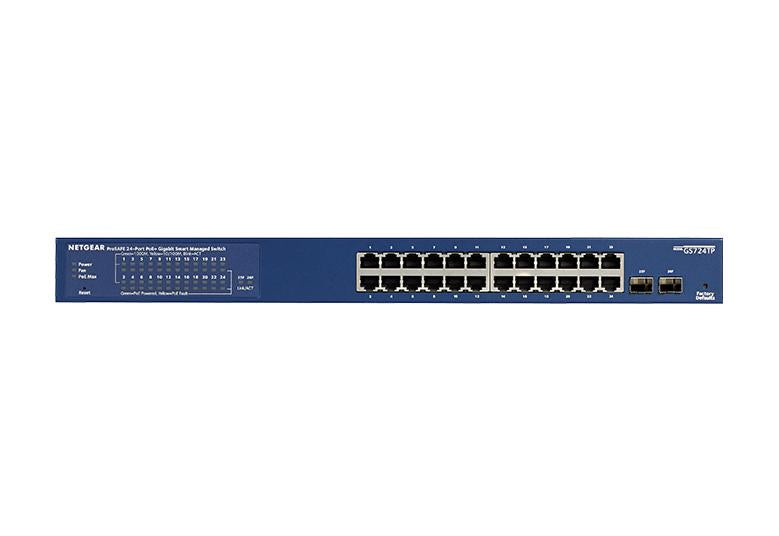

Netgear ProSafe GS724TP 24-Port Gigabit Ethernet PoE+ Smart Switch | 2 x 1G SFP Ports | 190W PoE Budget | Desktop / Rackmount

Description

Traffic Management

• Auto Negotiation of speed and duplex modes
• IEEE 802.3x Flow Control
• Dynamic MAC address management
• IEEE 802.1Q-based VLAN
• Auto Voice VLAN
• Auto Video VLAN (selected models)
• VLAN routing (selected models)
• QoS based on WRR, strict priority, or both
• Port-based and IEEE 801.2p-based QoS
• TCP/UDP-based QoS
• DiffServ
• IPv4 and IPv6-based QoS (selected models)
• DSCP Support
• Rate Limiting (ingress, or egress)
• Link Aggregation and LACP

Switch Management

• Insight mobile app or Insight Cloud Portal
• Web browser-based management GUI
• Smart Control Center Software for multi-switch management
• IP Access List
• IPv6 Management
• Configurable Management VLAN
• SNMP v1/v2c and v3
• Standard MIBs (RFC1213, RFC1643, and RFC1493)
• RMON group 1, 2, 3, 9
• Firmware Upgrade through Smart Control Center (TFTP)
• Firmware download (to switch) and upload (to server) through TFTP/HTTP
• Configuration and Image Upload (to PC) through HTTP
• Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
• Memory & FLASH log
• Syslog (server)
• System password protection

Security

• MAC lockdown
• MAC lockdown by number of MACs
• IEEE 802.1x port authentication
• Dynamic VLAN Assignment
• Guest VLAN
• TACACS+
• 3 HTTPS /SSL versions
• TLS session
• Trusted MAC
• IPv4, L4-based Access Control List (ACL)
• IPv6-based ACL (selected models)

Multicast Efficiency

• IGMP snooping, v1, v2 and v3
• IGMP Snooping querier
• Blocking of unknown multicast traffic
• MLD snooping

Spanning Tree, Routing and Stacking

• IEEE 802.1D, IEEE 802.1w RSTP and MSTP
• Option to enable/disable BPDU flooding when STP is disabled
• Static routing with 32 static routes (Selected models)
• Hosted ARP table size of 512 (Selected models)

Specifications

Performance -

Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T : 24 Ports
PoE/PoE+ ports : 24 PoE+ (190W PoE budget)
Power Supply : External Input 54V 2.4A (130W)

Gigabit SFP (fiber) ports (100M/1G) - 1000BASE-X : 2 (dedicated)
Power Supply Supported : Internal Power Supply
Form Factor : Rackmount

CPU : 500 Mhz MIPS-4KEc CPU, 128MB RAM 32MB SPI FLASH
Max MAC entries : 8K
Packet buffer memory : 512KB

PoE Support
802.3af : Ports 1-24
802.3at : Ports 1-24
Total PoE Power Budget : 190W
Forwarding modes : Store-and-forward
Bandwidth : 52Gbps
Fan(s) (temperature- and load-based speed control) : 1 Fan
Mean Time Between Failures (MTBF) @ 25°C : 1,051,375 hrs (120 yrs)

Physical -
Dimensions (W x D x H) : 440 x 204 x 43 mm | 17.3 x 8 x 1.7 in) in
Weight : 3.15 Kgs

Package Contents

• Network Switch
• Power Cord
• Mounting kit
• Rubber footpads for tabletop installation
• Instructions Manual

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured by :Netgear, 35E, Plumeria Drive, San Jose, California 95134, USA
• Imported By : KDPL, Bangalore, Karnataka, India
• Country Of Origin : Vietnam
