MikroTik SXTsq 5 ac Outdoor 16 dBi CPE - 5Ghz CPE - RBSXTsqG-5acD

Description

RBSXTsqG-5acD Low-cost small-size 16dBi 5GHz dual chain integrated CPE/Backbone with AC support and Gigabit Ethernet

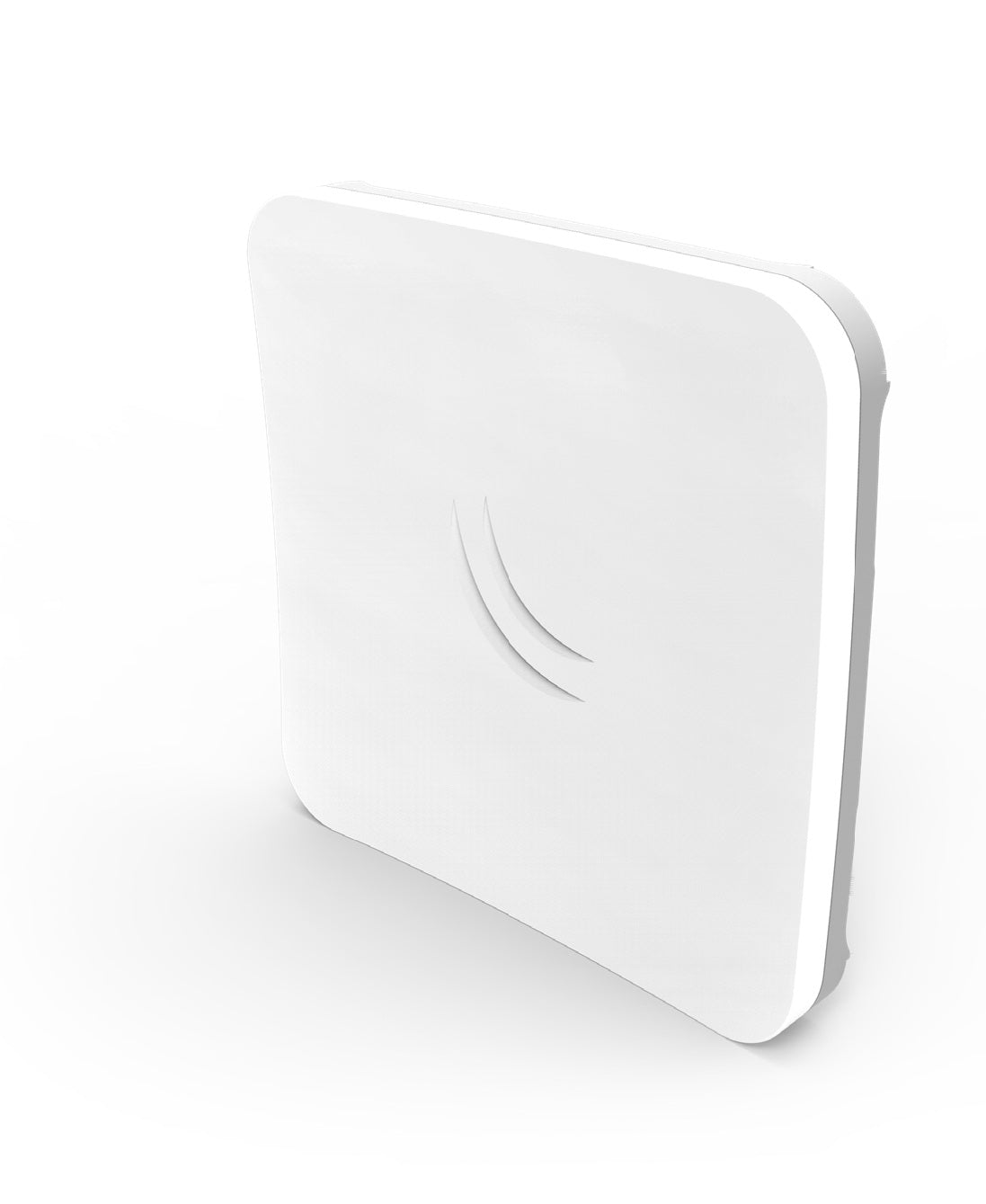

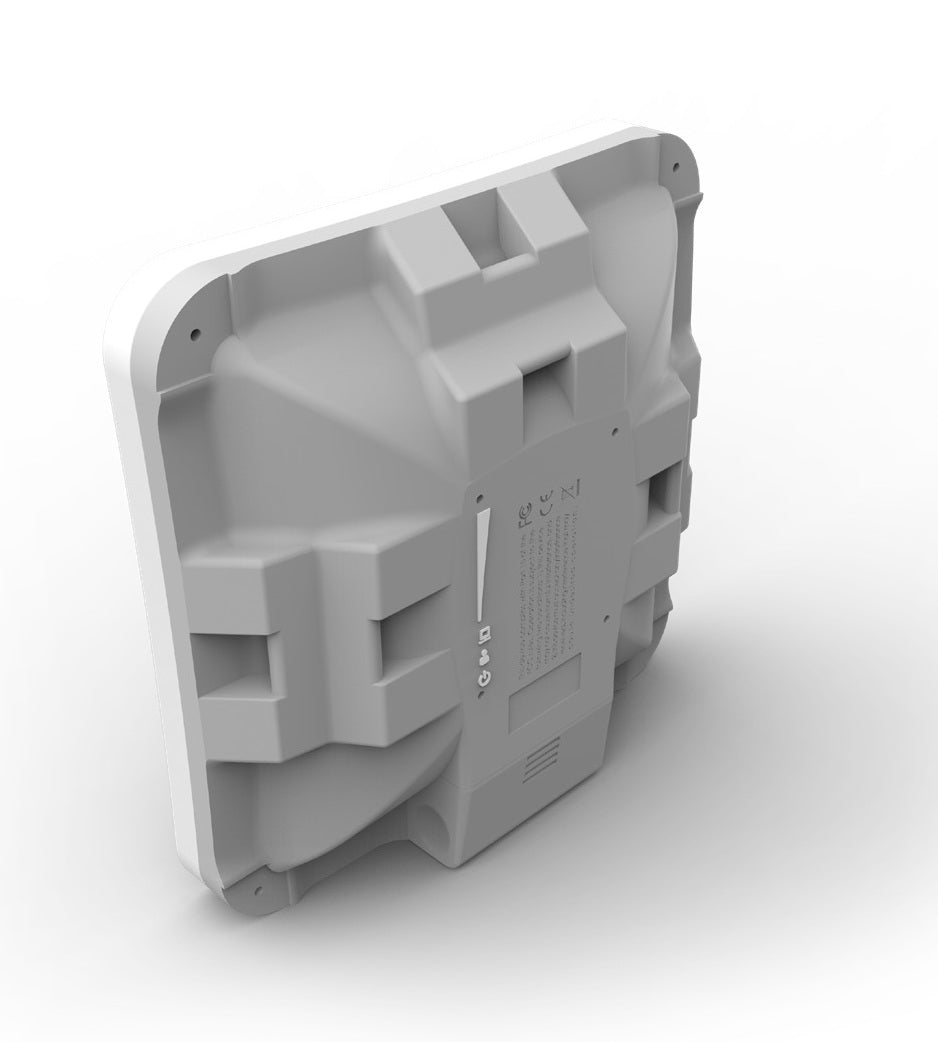

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

Specifications

• Product code - RBSXTsqG-5acD

• CPU - IPQ-4018, 4 cores, nominal frequency 716 MHz

• Size of RAM - 256 MB

• Storage - 16 MB Flash

• 10/100/1000 Ethernet ports - 1

• Wireless bands - 5 GHz radio

• Wireless regulations - Specific frequency range may be limited by country regulations

• Operating frequency - 5150 - 5875 MHz

• Protocols - 802.11a/n/ac

• Chains - 2

• Antenna gain - 16 dBi

• Antenna beam width - 23°

• Wireless chip model - IPQ-4018

• PoE in - Yes

• Supported input voltage - 10 V - 30 V, passive PoE

• Ingress protection - IP55

• Dimensions - 129 x 129 x 34 mm; package: 255 x 180 x 45 mm

• Weight Unit: - 295 g; package: 492 g

• Operating temperature - -40 to 70° C

• License level - 3

• Operating System - RouterOS

• Max Power consumption - 7 W

Package Contents

• 1 x Outdoor CPE RBSXTsqG-5acD

• 1 x Power Adapter

• 1 X Gigabit PoE injector

• Metal ring

Warranty

• 1 Year Brand Warranty

Manufacturer Info

• Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.

• Imported By: VT, New Delhi, INDIA.

• Country Of Origin: Vietnam
