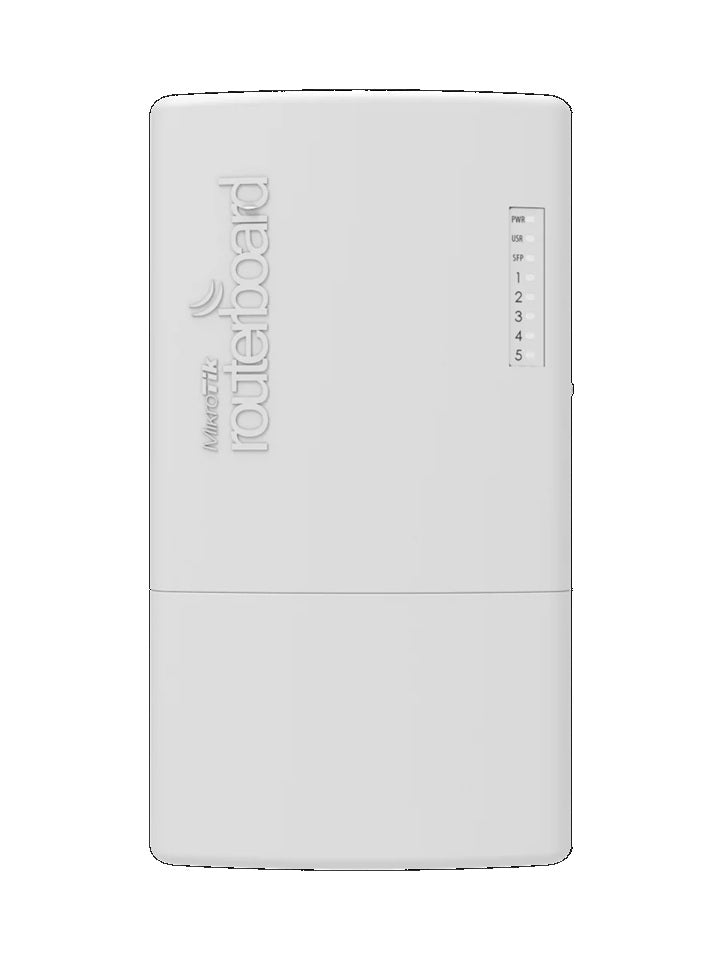

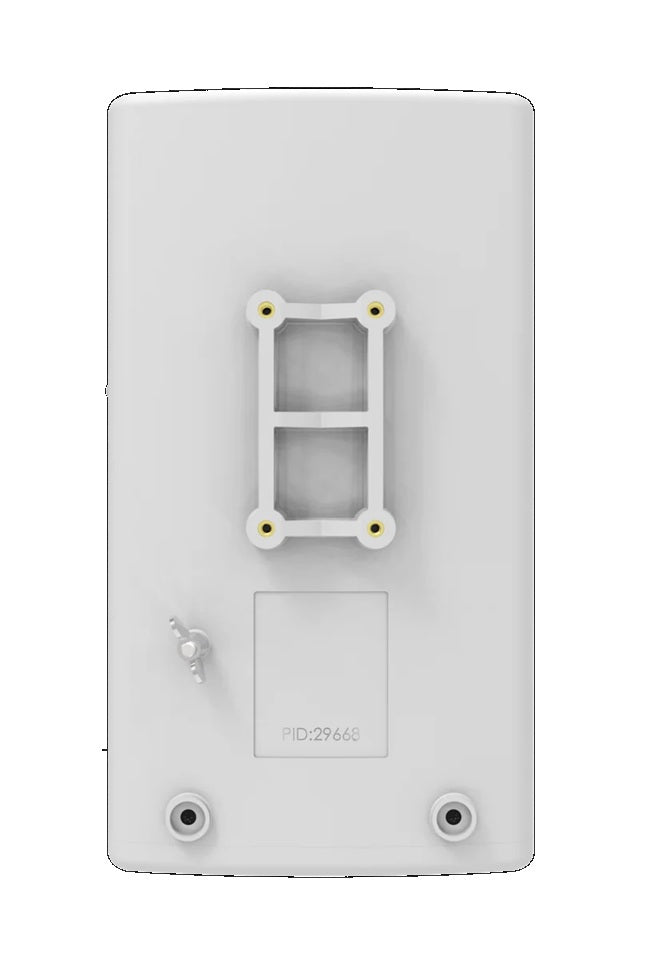

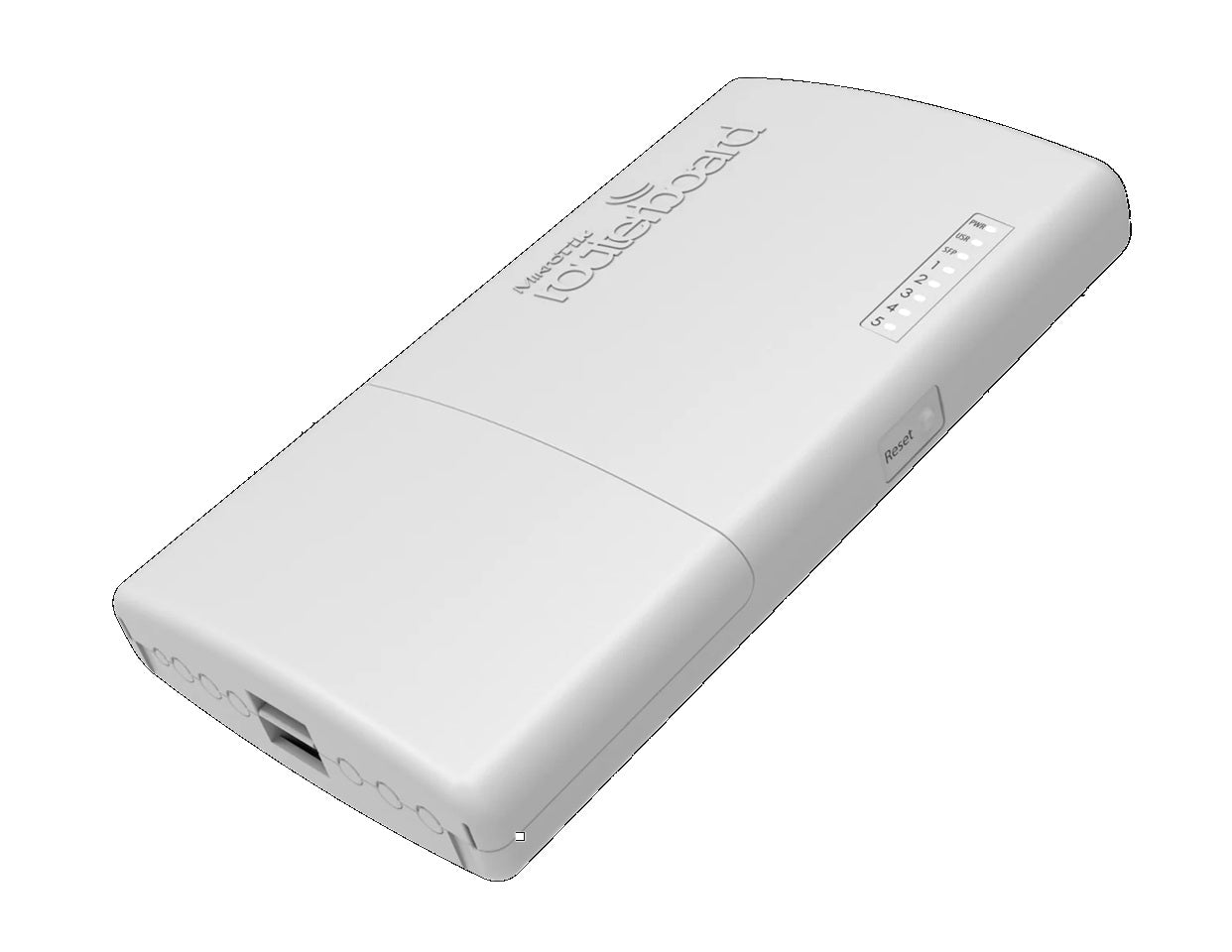

MikroTik Power Box Pro 5 Port Gigabit Router with PoE output RB960PGS-PB

Description

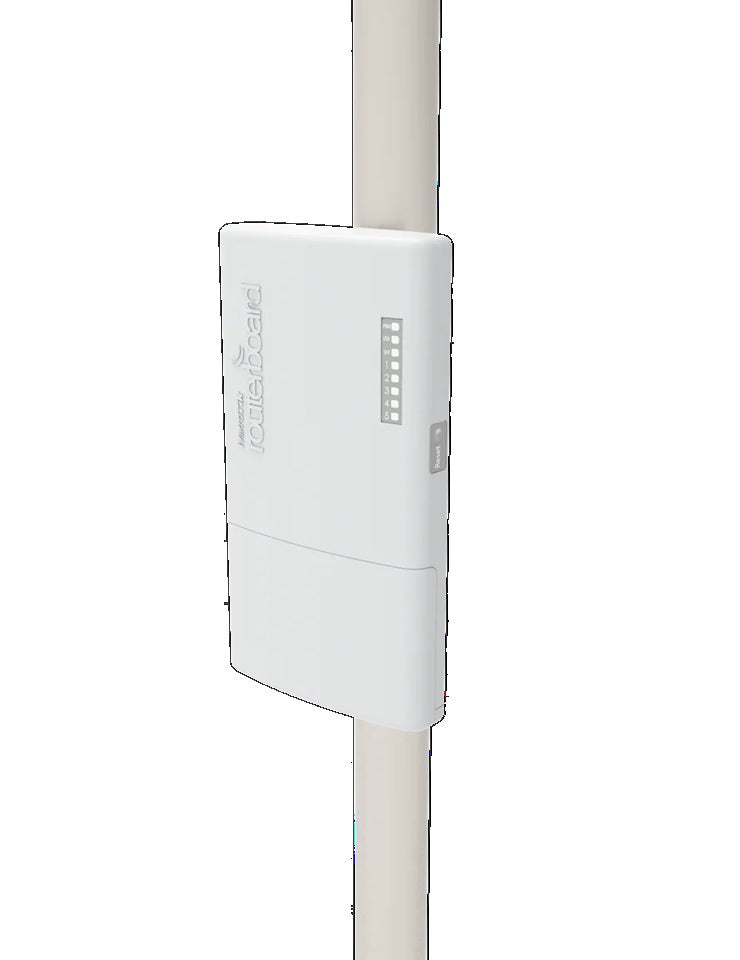

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.

The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.

Specifications

• Product code - RB960PGS-PB

• CPU - QCA9557

• CPU nominal frequency - 800 MHz

• Size of RAM - 128 MB

• Memory type - Flash

• Memory size - 16 MB

• 10/100/1000 Ethernet ports - 5

• SFP - 1

• Switch chip model - QCA8337

• PoE in - Yes

• Supported input voltage - 12 -57 V

• PoE out - Ports 2 - 5, 802.3af/at, max 1 A per port (input < 30 V), max 450 mA per port (input > 30 V), max out total: 2 A

• PCB temperature monitor - Yes

• Voltage monitor - Yes

• Dimensions - 125 x 52 x 225 mm

• Operating temperature  -  -40°C .. +70°C tested

• License level - 4

• Operating System - RouterOS

• Max power consumption without attachments - 6 W

• Max power consumption - 54 W

Package Contents

• 1 x Router

• 1 X Power Adapter

• 1 x IEC cord

• 1 x Gigabit PoE injector

• Metal ring

Warranty

• 1 Years Warranty

Manufacturer Info

• Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.

• Imported By: VT, New Delhi, INDIA.

• Country Of Origin: Vietnam
