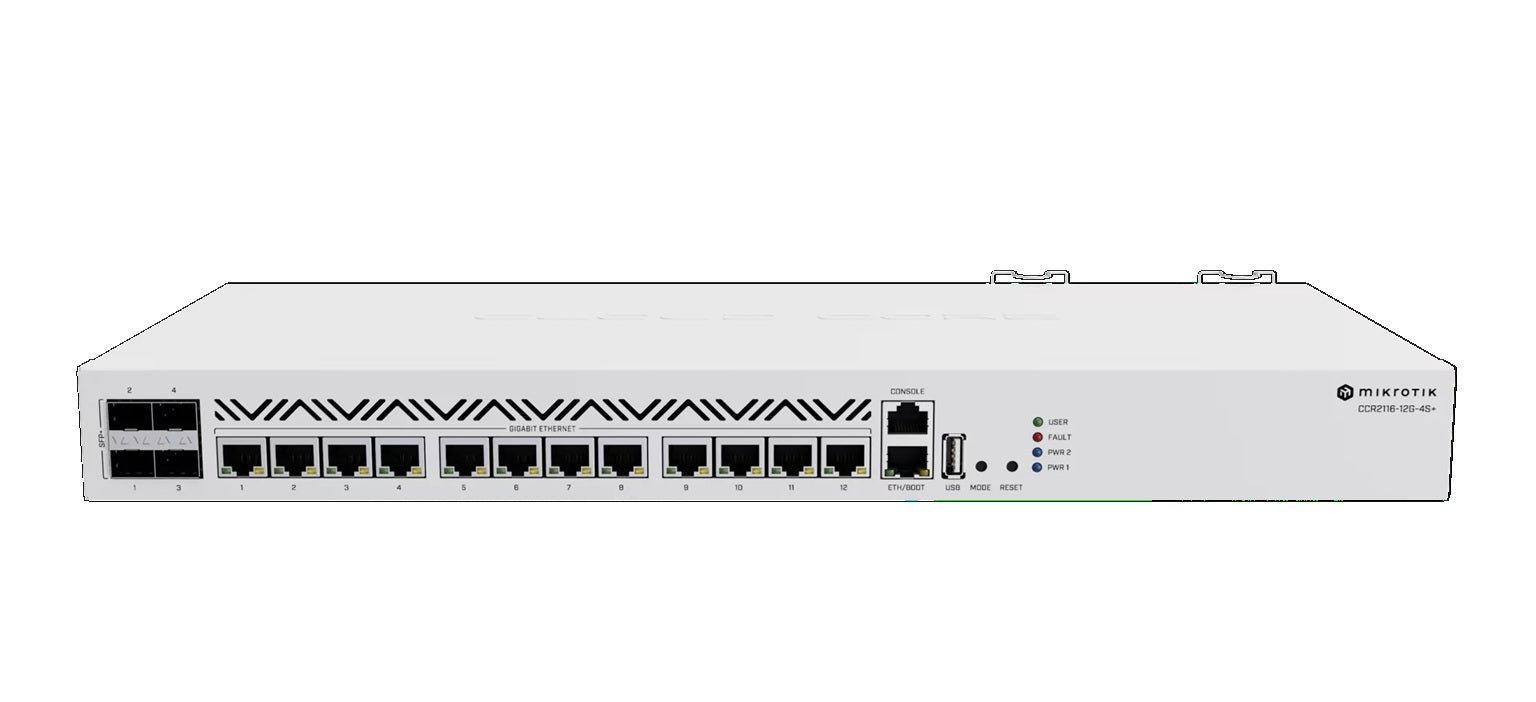

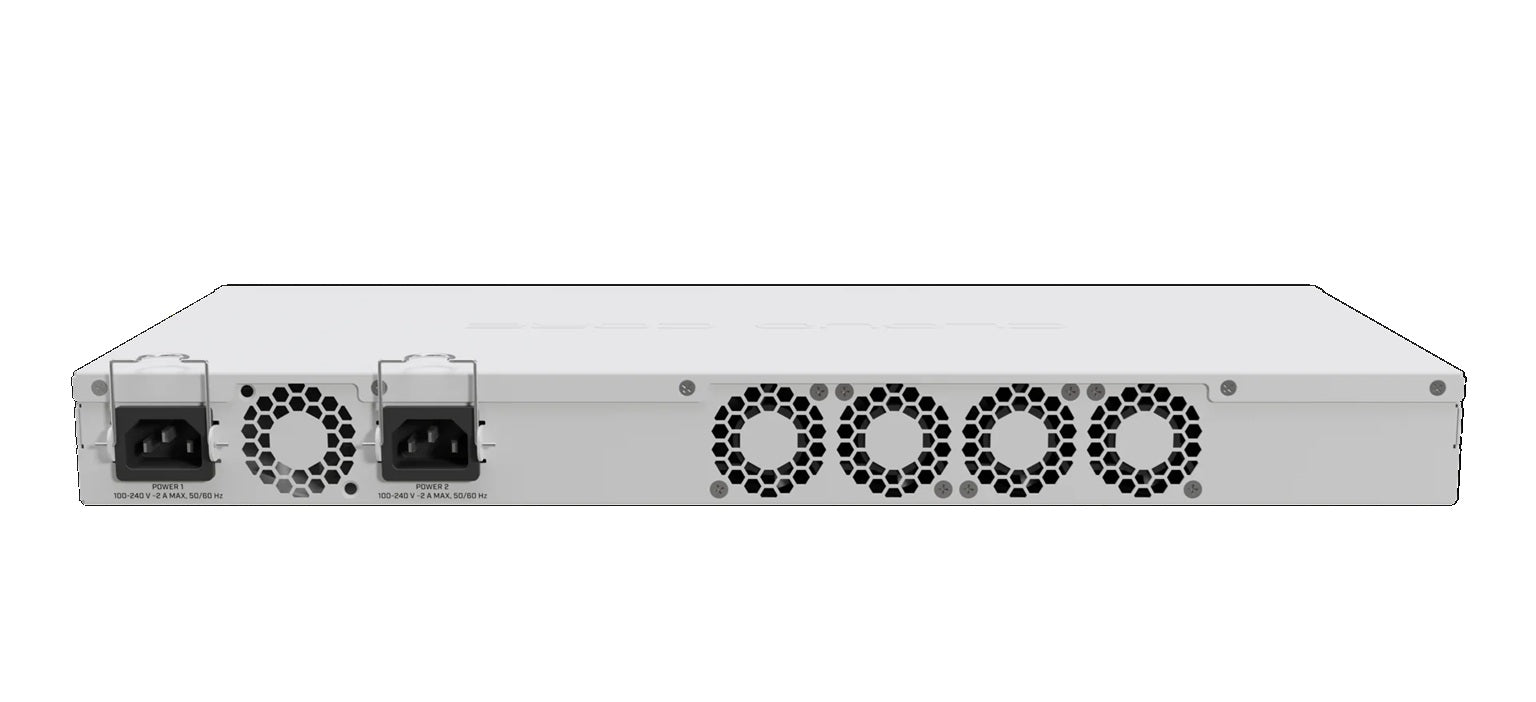

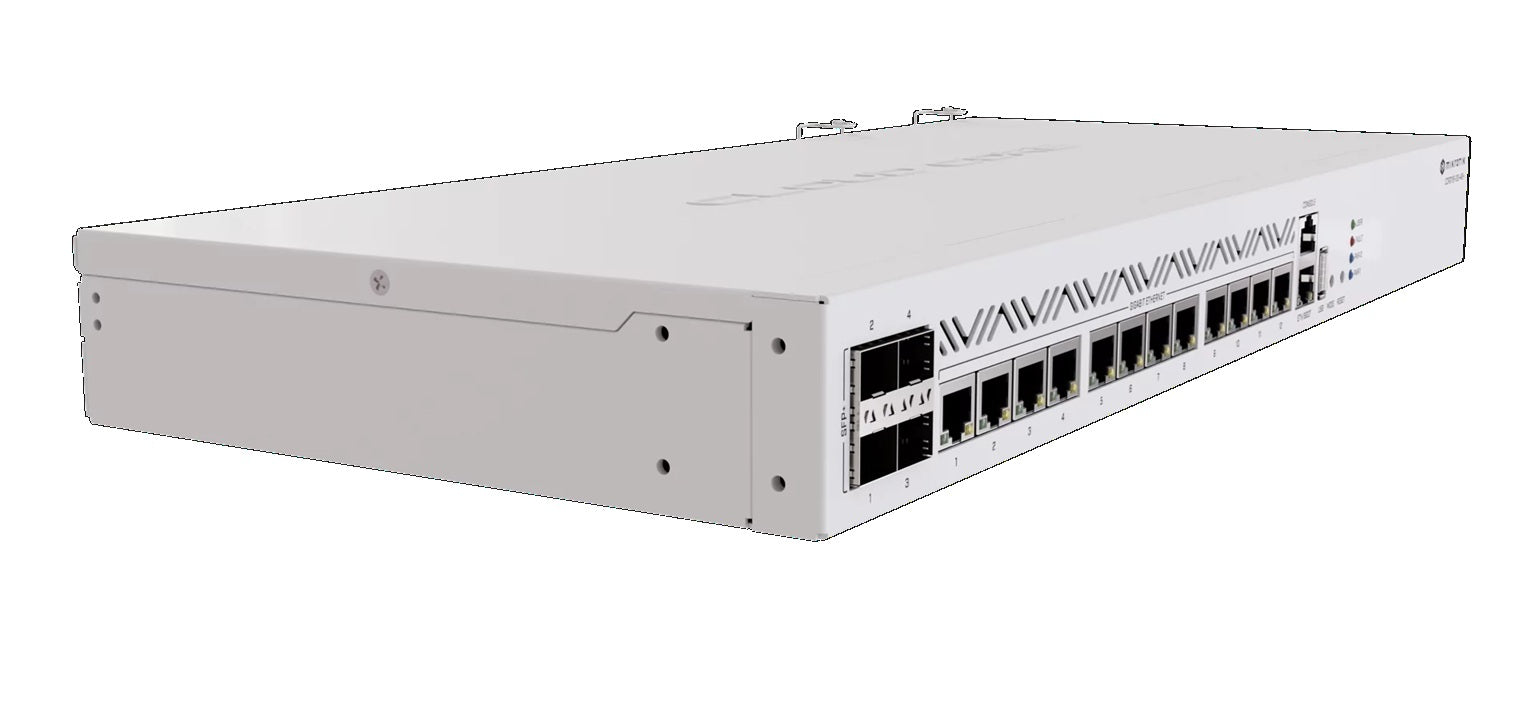

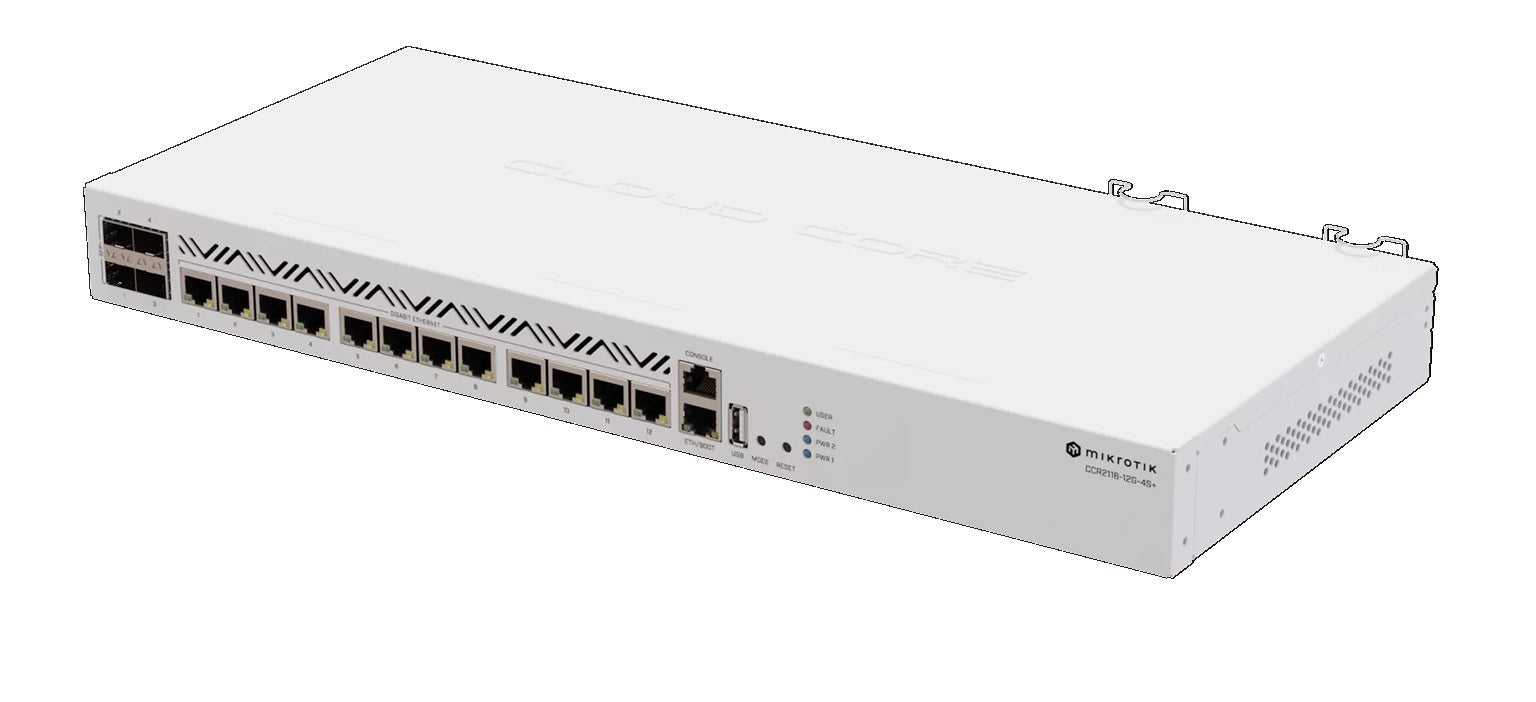

MikroTik Gigabit Cloud Core Router CCR2116-12G-4S+ | 12x Gigabit Lan, 4x SFP+ Ports

Description

Forget about CPU limitations in 10G setups with this powerful 16-core ARM CPU based CCR. Double the performance of our previous 36- core CCR, 6x faster BGP performance. Includes an M.2 PCIe slot.

Obviously, you need the right connectivity to harness this power. There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.

Specifications

• Product code - CCR2116-12G-4S+

• CPU - AL73400 2 GHz

• CPU architecture - ARM 64bit

• CPU core count - 16

• Size of RAM - 16 GB
• RAM type - DDR4

• Storage - 128 MB, NAND

• Number of 1G Ethernet ports - 13

• Number of 10G SFP+ ports - 4

• Number of M.2 slots - 1

• Number of USB slots - 1 USB 3.0 type A

• Operating system - RouterOS (License level 6)

• Switch chip model - 98DX3255

• Dimensions - 443 x 199 x 44 mm

• Operating temperature -   -20°C to +60°C

Powering

• Number of AC inputs - 2

• AC input range - 100-240 V

• Power adapter nominal voltage - 12 V

• Power adapter nominal current - 10.8 A

• Max power consumption (without attachments) - 60 W

• Max power consumption - 72 W

Package Contents

• 1 x Router

• 2 x Power Cords

• Rackmount Bracket

Warranty

• 1 Years Warranty

Manufacturer Info

• Manufactured By : Mikrotikls SIA, Unijas iela 2, Riga, Latvia.

• Imported By : VT, New Delhi, INDIA.

• Country Of Origin : Vietnam
