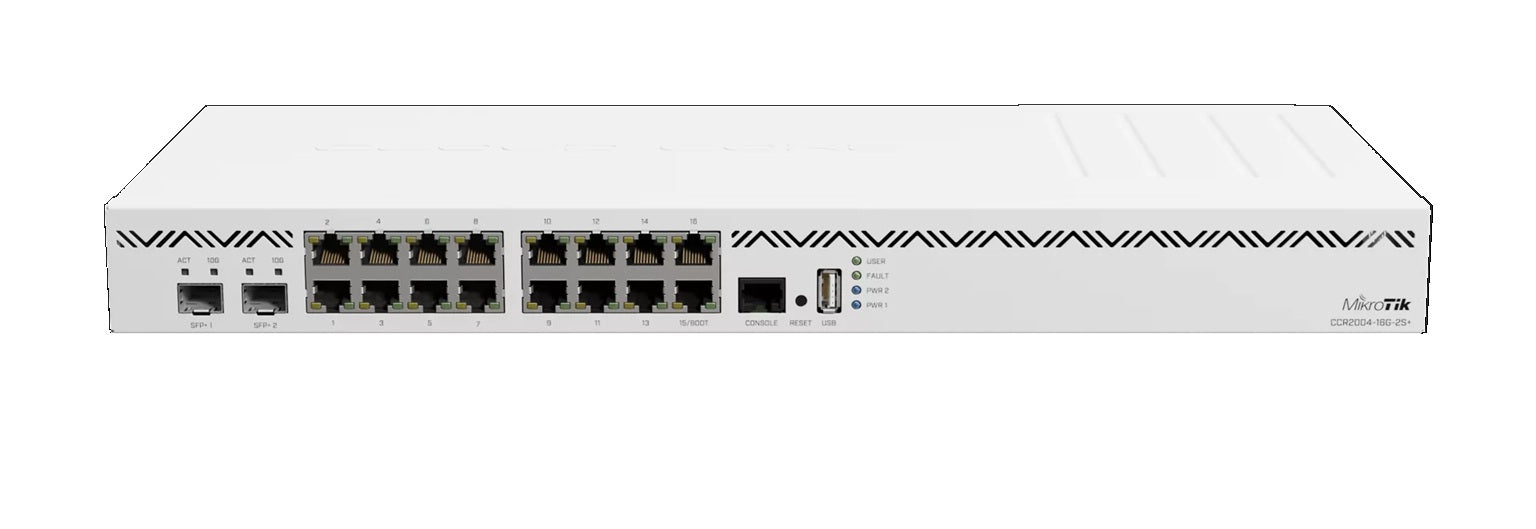

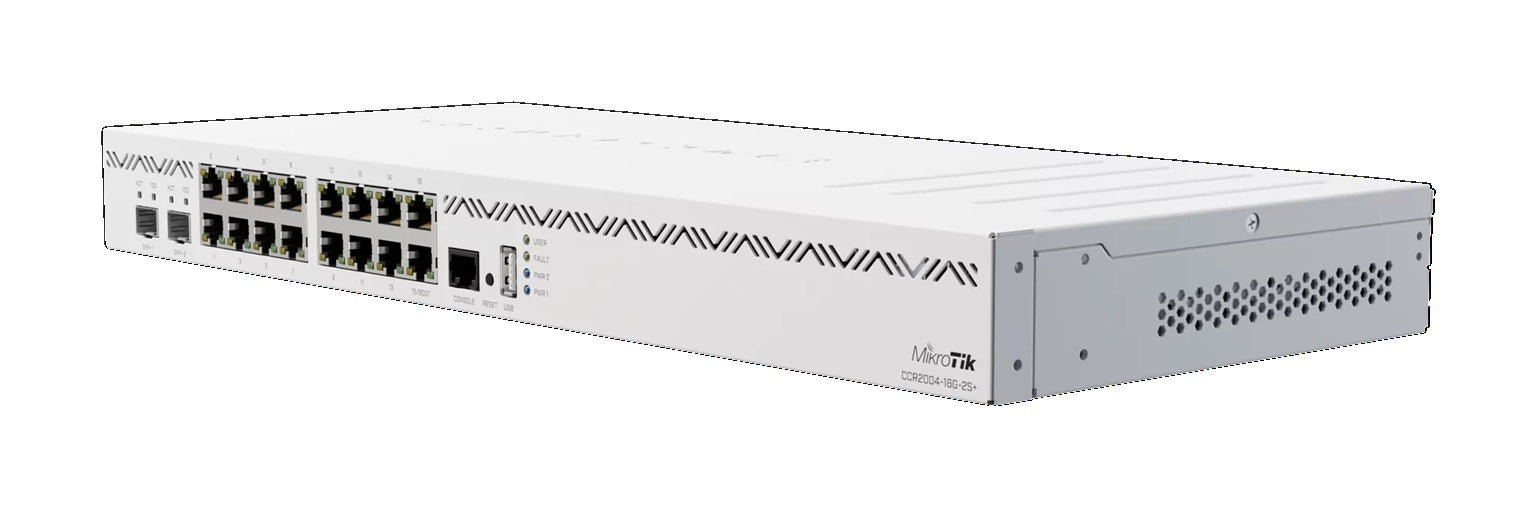

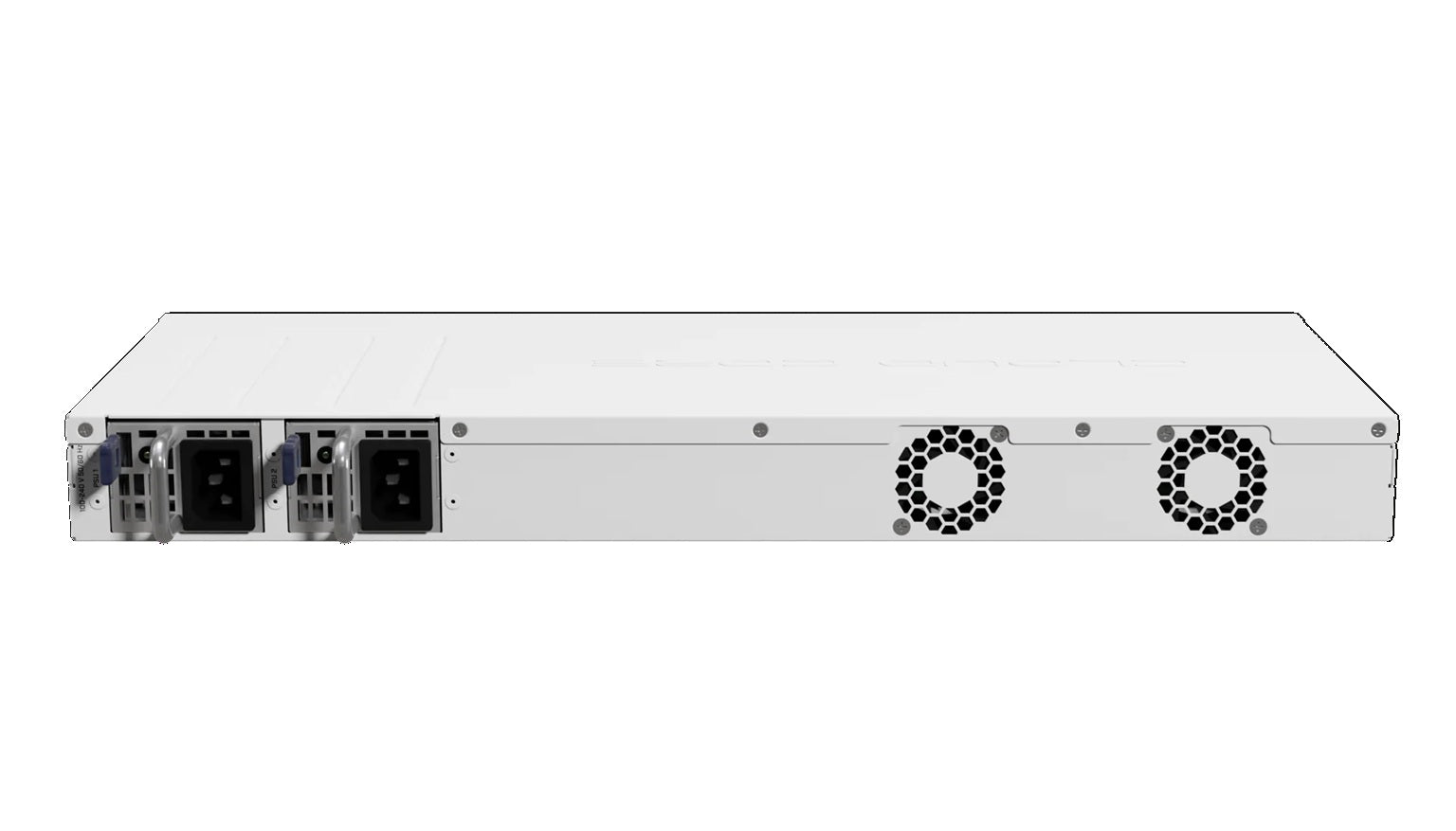

Mikrotik Gigabit Cloud Core Router CCR2004-16G-2S+ | 16x Gigabit Lan, 2x SFP+ Ports
- This powerful and affordable router crushes all previous CCR models in single-core performance.
- The new router has 18 wired ports, including 16x Gigabit Ethernet ports and 2 10G SFP+ cages, 1 USB port.
- It comes in a classic white 1U rackmount case.
- Description
- Reviews
Description
This powerful and affordable router crushes all previous CCR models in single-core performance. 16x Gigabit Ethernet ports, USB, 2x10G SFP+ cages, active cooling and the best single-core performance per watt & best overall performance per watt among all the CCR devices.
The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages, and a USB port. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.
Specifications
-
Product code - CCR2004-16G-2S+
-
CPU - AL32400 1.7 GHz
-
CPU architecture - ARM 64bit
-
CPU core count - 4
-
Size of RAM - 4 GB
-
RAM type - DDR4
-
Storage - 128 MB, NAND
-
Number of 1G Ethernet ports - 16
-
Number of 10G SFP+ ports - 2
-
USB port - 1 (3.0 type A)
-
Operating system - RouterOS v7 only
-
Switch chip model - 88E6191X, 88E619X
-
Dimensions - 443 x 210 x 44 mm
- Operating temperature - -20°C to +60°C
Powering
- Number of AC inputs - 2
- AC input range - 100-240 V
- Max power consumption (without attachments) - 35 W
- Max power consumption - 48 W
Package Contents
- 1 x Router
- 2 x Power Cords
- Rackmount Bracket
Warranty
- 1 Years Warranty
Manufacturer Info
- Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.
- Imported By: VT, New Delhi, INDIA.
- Country Of Origin: Vietnam
