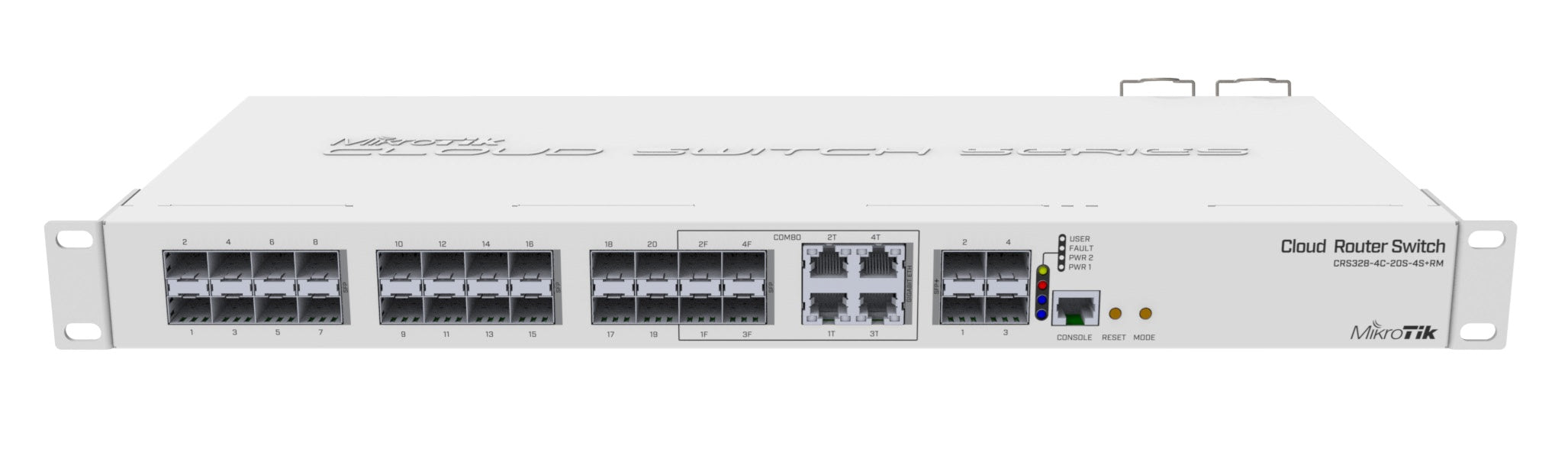

MikroTik CRS328-4C-20S-4S+RM Smart Switch, 20 x SFP, 4 x SFP+, 4 x Combo Ports

Description

CRS328-4C-20S-4S+RM Smart Switch, 20 x SFP cages, 4 x SFP+ cages, 4 x Combo ports (Gigabit Ethernet or SFP), 800MHz CPU, 512MB RAM, 1U rackmount case, Dual Power Supplies, RouterOS L5 or SwitchOS (Dual Boot)

The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

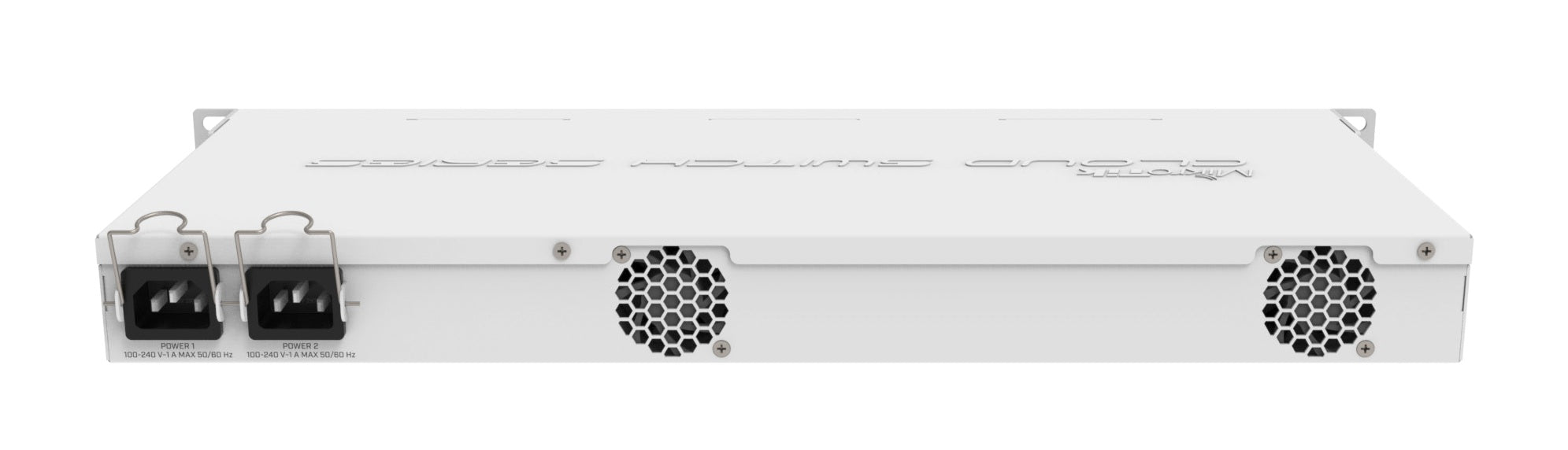

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.

The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.

Specifications

• Product code - CRS328-4C-20S-4S+RM

• CPU - 98DX3236A1 800 MHz

• RAM - 512 MB

• Storage type - Flash

• Storage size - 16 MB

• Switch chip model - 98DX3236A1

• SFP cages - 20

• SFP+ cages - 4

• Ethernet/SFP Combo ports - 4

• Operating system - SwOS / RouterOS (Dual boot)

• Supported input voltage - 100 - 240 V

• Dimensions - 443 x 194 x 44 mm

• Operating temperature -   -20°C .. +60°C tested

• Max power consumption - 43 W

• Serial port - RJ45

• License level - 5

Package Contents

• 1 x Switch CRS328-4C-20S-4S+RM

• 2 X IEC Power cord

• Rackmount ears

Warranty

• 1 Year Brand Warranty

Manufacturer Info

• Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.

• Imported By: VT, New Delhi, INDIA.

• Country Of Origin: Vietnam
