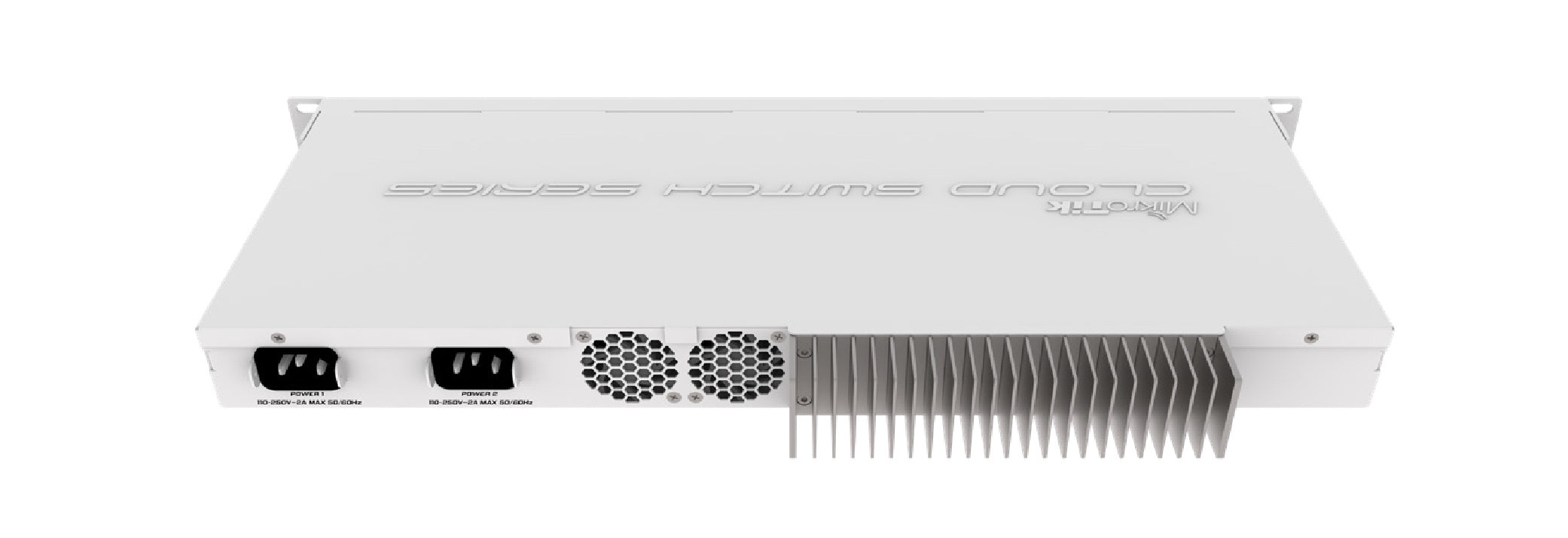

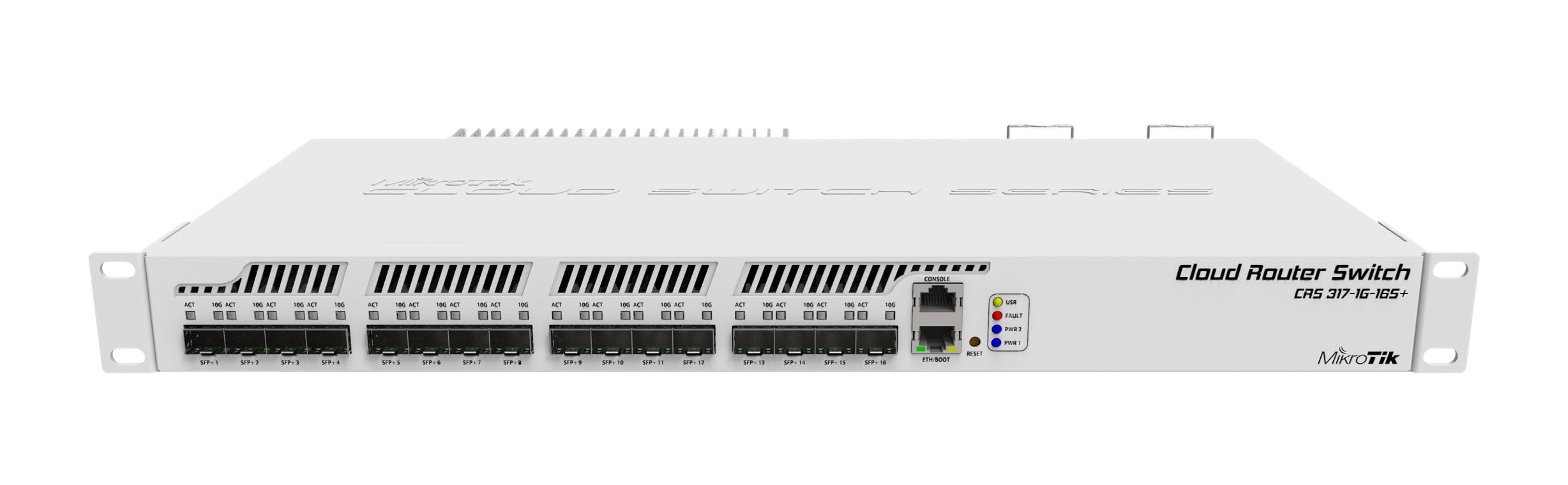

MikroTik CRS317-1G-16S+RM Layer3 Managed Switch | 16x SFP+, 1x GE Ports

Description

CRS317-1G-16S+RM Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.

CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

The unit has dual redundant power supplies and passive cooling case - for hot environments two redundant fans will automatically keep the system cool if needed.

Specifications

• Product code - CRS317-1G-16S+RM

• CPU - 98DX8216B0 800 MHz

• CPU cores - 2

• Size of RAM - 1 GB

• Storage type - Flash

• Storage size - 16 MB

• SFP+ - 16 DDMI support

• Dimensions - 443 x 224 x 44 mm

• License level - 6

• Operating System - RouterOS or SwitchOS

• Number of AC inputs - 2

• AC input range - 100 - 240 V

• Redundant supply - Yes

• Max Power consumption - 44 W

• Active case cooling - Yes

• CPU temperature monitor - Yes

• Operating temperature -  -20 to 60° C

• LEDs - 38

• Serial port - RJ45

Package Contents

• 1 x Router Switch CRS317-1G-16S+RM

• 2 x IEC cord

• Rackmount ears

Warranty

• 1 Year Brand Warranty

Manufacturer Info

• Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.

• Imported By: VT, New Delhi, INDIA.

• Country Of Origin: Vietnam
