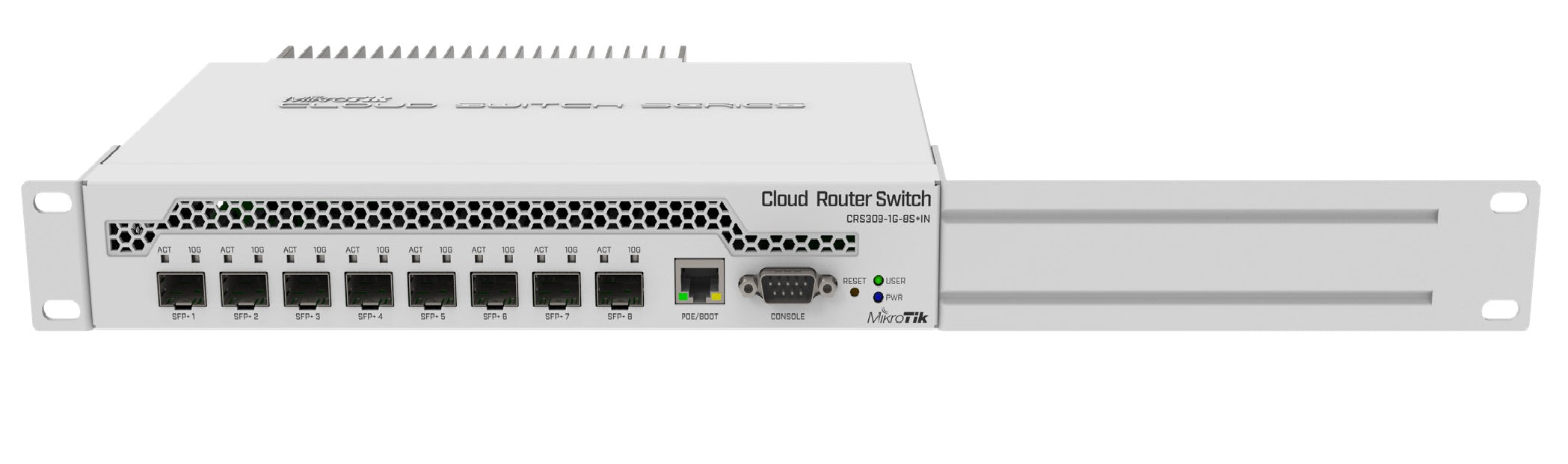

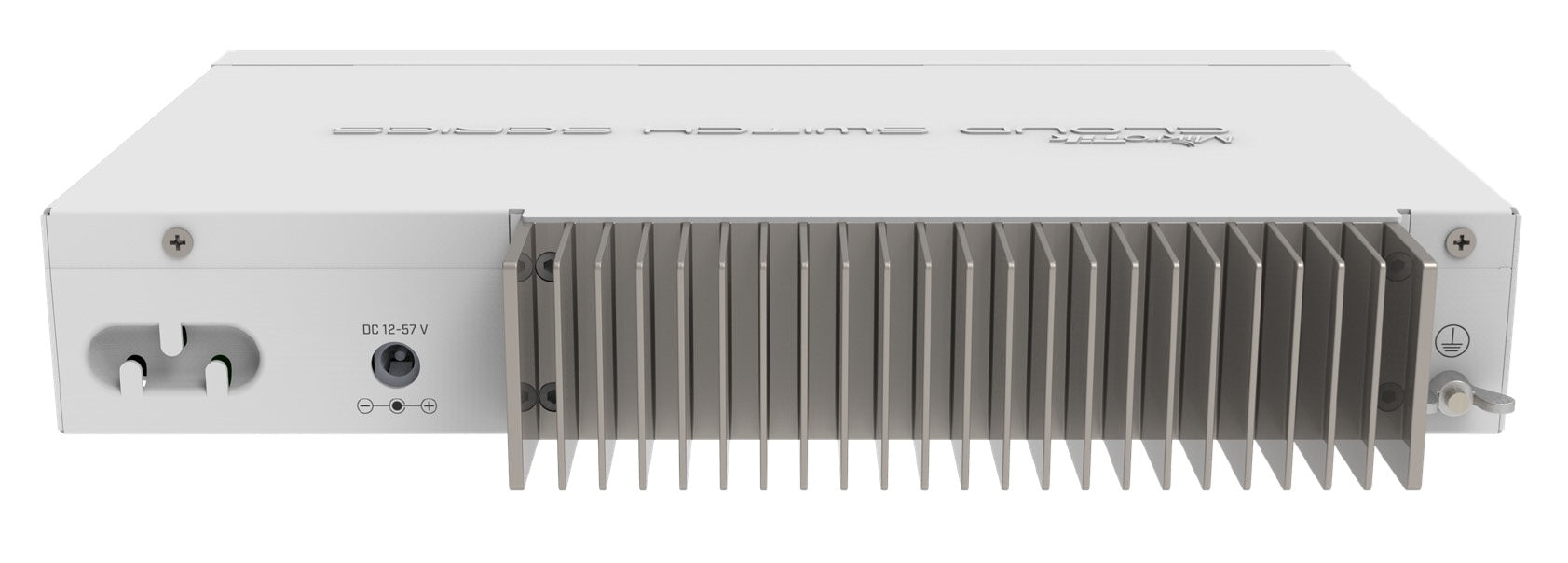

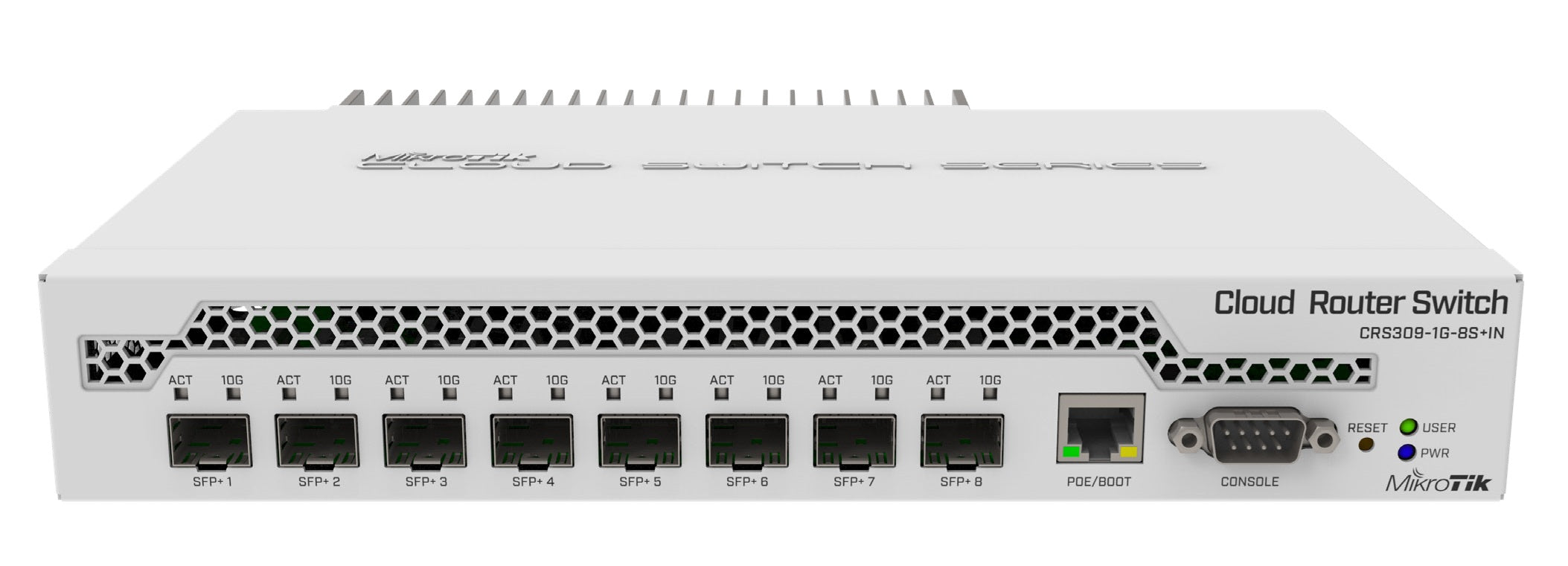

MikroTik CRS309-1G-8S+IN Cloud Router Switch | 1x Gigabit Ethernet, 8x SFP+ Ports

Description

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

Specifications

• Product code - CRS309-1G-8S+IN

• CPU - Dual-core 98DX8208 800 MHz

• RAM - 512 MB

• Storage Flash - 16 MB

• Switch chip model - 98DX8208

• Dimensions - 272 x 191 x 44 mm

• Operating temperature -   -40°C. +70°C tested

• Operating system - SwOS / RouterOS (Dual boot)

• License level - 5

Interfaces

• 10/100/1000 Ethernet ports - 1

• 10G SFP+ ports - 8

• Serial port - RS232

Powering

• PoE in - Yes, Passive POE and 802.3af/at compliant

• Supported input voltage - 12 - 57 V (DC jack), 18 - 57 V (PoE in)

• Number of DC jacks - 1

• Max power consumption - 23 W / 17 W (without attachemnts)

Package Contents

• 1 x Router Switch

• 1 X Power Adapter

• Rack ears

Warranty

• 1 Years Warranty

Manufacturer Info

• Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.

• Imported By: VT, New Delhi, INDIA.

• Country Of Origin: Vietnam
