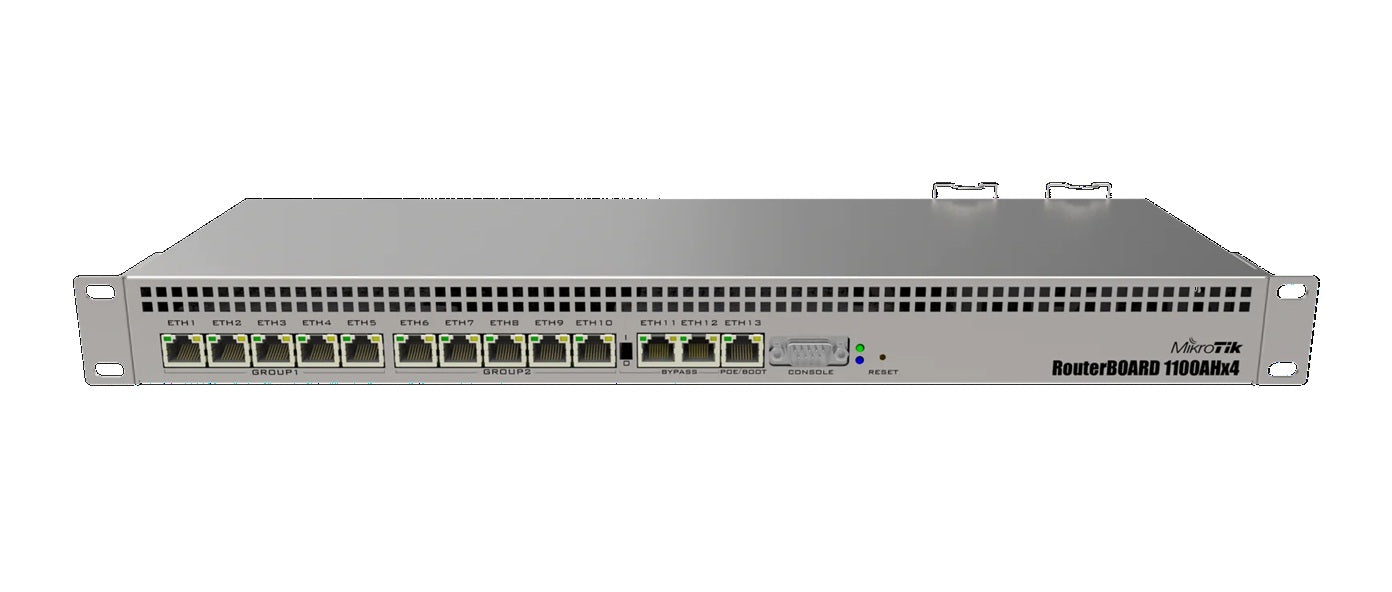

MikroTik 13 Port Rackmount Gigabit Router RB1100AHx4

Description

The new RB1100AHx4 series of devices uses a new quad core Cortex A15 chip from Annapurna labs, an Amazon company, The chip is clocked at 1.4 GHz, for a maximum throughput of up to 7.5 Gbit

The devices support IPsec hardware acceleration and are faster at it than any previous RouterBOARD device.

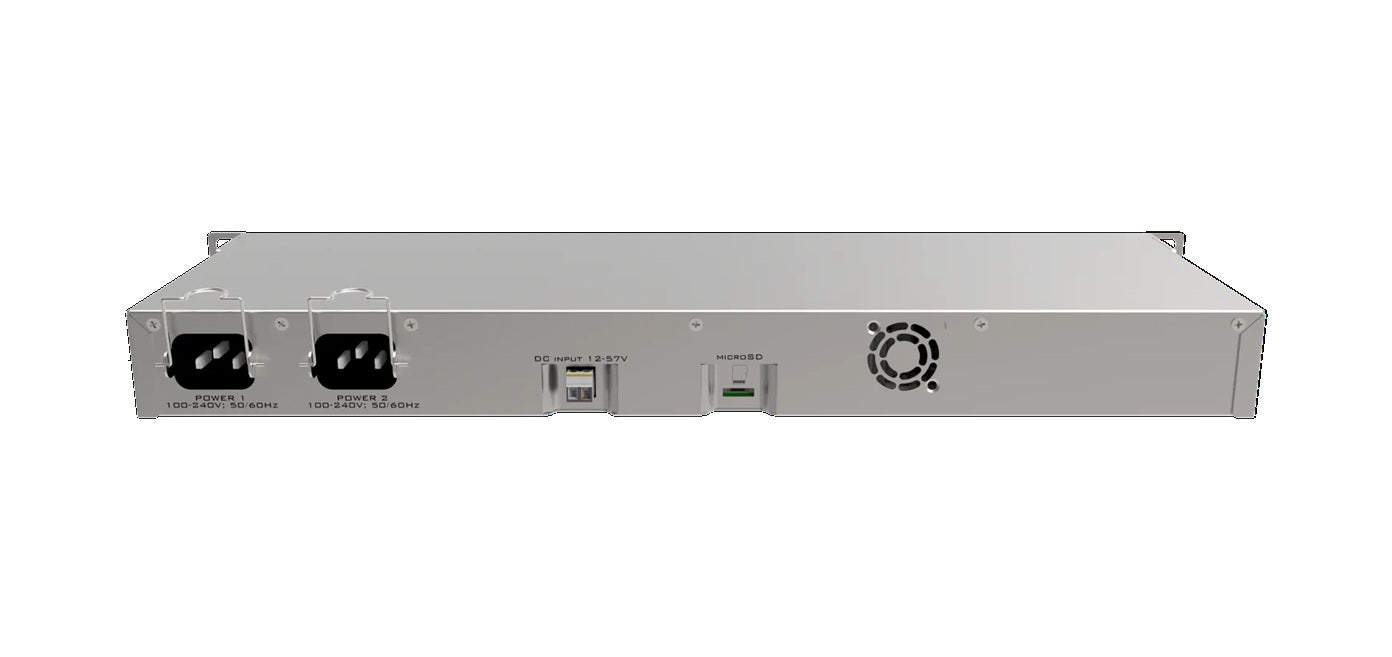

The RB1100AHx4 feature two IEC failover power connectors, support 802.3at PoE input and also have a DC telecom power connector for -48 V DC powering.

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies

Specifications

• Product code - RB1100x4

• Architecture - ARM 32bit

• CPU - AL21400

• CPU core count - 4

• CPU nominal frequency - 1.4 GHz

• CPU Threads count - 4

• Switch chip model - RTL8367

• Dimensions - 443 x 148 x 44 mm

• RouterOS license - 6

• Operating System - RouterOS

• Size of RAM - 1 GB

• Storage size - 128 MB

• Storage type - NAND

• MTBF - Approximately 200'000 hours at 25C

• Tested ambient temperature - -40°C to 70°C

Powering

• Number of AC inputs - 2

• AC input range - 100-240

• Number of DC inputs - 2 (PoE-IN, 2-pin terminal)

• 2-pin terminal input Voltage - -48, 12-57 V

• Max power consumption - 20 W

• PoE in - 802.3af/at

• Cooling type - Passive

• PoE in input Voltage - 20-57 V

Ethernet

• 10/100/1000 Ethernet ports - 13

Peripherals

• Memory card type - microSD

• Memory Cards - 1

• Serial console port - RS232

Package Contents

• 1 x Router RB1100AHx4

• 2 x IEC cord

• Rack Ears

Warranty

• 1 Years Warranty

Manufacturer Info

• Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.

• Imported By: VT, New Delhi, INDIA.

• Country Of Origin: Vietnam
