Mikrotik 10 Port Gigabit Router RB4011iGS+RM | SFP+ Port

MikroTik

Mikrotik 10 Port Gigabit Router RB4011iGS+RM | SFP+ Port

Name: Mikrotik 10 Port Gigabit Router RB4011iGS+RM | SFP+ Port
Brand: MikroTik
SKU: 151454
Price: 22499.0 INR
Availability: InStock
Rating: 5.0 (10 reviews)

The RB4011 uses a quad core Cortex A15 CPU
RB4011 series - amazingly powerful routers with ten Gigabit ports

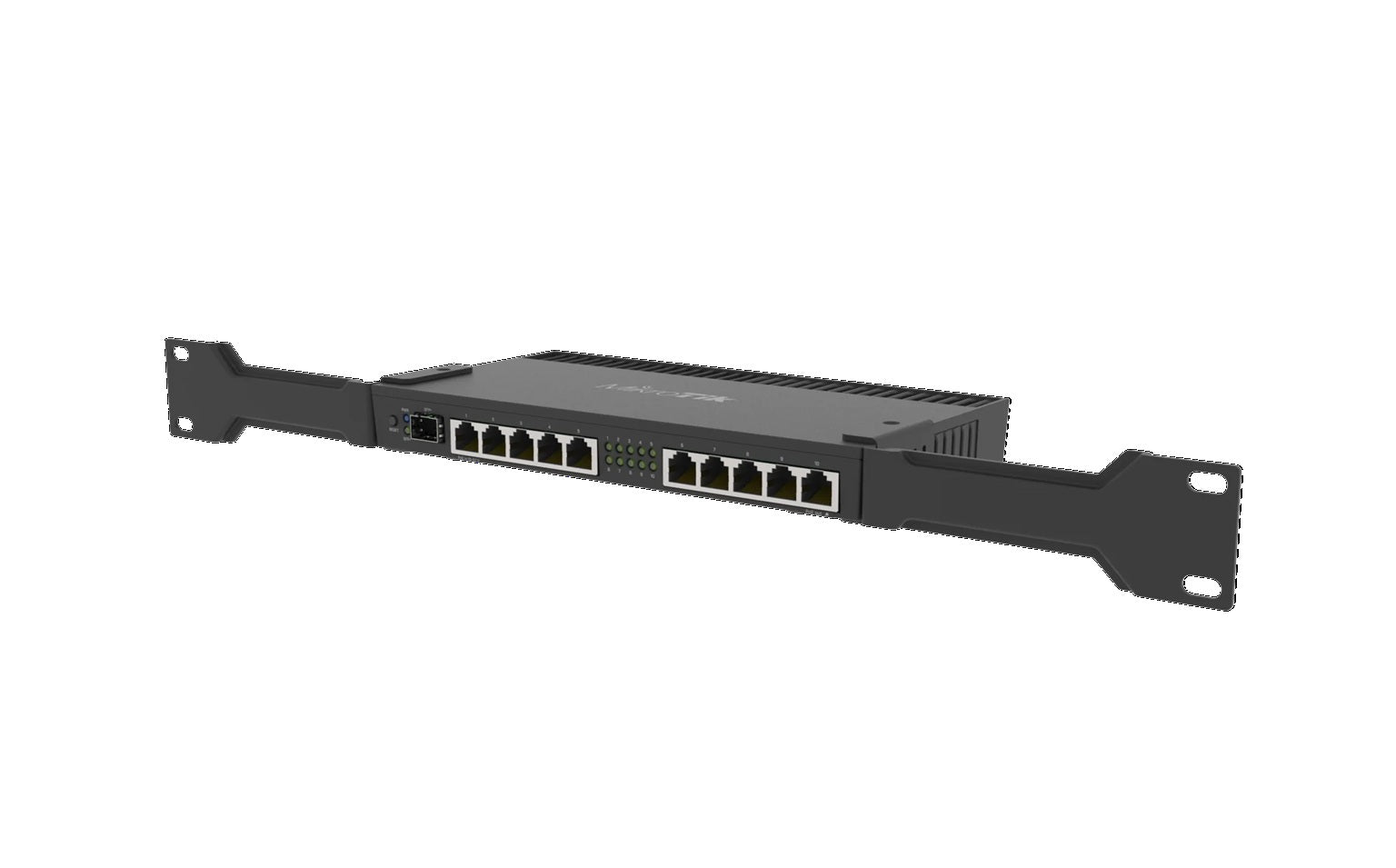

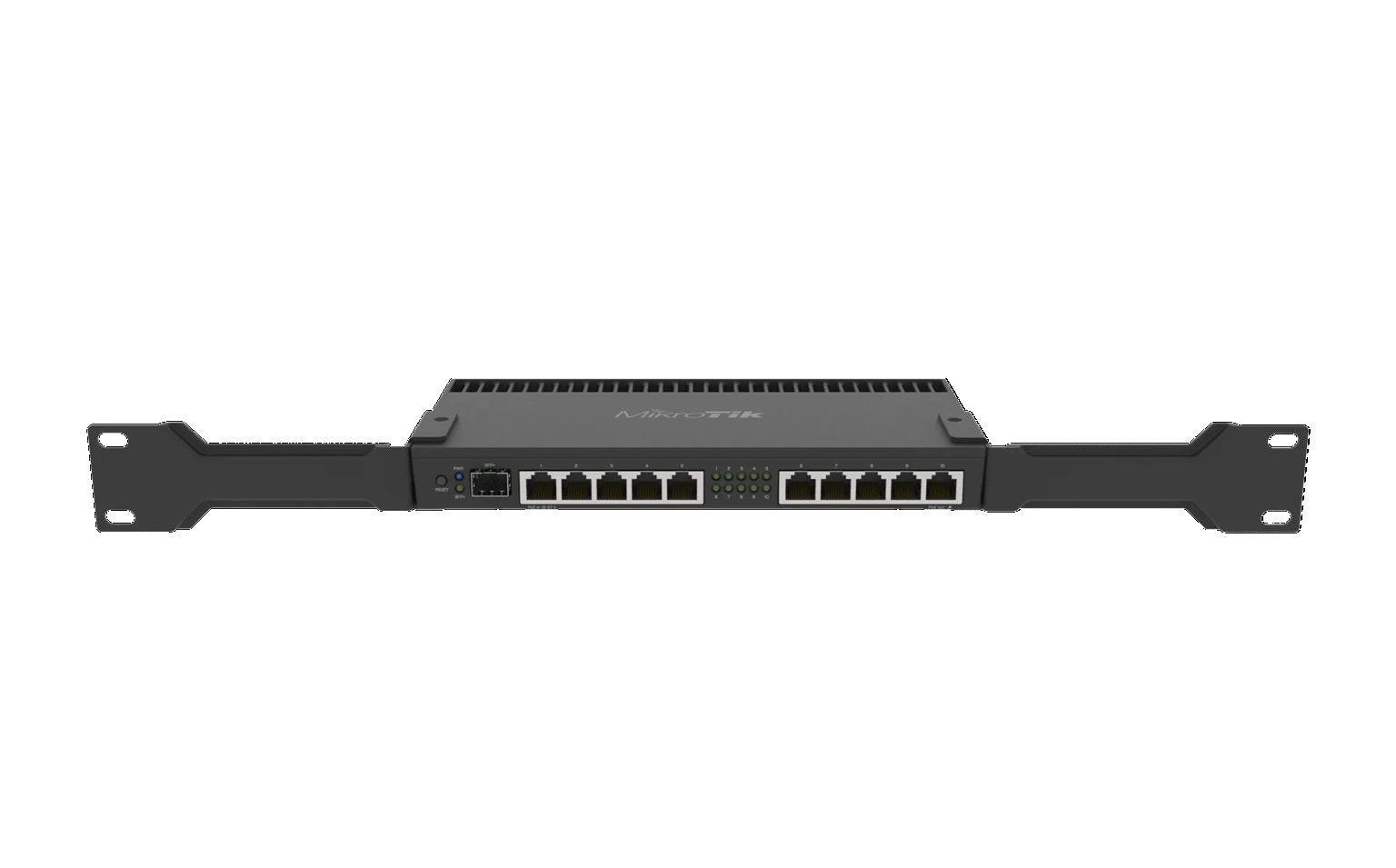

RB4011iGS+RM includes two rackmount ears

Rs. 22,499.00

~~Rs. 39,999.00~~

Description
Reviews

Description

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.

Specifications

Product code: RB4011iGS+RM
Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: auto (533 - 1900) MHz
CPU Threads count: 4
Switch chip model: RTL8367SB
Dimensions: 228 x 120 x 30 mm
RouterOS license: 5
Operating System: RouterOS v7
Size of RAM: 1 GB
Storage size: 512 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Powering

Number of DC inputs - 2 (DC jack, PoE-IN)
DC jack input Voltage - 12-57 V
Max power consumption - 33 W
Max power consumption without attachments - 18 W
PoE in - Passive PoE
Cooling type - Passive
PoE in input Voltage - 18-57 V

PoE-out

PoE-out ports - Ether10
PoE out - Passive PoE up to 57V
Low voltage PoE-Out current limit - 600 mA
High voltage PoE-Out current limit - 420 mA
Max total out (A) - 600 mA

Ethernet

10/100/1000 Ethernet ports - 10

Fiber

SFP+ ports - 1

Peripherals

Serial console port - RJ45

Other

PCB temperature monitor - Yes
Voltage Monitor - Yes

Certification & Approvals

Certification - CE, EAC, ROHS
IP - IP20

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB4011iGS+RM		AL21400 1G/S+ all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	806,4	9,792.9	2312,9	9,473.6	5509,7	2,821.0
Bridging	25 bridge filter rules	806,4	9,792.9	1037,4	4,249.2	1153,2	590.4
Routing	none (fast path)	806,4	9,792.9	1923,3	7,877.8	5092,3	2,607.3
Routing	25 simple queues	806,4	9,792.9	1046,6	4,286.9	960,3	491.7
Routing	25 ip filter rules	593,7	7,209.9	625,2	2,560.8	564,6	289.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB4011iGS+RM		AL21400 IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	92.1	1031.5	93.1	381.3	92.3	47.3
256 tunnels	AES-128-CBC + SHA1	115.5	1293.6	117.4	480.9	132.3	67.7
256 tunnels	AES-128-CBC + SHA256	115.5	1293.6	117.4	480.9	132.3	67.7
256 tunnels	AES-256-CBC + SHA1	114.6	1283.5	111.4	456.3	126.3	64.7
256 tunnels	AES-256-CBC + SHA256	114.6	1283.5	111.4	456.3	126.3	64.7

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Package Contents

1 x Router
1 x Power Adapter

Warranty

1 Years Warranty

Manufacturer Info

Manufactured By: Mikrotikls SIA, Unijas iela 2, Riga, Latvia.
Imported By: VT, New Delhi, INDIA.
Country Of Origin: Vietnam
