Fyber BIS Certified SMPS Power Adaptor 12V 1A AC DC | 12 Volt 1 Ampere – BOXNUBE
19% Rs. 80.00

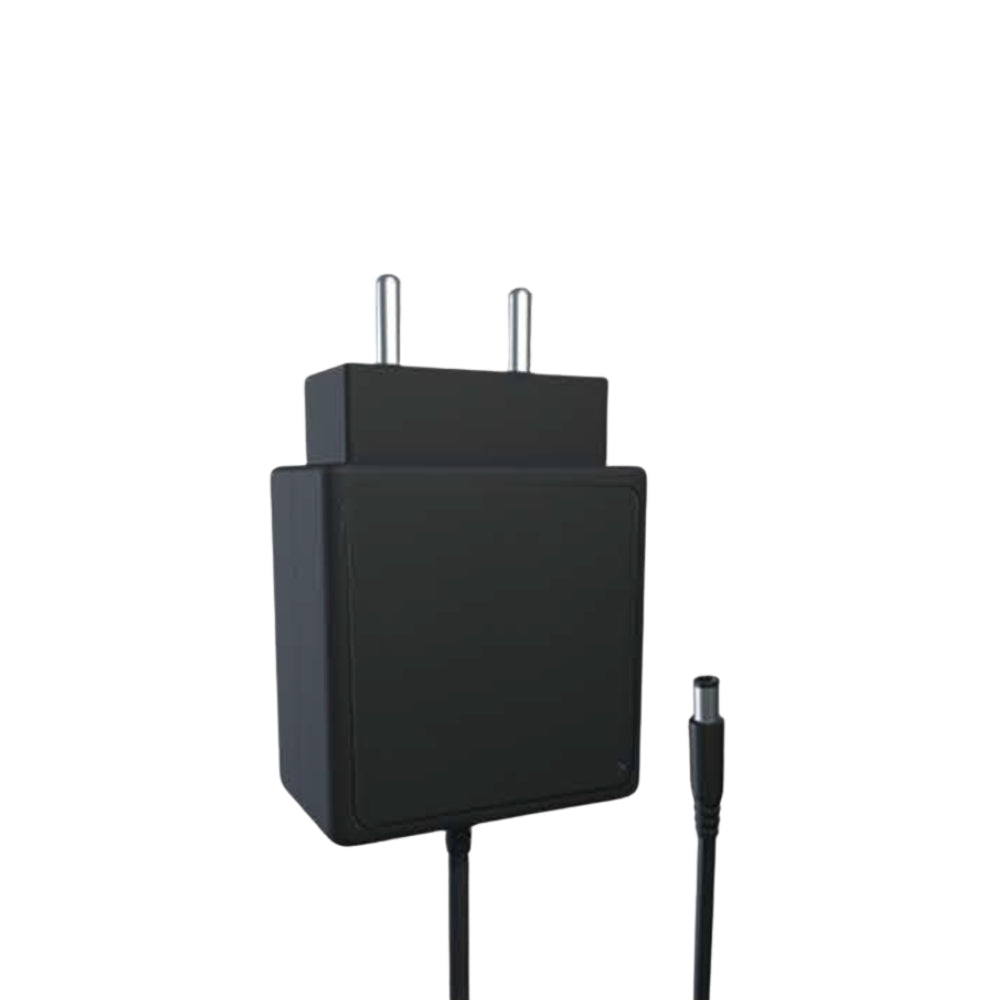

Fyber BIS Certified SMPS Power Adaptor 12V 1A AC DC | 12 Volt 1 Ampere | Overload, Over Voltage & Over Current Protection | 5.5 x 2.1mm DC Connector
Fyber BIS Certified SMPS Power Adaptor 12V 1A AC DC | 12 Volt 1 Ampere | Overload, Over Voltage & Over Current Protection | 5.5 x 2.1mm DC Connector
FYBER

Fyber BIS Certified SMPS Power Adaptor 12V 1A AC DC | 12 Volt 1 Ampere | Overload, Over Voltage & Over Current Protection | 5.5 x 2.1mm DC Connector

Available:
Only 248 items in stock
248 items in stock
In stock
Pre-order
Out of stock
  • 12V1A Rated Output.
  • Led indicator to show the functional status.
  • Made from High grade ABS plastic
  • BIS Certified.
Rs. 345.00
Rs. 425.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
Description
FYWS-121 (SMPS Adaptor) is designed on Highly Integrated SMPS Switcher IC which makes this product reliable and highly efficient.
  • 12V1A Rated Output.
  • It comes with 1.5mtr wire length and 5.5*2.1mm DC Plug Size.
  • Led indicator to show the functional status.
  • Made from High grade ABS plastic
  • Overload, Over Voltage & Over Current Protection.
  • Short Circuit, Over Temperature Protection.
  • Unique and attractive design.
  • BIS Certified.
Specifications
VAC Voltage 150~265VAC
Output voltage 12VDC
Rated Power 12W
Ripple & Noise (max.) 70mV(max)
Voltage Adj. Range 12V
Device Primary-Side Regulation CV/CC Switcher for Adapters and Chargers
Device(frequency) 85KHz
VDS Voltage 600V(max)
Line Regulations ±1%
Load Regulations ±5%
SCP Output short-circuit protection
ARP  Auto-restart protection reduces power delivered by >90% for output short-circuit and control loop faults (open and shorted components)
ON/OFF control ON/OFF control provides constant efficiency down to very light loads – ideal for CEC regulations
line UV Line brown-in/out protection
OV Line overvoltage shutdown extends line surge withstand
OTP Accurate thermal shutdown, hysteretic or latching
Efficiency(Typ.) 80%
Frequency Range 47~63HZ
Storage Temperature 0-50°C
Package Contents
  • 1 x Power Adaptor
Warranty
  • 3 Months Warranty
Manufacturer Info
  • Manufactured By : NewTech Synergy Systems Pvt Ltd , Uttar Pradesh , India.
  • Country Of Origin : India
