Bungees 20KM HDMI KVM Extender over Fiber FC, BN-HFEX020KMK-FC, 1080p@60Hz HDMI Extender, USB KVM Control, Single Mode Fiber, HDMI 1.4, HDCP 1.2

Description

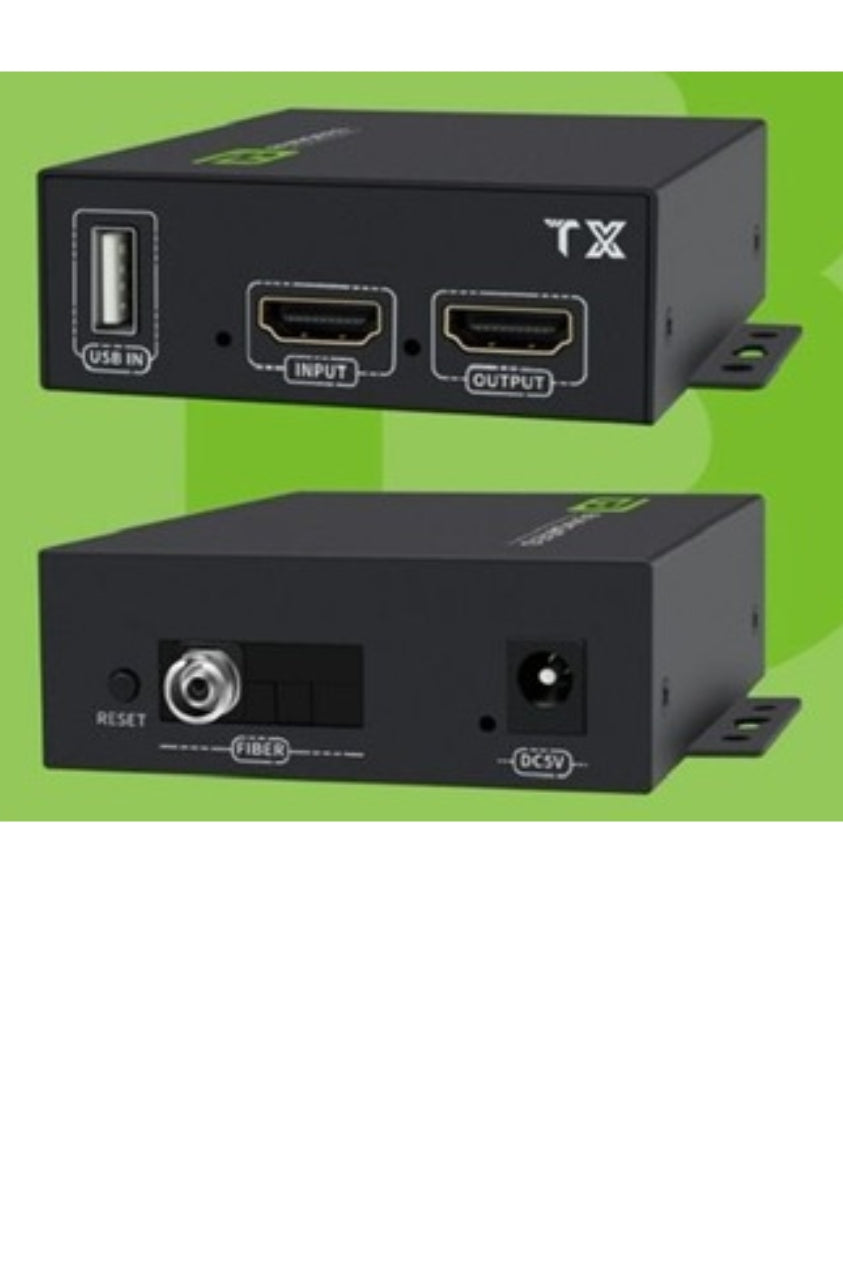

The Bungees BN-HFEX020KMK-FC HDMI KVM Extender is built for ultra-long-distance, high-performance signal transmission using single-mode optical fiber up to 20KM. Designed for professional environments, it delivers Full HD 1080p@60Hz video along with USB keyboard and mouse control, enabling seamless remote system management.

Featuring a reliable FC fiber interface, this extender ensures stable, interference-free transmission, making it ideal for critical applications such as industrial automation, broadcasting, surveillance systems, and data centers.

With loop-out support, HDMI 1.4 compatibility, and plug-and-play operation, this solution guarantees reliable performance even in the most demanding installations.

Key Features

• 20KM Fiber Transmission - Ultra-long distance HDMI over single-mode fiber

• KVM Functionality - Control remote systems via USB keyboard & mouse

• FC Fiber Connector - Secure, high-stability optical connection

• Full HD 1080p@60Hz - Smooth and clear video output

• Loop-Out Support - Local HDMI monitoring at transmitter

• EMI-Free Performance - No signal loss or interference

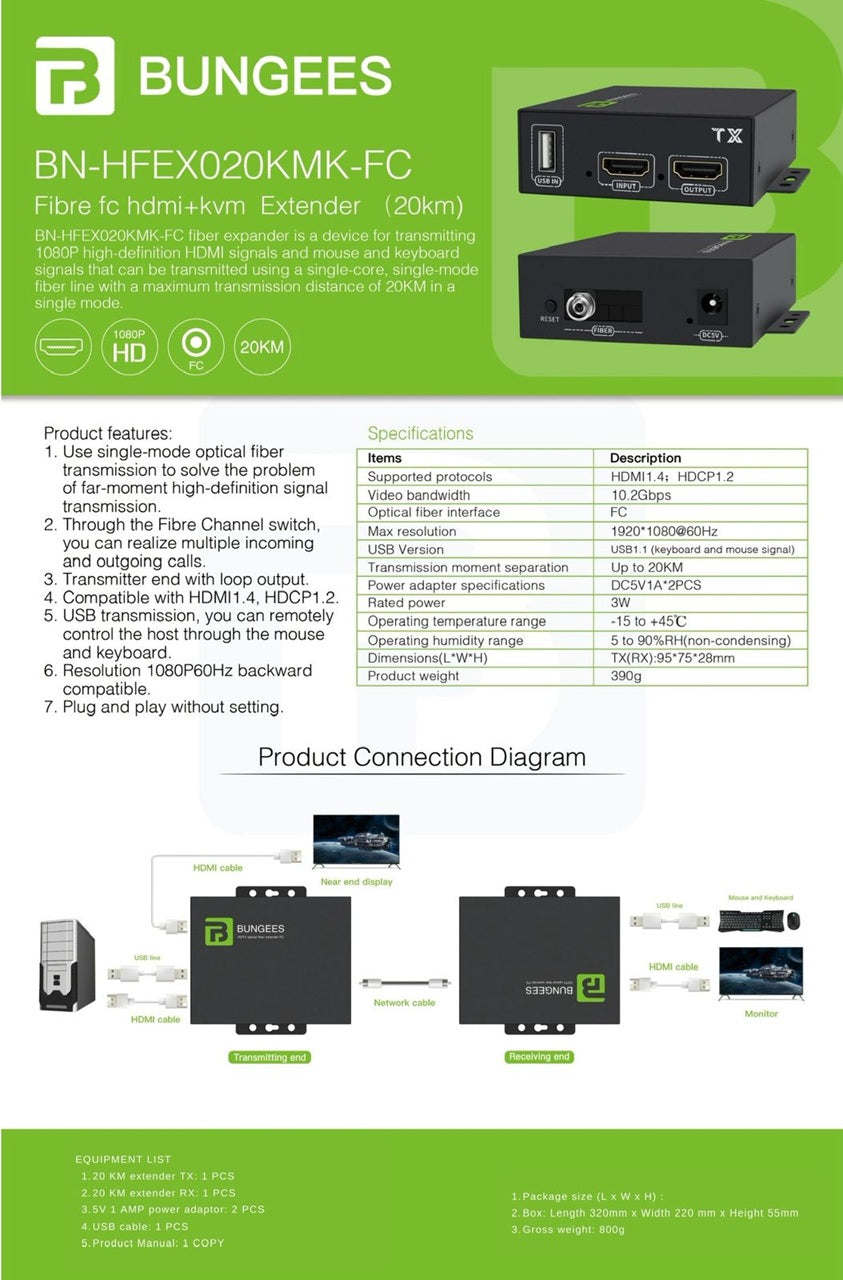

Specifications

• Brand: Bungees

• Model: BN-HFEX020KMK-FC

• Product Type: HDMI KVM Extender over Fiber

• Transmission Distance: Up to 20KM

• Fiber Type: Single-mode (single-core)

• Fiber Interface: FC

• Video Resolution: 1920x1080 @ 60Hz

• HDMI Standard: HDMI 1.4

• HDCP Support: HDCP 1.2

• Video Bandwidth: 10.2 Gbps

• USB Version: USB 1.1 (Keyboard & Mouse)

• KVM Support: Yes

• Loop Out: Yes (TX side)

• Power Supply: DC 5V / 1A (2 adapters included)

• Power Consumption: 3W

• Operating Temperature: -15°C to +45°C

• Humidity: 5-90% RH (non-condensing)

• Dimensions: 95 x 75 x 28 mm

Package Contents

• 1 x HDMI Transmitter (TX Unit)

• 1 x HDMI Receiver (RX Unit)

• 2 x Power Adapters (5V/1A)

• 1 x USB Cable

Warranty

• 1 Year Brand Warranty

Manufacturer Info

• Imported By: BUNGEES NEW DELHI, INDIA

• Country Of Origin: China
