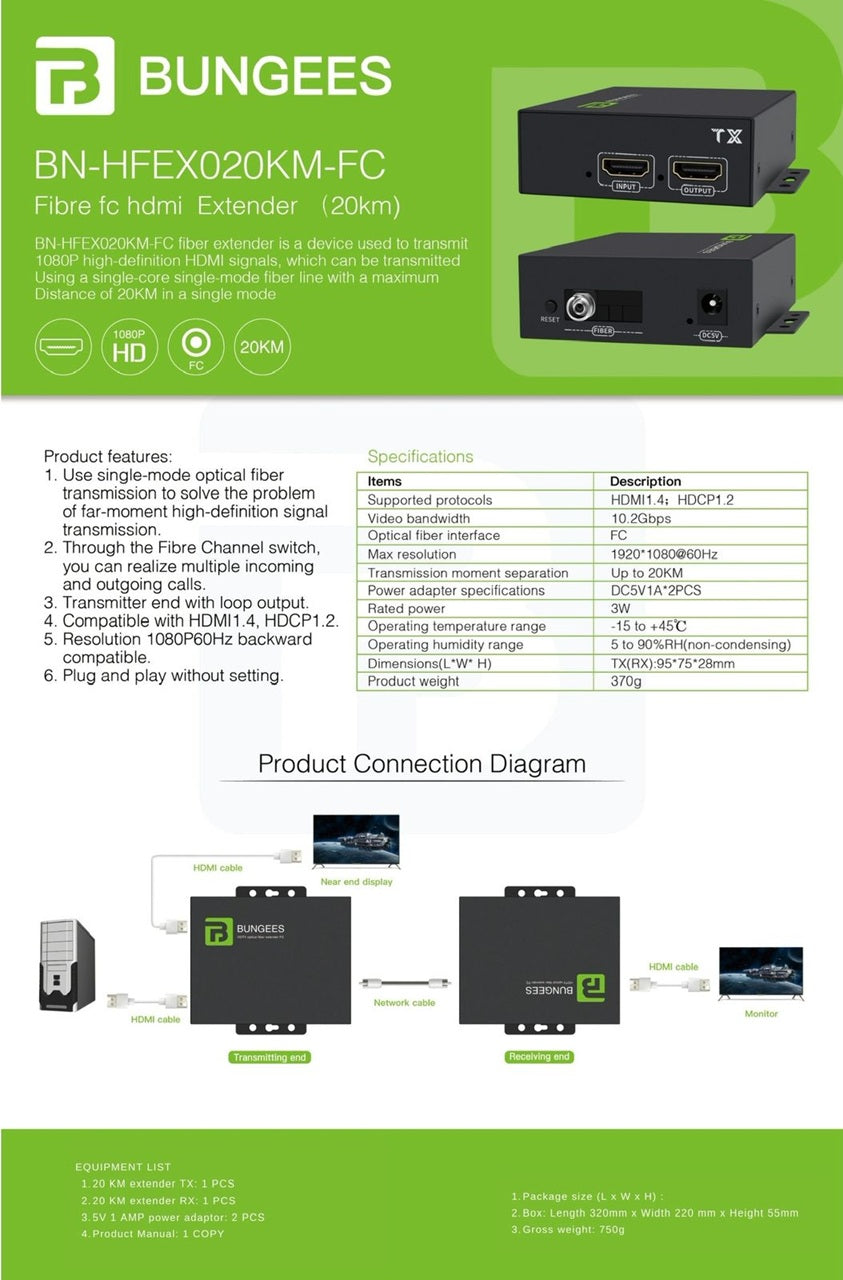

Bungees 20KM HDMI Fiber Extender FC, BN-HFEX020KM-FC, 1080p@60Hz HDMI over Single Mode Fiber, HDMI 1.4, HDCP 1.2, Long Distance AV Extender with Loop Out
- 20KM Ultra-Long Distance
- Full HD 1080p@60Hz
- FC Fiber Connector
- Description
- Reviews
Description
The Bungees BN-HFEX020KM-FC HDMI Fiber Extender delivers reliable, long-distance HDMI signal transmission up to 20 kilometers over single-mode optical fiber. Built for professional AV and industrial environments, it ensures stable, interference-free performance where traditional copper solutions fall short.
Supporting Full HD 1080p@60Hz resolution, HDMI 1.4, and HDCP 1.2, this extender provides high-quality video output with zero signal degradation. The FC fiber connector offers a secure, threaded connection—ideal for installations requiring stability and precision.

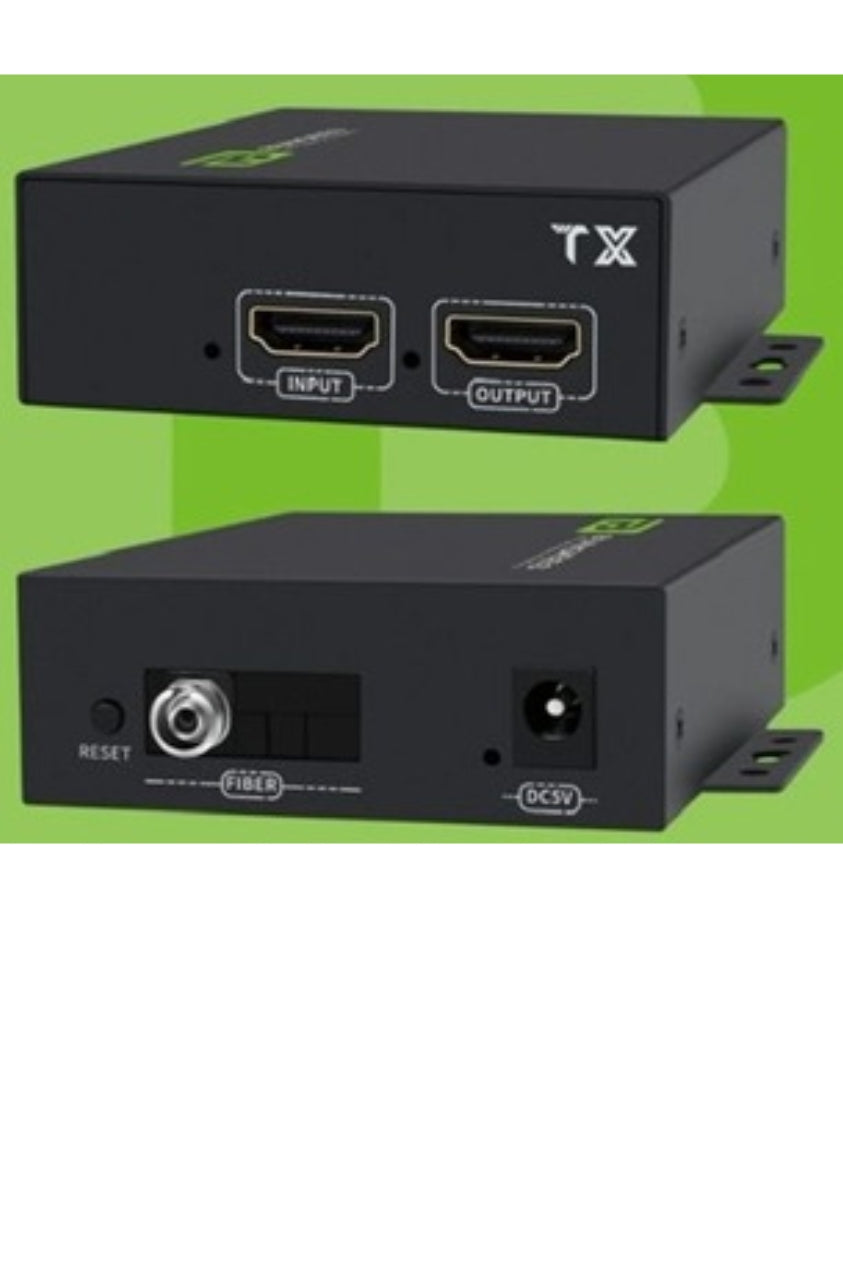

With loop-out functionality on the transmitter, users can monitor the HDMI signal locally while extending it to a remote display. Its plug-and-play design and durable metal enclosure make it a dependable solution for demanding applications.
Key Features
-
20KM Ultra-Long Distance - Extend HDMI signals over single-mode fiber
-
Full HD 1080p@60Hz - Crisp and stable video output
-
FC Fiber Connector - Secure threaded connection for industrial reliability
-
Loop-Out Function - Local HDMI monitoring at transmitter
-
EMI/RFI Free Transmission - No signal interference or loss
- Metal Housing - Built for continuous professional use
Specifications
-
Brand: Bungees
-
Model: BN-HFEX020KM-FC
-
Product Type: HDMI Fiber Extender
-
Transmission Distance: Up to 20KM
-
Fiber Type: Single-mode (single-core)
-
Fiber Interface: FC
-
Video Resolution: 1920x1080 @ 60Hz
-
HDMI Version: HDMI 1.4
-
HDCP Support: HDCP 1.2
-
Video Bandwidth: 10.2 Gbps
-
Loop Out: Yes (TX side)
-
Power Supply: DC 5V / 1A (2 adapters included)
-
Power Consumption: 3W
-
Operating Temperature: -15°C to +45°C
-
Humidity Range: 5-90% RH (non-condensing)
- Dimensions (TX/RX): 95 x 75 x 28 mm
Package Contents
- 1 x HDMI Transmitter (TX Unit)
- 1 x HDMI Receiver (RX Unit)
- 2 x Power Adapters
Warranty
- 1 Year Brand Warranty
Manufacturer Info
- Imported By: BUNGEES NEW DELHI, INDIA
- Country Of Origin: China
