TP-Link VIGI NVR2016H 16 Channel Network Video Recorder | 2 SATA | 4K Output | 8MP Supported | H.265+ Compression | Synchronous Playback

Description

VIGI Surveillance Solution

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

• 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
• 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days‡) from connected cameras to secure your data for quick, convenient access.
• Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
• Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
• Mass Storage - 2 SATA interfaces (up to 10 TB per each HDD) ensure to store and secure your data for quick, convenient access.
• Easy Management Seamlessly manage via the web UI, NVR UI, VIGI app, and VIGI Security Manager
• Practical Playback Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.

Specifications

VIDEO AND AUDIO

• IP Video Input : 16-Channel
• Incoming Bandwidth : 80 Mbps
• Outgoing Bandwidth : 60 Mbps
• HDMI Output Resolution : 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output Resolution : 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA Simultaneous Output
• Multi-View Display : 1/4/6/8/16


Decoding

• Audio Compression : G.711A/G.711U/G.726
• Video Compression : .265+/H.265/ H.264+/H.264
• Record Resolution : 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF /2CIF / CIF / QCIF
• Synchronous Playback : 16-Channel
• Capability : 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP


Record Management

Record Mode

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback


Backup Mode

• Regular Backup
• Video Clip Backup

Playback Function

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off


Network

• Network Protocols : UPnP (Plug and Play), NTP (Network Timing)
• Interoperability : ONVIF, CGI
• Mobile Phone Access : Android, iOS
• Browser : Chrome (57+), Firefox (52+), Edge (91+)

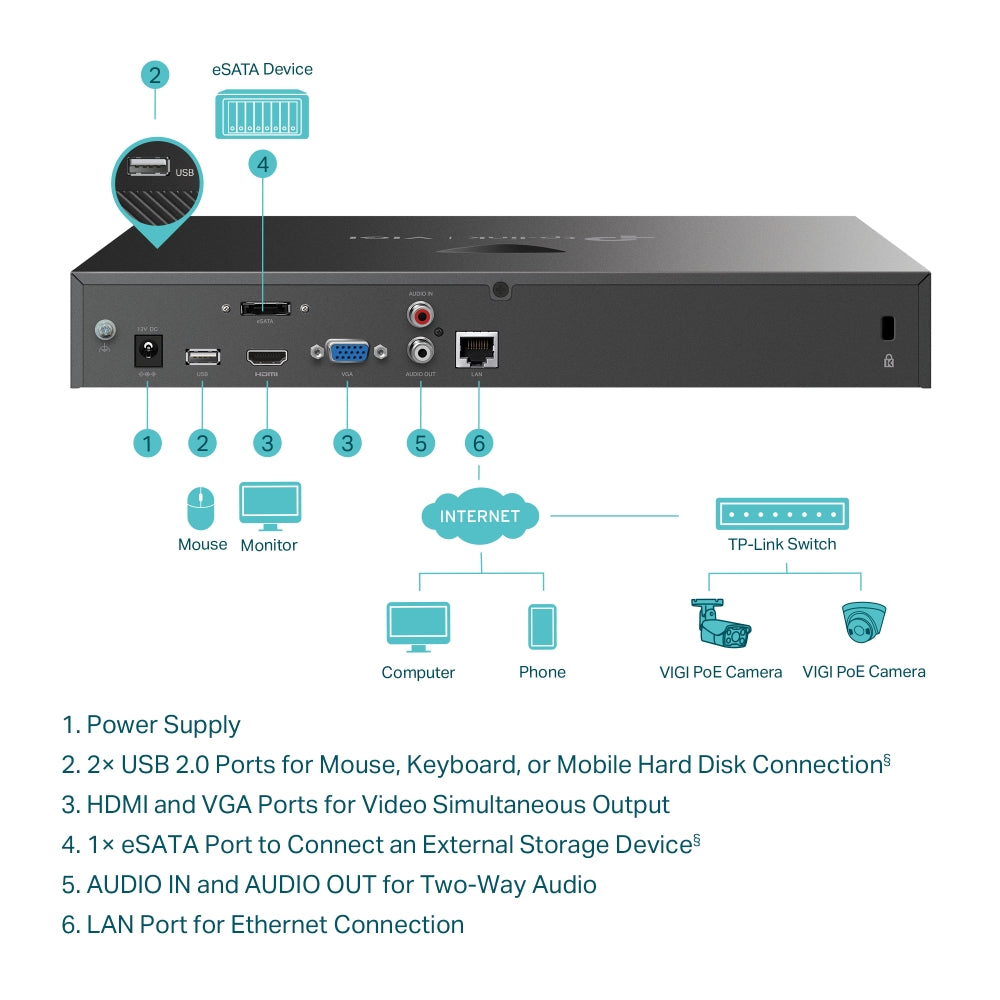

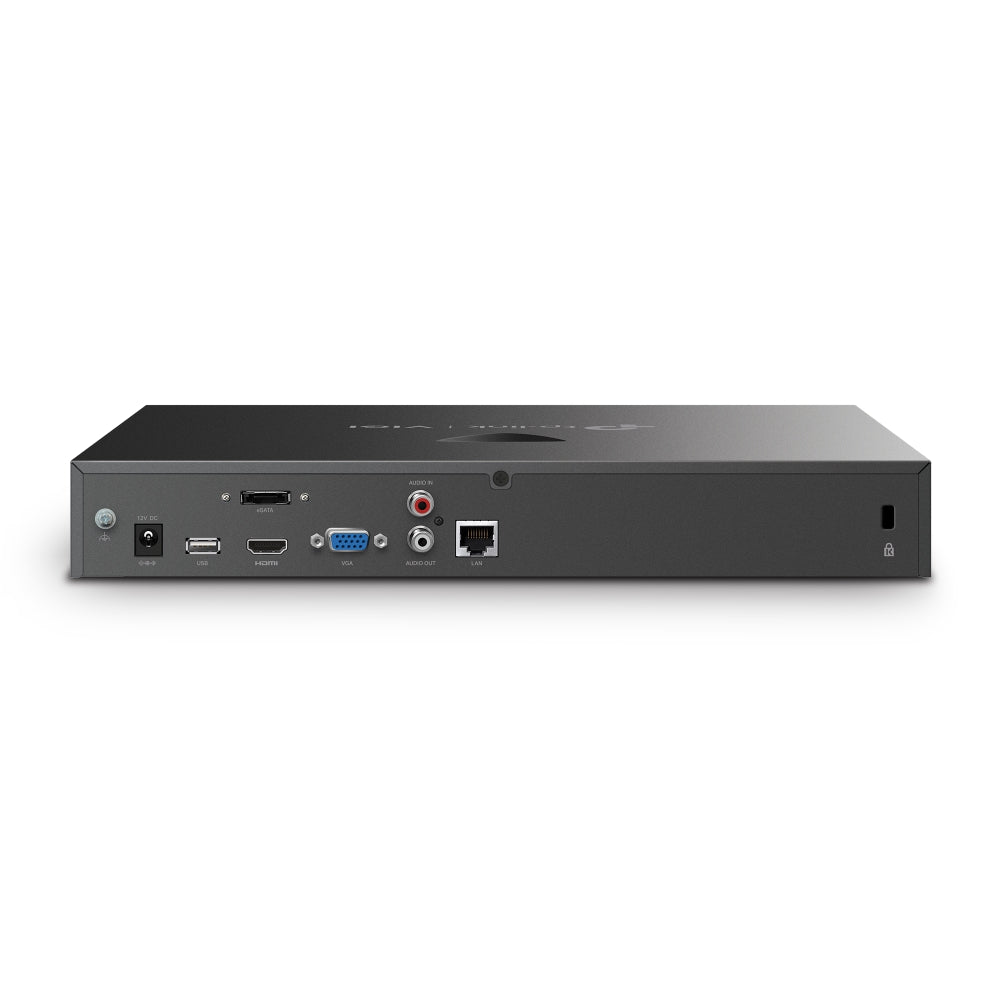

External Interface

• Network Interface : 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface : 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
• Audio Interface : 1, Audio In; 1, Audio Out
• Alarm In/Out : N/A
• Serial Interface : N/A
• Power : 1× DC Jack
• Reset Button : 1
• Speaker : N/A
• eSATA : 1
• HDMI : 1 | VGA :1


Hard Disk

• SATA : 2 SATA Interfaces
• Capacity : Up to 10 TB Capacity for Each HDD


Alarm

General Alarm

• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame

Anomaly Alarm

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception

Alarm Linkage

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm


General

• Power Supply : 12V DC/3.3A
• Max Power Consumption : 4.78 W (Without Disk)
  24.16 W (With Disk)
• Working Temperature : NVR: -10–55 °C | Power Adapter: 0–40 °C

• Working Humidity : 10%~90% RH Non-Condensing

• Product Dimensions (W × D × H) : 330 × 285 × 45 mm
• Net Weight : 1.9 kg | Gross Weight 3.2 kg
• Certification : CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Package Contents

• VIGI NVR
• Power Adapter
• HDD Screws
• Mouse
• Guide

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured by :Pacific Cyber Technology Pvt. Ltd. 51-57, Sliver Industrial Estate, Bhimpore, Nani Daman - 396210
• Country Of Origin :India
