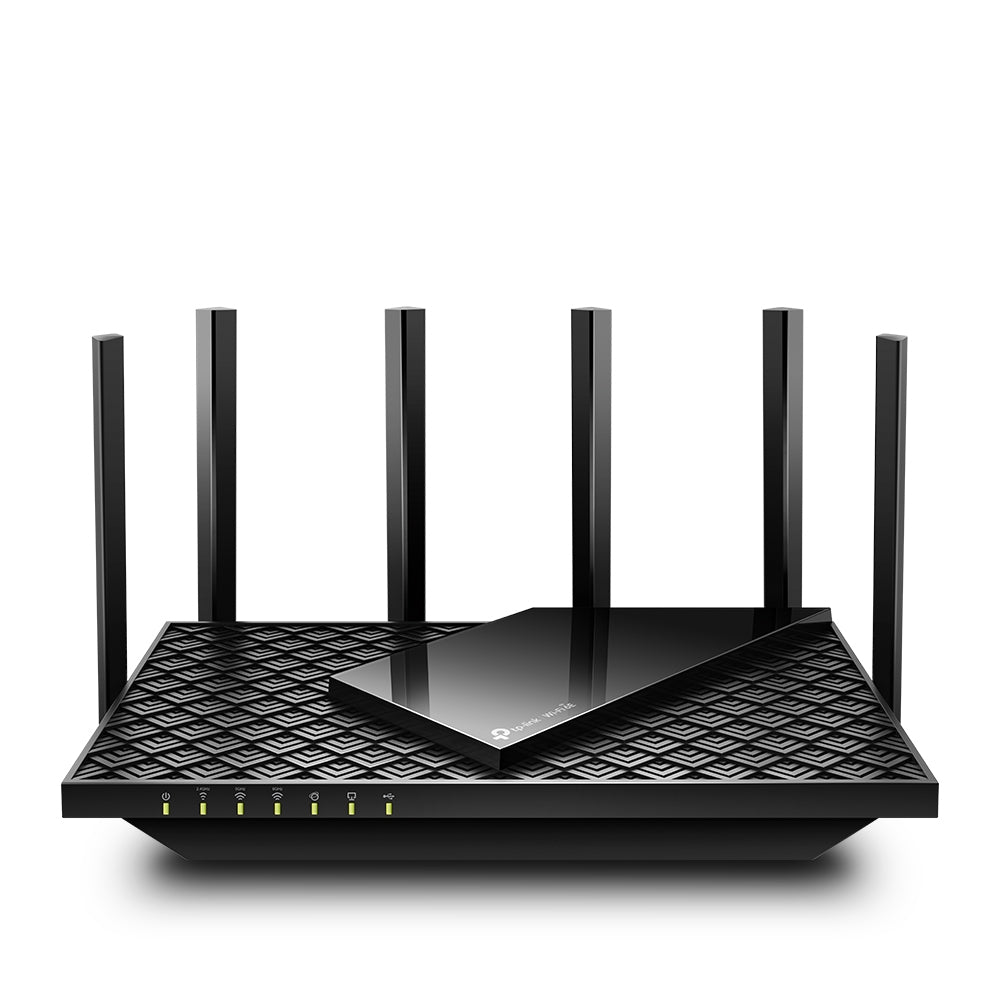

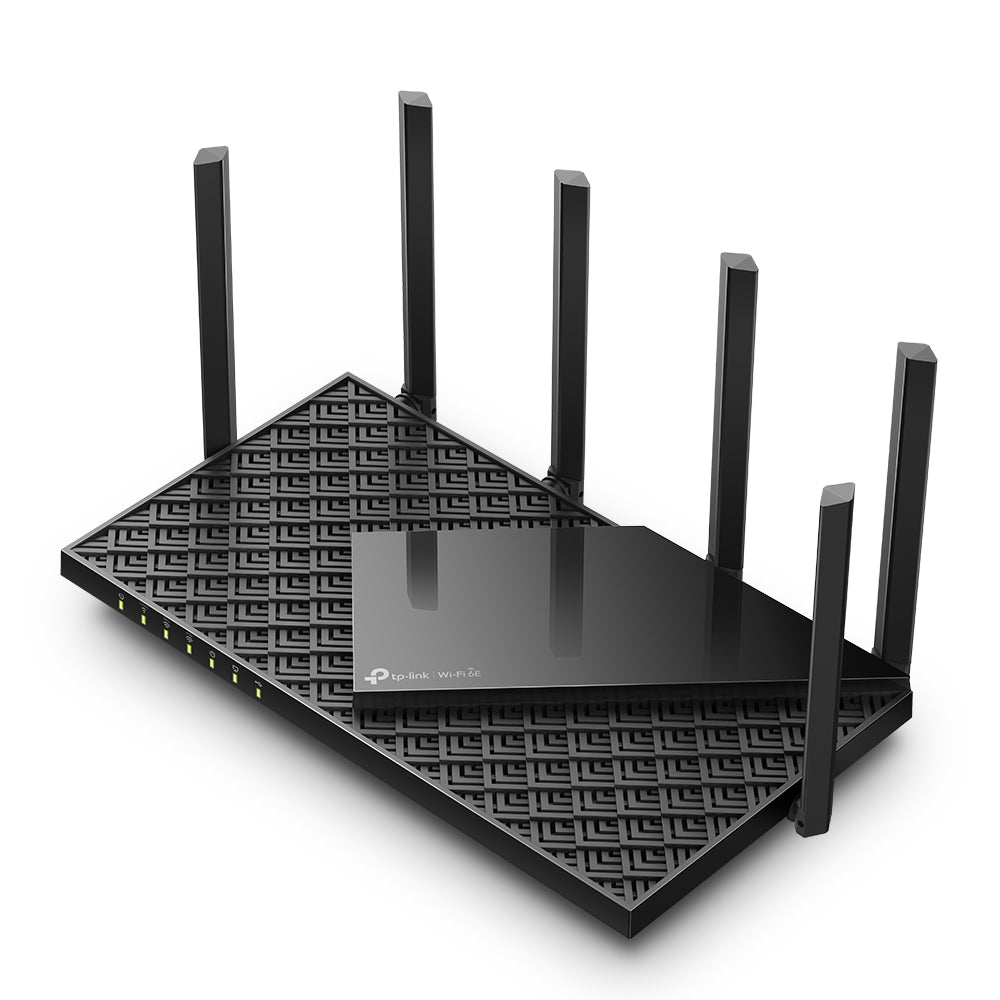

TP-Link Archer AXE75 AXE5400 Tri-Band Gigabit Wi-Fi 6E Router

Description

• AXE5400 Tri-Band – AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.

• Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.

• SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0.

• Wi-Fi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.

• Home Shield – Customize your home network with enhanced security and control.

• OneMesh™  – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.

• Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.

• Ultra-Low Latency—Enables more responsive gaming and video chatting.

• Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Specifications

WIRELESS

Standards

• IEEE 802.11ax 6 GHz,

• IEEE 802.11ax/ac/n/a 5 GHz,

• IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AXE5400

• 6 GHz: 2402 Mbps (802.11ax)

• 5 GHz: 2402 Mbps (802.11ax)

• 2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

2-3 Bedroom Houses

• 6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM Improves transmission power to strengthen signal coverage

WiFi Capacity

Very High

• Tri-Band Allocate devices to different bands for optimal performance

• OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness Improves network efficiency by limiting excessive occupation

• DFS Access an extra band to reduce congestion

• 6 Streams Connect your devices to more bandwidth

Working Modes

• Router Mode

• Access Point Mode

SECURITY

Network Security

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• Home Shield Security
  Real-Time IoT Protection
  Malicious Site Blocker
  Intrusion Prevention System
  DDoS Attack Prevention
  Home Network Scanner

Guest Network

• 1× 6 GHz Guest Network,

• 1× 5 GHz Guest Network,

• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN Server

• PPTP VPN Server

• L2TP VPN Server

VPN Client

• Open VPN Client

• PPTP VPN Client

• L2TP VPN Client

HARDWARE

Processor - 1.7 GHz Quad-Core CPU

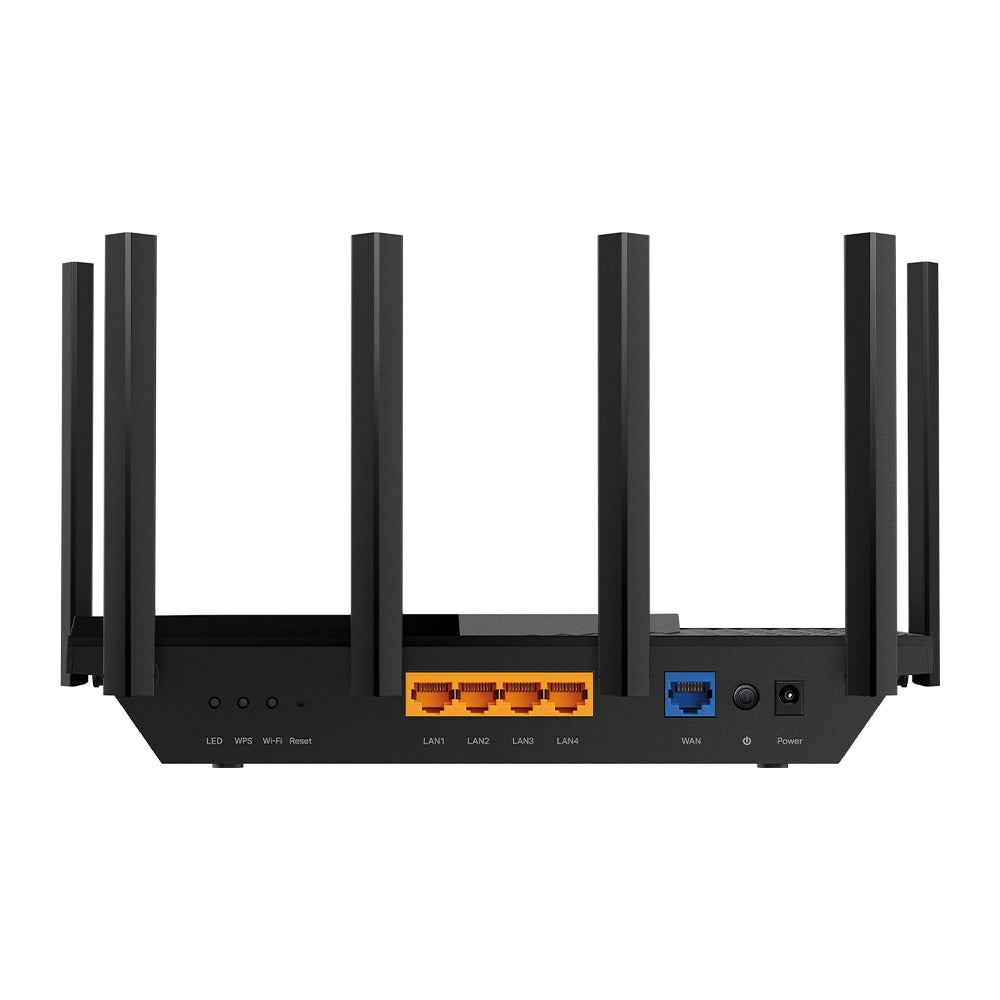

Ethernet Ports

• 1× Gigabit WAN Port

• 4× Gigabit LAN Ports

USB Support - 1× USB 3.0 Port

Supported Partition Formats: NTFS, exFAT, HFS+, FAT32

Supported Functions:

• Apple Time Machine

• FTP Server

• Media Server

• Samba Server

Buttons

• Wi-Fi On/Off Button

• Power On/Off Button

• LED On/Off Button

• WPS Button

• Reset Button

Power    12 V ⎓ 2.5 A

Package Contents

• Wi-Fi Router Archer AXE75

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide

Warranty

• 3 Year Brand Warranty

Manufacturer Info

• Manufactured By : Big Field Global Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987

• Imported By : TP-Link India Pvt Ltd, Andheri, Mumbai

• Country Of Origin : China
