- TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+ | 65W, 250M Extend Mode TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+ | 65W, 250M Extend Mode
55% Rs. 3,549.00










TP-Link

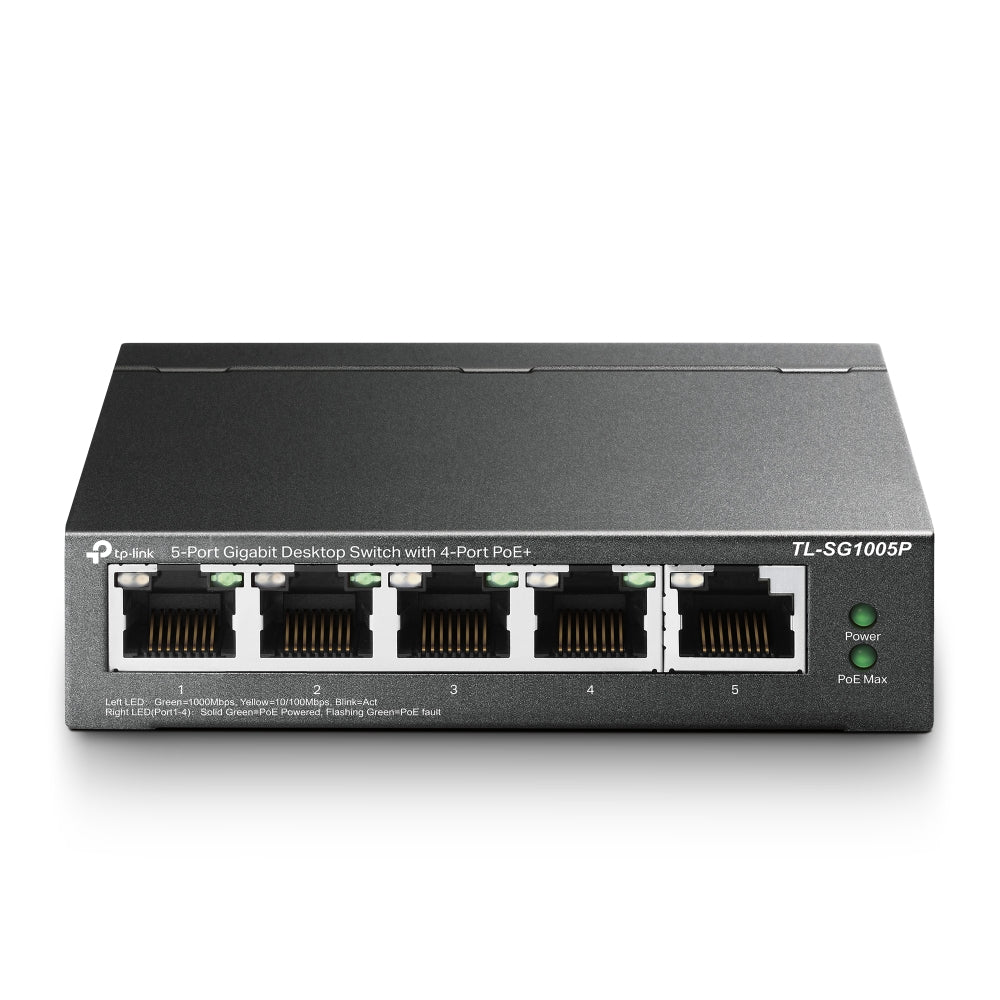

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+ | 65W, 250M Extend Mode
No reviews
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Up to 250m data and power transmitting range under Extend Mode
- Supports PoE Power up to 65 W for all PoE ports
Rs. 2,950.00
Want it delivered by
- Description
- Specifications
- Package Contents
- Warranty
- Manufacturer Info
- Reviews
- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports*
- Up to 250m data and power transmitting range under Extend Mode

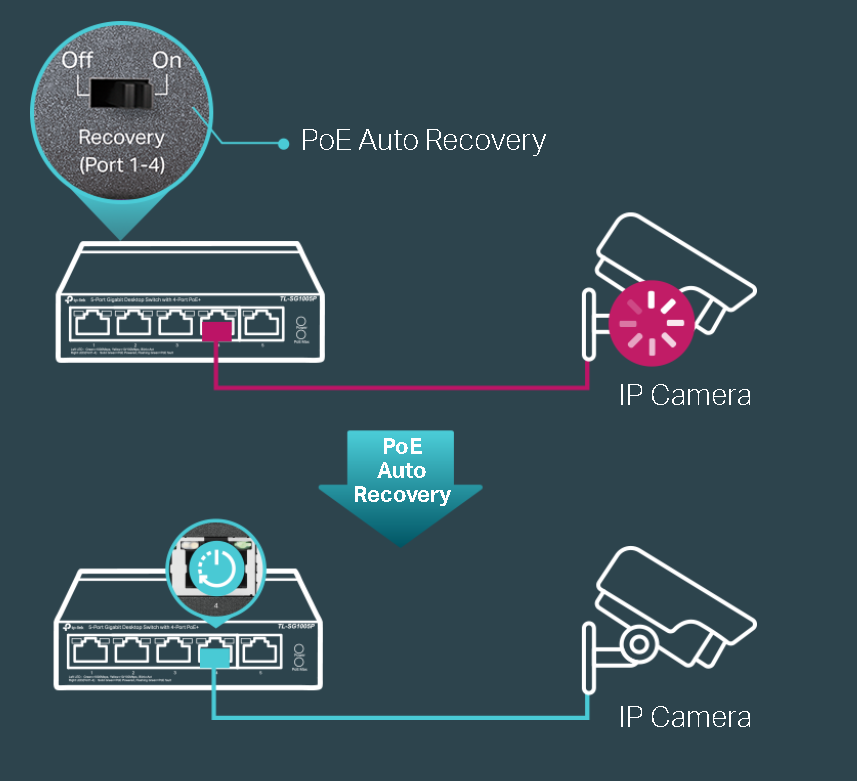

- PoE Auto Recovery guarantees stable operation of PoE devices by automatically
- rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
Interface
- 5× 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)

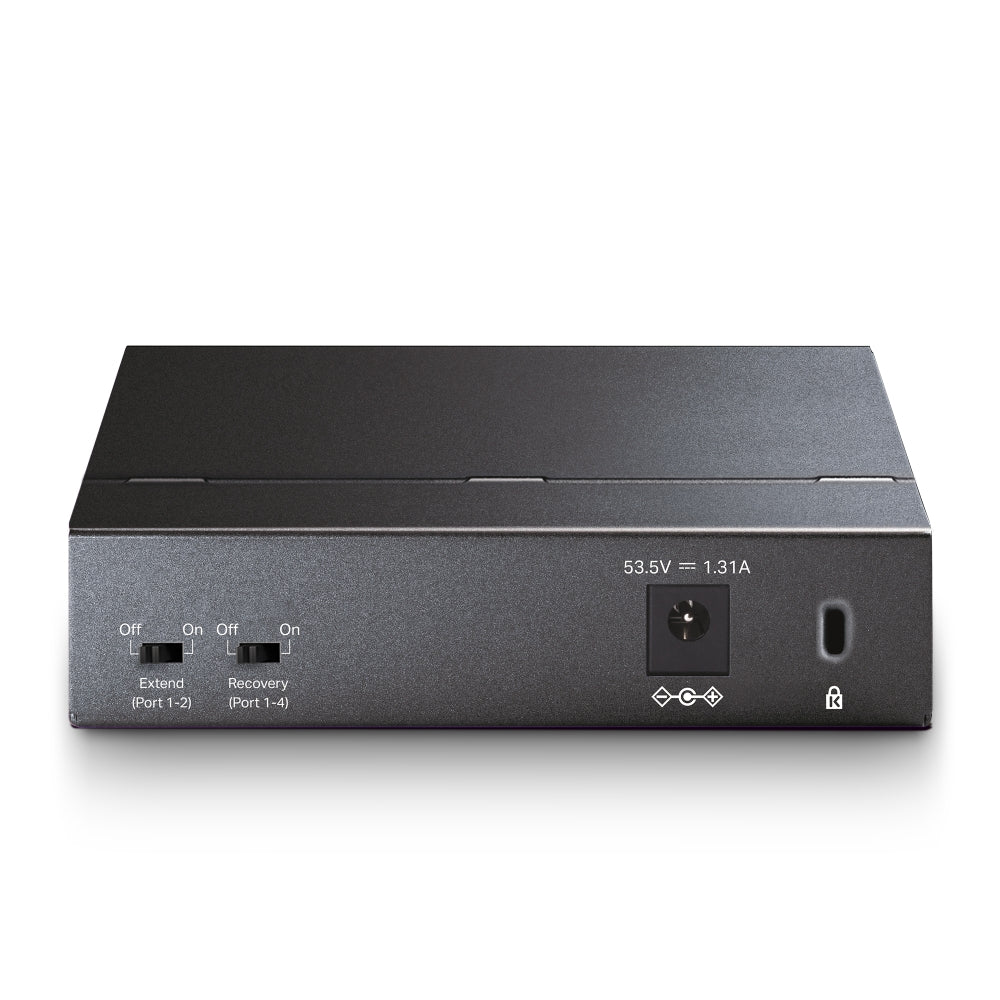

External Power Supply - External Power Adapter (Output: 53.5 VDC / 1.31 A)
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–4
- Power Supply: 65 W
Switching Capacity - 10 Gbps
Max Power Consumption
- 3.44 W (220/50 Hz. no PD connected)
- 74.49 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
- 11.73 BTU/h (no PD connected)
- 254.01 BTU/h (with 65 W PD connected)
Advanced Features
- Compatible With IEEE 802.3af/at Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
- PoE Auto Recovery (Ports 1-4)
- TL-SG1005P
- Power Adapter
- Installation Guide
- 3 Year Brand Warranty
- Manufactured By : Big Field Global Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
- Imported By : TP-Link India Pvt Ltd, Andheri, Mumbai
- Country Of Origin : China
TP-Link Authorized
DistributorFree Delivery
Standard ShippingWarranty
3 Year Brand WarrantyEasy Returns

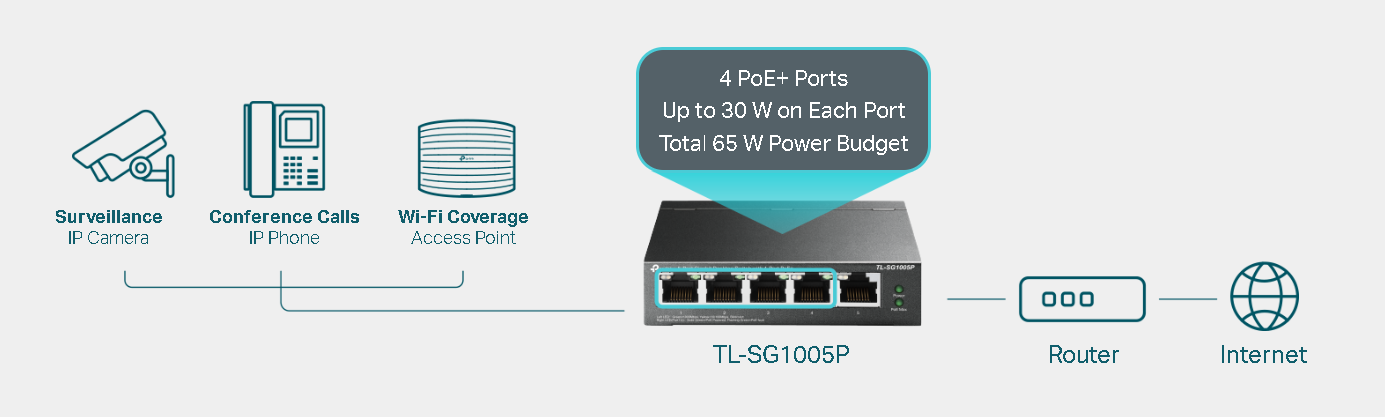

Buy With ConfidenceDedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
