- Ubiquiti PBE-M5-400 PowerBeam M5 25dBi 5GHz AirMAX Outdoor CPE 150+ Mbps Ubiquiti PBE-M5-400 PowerBeam M5 25dBi 5GHz AirMAX Outdoor CPE 150+ Mbps

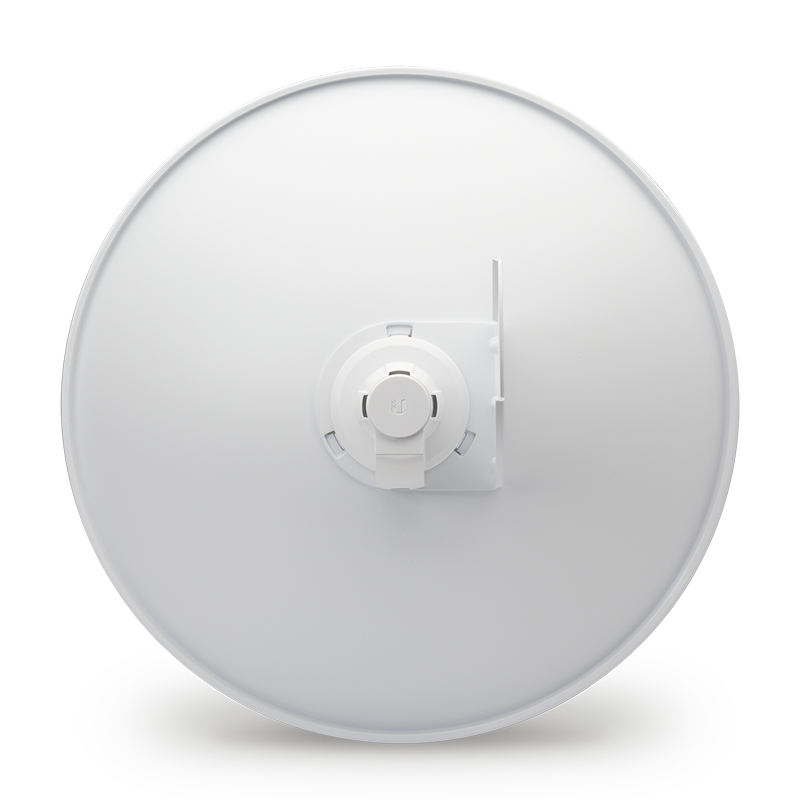

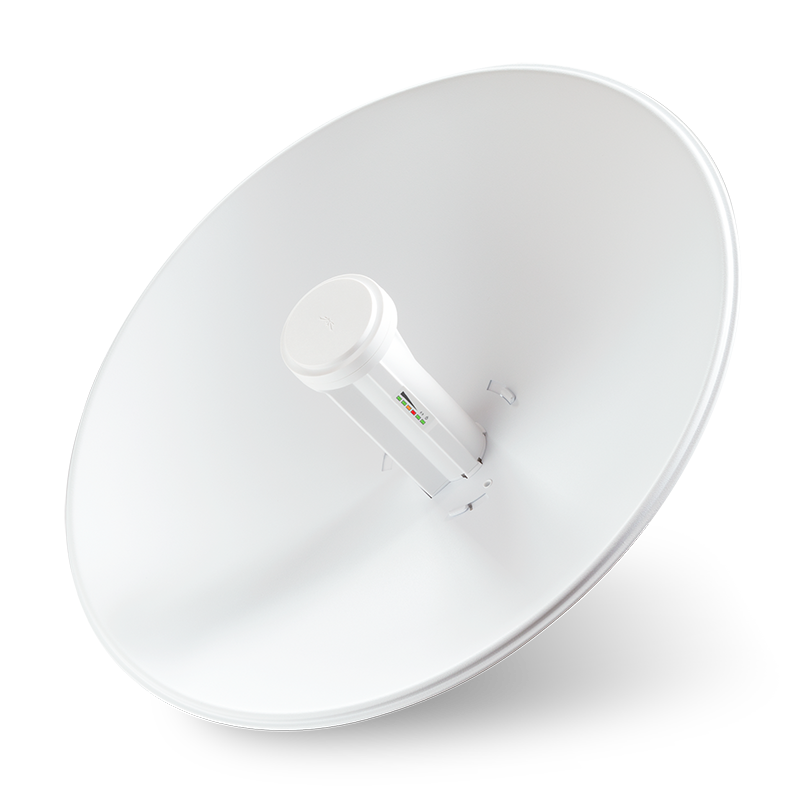

Ubiquiti PBE-M5-400 PowerBeam M5 25dBi 5GHz AirMAX Outdoor CPE 150+ Mbps
- PBE-M5-400
- Wireless Speed - 150 Mbps/ Gain - 25 dBi
- Max. power consumption - 8W
- Channel Sizes - 5/8/10/20/30/40 MHz
- Description
- Specifications
- Package Contents
- Warranty
- Manufacturer Info
- Reviews
The PowerBeam m has a compact, all-in-one design with uniform beam width, efficient footprint and a faster processor. The PowerBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design. Improved Noise Immunity The PowerBeam directs RF energy in a tighter beamwidth. Along with the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Integrated Design The PowerBeam models are available in two form factors: All-in-One Design: The Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The PowerBeam gets maximum gain out of the smallest footprint. Dish Reflector Design: InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing increased performance from its faster processor and innovative mechanical design at a low range , the PowerBeam is extremely versatile and effective to deploy. Utilize airMAX Technology Unlike standard Wi-Fi protocol, Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class. Intelligent QoS Priority is given to voice/video for seamless streaming. Scalability High capacity and scalability. Long Distance Capable of high speed, carrier-class links.
- Enclosure material - UV-stabilized plastic
- Mounting - Pole mount kit (Included)
- Wind survivability - 200 km/h (125 mph)
- Wind loading - 342.5 N @ 200 km/h (77 lbf @ 125 mph)
- Networking interface - (1) GbE RJ45 port
- Power method - Passive PoE 2-pair (Pairs 4, 5+; 7, 8 Return)
- Power supply - 24V, 0.5A gigabit PoE adapter (Included)
- Supported voltage range - 20–27V DC
- Max. power consumption - 8W
- Max. TX power - 26 dBm
- Gain - 25 dBi
- ESD/EMP protection - Air/contact: ± 24 kV
- LEDs - (1) Power, (1) LAN, (4) WLAN
- Signal Strength LEDs - Software-adjustable to correspond to custom RSSI levels
- 1 x PBE-M5-400 PowerBeam
- 1 x Quick Start Guide
- 1 Year Brand Warranty
- Manufactured By : Ubiquiti Networks International Limited, Hong Kong.
- Imported By : RASHI PERIPHERALS LIMITED, Palghar - MH, India.
- Country Of Origin : China
