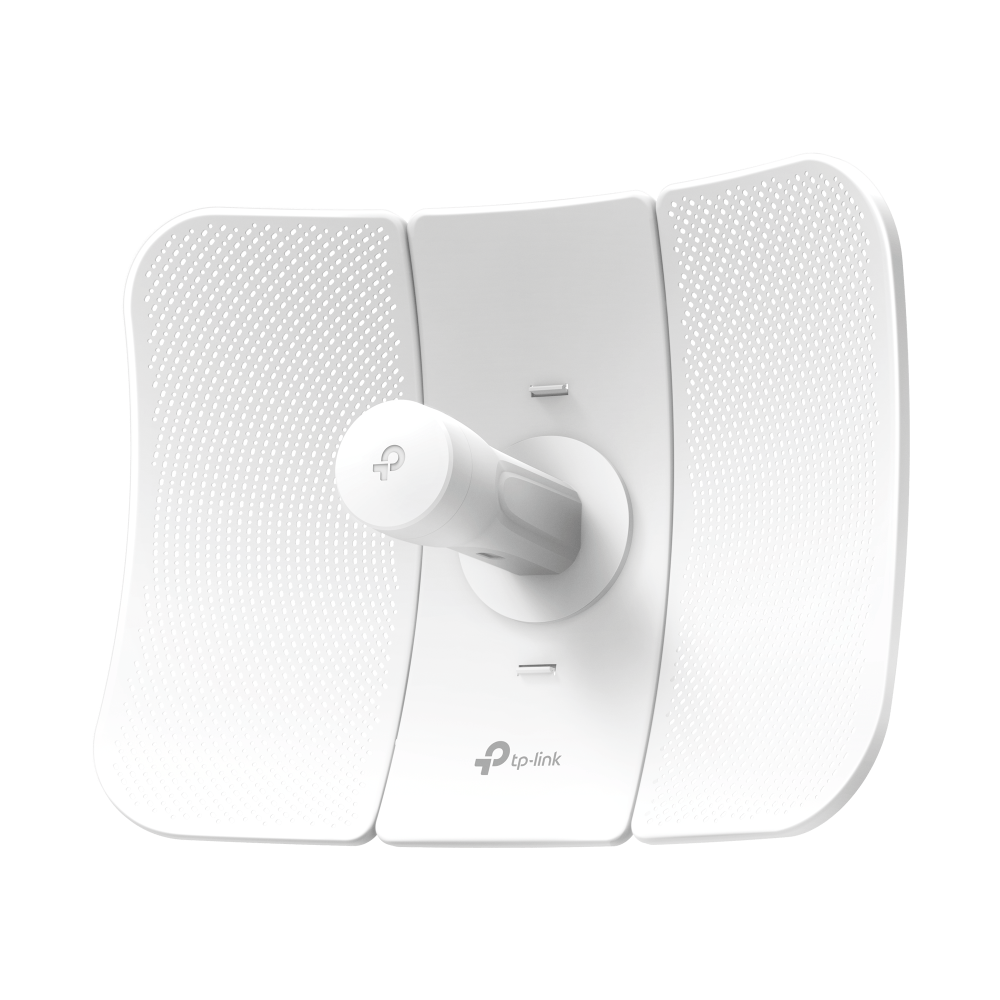

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE | High-Gain Directional 2×2 MIMO Antenna

Description

• Up to 300Mbps on 5GHz wireless data rates

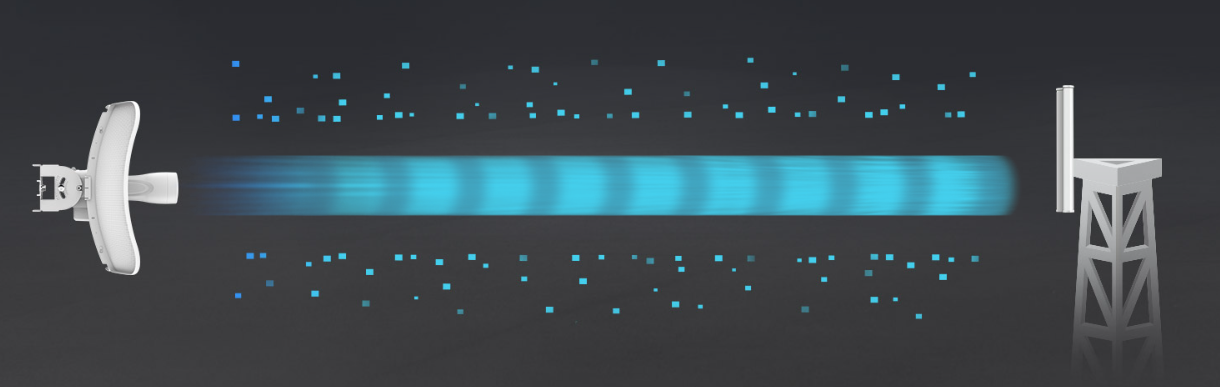

• 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance wireless transmission up to 30km

• Excellent beam directivity, improved latency and noise cancellation

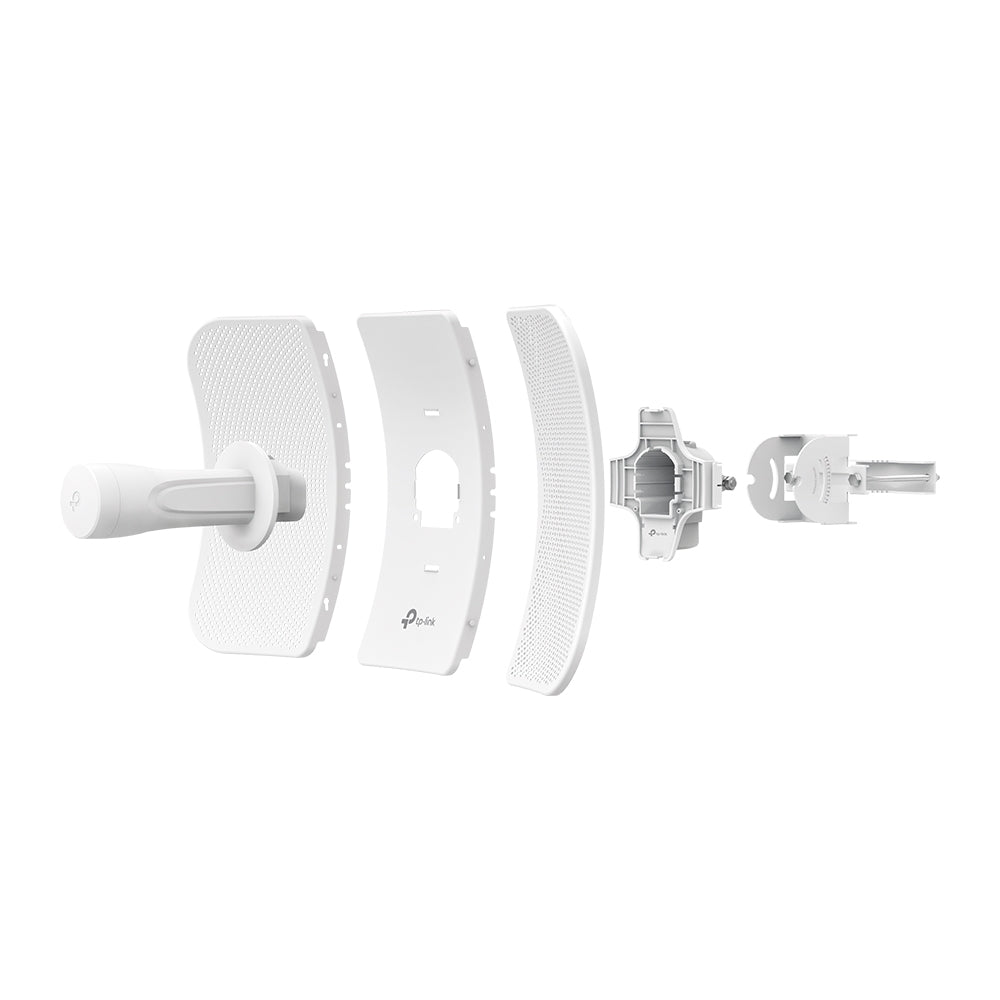

• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds

• Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability

• TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance

• Pharos Control gives administrators a free, centralized management system

• Passive PoE supports to allow flexible deployment and convenient installation

Specifications

Processor - Qualcomm 560MHz CPU, MIPS 74Kc

Memory - 64MB DDR2 RAM,8MB Flash

Interface

• 1 10/100Mbps Shielded Ethernet Port (LAN/POE)

• 1 Reset Button

Power Supply

• Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

• Voltage range: 16-27VDC

Power Consumption - 7.41 W

Antenna Gain - 23dBi

Antenna Beamwidth - 9°(Azimuth), 7°(Elevation)

Protection

• 15KV ESD Protection

• 6KV Lightning Protection

Wireless Standards - IEEE 802.11a/n

Proprietary Protocol - TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds

• Up to 300Mbps (40MHz,Dynamic)

• Up to 144.4Mbps (20MHz,Dynamic)

• Up to 72.2Mbps (10MHz,Dynamic)

• Up to 36.1Mbps (5MHz,Dynamic)

Transmit Power - Max. 25dBm (Adjustable power by 1dBm)

Network Configuration

• WAN: Static/Dynamic/PPPoE/L2TP/PPTP

• LAN: Static/Dynamic/DHCP

• Forwarding: ALG/UPnP/Virtual Server/Port Trigger

• Security: SPI Firewall/ Ping Forbidden/DoS Protection

• Access Control

• Static Routing

• Bandwidth Control

• IP & MAC Binding

Package Contents

• Outdoor Wireless CPE

• 24V 0.5A Passive PoE Adapter

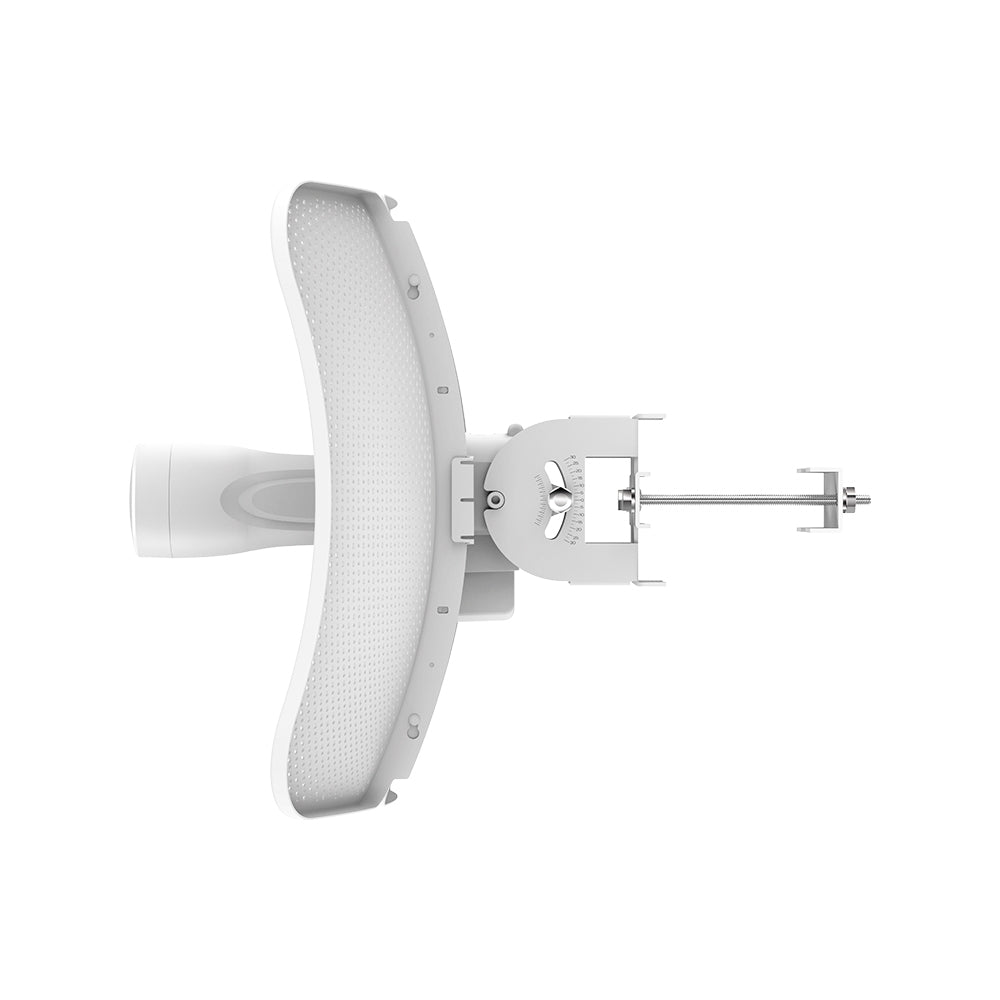

• Pole Mounting Straps

• AC Power Cord

• Installation Guide

Warranty

• 3 Year Brand Warranty

Manufacturer Info

• Manufactured by : Pacific Cyber Technology Pvt. Ltd. 51-57, Sliver Industrial Estate, Bhimpore, Nani Daman - 396210

• Country Of Origin : India
