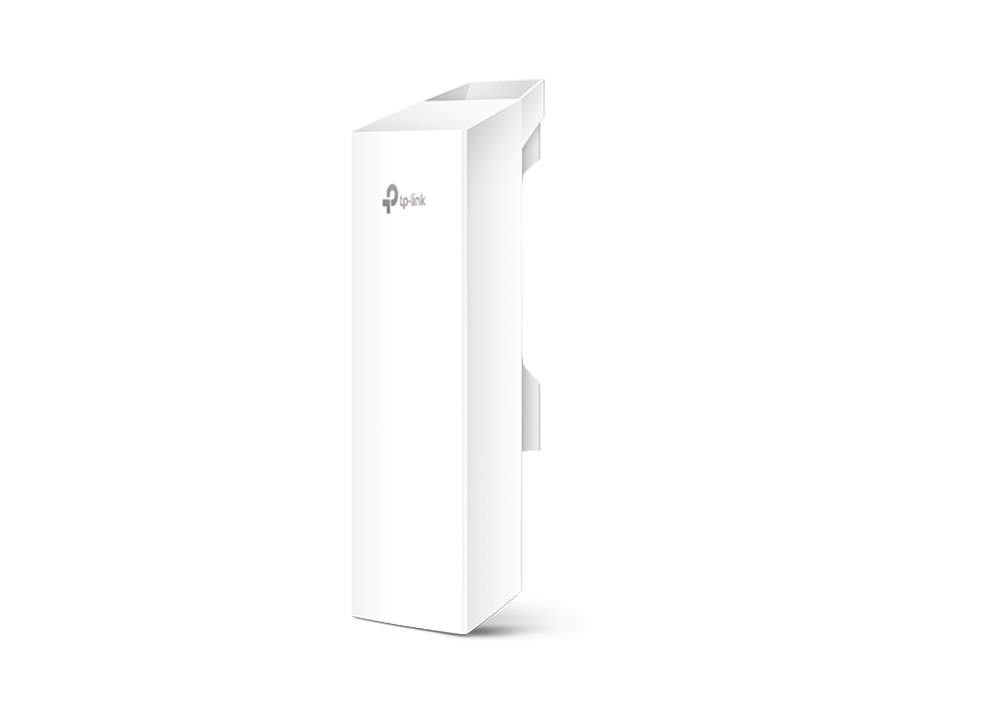

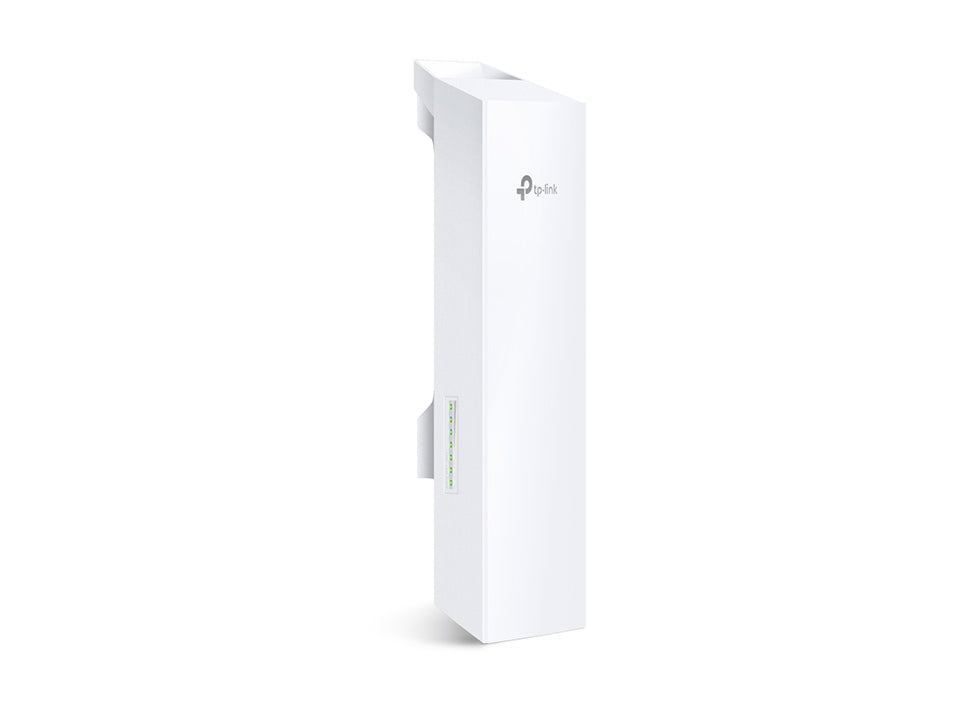

TP-Link CPE220 2.4GHz 300Mbps 12dBi Pharos Outdoor CPE with 2x2 dual-polarized directional MIMO antenna

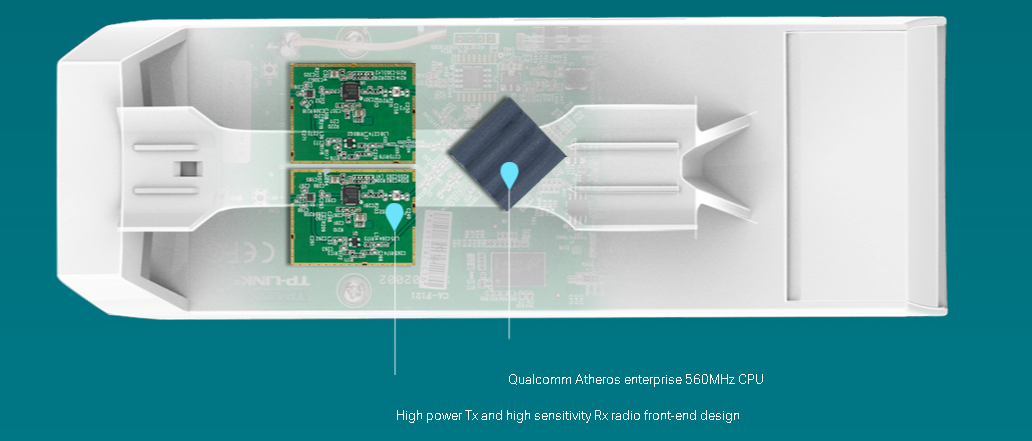

Processor - Qualcomm Atheros 560MHz CPU, MIPS 24Kc

Memory - 64MB DDR2 RAM, 8MB Flash

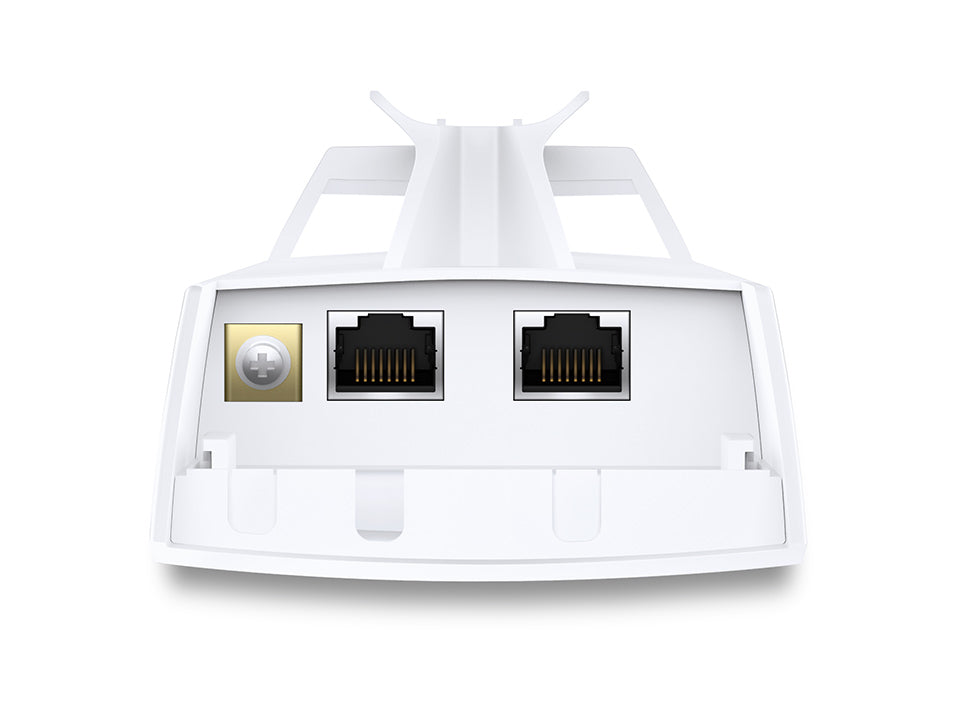

Interface

• 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

• 1 10/100Mbps Shielded Ethernet Port (LAN1)

• 1 Grounding Terminal

• 1 Reset Button

Power Supply

• Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

• Voltage range: 16-27VDC

Power Consumption - 10.8 Watts Max

Antenna Type

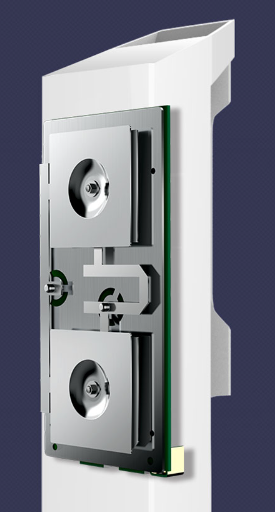

• Built-in 12dBi 2x2 Dual-polarized Directional Antenna

• Beam Width: 60° (H-Plane) / 30° (E-Plane)

Protection

• 15KV ESD Protection

• 6KV Lightning Protection

Enclosure

• Outdoor ASA stabilized plastic material

• IPX5 waterproof Certification

Wireless Standards - IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol - TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds

• Up to 300Mbps (40MHz,Dynamic)

• Up to 144.4Mbps (20MHz,Dynamic)

• Up to 72.2Mbps (10MHz,Dynamic)

• Up to 36.1Mbps (5MHz,Dynamic)

Management

• Discovery and Remote Management via Pharos Control application

• HTTP/HTTPS Web-based management

• System Log

• SNMP Agent(v2c)

• Ping Watch Dog

• Dynamic DDNS

• SSH Server

• Outdoor Wireless CPE

• 24V 0.5A Passive PoE Adapter

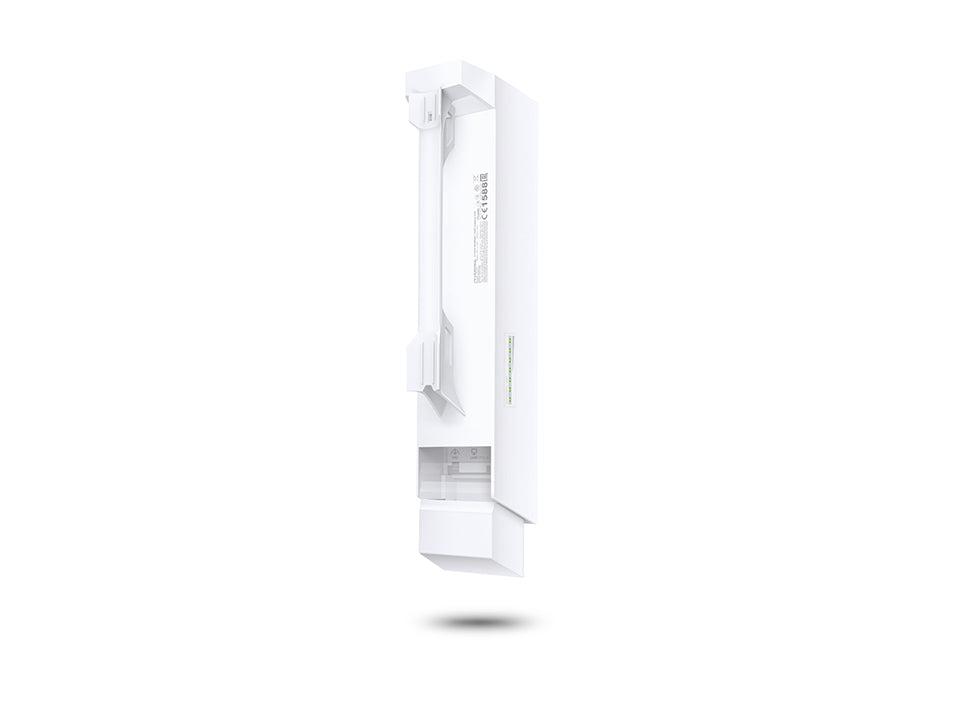

• Pole Mounting Straps

• AC Power Cord

• Installation Guide

• 3 Year Brand Warranty

• Manufactured by : Pacific Cyber Technology Pvt. Ltd. 51-57, Sliver Industrial Estate, Bhimpore, Nani Daman - 396210

• Country Of Origin : India
