Mercusys MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

Description

• 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
• Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*

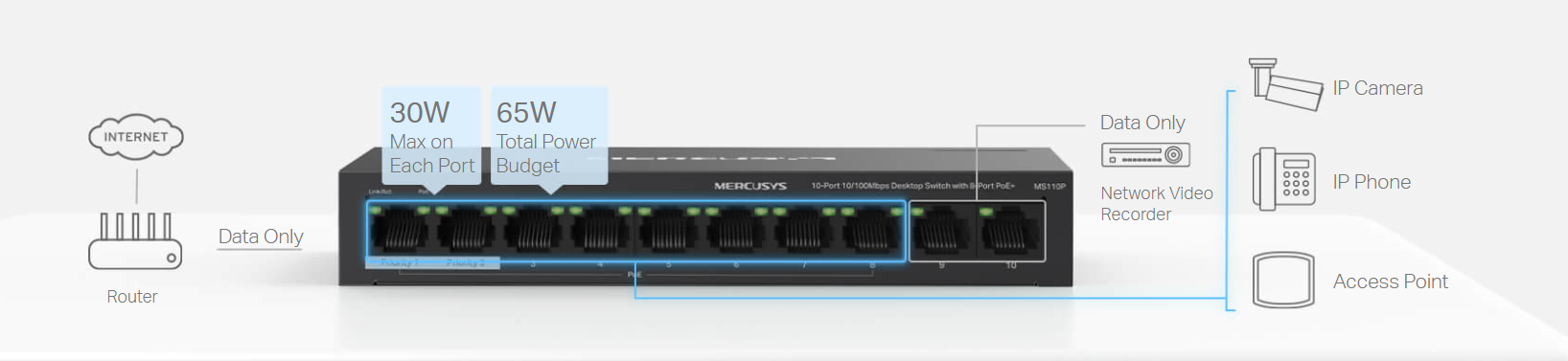

• 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

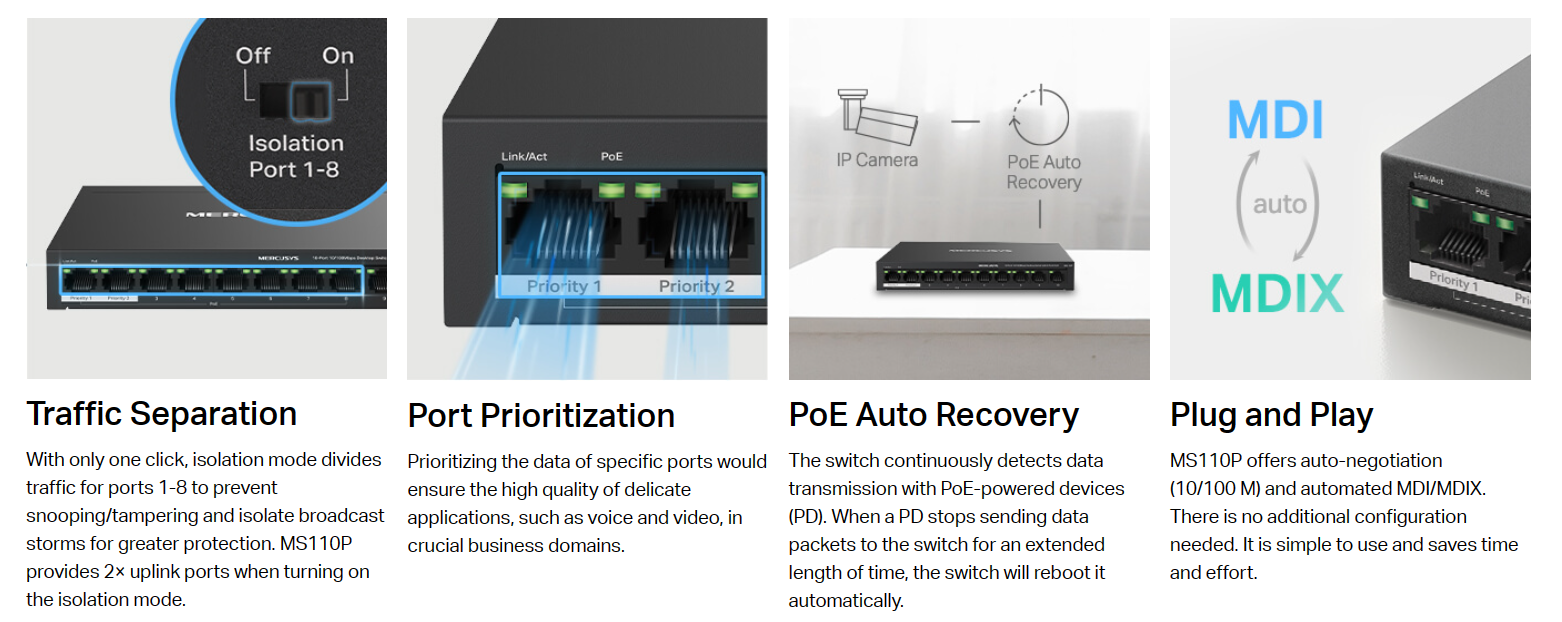

• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

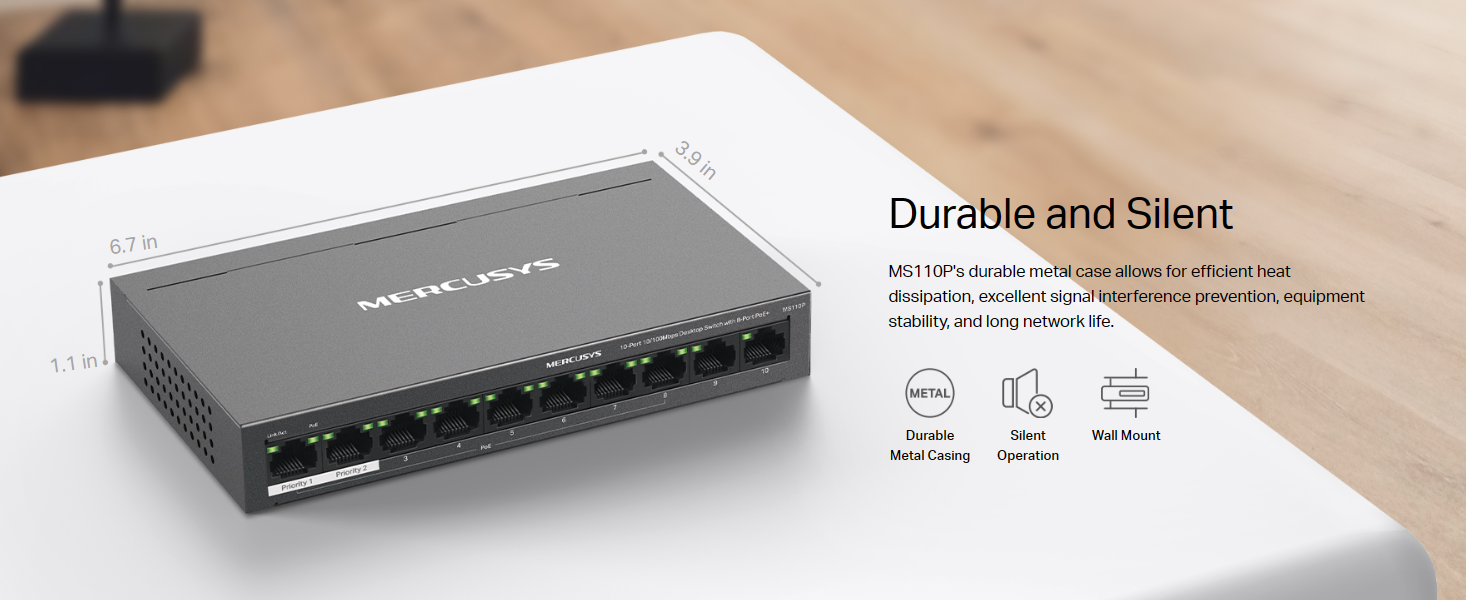

• Durable Metal Casing: Allows for efficient heat dissipation and long network life
• Plug and Play: Simple to use and saves time and effort
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Specifications

• Dimensions (W X D X H) - 171*98*27 mm
• PoE Ports - RJ45
  - Standard: Compliant with 802.3 af/at Powered Devices
  - PoE Ports: Port 1- Port 8
  - PoE Power Budget: 65 W
• Interfaces - 10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
• External Power Supply - External Power Adapter (Output: 53.5V/1.31A)
• Data Rates - 10/100 Mbps at Half Duplex
  - 20/200 Mbps at Full Duplex

Package Contents

• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
• Power Adapter
• Quick Installation Guide

Warranty

•  2 Year Manufacturer Warranty

Manufacturer Info

• Manufactured By : TP-LINK CORPORATION LIMITED, Hong Kong
• Imported By :TP-LINK India Private Limited. Palghar, Maharashtra, India
• Country Of Origin : China
