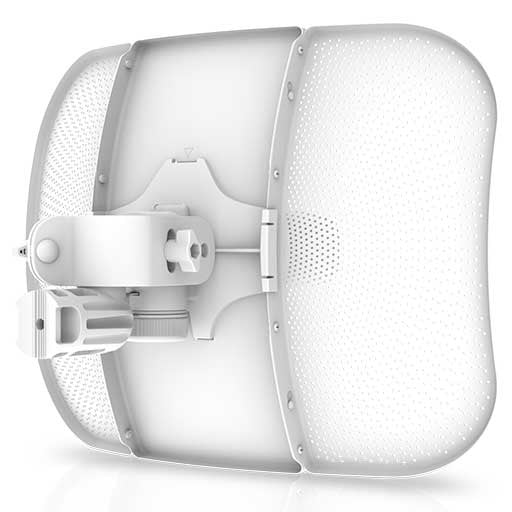

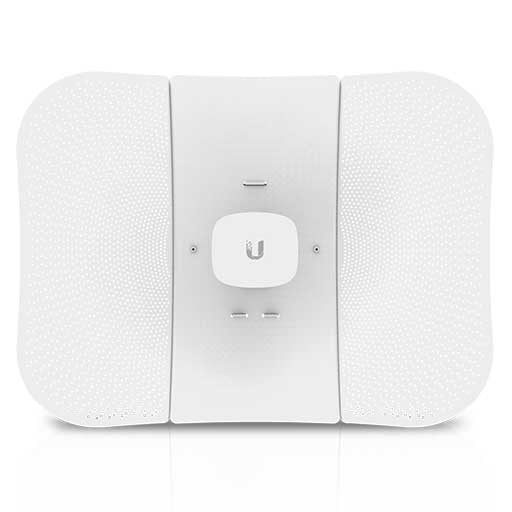

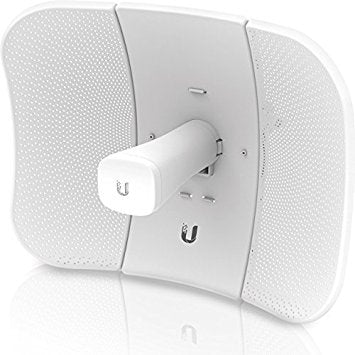

Ubiquiti LiteBeam LBE-5AC-GEN2 airMAX Antenna 5GHz 23dBi 450Mbps Outdoor CPE

The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for
a cable. This improves performance because it eliminates cable losses.

Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost‑effective to deploy.

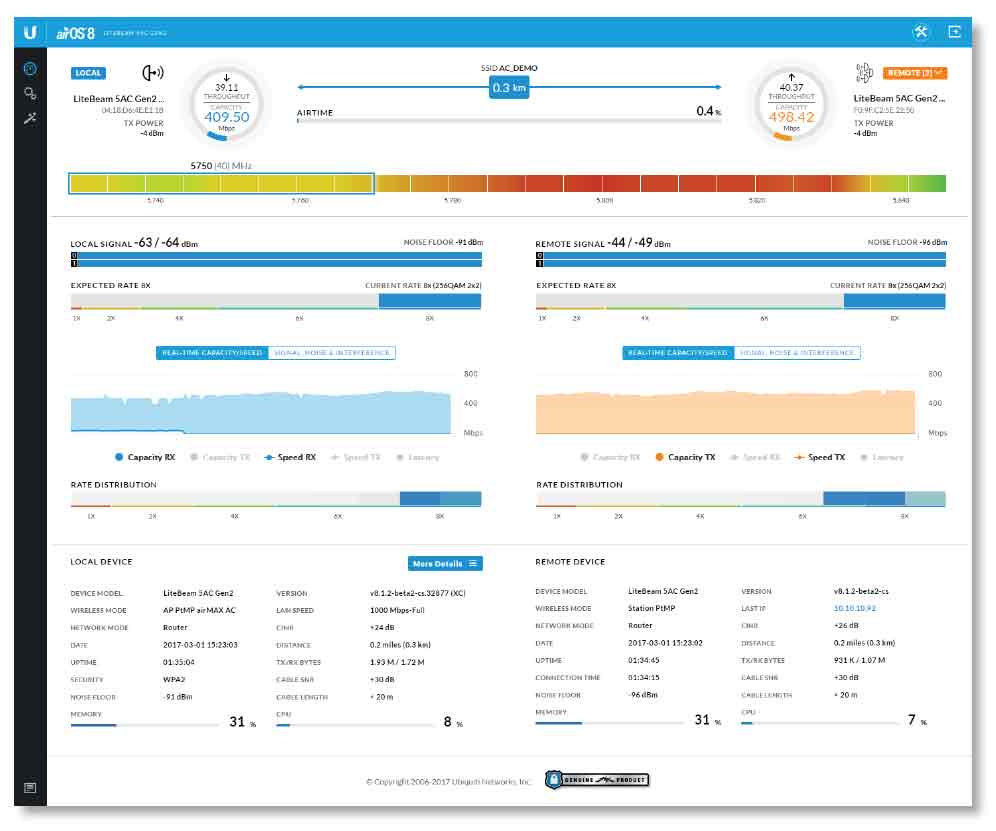

airOS® v8 is the revolutionary operating system for Ubiquiti® airMAX ac products.

Powerful Wireless Features

• Access Point PtMP airMAX Mixed
  Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP)Link Mode
• Selectable Channel Width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security

Usability Enhancements

• airMagic® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView® Spectrum Analyzer

The LiteBeam 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Accessing airOS via Wi-Fi

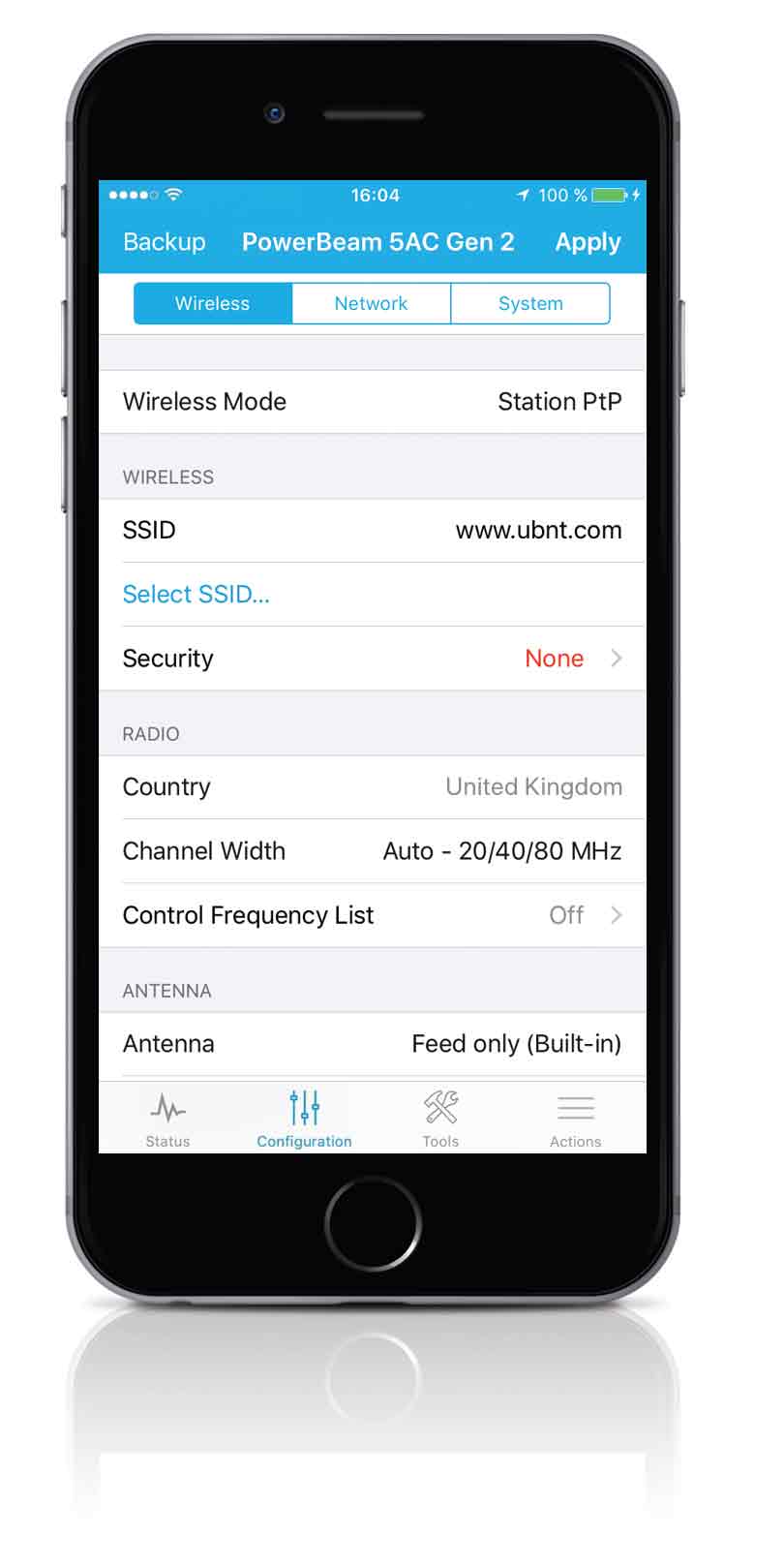

The UNMS™ app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play™ (Android). UNMS allows you to set up, configure, and manage the LiteBeam 5AC Gen 2. It offers the following options once you're connected or logged in to the device:

Status Check link status information or the basic configuration settings of the LiteBeam 5AC Gen 2.

Configuration Change or update the existing configuration of the LiteBeam 5AC Gen 2.

Tools Access tools for initial installation and configuration of the LiteBeam 5AC Gen 2.

Actions Back up or update the configuration, upload new firmware, reboot the device, reset the device to factory defaults, access the airOS UI in the web browser, or disconnect from the LiteBeam 5AC Gen 2.
