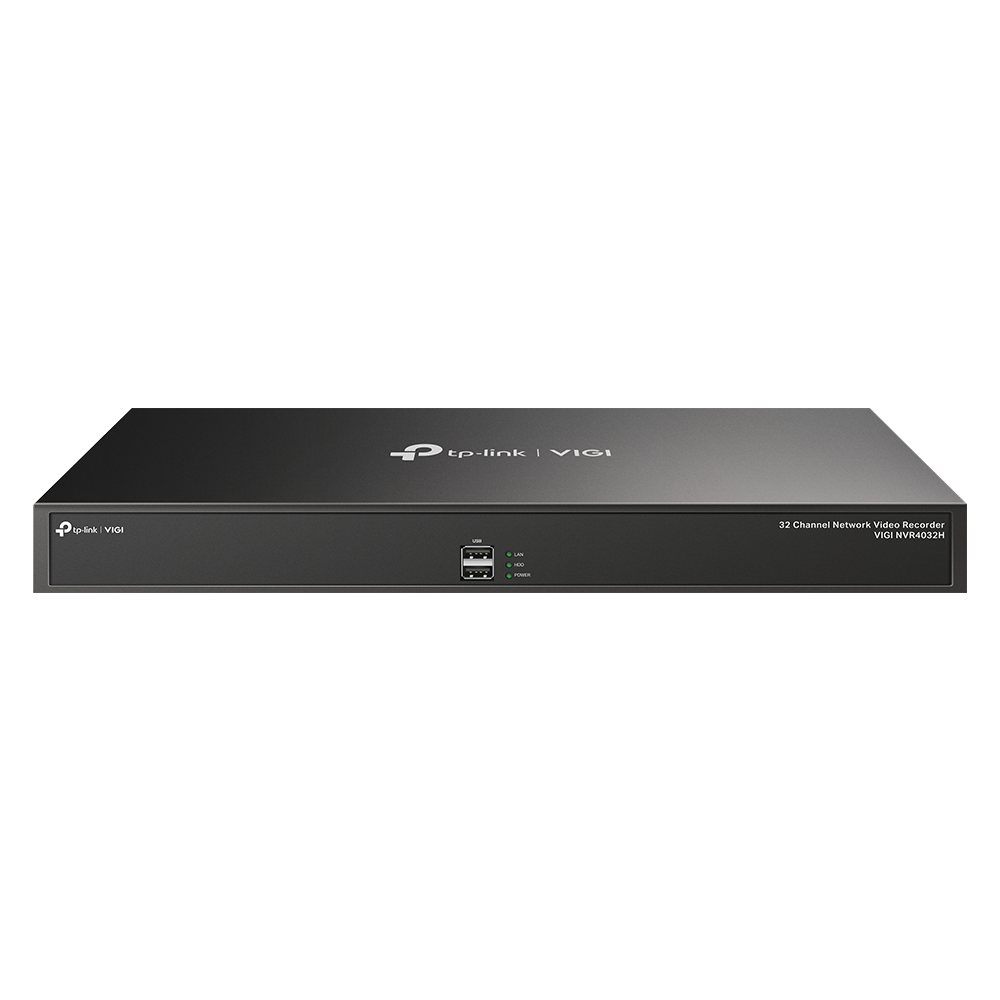

TP-Link VIGI NVR4032H 32 Channel Network Video Recorder | 4 SATA | 4K Output | 8MP Supported | H.265+ Compression | Synchronous Playback

Description

VIGI Surveillance Solution

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

• 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.

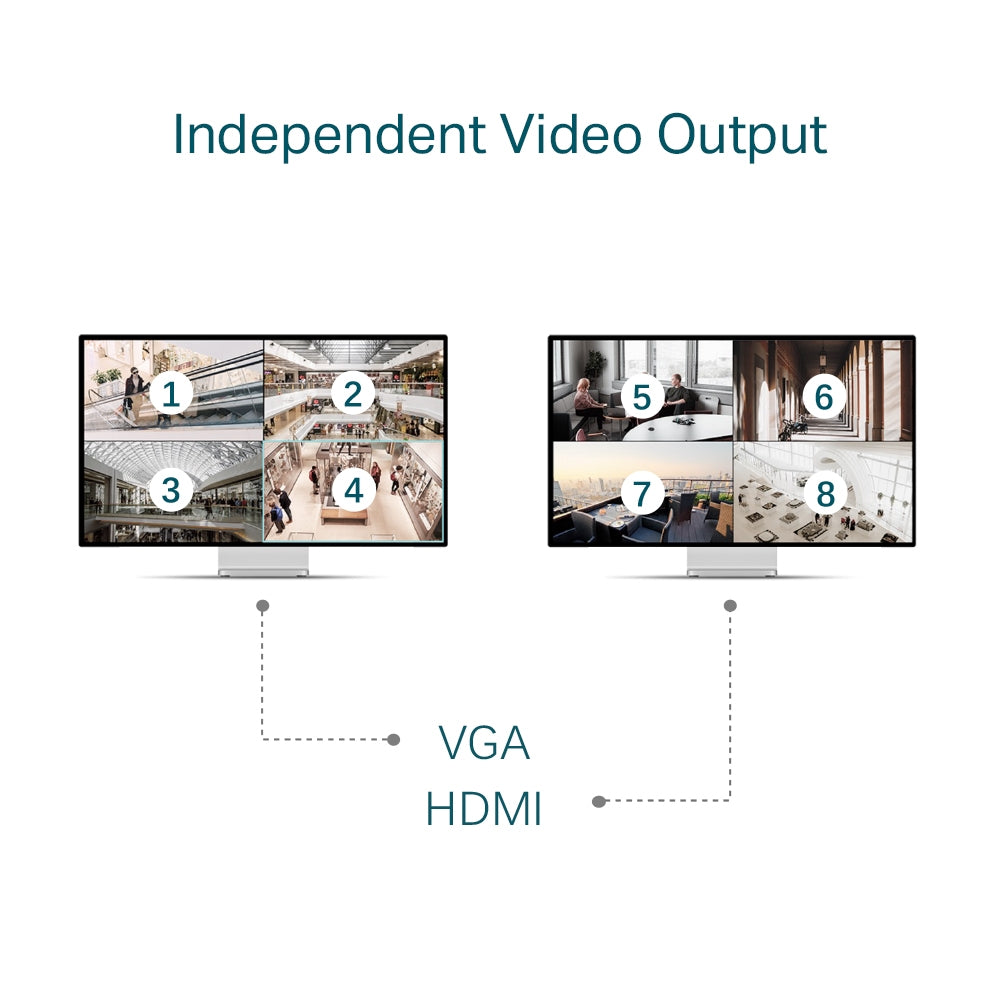

• 1 HDMI and 1 VGA Interface: Supports independent video output.
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
• Mass Storage: Supports 4× SATA, up to 10 TB each.
• 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• Dual Ethernet Ports Design: Supports three network modes, including muti-address mode, network fault-tolerance and load balance.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
• Rack Mounting: Space-saving and easy installation.
• ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Specifications

VIDEO AND AUDIO

• IP Video Input : 32-Channel
• Incoming Bandwidth : 320 Mbps
• Outgoing Bandwidth : 320 Mbps
• HDMI Output Resolution : 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output Resolution : 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA Simultaneous Output
• Multi-View Display : 1/4/6/8/16/32/36


Decoding

• Audio Compression : G.711A/G.711U/G.726
• Video Compression : .265+/H.265/ H.264+/H.264
• Record Resolution : 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF /2CIF / CIF / QCIF
• Live View/Playback Resolution : 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback : 16-Channel
• Capability : 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)


Record Management

Record Mode

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback


Backup Mode

• Regular Backup
• Video Clip Backup

Playback Function

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off


Network

• Network Protocols : UPnP (Plug and Play), NTP (Network Timing)
• Interoperability : ONVIF, CGI
• Mobile Phone Access : Android, iOS
• Browser : Chrome (57+), Firefox (52+), Edge (91+)

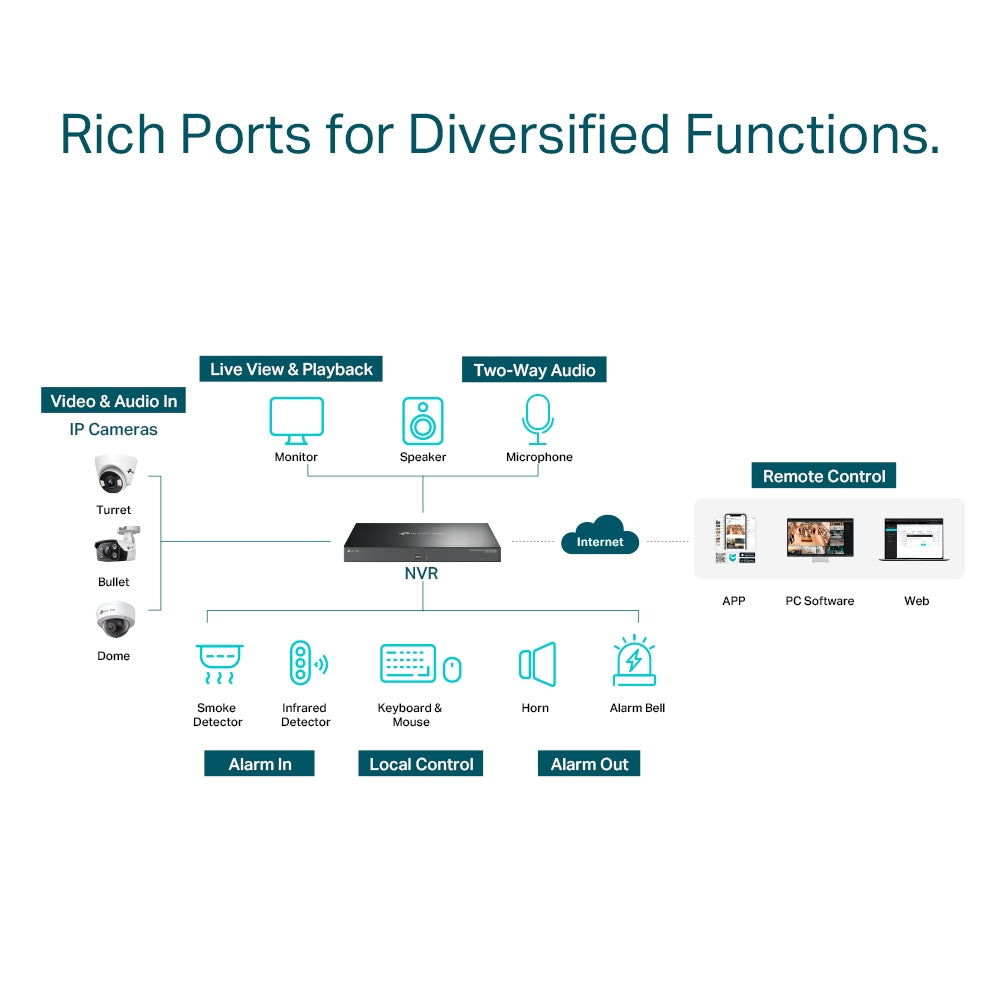

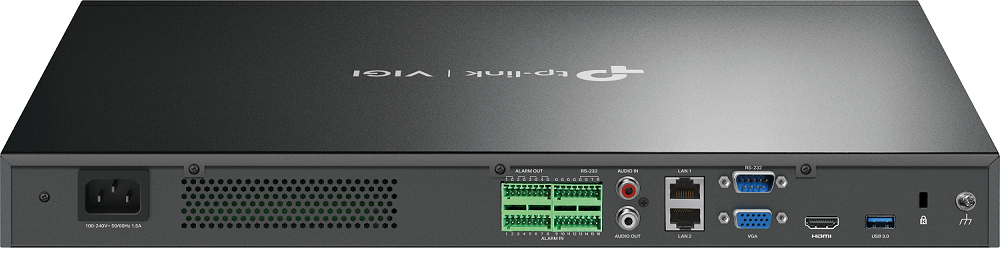

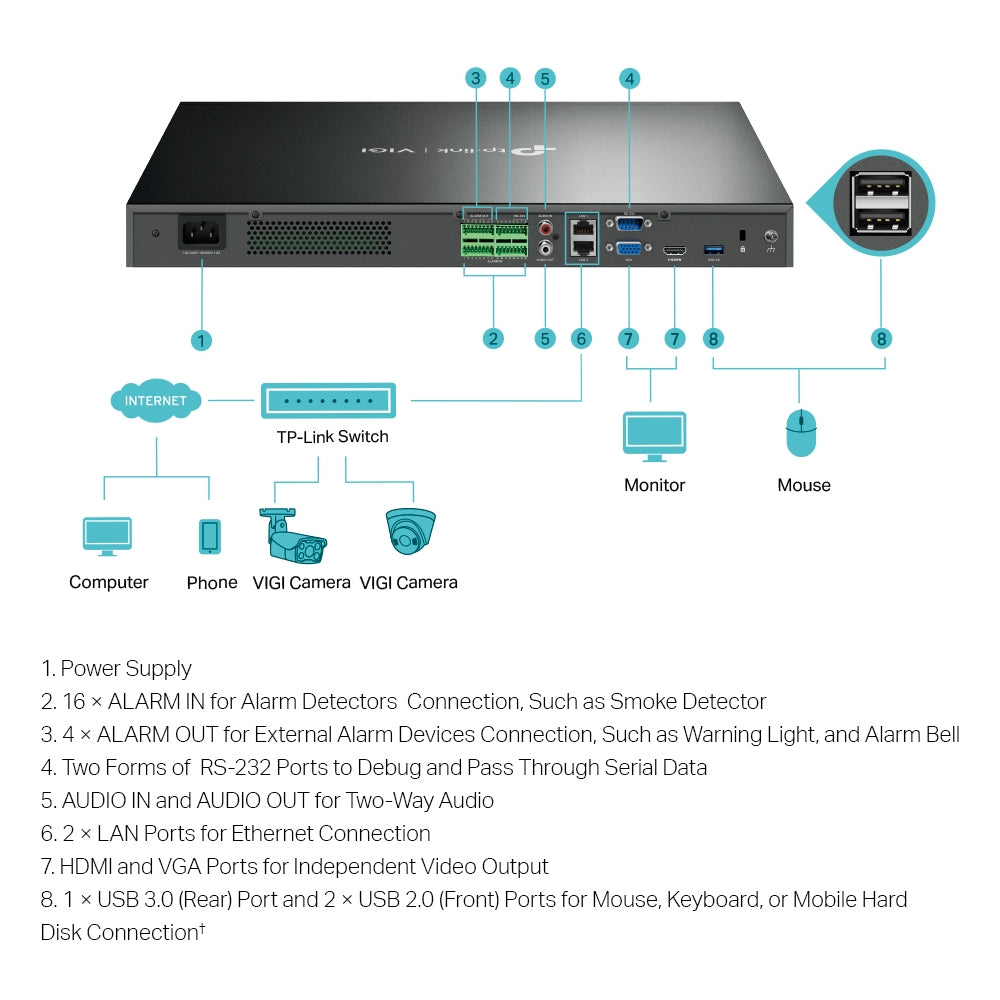

External Interface

• Network Interface : 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
• USB Interface : Front Panel: 2 × USB 2.0; Rear Panel: 1× USB 3.0
• Audio Interface : 1, Audio In; 1, Audio Out
• Alarm In/Out : 16/4
• Serial Interface : 1, RS232
• Power : 1× AC Jack
• Reset Button : 1
• Speaker : N/A
• eSATA : N/A
• HDMI : 1 | VGA :1


Hard Disk

• SATA : 4 SATA Interfaces
• Capacity : Up to 10 TB Capacity for Each HDD


Alarm

General Alarm

• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame

Anomaly Alarm

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception

Alarm Linkage

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm


General

• External Power Supply : 100-240 VAC, 50 to 60HZ, 1.5A
• Max Power Consumption : 5 W (Without Disk)
  48 W (With Disk)
• Working Temperature : NVR: -10–55 °C | Power Adapter: 0–40 °C
• Storage Temperature : -40-70 °C
• Working Humidity : 10%~90% RH Non-Condensing
• Storage Humidity : 10%~90% RH Non-Condensing
• Product Dimensions (W × D × H) : 440 × 330 × 44 mm
• Net Weight : 4.0 kg | Gross Weight 5.2 kg
• Certification : CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI

Package Contents

• VIGI Network Video Recorder
• Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks
• Mounting Brackets, Screws and Rubber Feet
• Mouse
• Quick Installation Guide

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured by :TP-Link Corporation Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By :TP-Link India Pvt Ltd, Palghar, Maharashtra
• Country Of Origin :China
