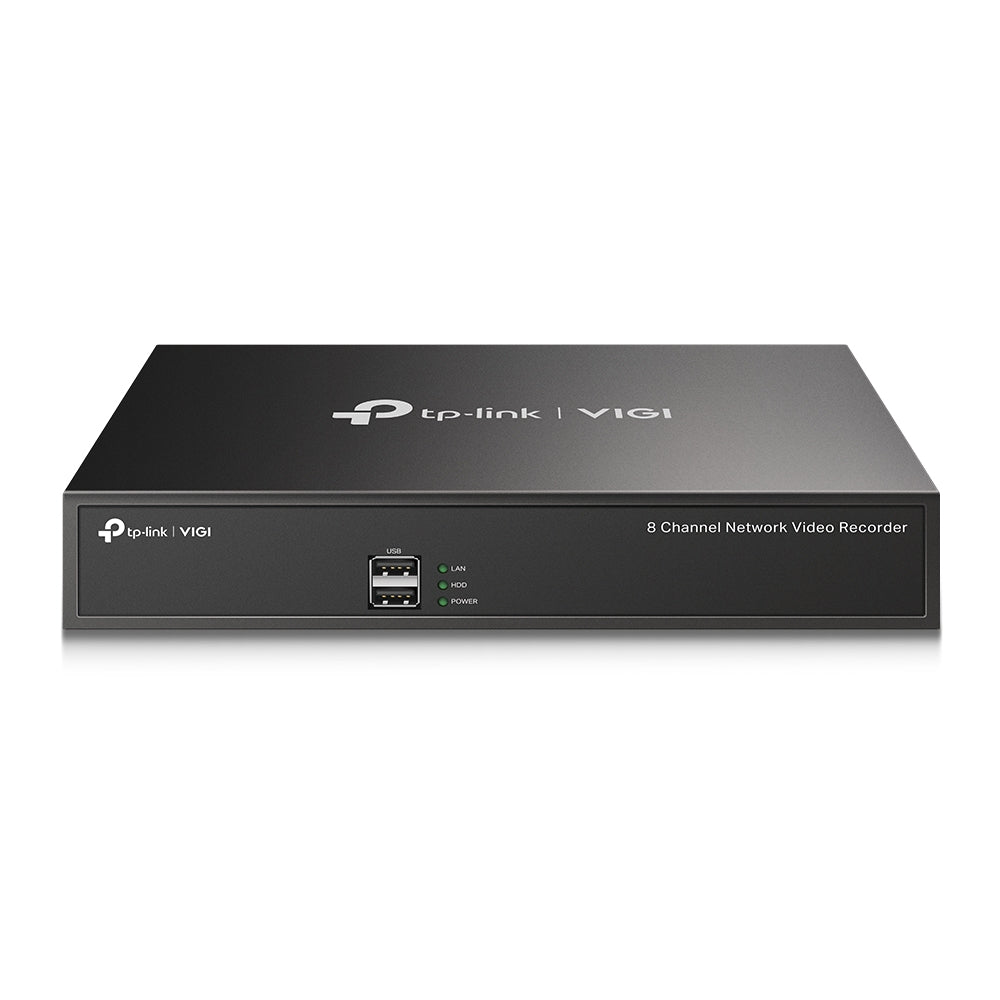

TP-Link VIGI NVR1008H 8 Channel Network Video Recorder | 4K Output | 8MP Supported | H.265+ Compression | Synchronous Playback

Description

VIGI Surveillance Solution

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

8MP Live View
Sharp image definition up to 8MP and an 8 channel display ensure you capture every detail, from every angle.

Simultaneous Playback
Replay the feed from up to 4 cameras** at the same time, increase replay speed, and find events in the video schedule to easily review footage.

Secure Mass Storage
Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.

Easy Management
Seamlessly manage the NVR and connected cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager. Customize the management
system to suit your specific needs.

Streamlined Setup

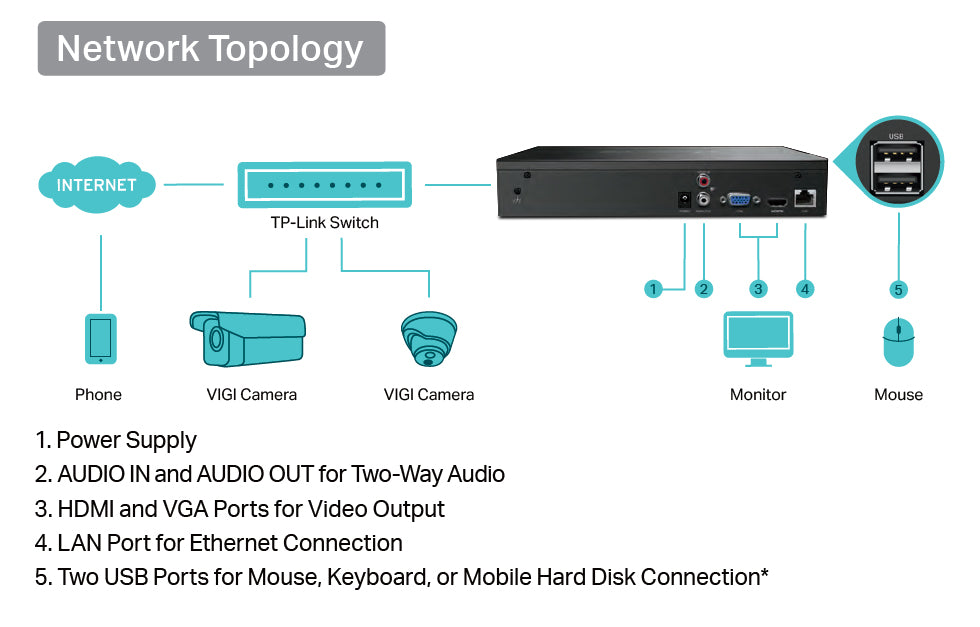

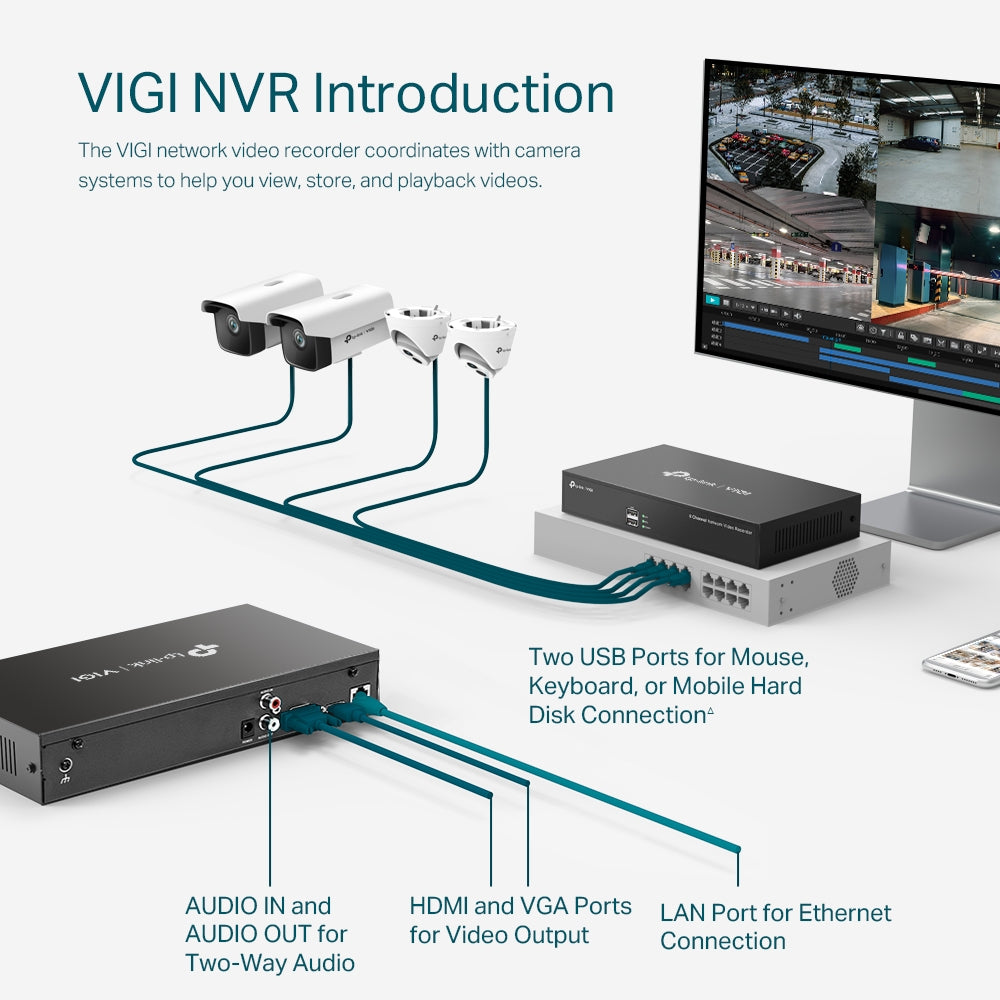

Simply connect your VIGI NVR and VIGI cameras to a switch, and plug in a monitor, then you’re ready to go.

Specifications

VIDEO AND AUDIO

• IP Video Input : 8-Channel
• Incoming Bandwidth : 80 Mbps
• Outgoing Bandwidth : 60 Mbps
• HDMI Output Resolution : 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output Resolution : 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA Simultaneous Output
• Multi-View Display : 1/4/6/8


Decoding

• Audio Compression : G.711A/G.711U/G.726
• Video Compression : .265+/H.265/ H.264+/H.264
• Record Resolution : 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF /2CIF / CIF / QCIF
• Synchronous Playback : 4-Channel
• Capability : 1-ch @ 8MP, 2-ch @ 4MP, 4-ch @ 2MP


Record Management

Record Mode

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback


Backup Mode

• Regular Backup
• Video Clip Backup

Playback Function

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off


Network

• Network Protocols : TCP/IP, DHCP, DNS, NTP, UPnP
• Interoperability : ONVIF, CGI
• Mobile Phone Access : Android, iOS
• Browser : Chrome (57+), Firefox (52+), Edge (91+)

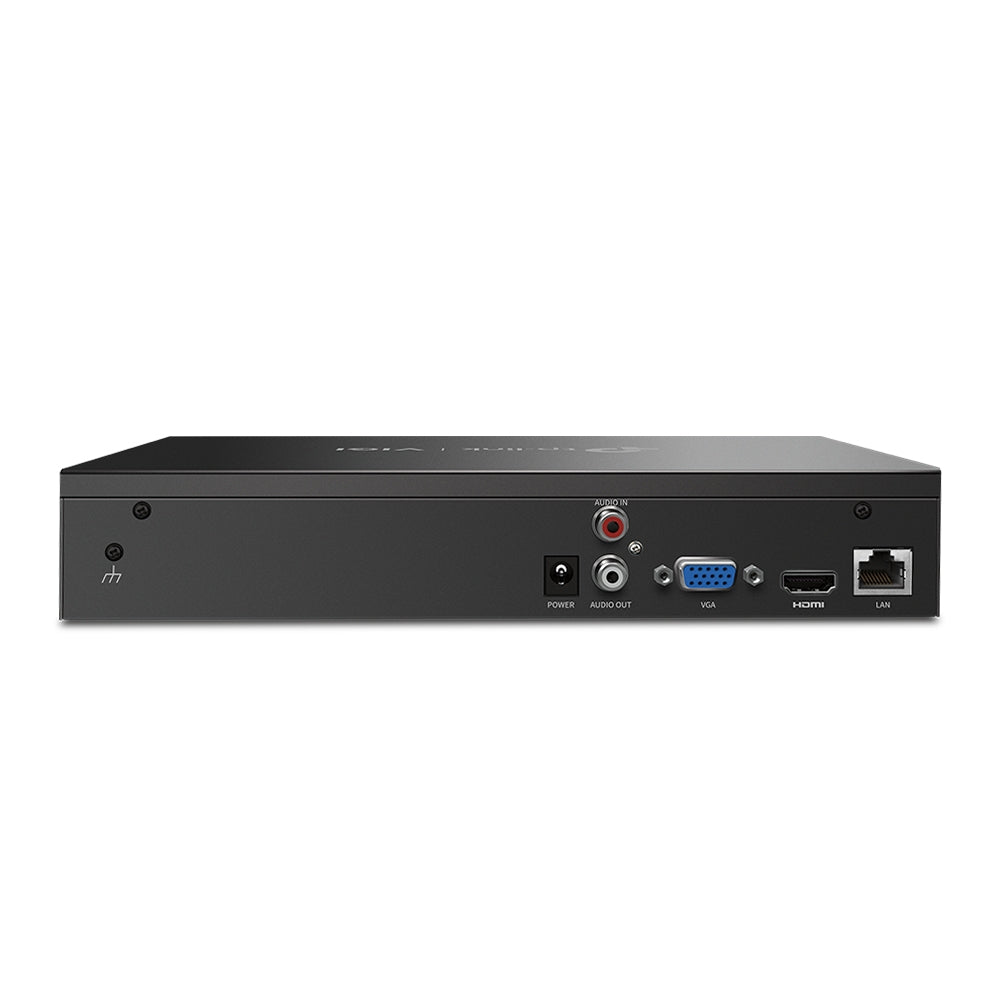

External Interface

• Network Interface : 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface : 2× USB 2.0
• Audio Interface : 1, Audio In; 1, Audio Out
• Alarm In/Out : N/A
• Serial Interface : N/A
• Power : 1× DC Jack
• Reset Button : 1
• Speaker : N/A
• eSATA : N/A
• HDMI : 1 | VGA :1


Hard Disk

• SATA : 1 SATA Interface
• Capacity : Up to 10 TB Capacity for Each HDD


Alarm

General Alarm

• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame

Anomaly Alarm

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception

Alarm Linkage

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm


General

• Power Supply : DC 12V/1.5A
• Max Power Consumption (Without
  Disk) : 4.25 W
• Working Temperature : NVR: -10–55 °C | Power Adapter: 0–40 °C
• Storage Temperature : -40-70 °C
• Working Humidity : 10%~90% RH Non-Condensing
• Storage Humidity : 10%~90% RH Non-Condensing
• Product Dimensions (W × D × H) : 246.2 × 148.2 × 45 mm
• Net Weight : 0.59 kg | Gross Weight 0.95 kg
• Certification : CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Package Contents

• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured by :TP-Link Corporation Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By :TP-Link India Pvt Ltd, Palghar, Maharashtra
• Country Of Origin :China
