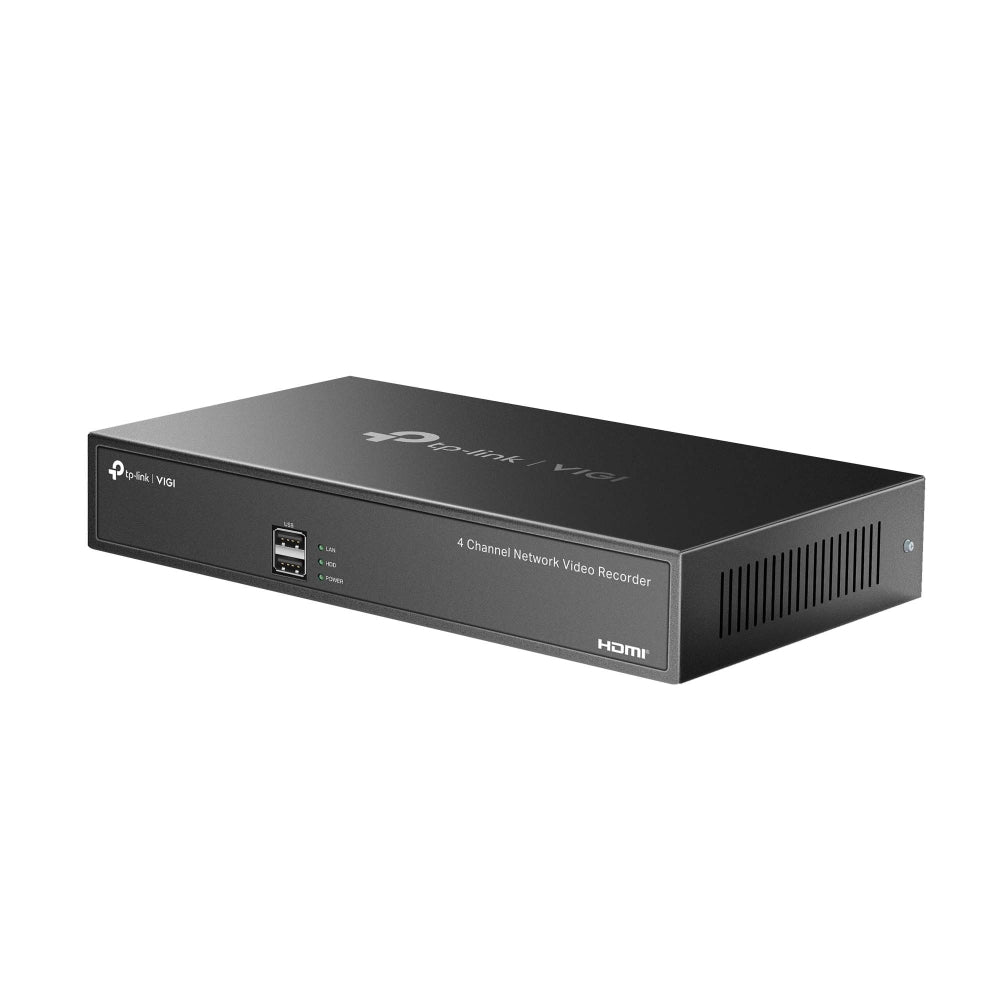

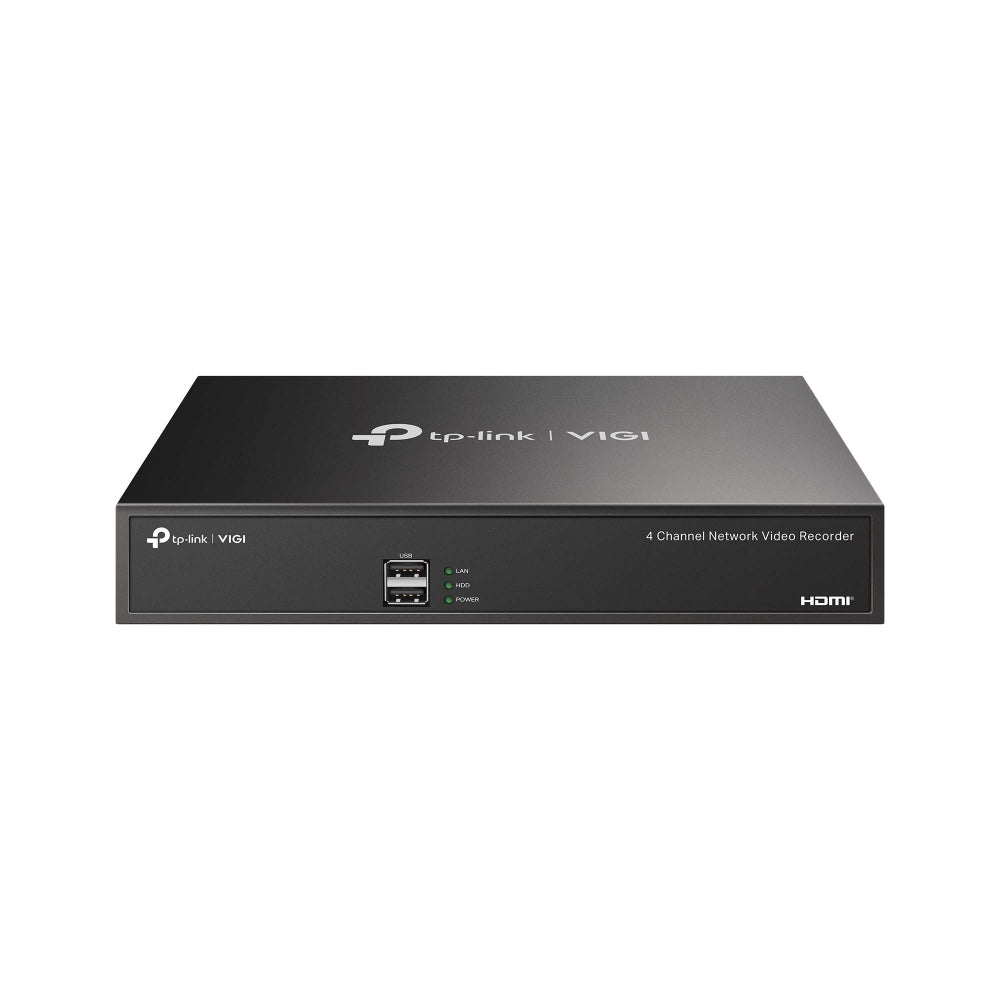

TP-Link VIGI NVR1004H 4 Channel Network Video Recorder | 4K Output | 8MP Supported | H.265+ Compression | Synchronous Playback

Description

4-Channel Live View
Ensure a real-time display of every monitored area on one screen and take everything under your control.

Streamlined Setup
Simply connect your VIGI NVR and VIGI cameras to a switch, and plug in a monitor, then you’re ready to go.

4K Video Output
Show more details with up to 8MP resolution for one channel and 16MP decoding capacity in total for all channels

Easy Management
Seamlessly manage the NVR and connected cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager. Customize the management systems to suit your specific needs.

Practical Playback
Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.

Mass Storage
1 SATA interface (up to 10 TB) ensure to store and secure your data for quick, convenient access.

HDD is not included. ‡Some features may operate sub-optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with
VIGI cameras. △A hard disk drive (not included) must be installed for operation.

Specifications

VIDEO AND AUDIO

• IP Video Input : 4-Channel
• Incoming Bandwidth : 80 Mbps
• Outgoing Bandwidth : 60 Mbps
• HDMI Output Resolution : 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output Resolution : 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA Simultaneous Output
• Multi-View Display : 1/4


Decoding

• Audio Compression : G.711A/G.711U/G.726
• Video Compression : .265+/H.265/ H.264+/H.264
• Record Resolution : 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF /2CIF / CIF / QCIF
• Synchronous Playback : 4-Channel
• Capability 2-ch @ 8MP, 4-ch @ 4MP


Record Management

Record Mode

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback


Backup Mode

• Regular Backup
• Video Clip Backup

Playback Function

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off


Network

• Network Protocols : UPnP (Plug and Play), NTP (Network Timing)
• Interoperability : ONVIF, CGI
• Mobile Phone Access : Android, iOS
• Browser : Chrome (57+), Firefox (52+), Edge (91+)

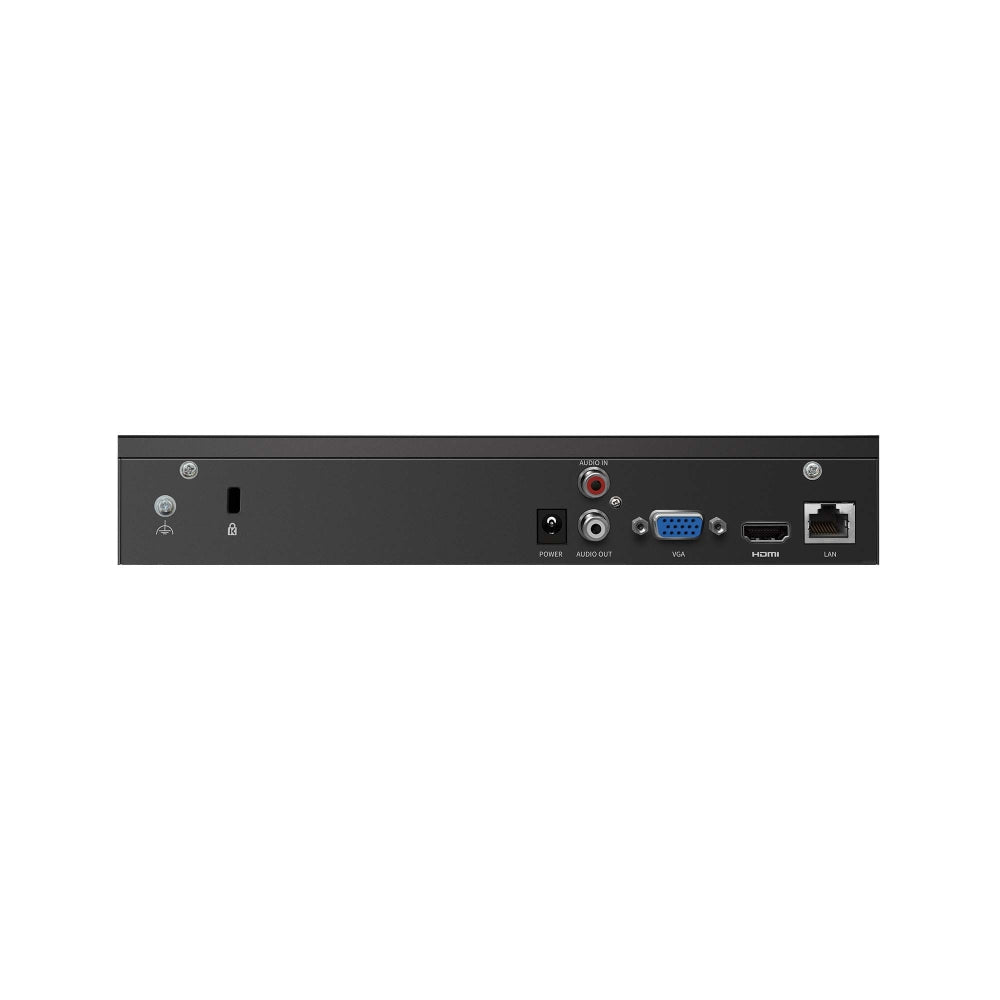

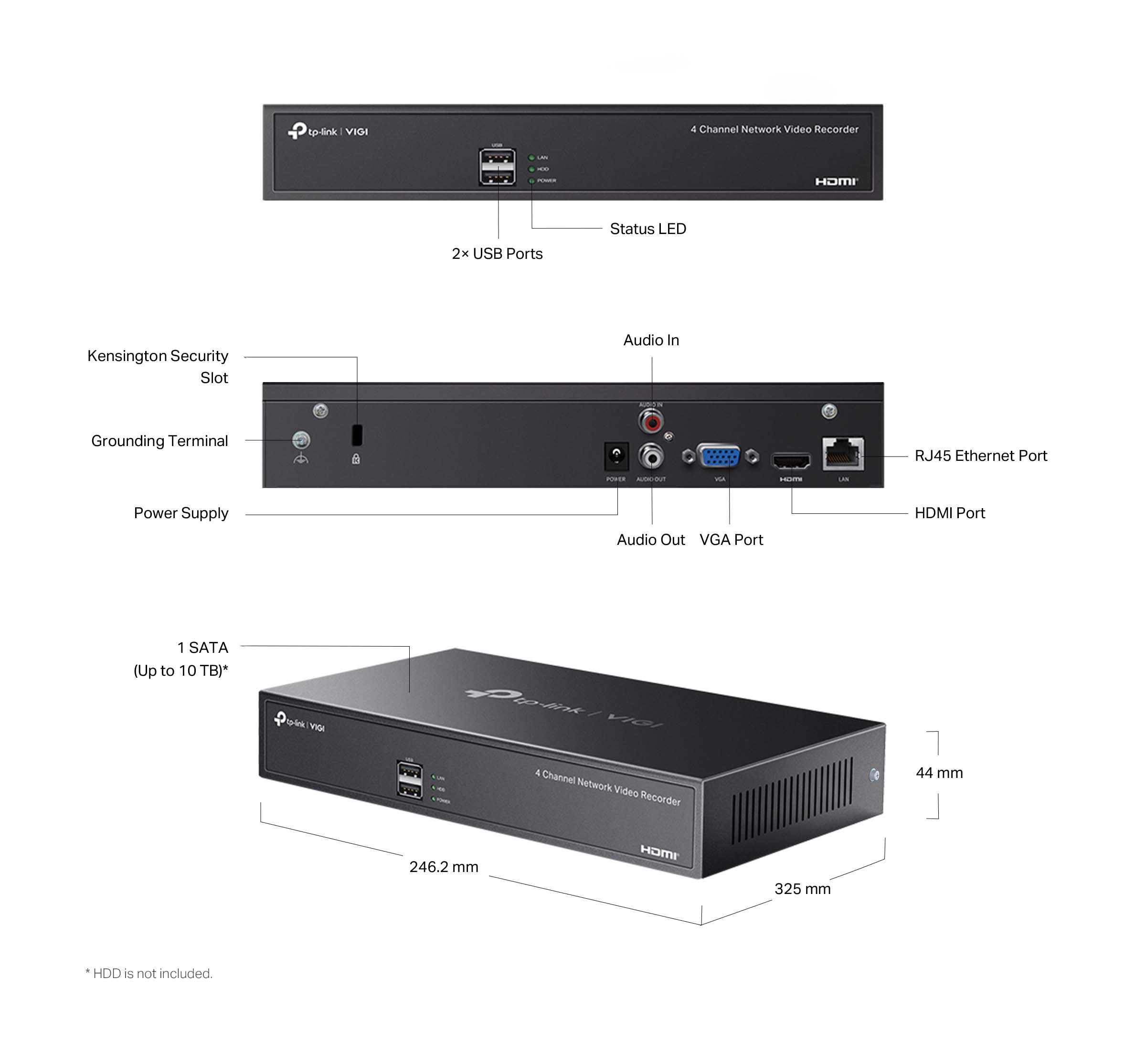

External Interface

• Network Interface : 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface : 2× USB 2.0
• Audio Interface : 1, Audio In; 1, Audio Out
• Alarm In/Out : N/A
• Serial Interface : N/A
• Power : 1× DC Jack
• Reset Button : 1
• Speaker : N/A
• eSATA : N/A
• HDMI : 1 | VGA :1


Hard Disk

• SATA : 1 SATA Interface
• Capacity : Up to 10 TB Capacity for Each HDD


Alarm

General Alarm

• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame

Anomaly Alarm

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception

Alarm Linkage

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm


General

• Power Supply : DC 12V/1.5A
• Max Power Consumption (Without
  Disk) : 4.25 W
• Working Temperature : NVR: -10–55 °C | Power Adapter: 0–40 °C
• Storage Temperature : -40-70 °C
• Working Humidity : 10%~90% RH Non-Condensing
• Storage Humidity : 10%~90% RH Non-Condensing
• Product Dimensions (W × D × H) : 246.2 × 148.2 × 45 mm
• Net Weight : 0.59 kg | Gross Weight 0.95 kg
• Certification : CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Package Contents

• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Rubber Feet
• Quick Installation Guide

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured by :TP-Link Corporation Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By :TP-Link India Pvt Ltd, Palghar, Maharashtra
• Country Of Origin :China
