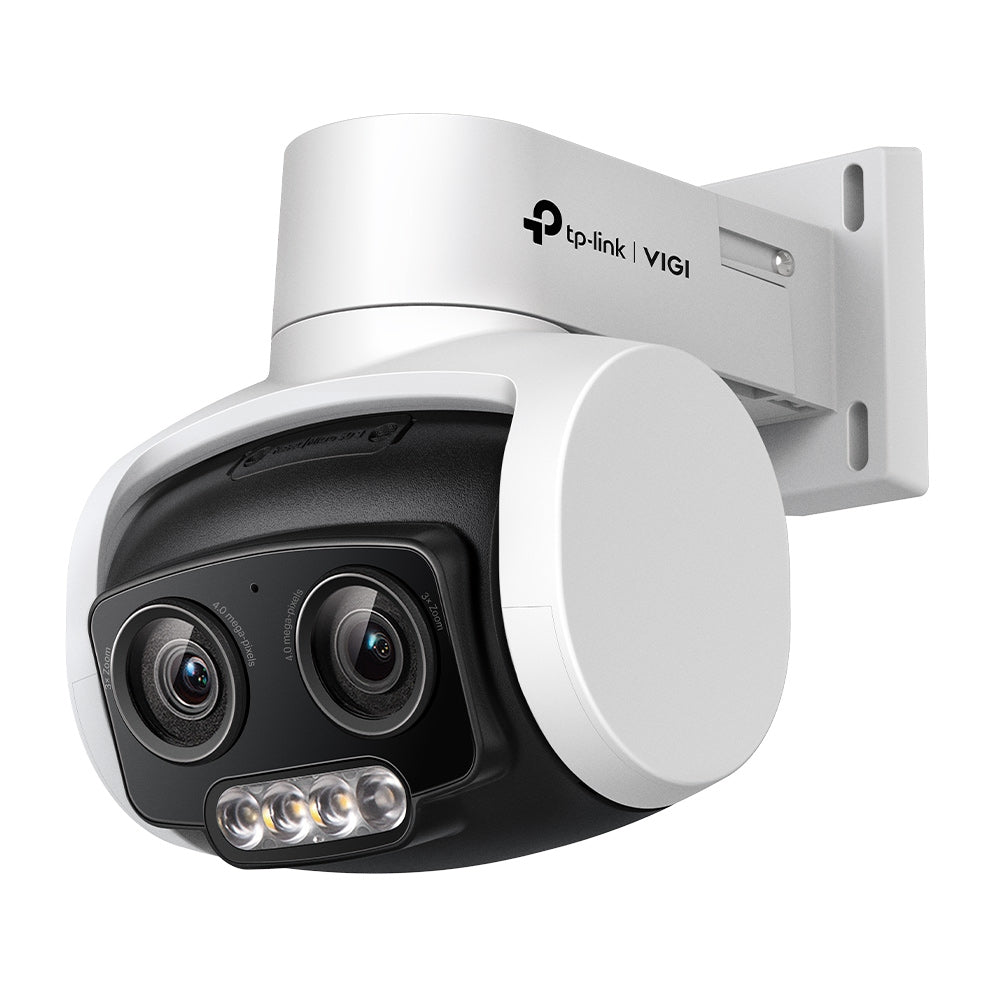

TP-Link VIGI C540v 4MP Super-High Definition Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Camera 3× Zoom

Description

• 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
• 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.

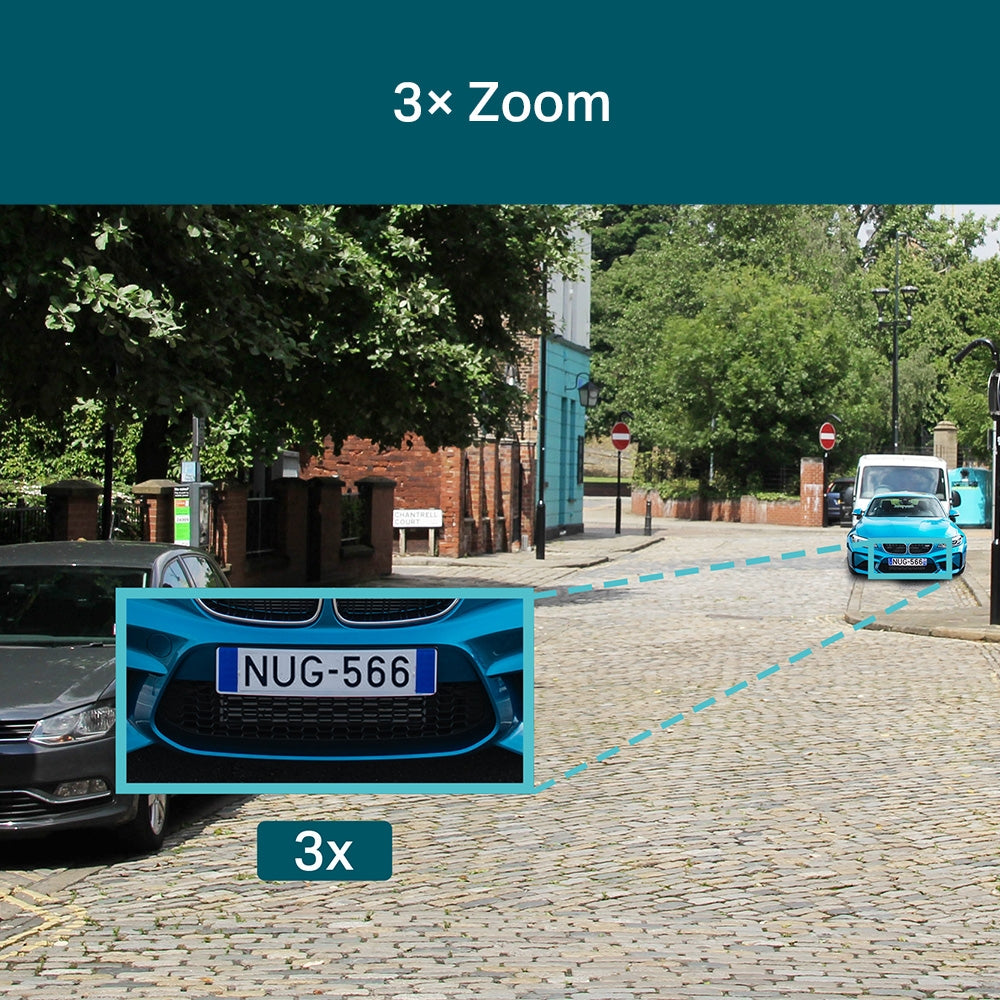

• 3× Zoom: Allows for closer viewing of objects in expansive areas.
• Instant Zoom: Zooming is instant without suffering from delays and image dragging.

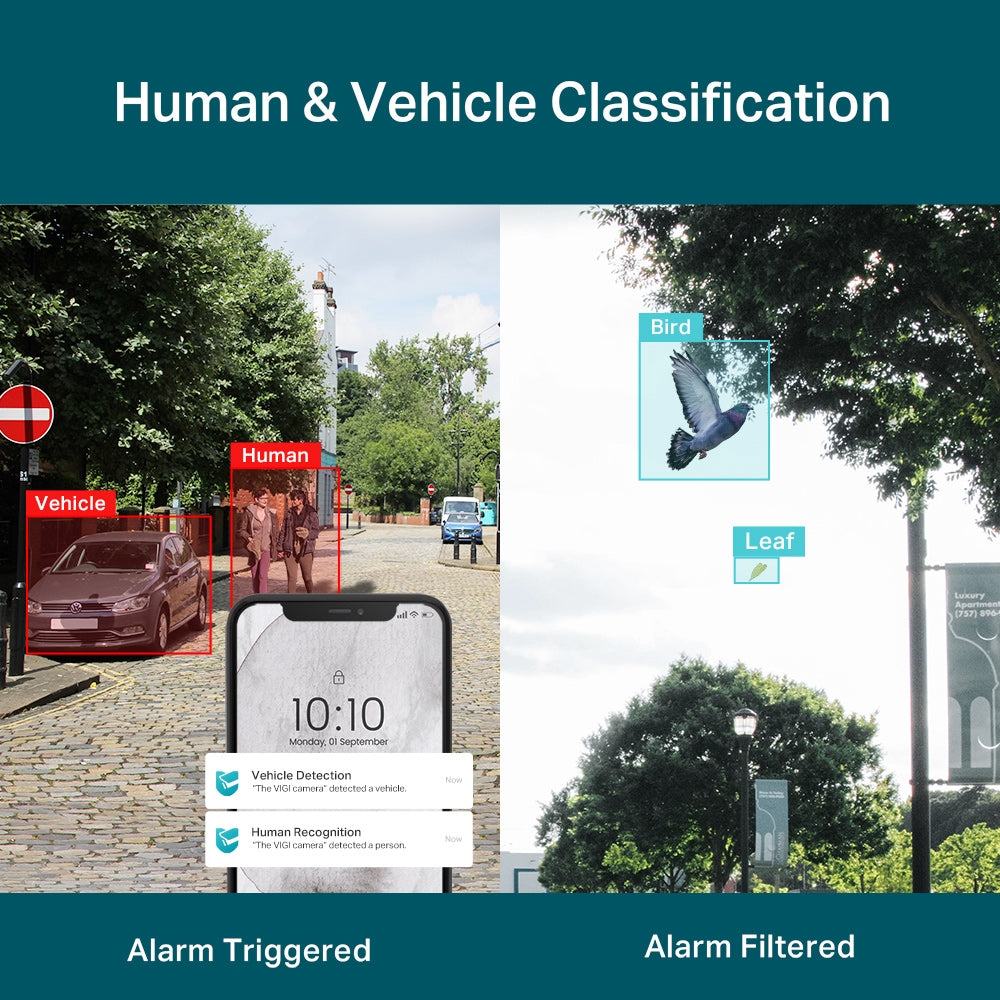

• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
• Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• IP66 Waterproof: Reliable IP66 for stable outdoor performance.

Specifications

CAMERA

• Image Sensor : 1/3” Progressive Scan CMOS
• Shutter Speed : 1/3 to 1/10000 s
• Slow Shutter : Yes
• Minimum Illumination : 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism : IR Cut Filter
• Day/Night Switch : Day/Night/Auto/Schedule-Switch
• Zoom : 3x Mixed Zoom

LENS

• Focal Length : 4-12 mm (Mixed Zoom)
• Aperture : F1.6
• FOV : Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
• Lens Mount : M12*P 0.5

PTZ

• Pan/tilt Range : Pan: 0° to 332°, Tilt: 0° to 120°
• Pan/tilt Speed : Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s | Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s
• Manual Control Speed : Configurable from 8° to 35°/s
• Presets : 300
• Patrol Scan : 8 patrols, up to 8 presets for each patrol
• Power-off Memory : Yes; Auto restore to previous PTZ and lens status after power failure
• Park Action : Yes; Preset; Patrol Scan
• 3D Positioning : Yes

VIDEO

Max. Resolution : 2560 X 1440

Main Stream :

• Frame Rate : 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream

• Frame Rate : 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.


• Image Settings : Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Image Enhancement : BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range : DWDR
• SNR : ≥ 52 dB
• Image Parameters Switch : Yes
• Privacy Mask : Up to 4 Masks
• ROI : 1 Region
• OSD Setting : Yes

AUDIO

• Audio Communication : Two-Way Audio
• Audio Input : Yes | Audio Output : Yes | Audio Compression : Yes
• Audio Sampling Rate : 8KHz
• Environment Noise Filtering : Yes
• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK

• Protocol : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF : Yes
• API : Open Network Video Interface (Profile S)
• Simultaneous Live View : 3 Main Streams & 3 Sub-Streams

INTERFACES

• Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm : N/A
• Reset Button : Yes
• Power : DC Power Port
• On-board Storage : Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
• Built-in Microphone : Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker : Yes
• Audio : N/A

GENERAL

• Operating Temperature : -30–60 °C
• Storage Temperature : -40–60 °C
• Operating Humidity : 95% or Less (Non-Condensing)
• Storage Humidity : 95% or Less (Non-Condensing)

Material : Plastic

Net Weight : 0.43 Kg | Gross Weight 0.66 Kg

Power Supply :

• 12V DC ± 5%, 5.5mm Coaxial Power Plug
• PoE (802.3at, class 4)

Power Consumption :

• Maximum: 14 W
• Typical (Day Mode): 2.9 W
• Typical (Night Mode with IR LED): 5.7 W
• Typical (Night Mode with White LED): 6.1 W

Protection : IP66

Product Dimensions (L x W x H) : 107*136*139 mm

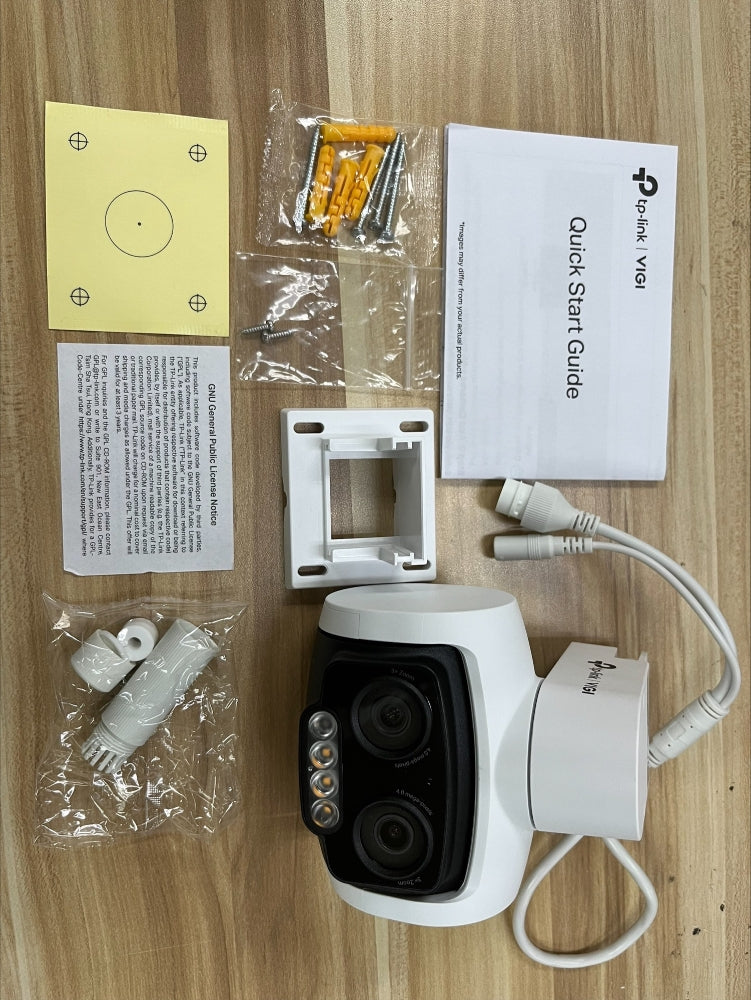

Package Contents

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured by :TP-Link Corporation Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By :TP-Link India Pvt Ltd, Palghar, Maharashtra
• Country Of Origin :China
