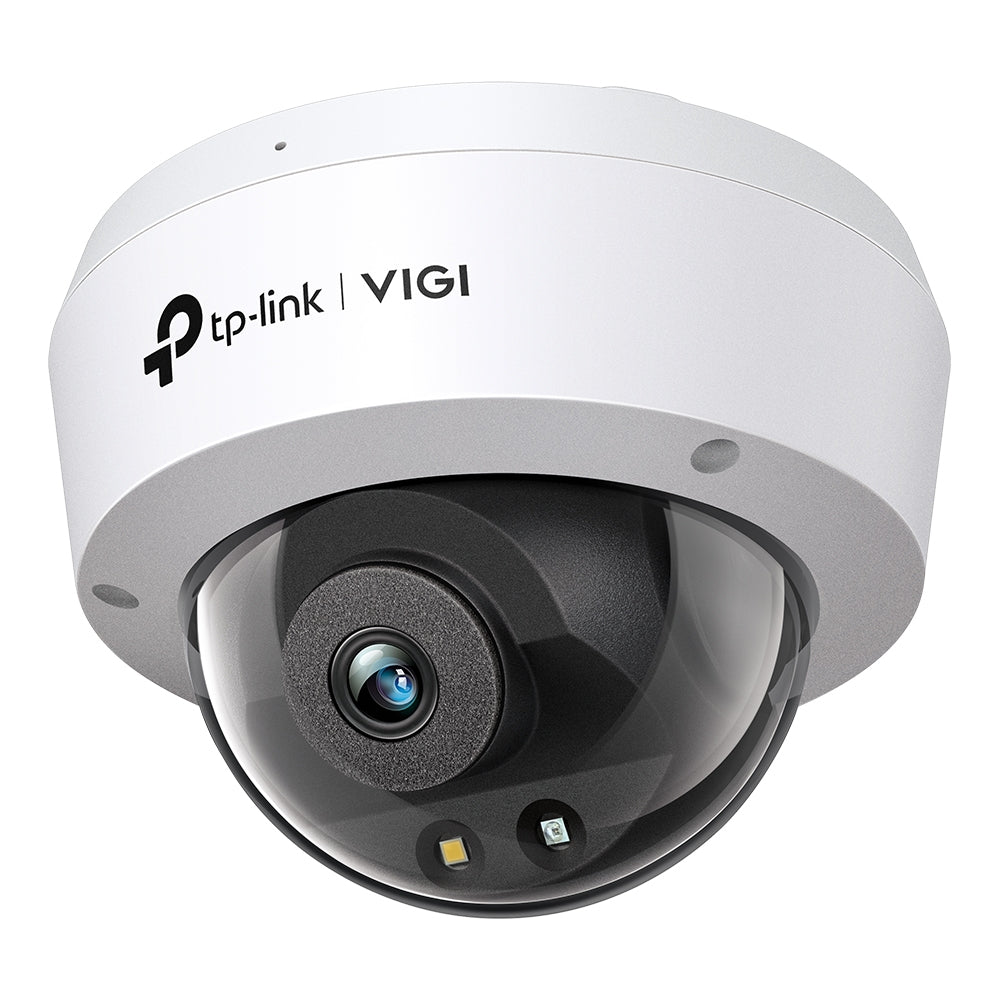

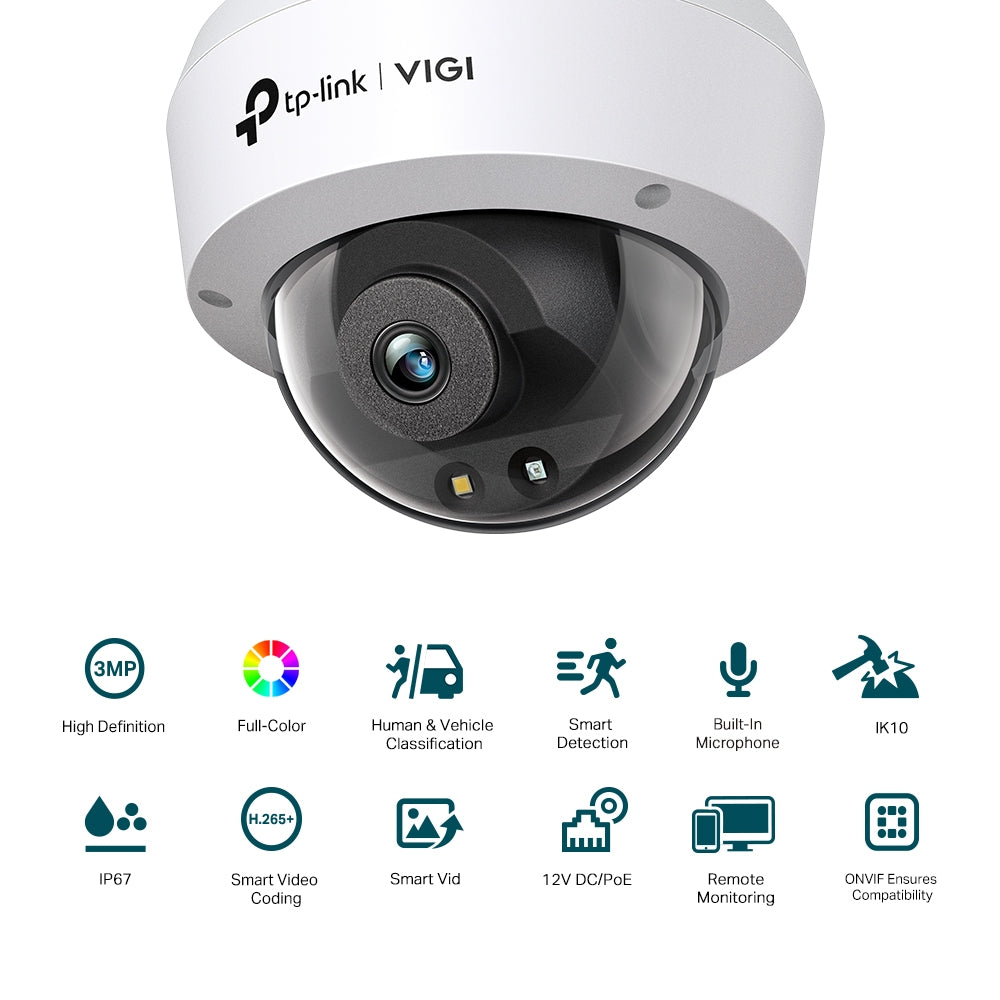

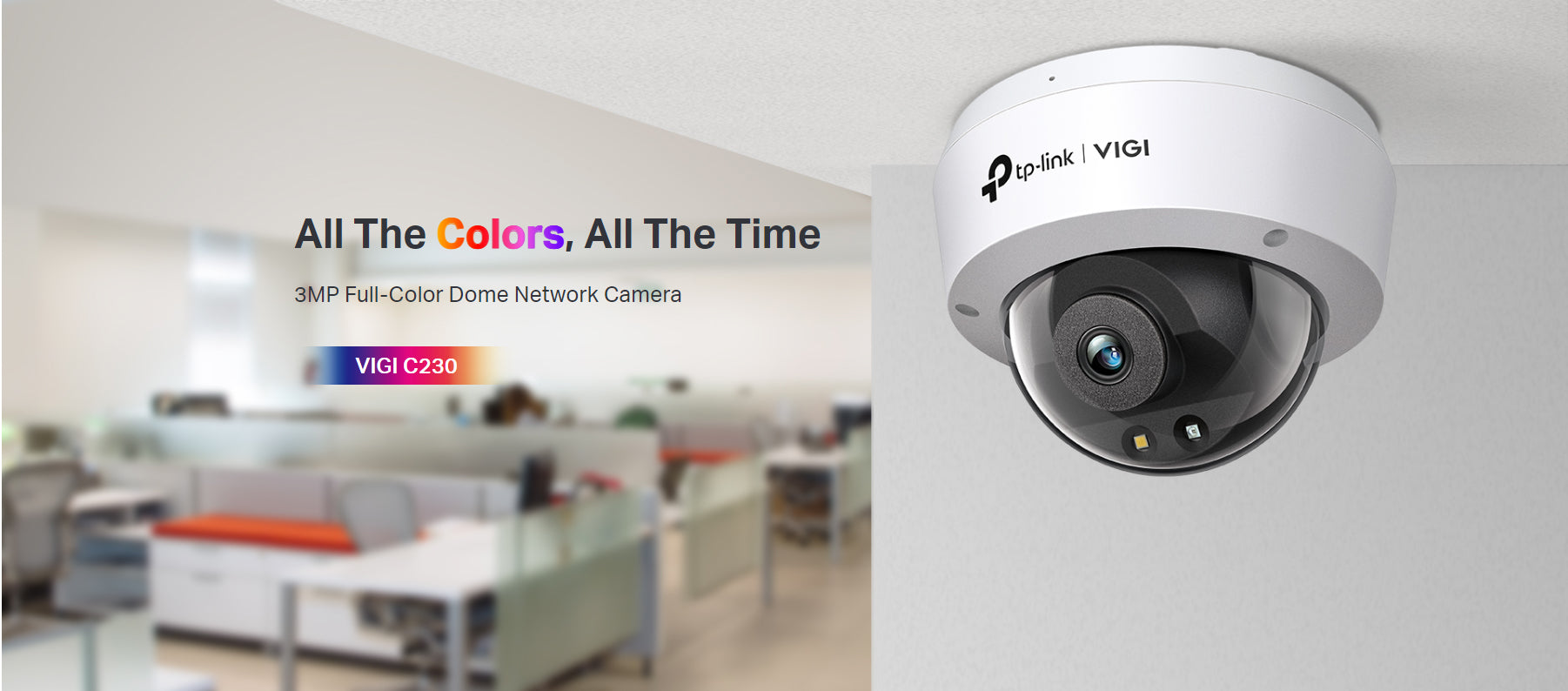

TP-Link VIGI C230 3MP Super-High Definition Full-Color Dome Network Wired CCTV Camera | Built-In Microphone | Smart IR Vandal-Proof | IP67 Waterproof

Description

• 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
• Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.

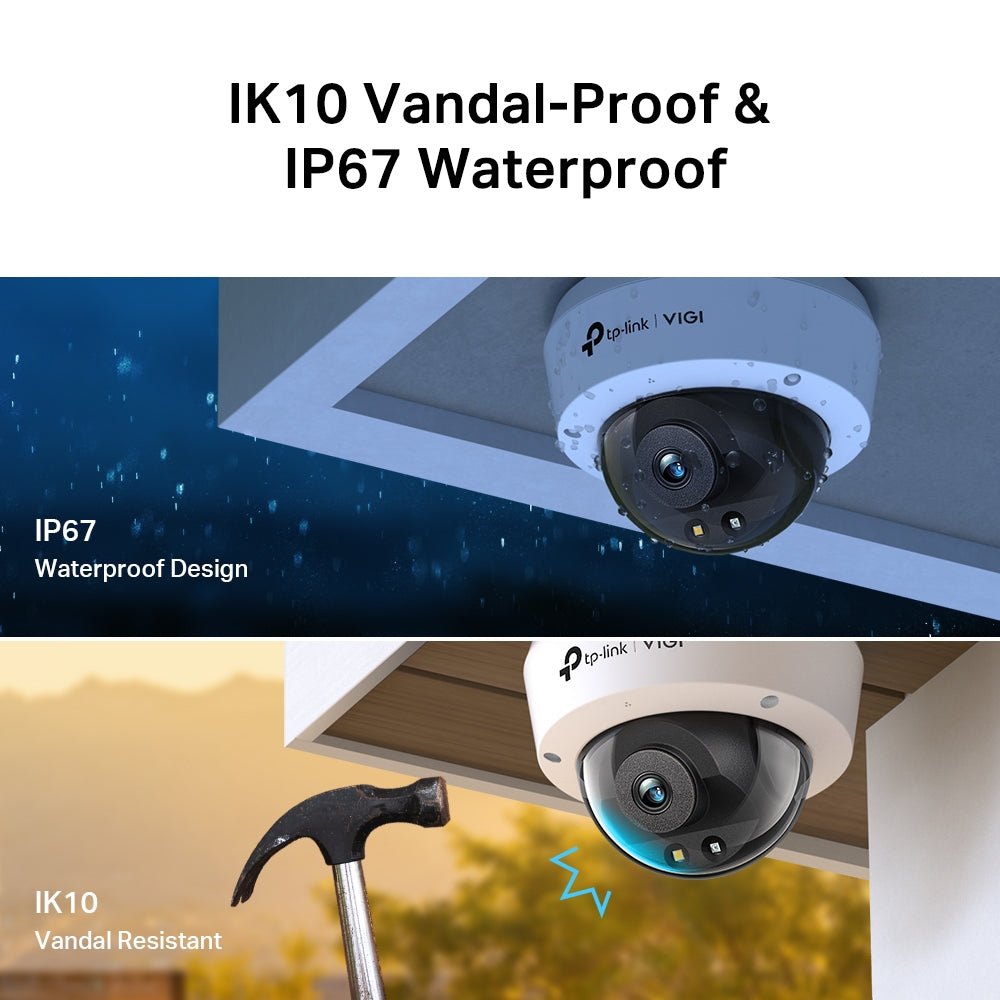

• IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

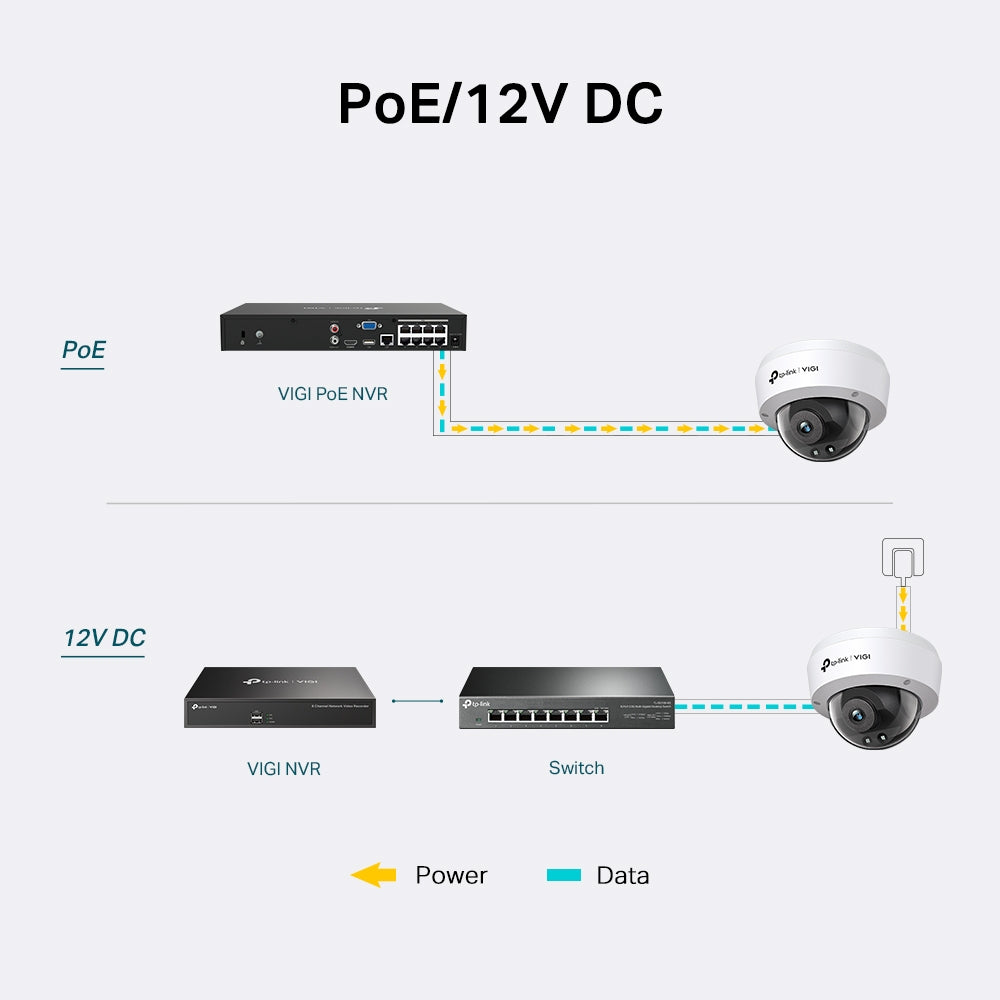

• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

Specifications

CAMERA

• Image Sensor : 1/2.8” Progressive Scan CMOS
• Shutter Speed : 1/3 to 1/10000 s
• Slow Shutter : Yes
• Minimum Illumination : Color: 0.005 Lux; 0 Lux with IR/White Light
• Day/Night Mechanism : IR Cut Filter
• Day/Night Switch : Unified/ Scheduled/ Auto

LENS

• Type : Fixed Focal Lens
• Focal Length : 2.8 mm/4 mm
• Aperture : 2.8 mm: F1.6 | 4 mm: F1.6
• FOV : 2.8mm: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°| 4mm: Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°
• Lens Mount : M12

DORI Distance

2.8 mm

• Detect: 52 m (170 ft)
• Observe: 22 m (71 ft)
• Recognize: 10 m (34 ft)
• Identify: 5 m (17 ft)

4 mm

• Detect: 70 m (230 ft)
• Observe: 29 m (96 ft)
• Recognize: 14 m (46 ft)
• Identify: 7 m (23 ft)

ANGLE ADJUSTMENT (MANUAL)

• Range - Pan: 0° to 355°, Tilt: 0° to 75°

ILLUMINATOR

• IR LED - Quantity: 1, Range: 30m, Wavelength: 850nm
• White LED - Quantity: 1, Range: 30m
• Illuminator On/Off Control : Auto/Scheduled/Always on/Always off


VIDEO

• Max. Resolution : 2304 × 1296
• Main Stream - Frame Rate：1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Sub-Stream - Frame Rate：1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 640x480, 352x288, 320x240

  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Bit Rate Control : CBR, VBR
• Video Compression - Main Stream: .265+/H.265/H.264+/H.264
  Sb-Stream: H.265/H.264

AUDIO

• Audio Communication : N/A
• Audio Input : Yes
• Audio Output : N/A
• Audio Compression : Yes
• Audio Sampling Rate : 8KHz
• Environment Noise Filtering : Yes
• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK

• Protocol : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF : Yes
• API : ONVIF
• Simultaneous Live View : 3 Main Streams & 3 Sub-Streams
• Client : VIGI App, VIGI Security Manager, Web UI
• Web Browser : Google Chrome® 57 and above
  Firefox® 52 and above, Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud : Yes
• Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

INTERFACES

• Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm : N/A
• Reset Button : N/A
• Power : DC Power Port
• On-board Storage : N/A
• Built-in Microphone : Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker : N/A
• Audio : N/A

GENERAL

• Operating Temperature : -30–60 °C
• Storage Temperature : -40–60 °C
• Operating Humidity : 95% or Less (Non-Condensing)
• Storage Humidity : 95% or Less (Non-Condensing)
• Material : Plastic
• Net Weight : 0.28 Kg | Gross Weight 0.46 Kg
• Power Supply : 12V DC ± 5%, Max. 4.7 W, 5.5mm Coaxial Power Plug | PoE: 802.3af/at, class 0
• Protection : IP67 Waterproof, IK10 Vandal Resistant
• Product Dimensions (L x W x H) : 115× 86× 115 mm
• Certifications : CE/BSMI/VCCI/ONVIF

Package Contents

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Warranty

•  2 Years Manufacturer Warranty

Manufacturer Info

• Manufactured by :TP-Link Corporation Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987
• Imported By :TP-Link India Pvt Ltd, Palghar, Maharashtra
• Country Of Origin :China
