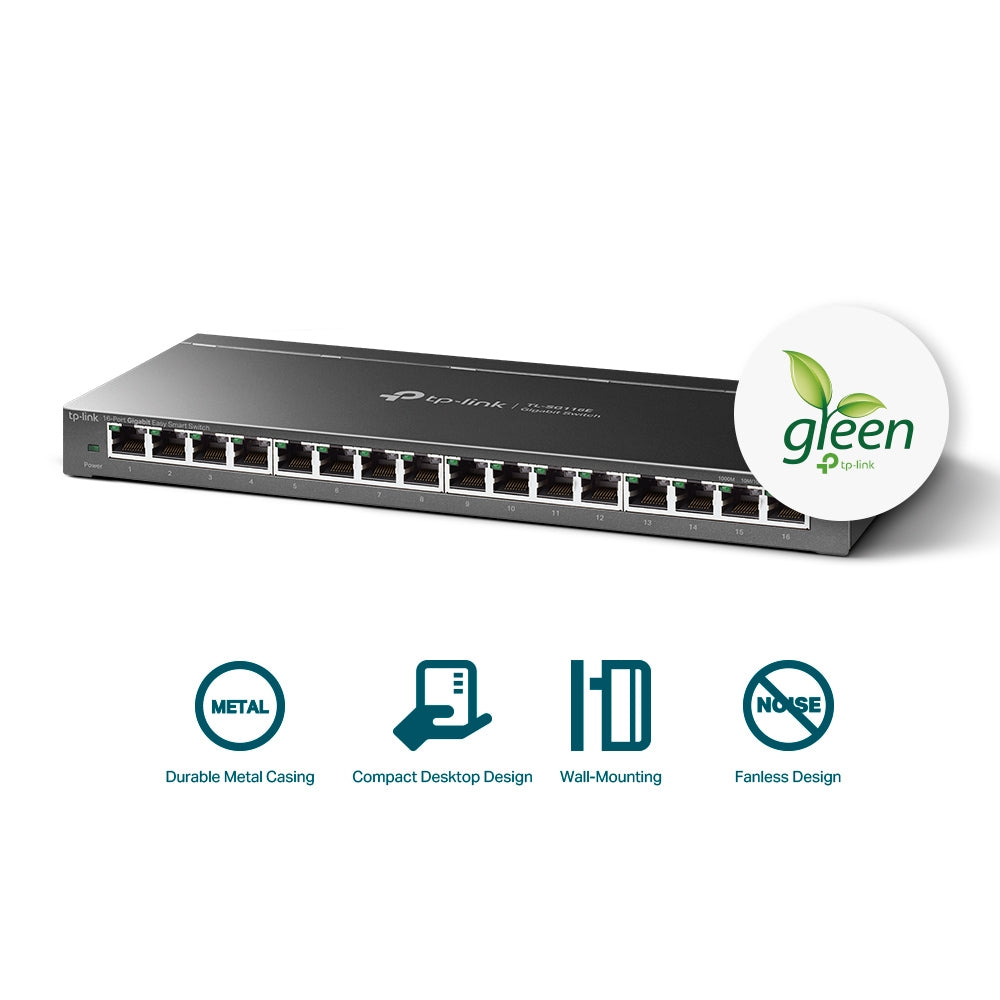

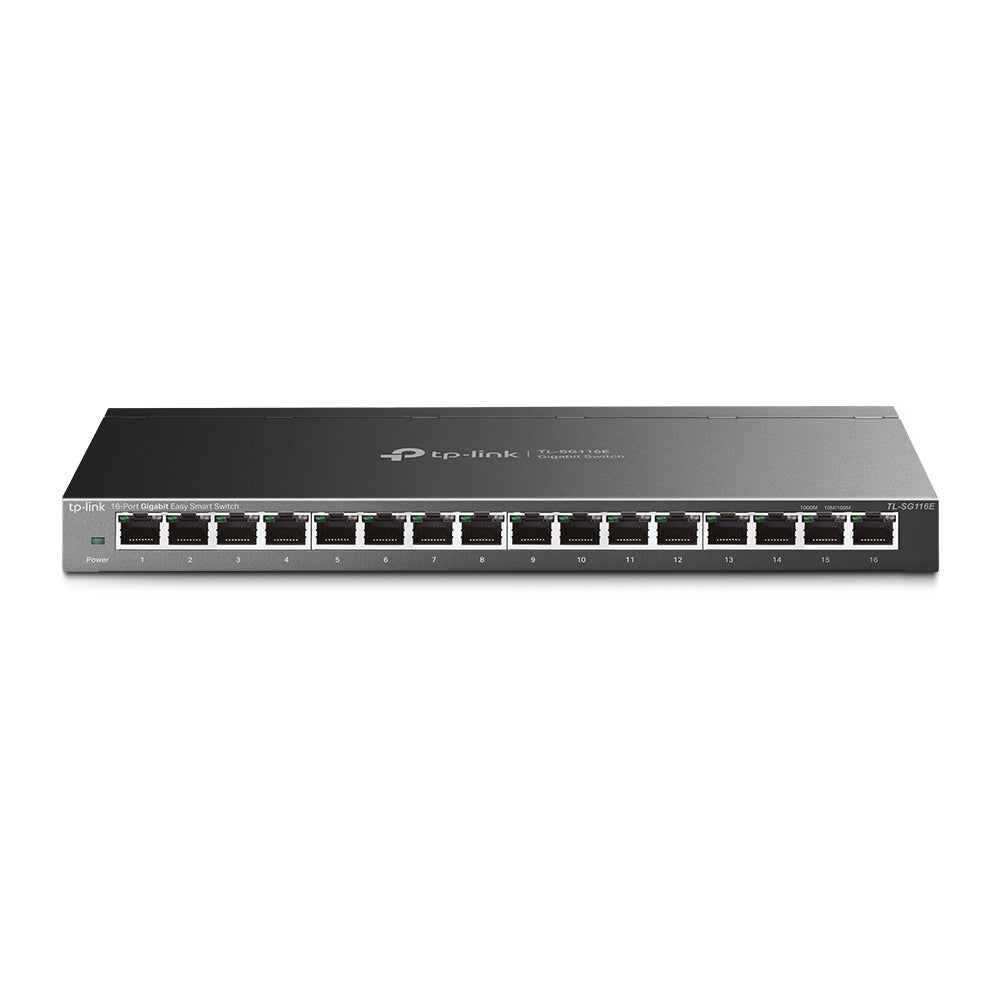

TP-Link TL-SG116E 16-Port Gigabit Easy Smart Switch | Desktop / Wall Mounting | Fanless Design

Description

• 16 10/100/1000Mbps RJ45 ports

• Plug and play, with no configuration required

• Durable metal casing of superior quality and professional appearance

• Intelligent management via a web user interface and downloadable utility

• Green technology reduces power consumption

Specifications

Interface

• 16 10/100/1000Mbps RJ45 Ports

• AUTO Negotiation/AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity - Fanless
Power Supply - External Power Adapter(Output: 12VDC/1.0A)
Dimensions ( W x D x H ) - 11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm)
Max Power Consumption - 9.19W(220V/50Hz)
Max Heat Dissipation - 31.36BTU/h

PERFORMANCE

• Switching Capacity - 32Gbps

• Packet Forwarding Rate - 23.81Mpps

• MAC Address Table - 8K

• Packet Buffer Memory - 4.1Mb

• Jumbo Frame - 9KB

Quality of Service

• Support Port-based/802.1p/DSCP priority

• Support 4 priority queues

• Rate Limit

• Storm Control

L2 Features

• IGMP Snooping V1/V2/V3

• Static Link Aggregation

• Port Mirroring

• Cable Diagnostics

• Loop Prevention

Package Contents

• TL-SG116E

• Power Cord

• Installation Guide

• Rubber Feet

Warranty

• 3 Year Brand Warranty

Manufacturer Info

• Manufactured by : Big Field Global Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987

• Imported By : TP-Link India Pvt Ltd, Andheri, Mumbai

• Country Of Origin : China
