TP-Link SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+, 1GE Lan Uplink, 1G SFP Uplink Ports | 63W PoE Budget

Description

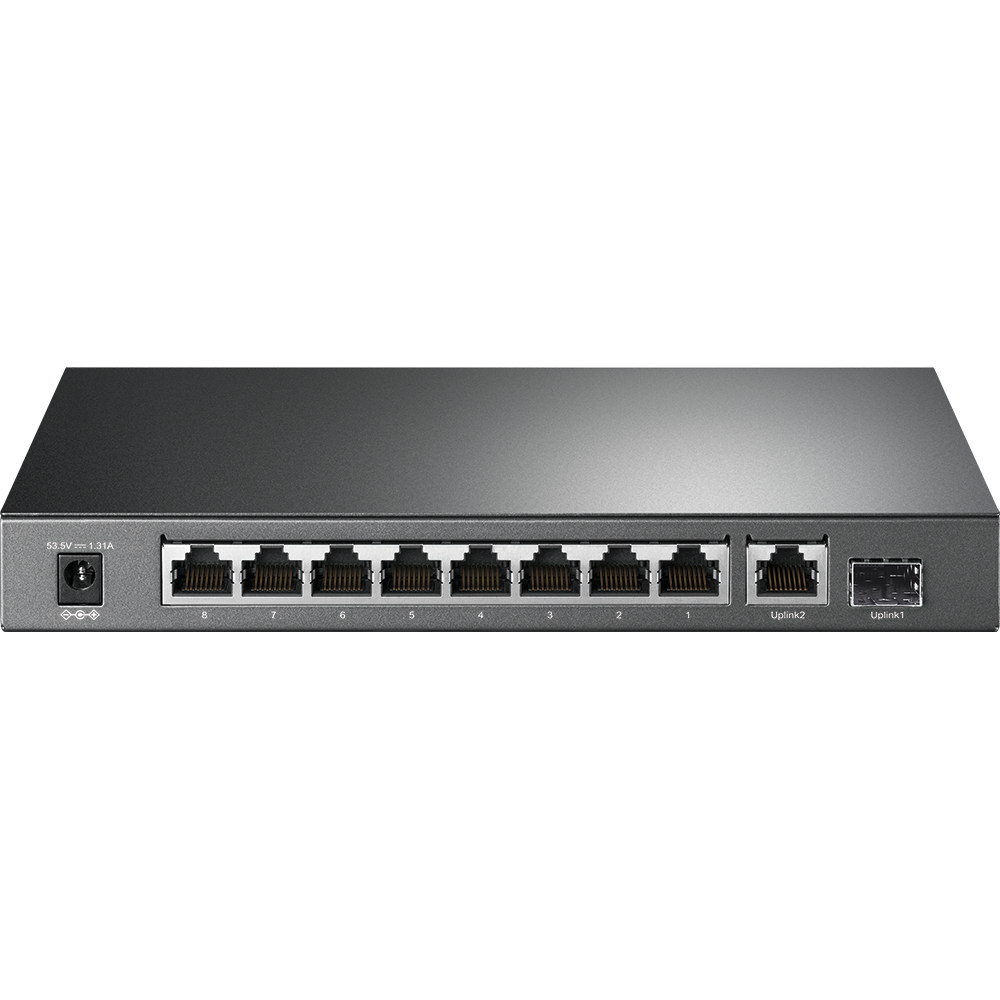

• 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port

• With 8 PoE+ ports, transfers data and power on one single cable

• Works with IEEE 802.3af/at compliant PDs and expands office network

• 802.1p/DSCP QoS enable smooth latency-sensitive traffic

• High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports

• Up to 250 m data and power transmission range under Extend Mode**

• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

• Isolation Mode allows one-click client traffic separation for higher security and performance

• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery

Specifications

Interface

• 8 PoE+ 10/100/1000Mbps RJ45 Ports

• 1 10/100/1000Mbps RJ45 Port

• 1 Gigabit SFP Slot

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-X MMF, SMF

Power Supply - External Power Adapter(Output: 53.5VDC / 1.31A)

PoE+ Ports(RJ45)

• Standard: 802.3at/802.3af compliant

• PoE Ports: Port1- Port 8

• PoE Power Budget: 63W

Mac Address Table  -  4K

Switching Capacity  -  20 Gbps

Max Power Consumption

• 7.0 W (220/50Hz. no PD connected)

• 77.24 W (220/50Hz. with 63W PD connected)

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs

• EEE802.3x Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping

• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)

• Priority Mode Button (Ports 1–2)

• Isolation Mode Button (Ports 1–4 / 5-8)

• PoE Auto Recovery (Ports 1-8)

Transmission Method - Store-And-Forward

Package Contents

• TL-SG1210P

• Power Adapter

• Installation Guide

Warranty

• 3 Year Brand Warranty

Manufacturer Info

• Manufactured by : Pacific Cyber Technology Pvt. Ltd. 51-57, Sliver Industrial Estate, Bhimpore, Nani Daman - 396210

• Country Of Origin : India
