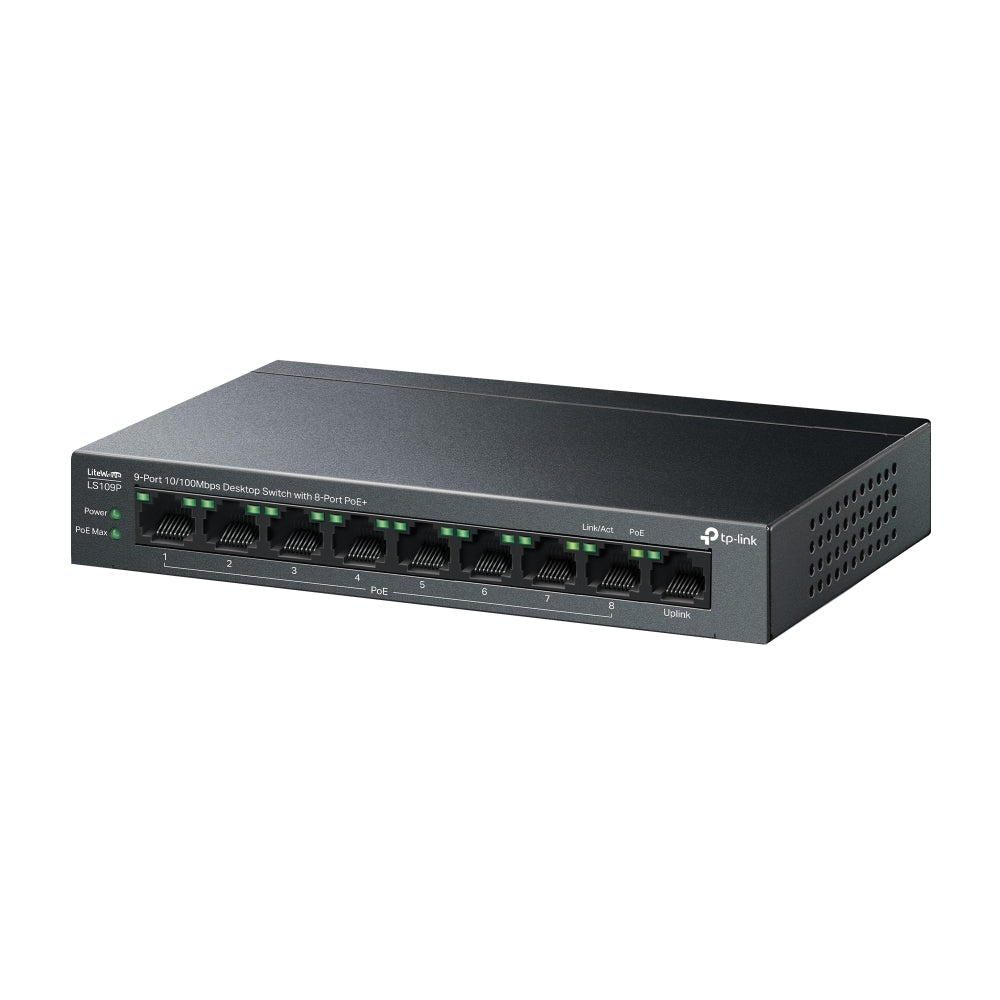

TP-Link LS109P 9-Port 10/100Mbps Desktop Ethernet Switch with 8-Port PoE+ Switch | 63W 250M with Extend Mode

Description

• 63 W PoE Budget: Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

• Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
  PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.

• Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.

• Plug and Play: Simply plug and play for instant connectivity with no configuration required.

• Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

• Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Specifications

Interface

• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

Installation

• Desktop

• Wall Mounting

Power Supply - External Power Adapter (Output: 53.5VDC / 1.31A)

PoE Ports (RJ45)

• Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–8, up to 30 W PoE output per port

• Power Supply: 63 W

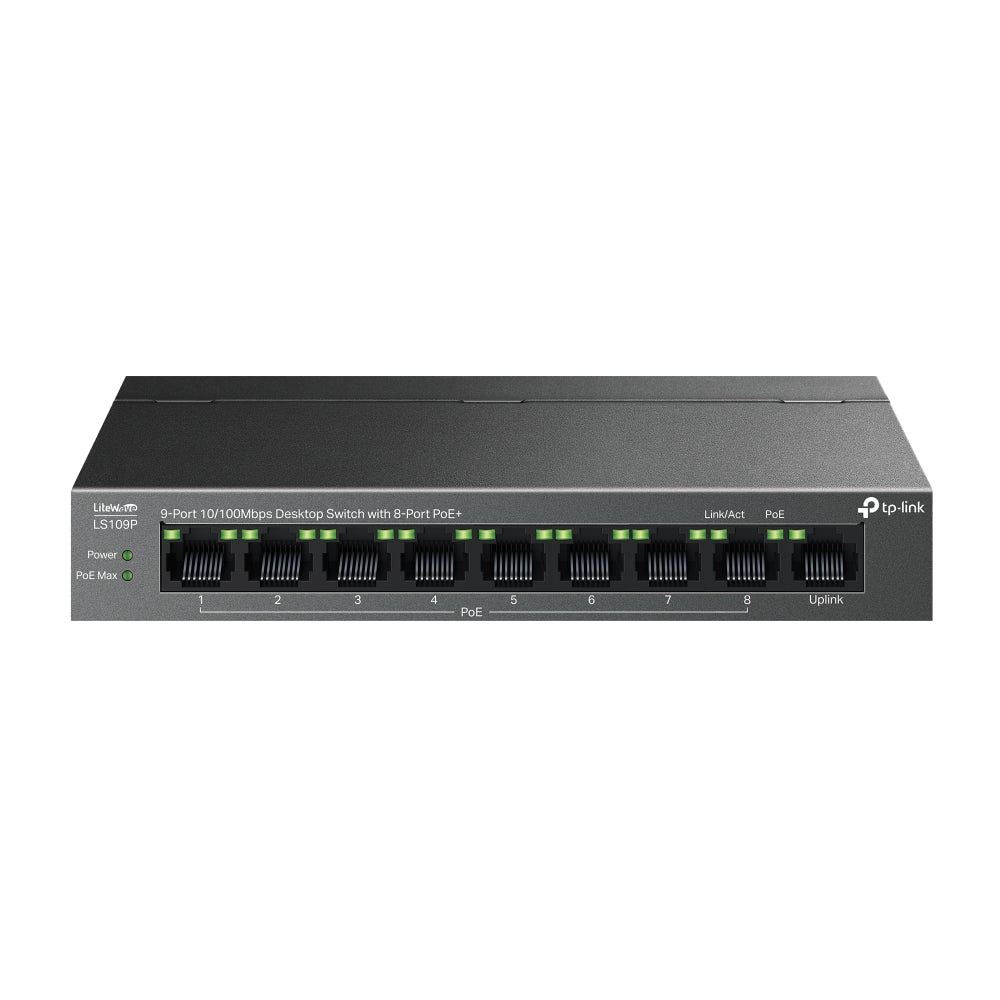

LED Indicator

• Power

• Link/Act

• PoE Status

• PoE MAX

Max Power Consumption

• 3.67 W (220 V/50 Hz no PD connected)

• 73.24 W (220 V/50 Hz with 63 W PD connected)

Max Heat Dissipation

• 12.48 BTU/h (220 V/50 Hz no PD connected)

• 249 BTU/h (220 V/50 Hz with 63 W PD connected)

Switching Capacity   -     1.8 Gbps

Advanced Features

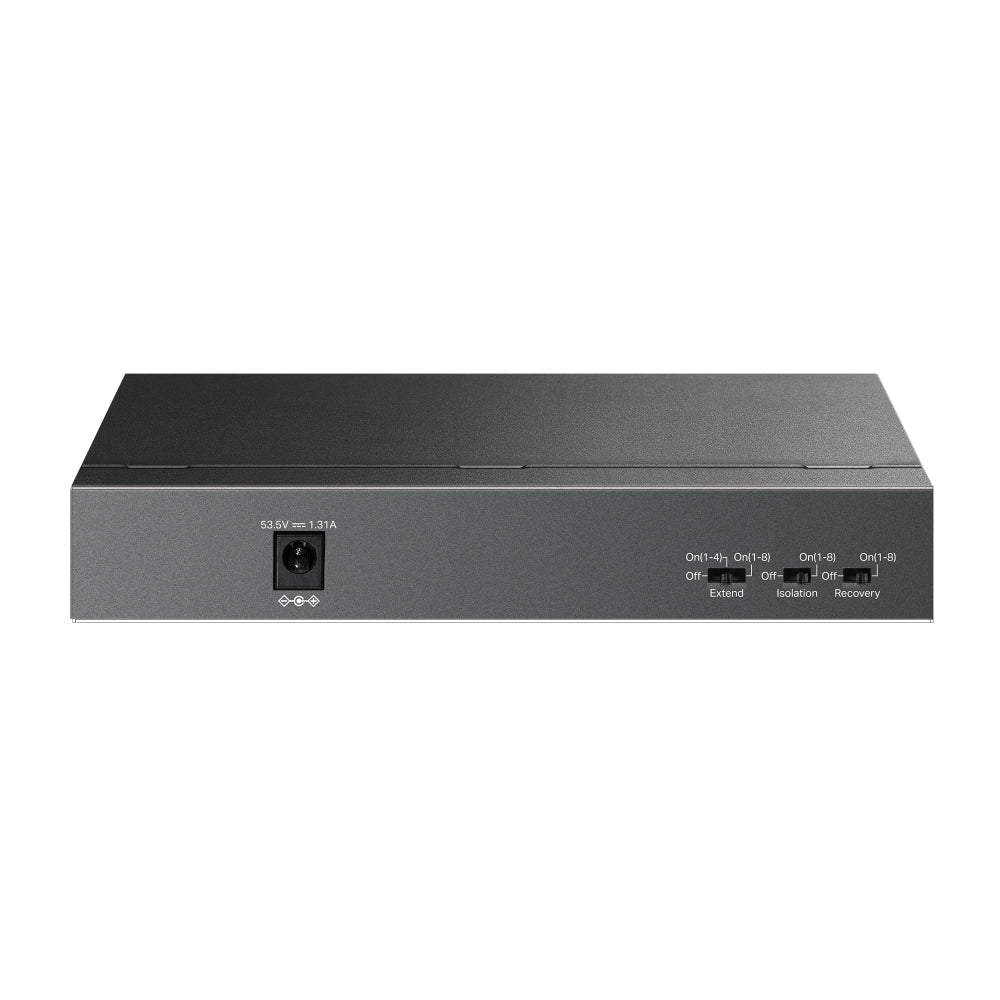

• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)

• Isolation Mode Button (Ports 1–8)

• PoE Auto Recovery Button (Ports 1–8)

• Compatible With IEEE 802.3af/at Compliant PDs

• Mac Address Auto-Learning and Auto-Aging

• IEEE 802.3x Flow Control

• Green Technology

Package Contents

• LS109P

• Power Adapter

• Installation Guide

• Rubber Feet

Warranty

• 3 Year Brand Warranty

Manufacturer Info

• Manufactured By : Big Field Global Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987

• Imported By : TP-Link India Pvt Ltd, Andheri, Mumbai

• Country Of Origin : China
