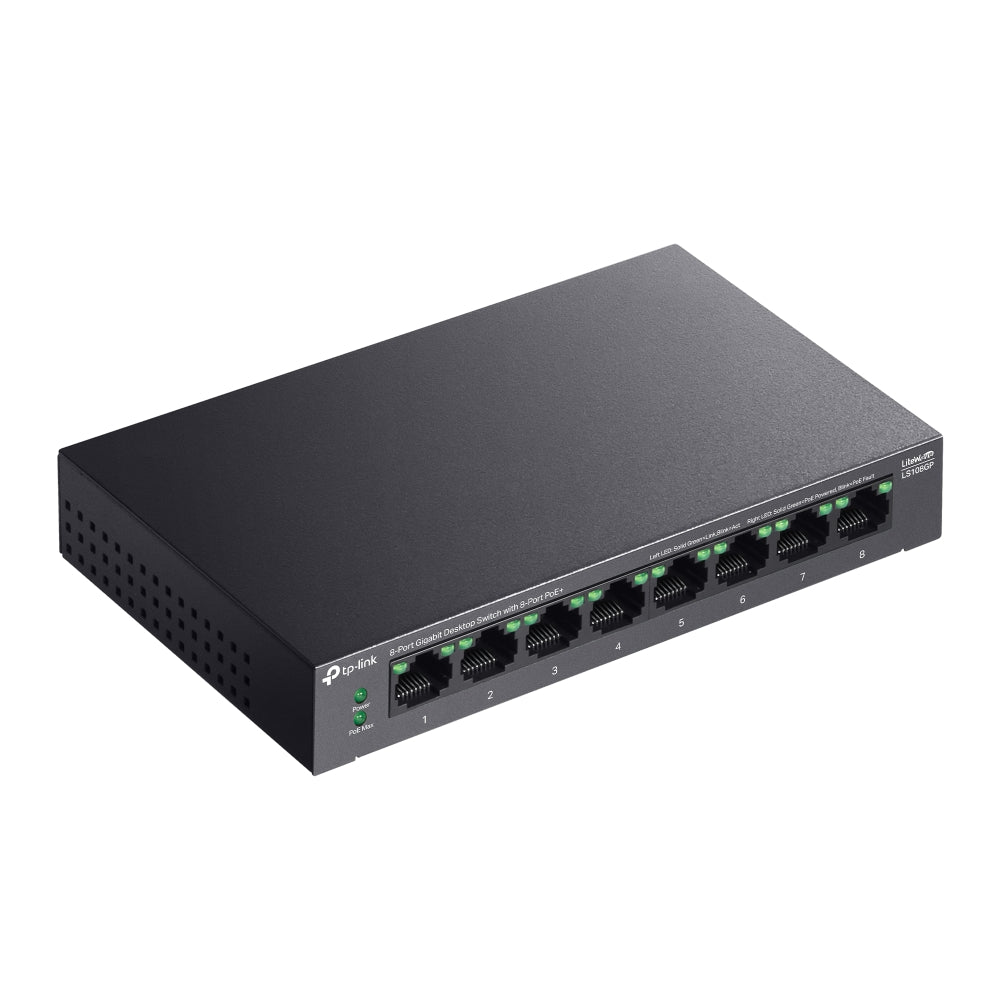

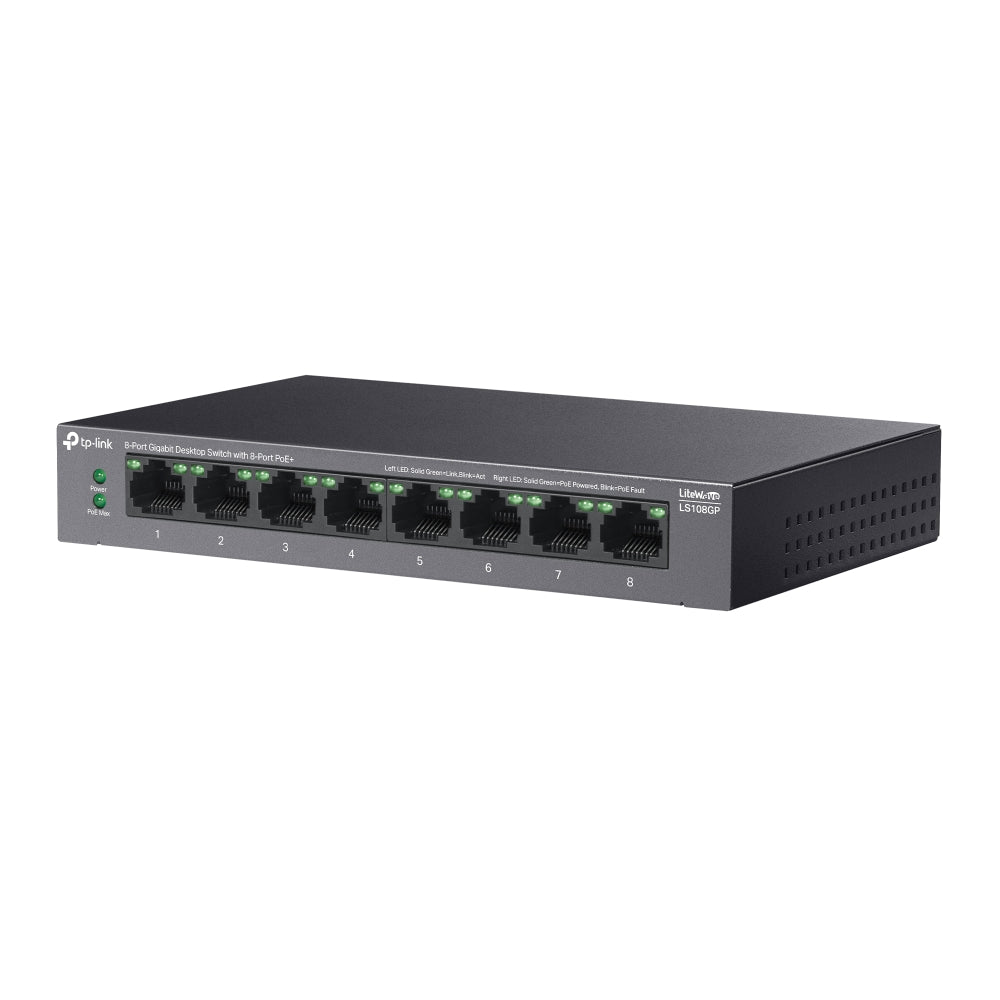

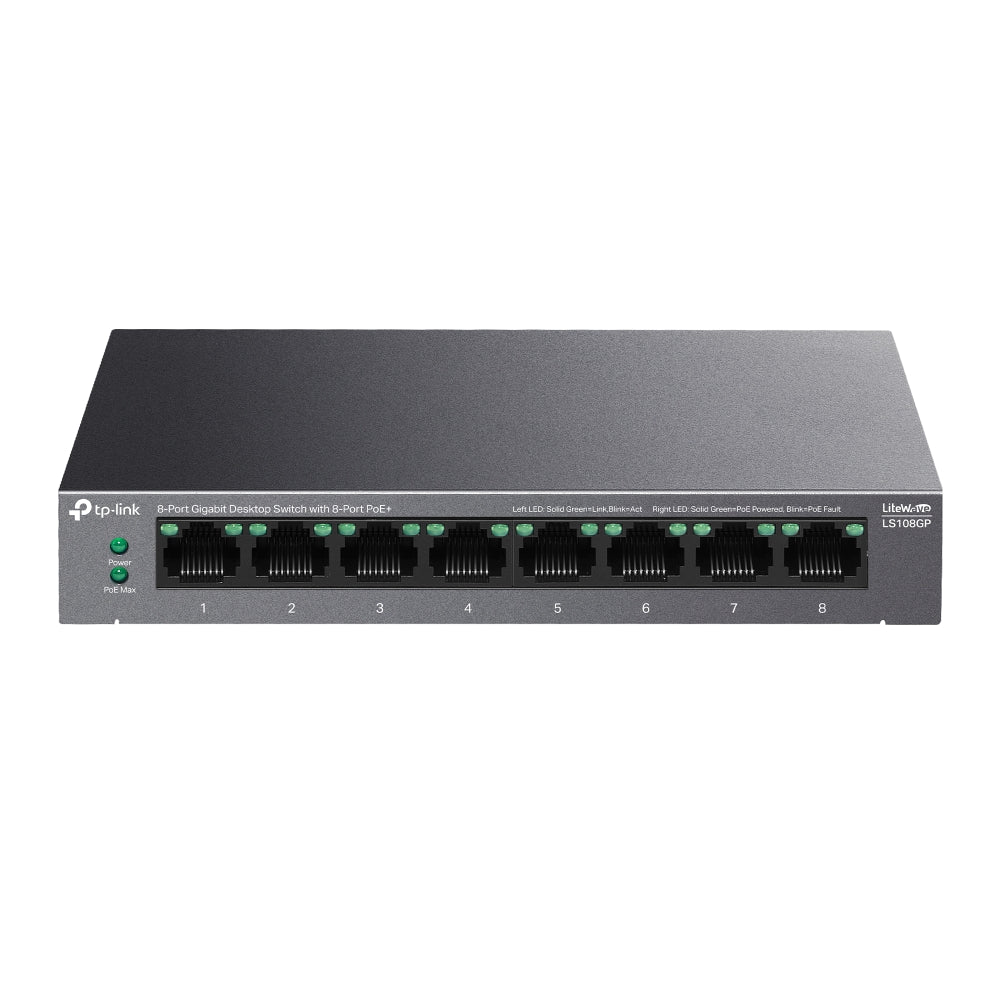

TP-Link LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+ | 62W 250M with Extend Mode

Description

• Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.

• 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

• Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.

• Plug and Play: Simply plug and play for instant connectivity with no configuration required.

• Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

• Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Specifications

Interface

• 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

Installation

• Desktop

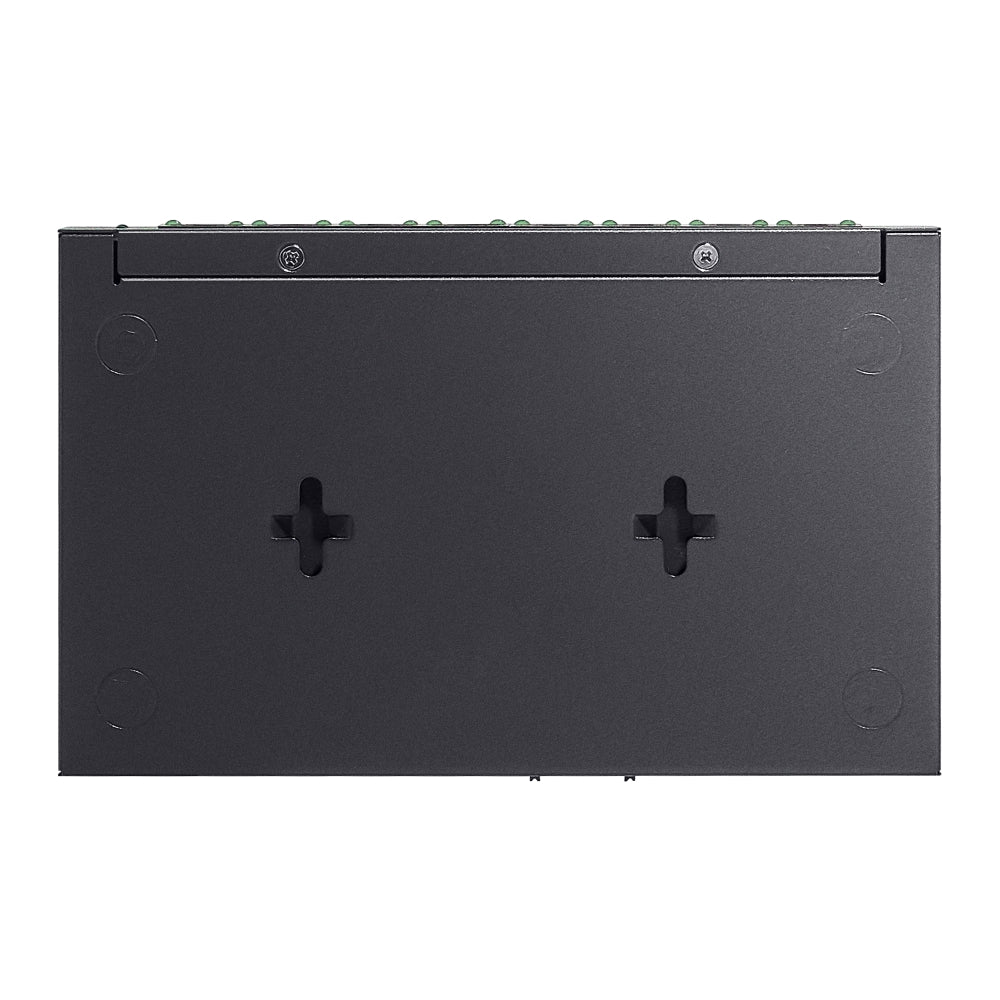

• Wall Mounting

Power Supply - External Power Adapter (Output: 53.5 VDC / 1.31 A)

PoE Ports (RJ45)

• Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–8, up to 30 W PoE output per port

• PoE Budget: 62 W

Max Power Consumption

• 5.53 W (220 V/50 Hz. no PD connected)

• 71.61 W (220 V/50 Hz. with 62 W PD connected)

Max Heat Dissipation

• 18.81 BTU/h (220 V/50 Hz. no PD connected)

• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)

Switching Capacity - 16 Gbps

Advanced Features

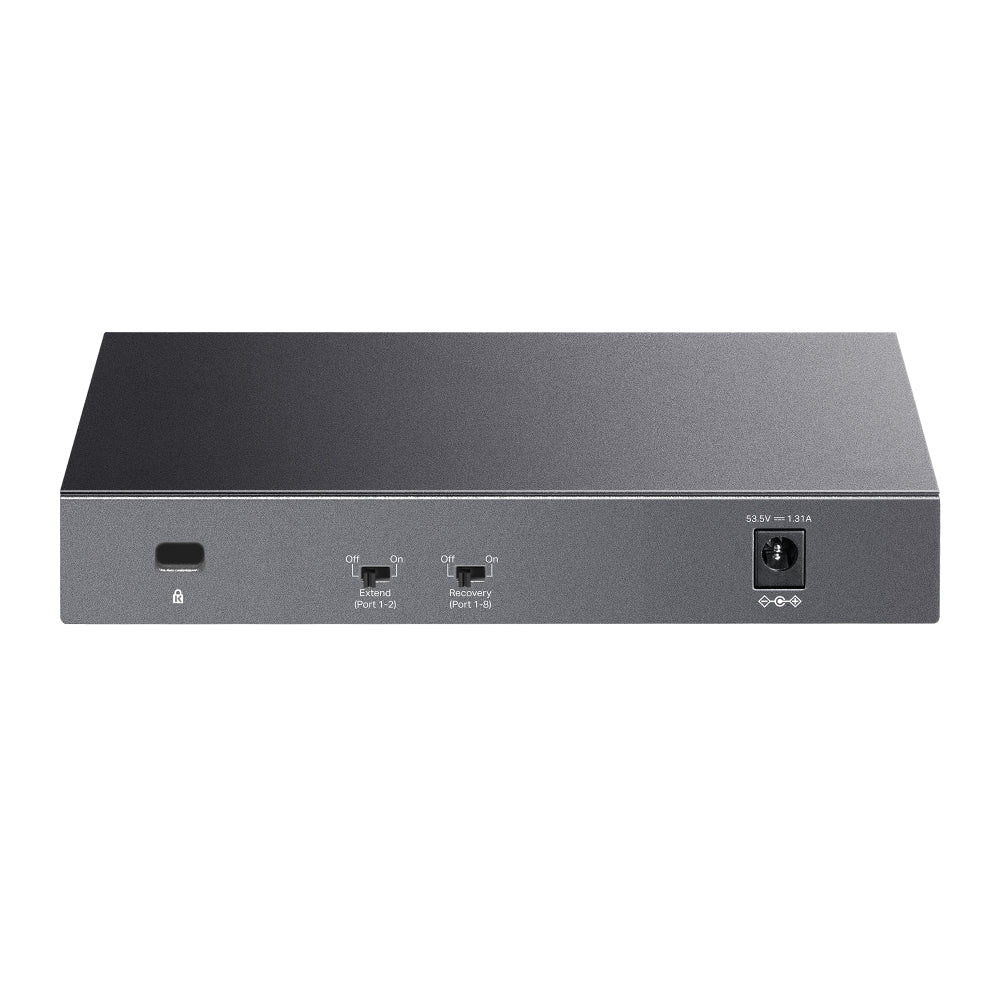

• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)

• PoE Auto Recovery Button (Ports 1-8)

• Mac Address Auto-Learning and Auto-Aging

• IEEE 802.3x Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping

• Green Technology

Package Contents

• LS108GP

• Power Adapter

• Installation Guide

Warranty

• 3 Year Brand Warranty

Manufacturer Info

• Manufactured By : Big Field Global Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987

• Imported By : TP-Link India Pvt Ltd, Andheri, Mumbai

• Country Of Origin : China
