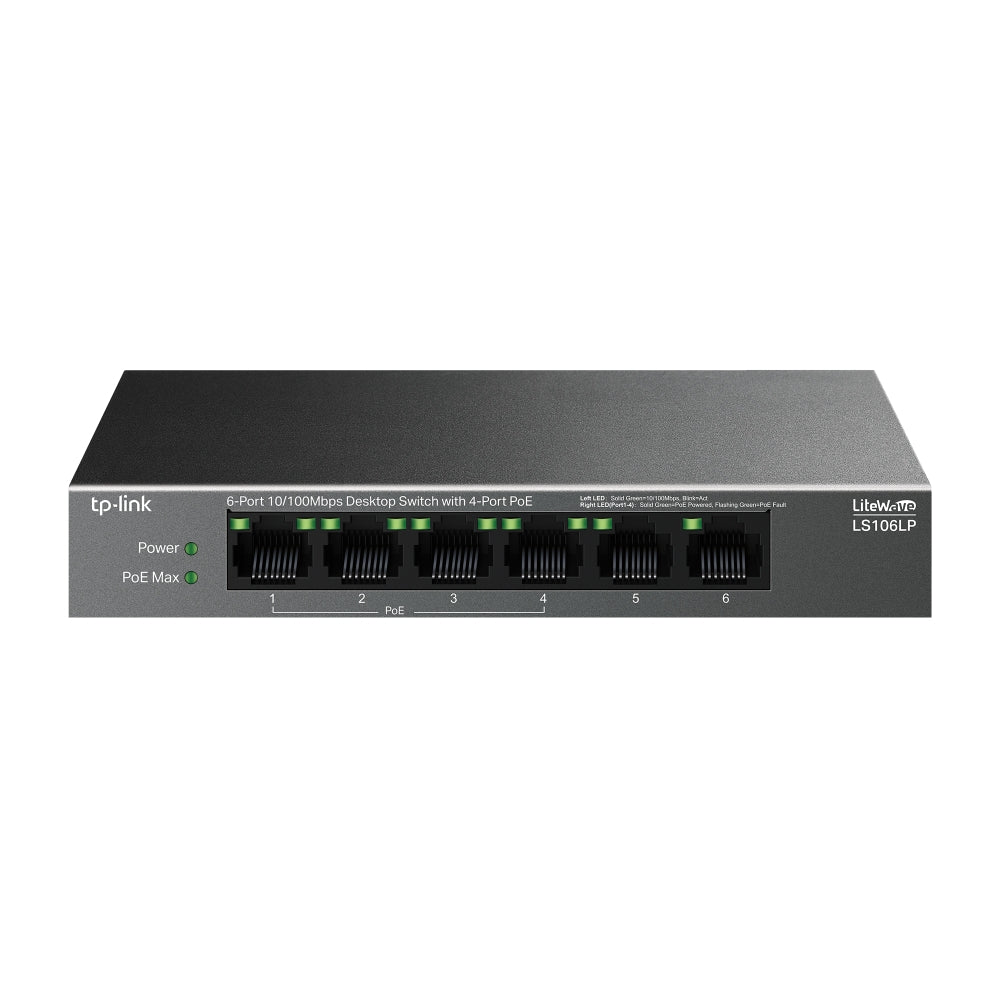

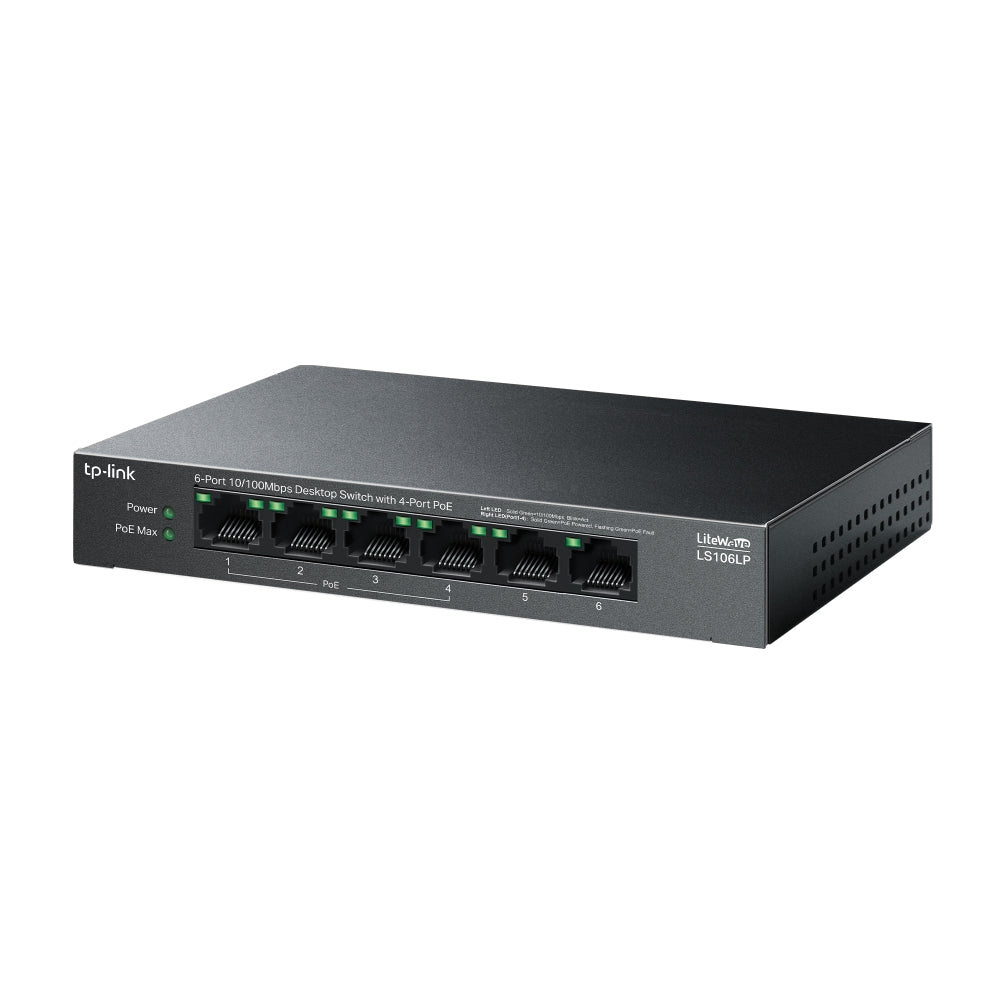

TP-Link LS106LP 6-Port 10/100Mbps Desktop 41W POE Switch with 4-Port PoE + 2 Uplink RJ45 Ports | 250M Support

Description

• 41 W PoE Budget: Four 10/100 Mbps 802.3af-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 15.4 W PoE output is supported by each PoE port.*

• Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.

• Plug and Play: Simply plug and play for instant connectivity with no configuration required.

• Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

• Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Specifications

HARDWARE FEATURES

Interface

•  6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)

•  AUTO Negotiation

•  AUTO MDI/MDIX

Network Media

•  10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity - Fanless

Installation

•  Desktop

•  Wall Mounting

Power Supply - External Power Adapter (Output: 53.5VDC / 0.81A)

PoE Ports (RJ45)

•  Standard: 802.3 af compliant

•  PoE Ports: Ports 1–4, up to 15.4 W PoE output per port

•  Power Supply: 41 W

LED Indicator

•  Power

•  Link/Act

•  PoE Status

•  PoE MAX

Dimensions ( W x D x H ) - 6.2×4.0×1.0 in (158×101×25 mm)

Max Power Consumption

•  2.53 W (220 V/50 Hz no PD connected)

•  47.76 W (220 V/50 Hz with 41 W PD connected)

Max Heat Dissipation

•  8.61 BTU/h (220 V/50 Hz no PD connected)

•  162.38 BTU/h (220 V/50 Hz with 41 W PD connected)

PERFORMANCE

• Switching Capacity - 1.2 Gbps

• Packet Forwarding Rate - 0.8928 Mpps

• MAC Address Table - 2K

• Jumbo Frame    2 KB

SOFTWARE FEATURES

Advanced Features

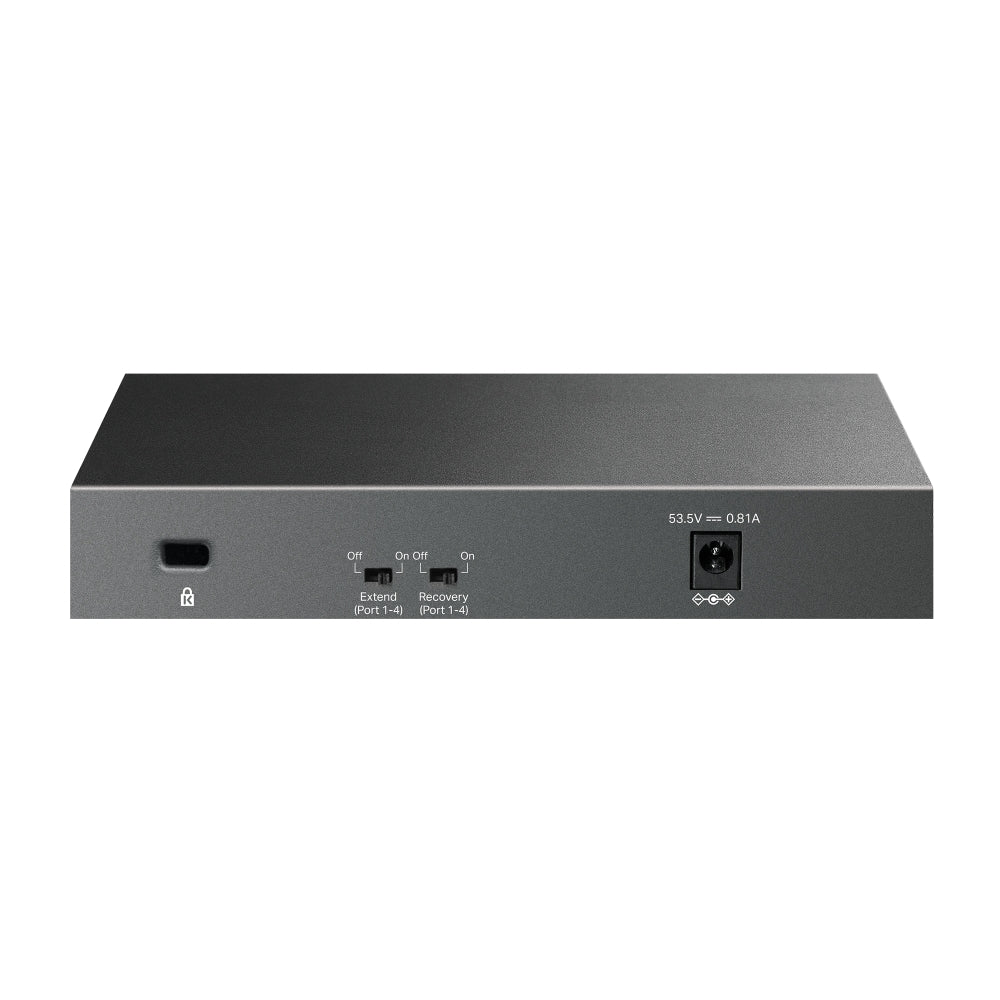

• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)

• PoE Auto Recovery Button (Ports 1-4)

• Compatible With IEEE 802.3af Compliant PDs

• Mac Address Auto-Learning and Auto-Aging

• IEEE 802.3x Flow Control

• Green Technology

Transfer Method - Store and Forward

Package Contents

•  LS106LP

•  Power Adapter

•  Installation Guide

Warranty

• 3 Year Brand Warranty

Manufacturer Info

• Manufactured By : Big Field Global Pte. Ltd. 7 TEMASEK BOULEVARD #29 - 03 SUNTEC TOWER ONE SINGAPORE 038987

• Imported By : TP-Link India Pvt Ltd, Andheri, Mumbai

• Country Of Origin : China
