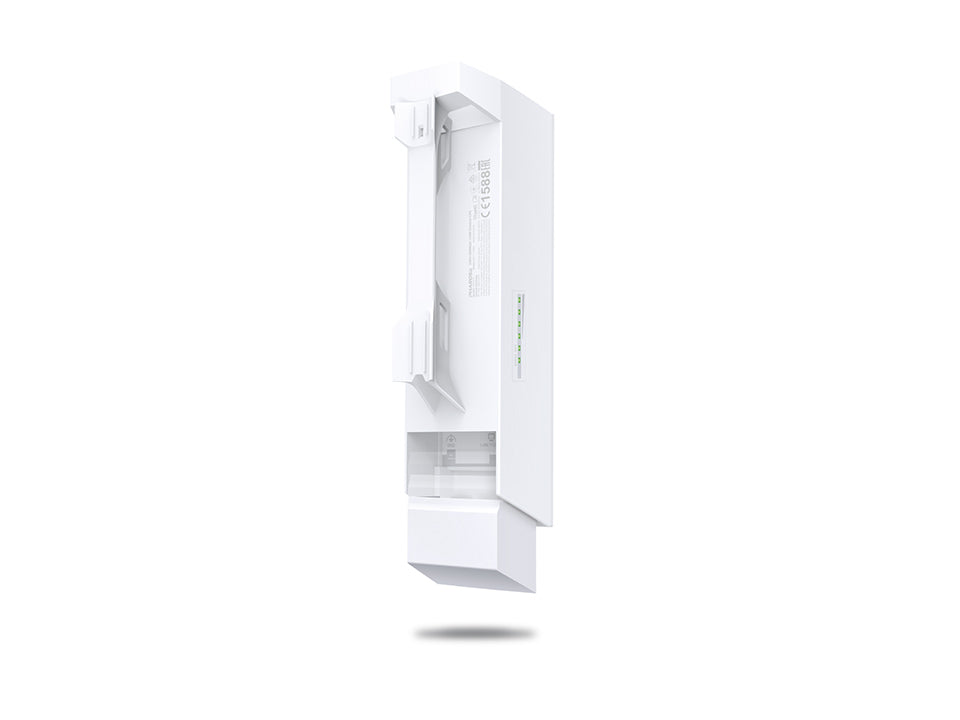

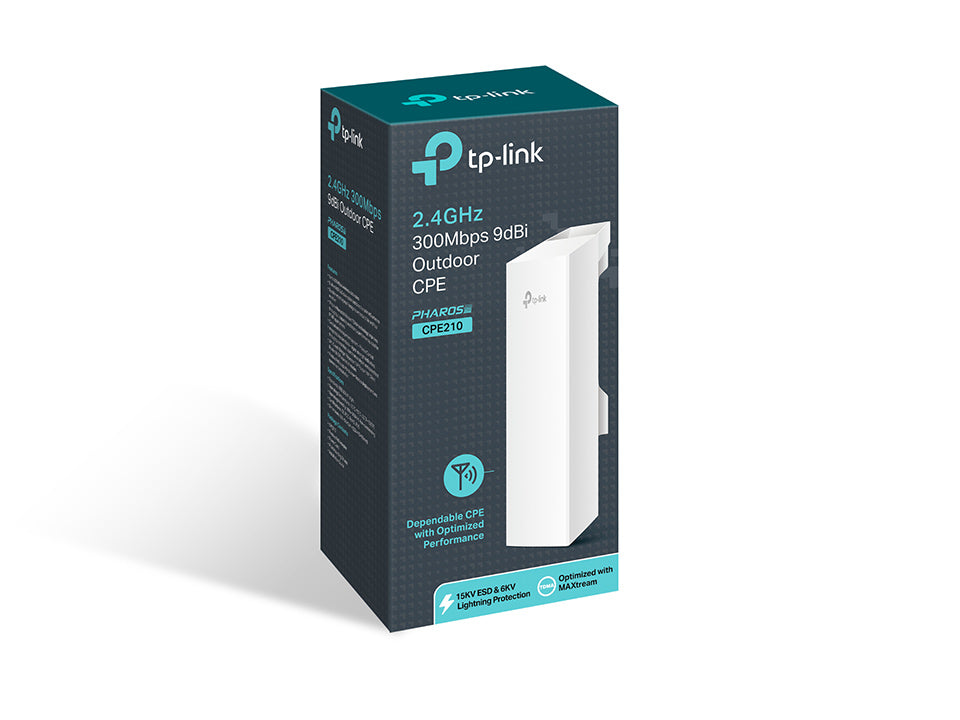

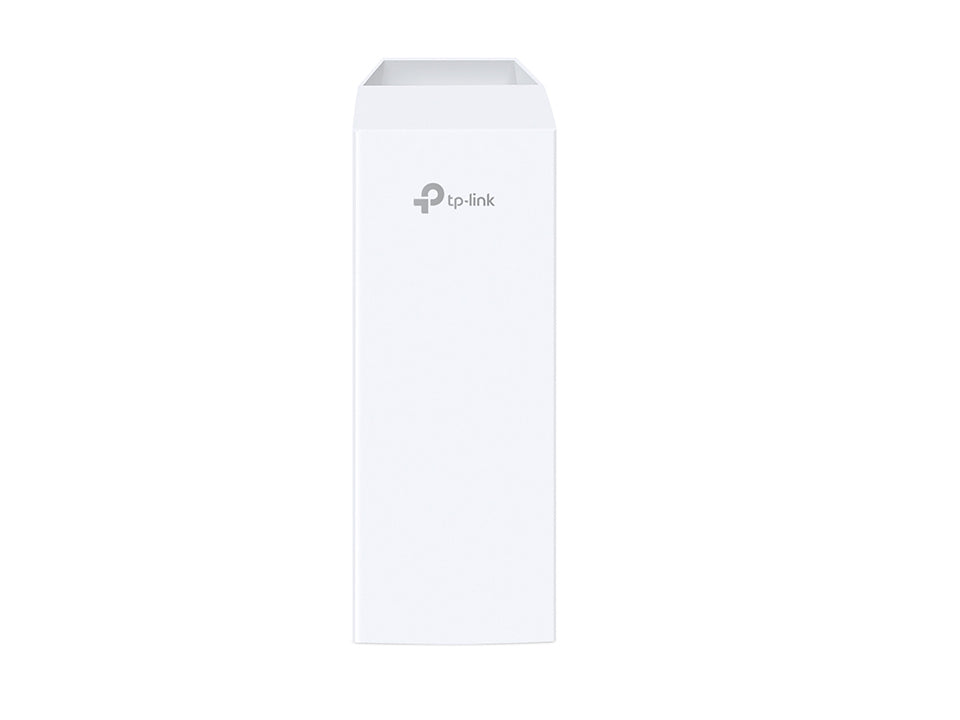

TP-Link CPE210 2.4GHz 300Mbps 9dBi Pharos Outdoor CPE with 2x2 dual-polarized directional MIMO antenna

Description

• Built-in 9dBi 2x2 dual-polarized directional MIMO antenna

• Adjustable transmission power from 0 to 25dBm/500mw

• System-level optimizations for more than 5km long range wireless transmission

• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency
• performance, ideal for PTMP applications

• Centralized Management System – Pharos Control

• AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes

• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Specifications

Processor - Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory - 64MB DDR2 RAM, 8MB Flash

Interface

• 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

• 1 Grounding Terminal

• 1 Reset Button

Power Supply

• Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

• Voltage range: 16-27VDC

Power Consumption - 5 Watts Max

Antenna Type

• Built-in 9dBi 2x2 Dual-polarized Directional Antenna

• Beam Width: 65° (H-Plane) / 35° (E-Plane)

Protection

• 15KV ESD Protection

• 6KV Lightning Protection

Enclosure

• Outdoor ASA stabilized plastic material

• IPX5 waterproof Certification

Wireless Standards - IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol - TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds

• Up to 300Mbps (40MHz,Dynamic)

• Up to 144.4Mbps (20MHz,Dynamic)

• Up to 72.2Mbps (10MHz,Dynamic)

• Up to 36.1Mbps (5MHz,Dynamic)

Management

• Discovery and Remote Management via Pharos Control application

• HTTP/HTTPS Web-based management

• System Log

• SNMP Agent(v2c)

• Ping Watch Dog

• Dynamic DDNS

• SSH Server

Power Status LEDs - Green

Package Contents

• Outdoor Wireless CPE

• 24V 0.6A Passive PoE Adapter

• Pole Mounting Straps

• AC Power Cord

• Installation Guide

Warranty

• 3 Year Brand Warranty

Manufacturer Info

• Manufactured by : Pacific Cyber Technology Pvt. Ltd. 51-57, Sliver Industrial Estate, Bhimpore, Nani Daman - 396210

• Country Of Origin : India
