Mikrotik RB5009UG+S+IN 9 Port Router Board | 7 x 1GE, 1 x 2.5G, 1 x 10 – BOXNUBE
40% Rs. 14,000.00

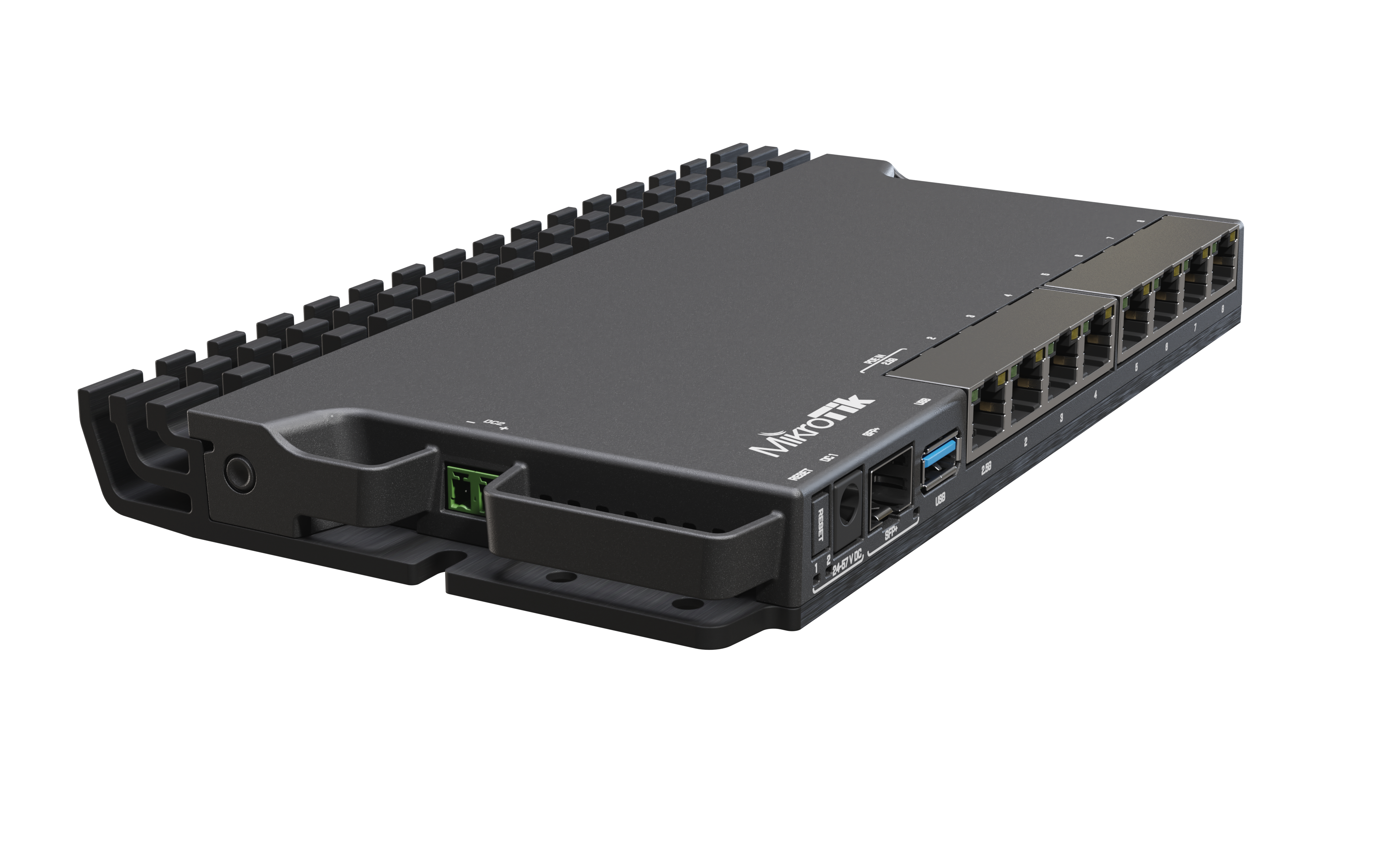

Mikrotik RB5009UG+S+IN 9 Port Router Board | 7 x 1GE, 1 x 2.5G, 1 x 10G SFP+ , 1 x USB 3.0 Ports
Mikrotik RB5009UG+S+IN 9 Port Router Board | 7 x 1GE, 1 x 2.5G, 1 x 10G SFP+ , 1 x USB 3.0 Ports
Mikrotik RB5009UG+S+IN 9 Port Router Board | 7 x 1GE, 1 x 2.5G, 1 x 10G SFP+ , 1 x USB 3.0 Ports
Mikrotik RB5009UG+S+IN 9 Port Router Board | 7 x 1GE, 1 x 2.5G, 1 x 10G SFP+ , 1 x USB 3.0 Ports
MikroTik

Mikrotik RB5009UG+S+IN 9 Port Router Board | 7 x 1GE, 1 x 2.5G, 1 x 10G SFP+ , 1 x USB 3.0 Ports

Available:
Only 50 items in stock
50 items in stock
In stock
Pre-order
Out of stock
  • Boards come with 1GB of DDR4 RAM and 1GB NAND storage.
  • PoE-in from Ethernet port.
  • You can mount FOUR of these routers in a single 1U rackmount space.
Rs. 20,999.00
Rs. 34,999.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
Description
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

Specifications

Details
Product code RB5009UG+S+IN
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 25 W
Max power consumption without attachments 14 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V

Ethernet

Details
10/100/1000 Ethernet ports 7
Number of 2.5G Ethernet ports 1

Fiber

Details
SFP+ ports 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5

Other

Details
CPU temperature monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS

Package Contents
  • 1 x Router
  • 1 x Power Adapter
Warranty
  • 1 Year Brand Warranty
Manufacturer Info
  • Manufactured By : Mikrotikls SIA, Unijas iela 2, Riga, Latvia.
  • Imported By : VT, New Delhi, INDIA.
  • Country Of Origin : Vietnam
